Toyota Camry/aurion/hv(arl) ACV40 HEATING & AIR CONDITIONING - COOLER UNIT

Part #	Description	Period	Qty
82210K - HARNESS ASSY, AIR CONDITIONER
82212-06080	ACV40,GSV40..(ATEVA,GD,PRD,PRE,SPVZ)..ARL	06/2006 - 08/2009	1
82212-06080	ACV40,AHV40,GSV40..(ATEVA,GD,HBD,PRD,PRE,SPV,SPVS,SPVZ)..ARL	06/2009 - 10/2011	1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-06470	ACV40,GSV40..ATEVA,GD,PRD,PRE,SPVZ	06/2006 - 08/2007	1
87050-06471	ACV40,GSV40..ATEVA,GD,PRD,PRE,SPV,SPVS,SPVZ	06/2009 - 12/2999	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-06070	ACV40,GSV40..ARL	06/2006 - 03/2009	1
87103-06071	ACV40,AHV40,GSV40..ARL	06/2009 - 12/2999	1
87106D - SERVO SUB-ASSY, DAMPER, NO.1
87106-06200	ACV40..ARL	06/2006 - 06/2009	1
87106-06200	ACV40,AHV40,GSV40..ARL	06/2009 - 12/2999	1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-06190	ACV40,AHV40,GSV40..ATEVA,GD,HBD,PRD,PRE,SPV,SPVS,SPVZ	06/2009 - 12/2999	1
87106-06190	ACV40..ATEVA,GD	06/2006 - 06/2009	1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-06181	ACV40,AHV40,GSV40	06/2009 - 12/2999	1
87106-06180	ACV40,GSV40	06/2006 - 08/2007	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-06070	ACV40	06/2006 - 06/2009	1
87107-06070	ACV40,AHV40,GSV40	06/2009 - 12/2999	1
87130D - BLOWER ASSY
87130-06300	ACV40..ARL	06/2006 - 06/2009	1
87130-06300	ACV40,AHV40,GSV40..ARL	06/2009 - 12/2999	1
87139C - FILTER, CLEAN AIR
87139-06050	ACV40	06/2006 - 06/2009	1
87139-06050	ACV40,AHV40,GSV40	06/2009 - 12/2999	1
87286 - CABLE, CONTROL
87286-8Y003	ACV40,AHV40,GSV40	06/2009 - 12/2999	1
87286-8Y003	ACV40	06/2006 - 06/2009	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-06060	ACV40	06/2006 - 06/2009	1
88501-06260	ACV40,GSV40	08/2011 - 10/2011	1
88501-06060	ACV40,GSV40	06/2009 - 07/2011	1
88515 - VALVE, COOLER EXPANSION
88515-06060	ACV40	06/2006 - 06/2009	1
88515-06060	ACV40,AHV40,GSV40	06/2009 - 12/2999	1
88539J - HOSE, DRAIN COOLER
88539-06100	ACV40,AHV40,GSV40	06/2009 - 12/2999	1
88539-06100	ACV40	06/2006 - 06/2009	1
88625 - THERMISTOR, COOLER, NO.1
88625-33190	ACV40,GSV40	06/2006 - 09/2007	1
88620-06050	ACV40,AHV40,GSV40	06/2009 - 12/2999	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-06150	ACV40..ATEVA,GD	06/2006 - 02/2007	1
88650-06370	ACV40..ATEVA,GD,SPV	06/2009 - 11/2010	1
88650-06371	ACV40..ATEVA,GD,SPV	12/2010 - 12/2999	1
88899L - PARTS, COOLING UNIT
88578-8Y001	ACV40,AHV40,GSV40	06/2009 - 08/2011	1
88899-06120	ACV40,AHV40,GSV40	08/2011 - 10/2011	1
88578-8Y001	ACV40,GSV40	06/2006 - 08/2009	1
88899M - PLATE, COVER(FOR AIR FILTER)
88899-06060	ACV40,AHV40,GSV40	06/2009 - 12/2999	1
88899-06060	ACV40	06/2006 - 06/2009	1
Common parts
87124-06080
87124-06090
90099-00968
90099-04542
90099-8Y004
90159-50267
90159-60383
90179-06282
90480-01696
90480-26030
91631-B0616
94900-8Y001
94900-8Y002
94900-8Y003

ACV40R-DEAGKQ (2009)

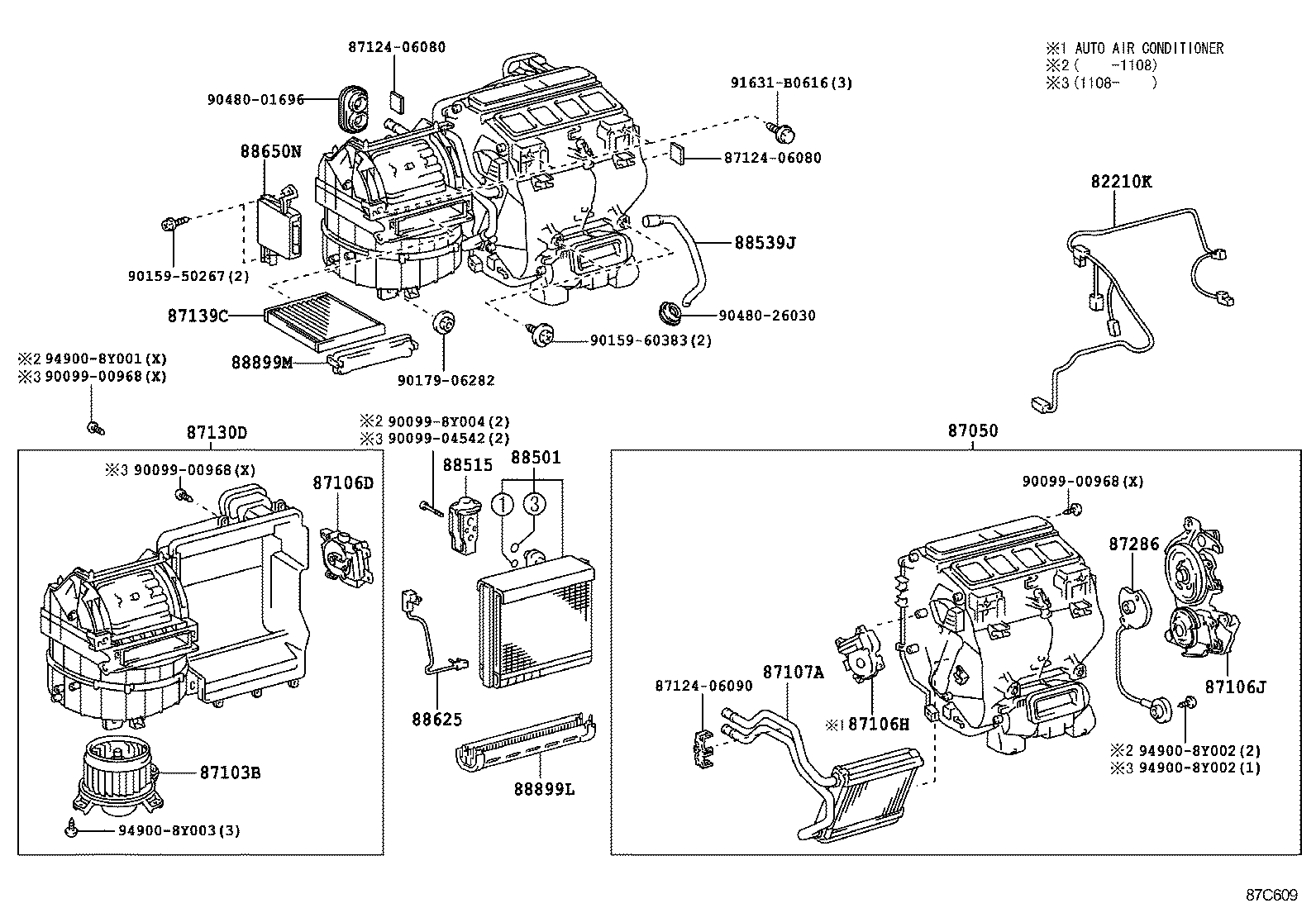

ILLUST NO. 1 OF 2(0906- )ACV40..ARL ; (0908- )GSV40..ARL
