ACV40R-DEADKQ (2006)

Toyota Camry/Aurion/Hv(Arl)

Production Jun 2006 - Jun 2009
Engine 2AZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

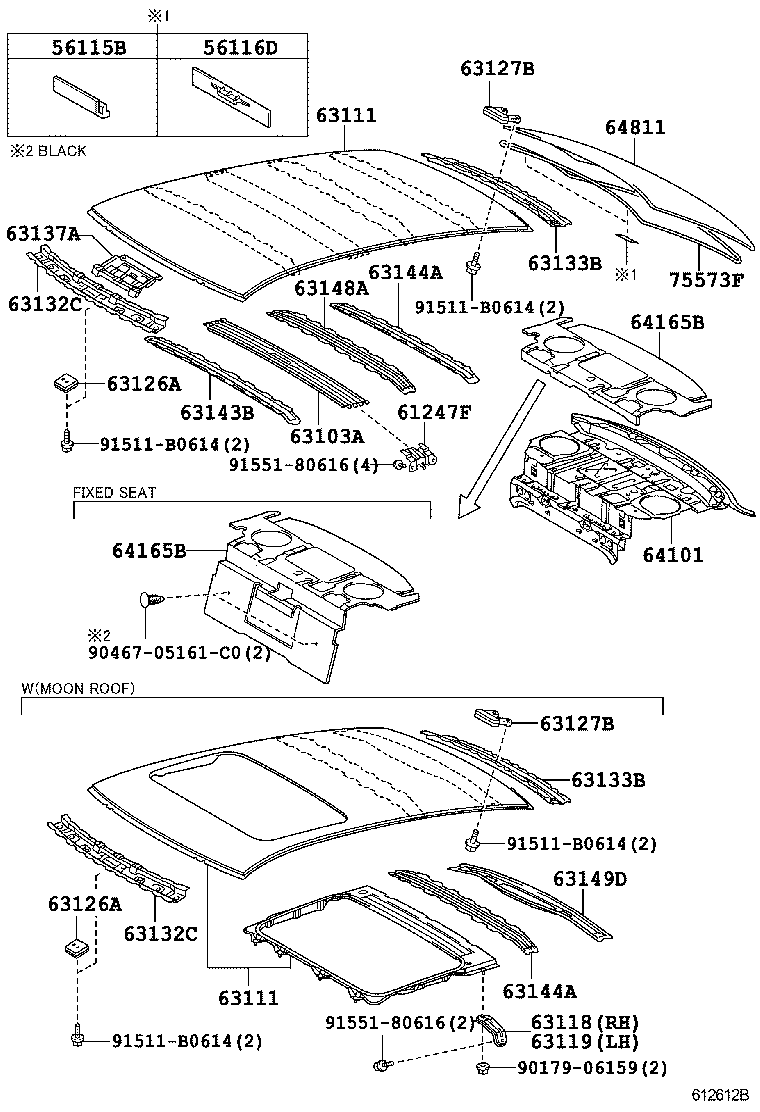

ILLUST NO. 1 OF 2(0606- )

Click highlighted areas on diagram

diagram 56115B 56116D 61247F 63103A 63111 63111 63118 63119 63126A 63126A 63127B 63127B 63132C 63132C 63133B 63133B 63137A 63143B 63144A 63144A 63148A 63149D 64101 64165B 64165B 64811 75573F 9017906159 9046705161C0 91511B0614 91511B0614 91511B0614 91511B0614 9155180616 9155180616
Part # Description Qty Price
56115B - STOPPER, BACK WINDOW GLASS, NO.1
56115-30120

ACV40

 1
56116D - STOPPER, BACK WINDOW GLASS, NO.2
56116-22050

ACV40

 1
61247F - REINFORCEMENT, ROOF SIDE RAIL, INNER
61247-33010

ACV40..ALT,ATEVA,GL,GLX,SE,SPV

 2
63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL
63103-06060

ACV40..ALT,ATEVA,GL,GLX,SE,SPV

 1
63111 - PANEL, ROOF
63111-06360

ACV40..ALT,ATEVA,GL,GLX,SE,SPV

 1
63111 - PANEL, ROOF
63111-06360

ACV40..ALT,ATEVA,GL,GLX,SE,SPV

 1
63126A - DAMPER, WINDSHIELD HEADER PANEL
63126-33020

ACV40

 1
63126A - DAMPER, WINDSHIELD HEADER PANEL
63126-33020

ACV40

 1
63127B - DAMPER, BACK WINDOW UPPER FREME
63127-33020

ACV40

 1
63127B - DAMPER, BACK WINDOW UPPER FREME
63127-33020

ACV40

 1
63132C - PANEL, WINDSHIELD HEADER, INNER
63132-33070

ACV40

 1
63132C - PANEL, WINDSHIELD HEADER, INNER
63132-33070

ACV40

 1
63133B - FRAME, BACK WINDOW
63133-06070

ACV40

 1
63133B - FRAME, BACK WINDOW
63133-06070

ACV40

 1
63137A - BRACKET, DOME LAMP, NO.1
63137-33090

ACV40..ALT,ATEVA,GL,GLX,SE,SPV

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-33080

ACV40..ALT,ATEVA,GL,GLX,SE,SPV

 1
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63144-33110

ACV40..ALT,ATEVA,GL,GLX,SE,SPV

 1
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63144-33110

ACV40..ALT,ATEVA,GL,GLX,SE,SPV

 1
63148A - REINFORCEMENT, ROOF PANEL, NO.7
63148-33030

ACV40..ALT,ATEVA,GL,GLX,SE,SPV

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-06190

ACV40

 1
64165B - COVER, UPPER BACK PANEL HOLE, NO.1
64165-06100

ACV40

 1
64165B - COVER, UPPER BACK PANEL HOLE, NO.1
64165-06100

ACV40

 1
64811 - GLASS, BACK WINDOW
64811-06220

ACV40

*EHT,T=3.5,GREEN

 1
75573F - MOULDING, BACK WINDOW, OUTSIDE
75573-33020

ACV40

 1
Common parts
90179-06159
90467-05161C0
91511-B0614
91551-80616

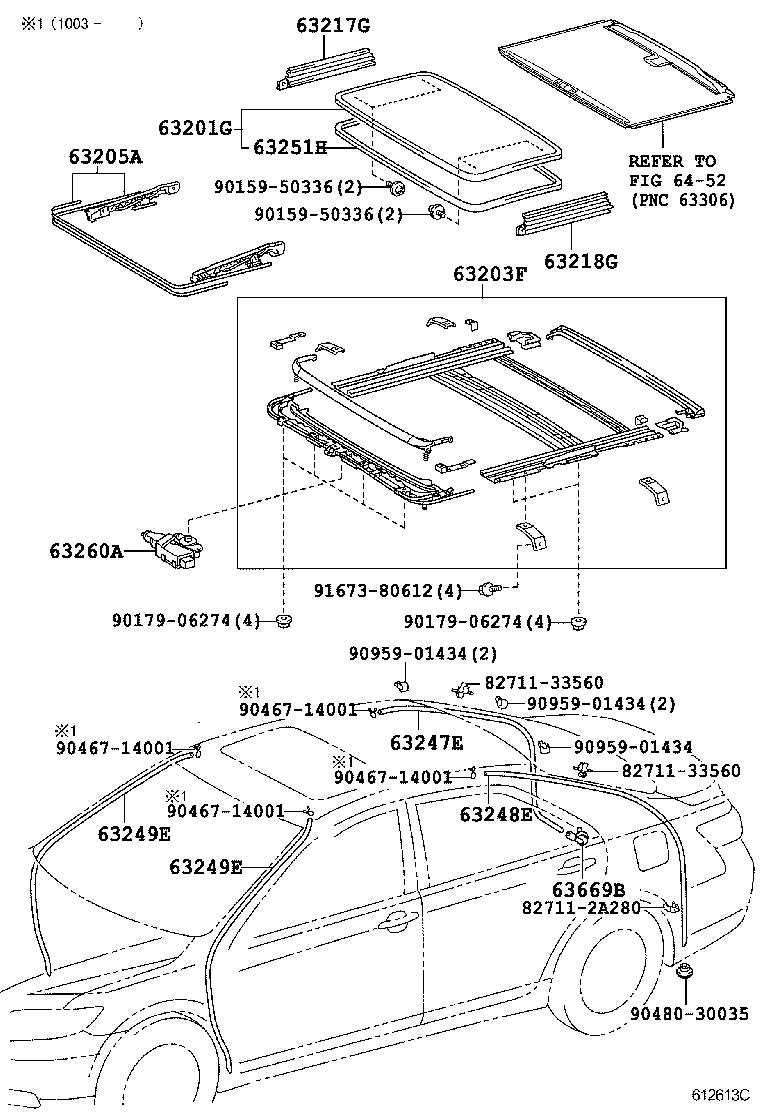

ILLUST NO. 2 OF 2(0606- )

Click highlighted areas on diagram

W(MOON ROOF)

diagram 63201G 63203F 63205A 63217G 63218G 63247E 63248E 63249E 63249E 63251H 63260A 63669B 6452 827112A280 8271133560 8271133560 9015950336 9015950336 9017906274 9017906274 9046714001 9046714001 9046714001 9046714001 9048030035 9095901434 9095901434 9095901434 9167380612
Part # Description Qty Price
Common parts
82711-2A280
82711-33560
90159-50336
90179-06274
90467-14001
90480-30035
90959-01434
91673-80612
Linked diagrams
6452
