ACV40L-DEMSKV (2009)

Toyota Camry/Aurion/Hv(Arl)

Production Jun 2009 - Oct 2011
Engine 2AZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0606-1107)ACV40,GSV40..ARL ; (0906-1107)ACV40..GCC ; (0908-1107)GSV40..GCC ; (1107

Click highlighted areas on diagram

TYPE A

diagram 04495A 04496 04496A 04497 46510 46520B 46552A 46593
Part # Description Qty Price
04495A - SHOE KIT, PARKING BRAKE
04495-06050

ACV40..ARL;ACV40..5F..GCC

 1
04496 - DUST COVER KIT, PARKING BRAKE, RH
04496-8Y003

ACV40..ARL;ACV40..5F..GCC

 1
04496A - DUST COVER KIT, PARKING BRAKE, LH
04496-8Y004

ACV40..ARL;ACV40..5F..GCC

 1
04497 - LEVER KIT, PARKING BRAKE
04497-8Y001

ACV40..ARL;ACV40..5F..GCC

 2
46510 - BRAKE ASSY, PARKING, RH
46510-06050

ACV40,GSV40

 1
46520B - BRAKE ASSY, PARKING, LH
46520-06050

ACV40,GSV40

 1
46552A - PLATE, PARKING BRAKE SHOE HOLD
46552-06020

ACV40,GSV40

 2
46593 - BOLT, PARKING BRAKE SHOE HOLD
46593-06050

ACV40,GSV40

 2

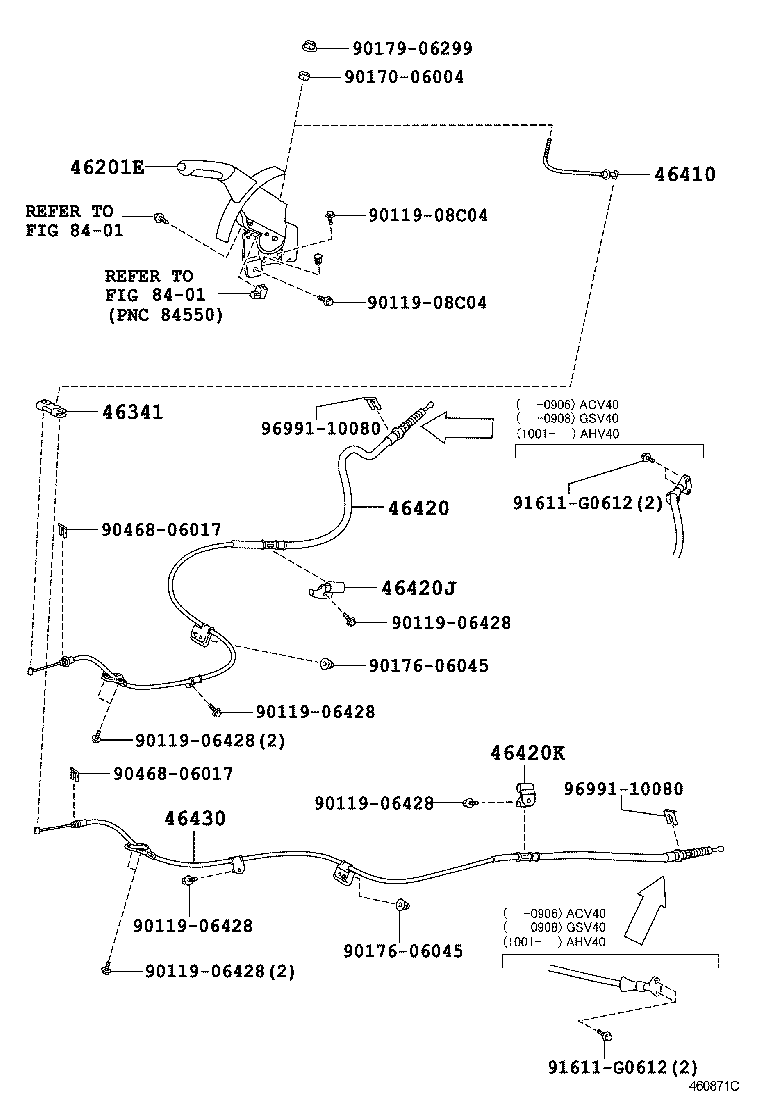

ILLUST NO. 1 OF 2(0606-1107)5F..GCC ; (0606-1107)ACV40..ARL ; (1001- )AHV40

Click highlighted areas on diagram

diagram 46201E 46341 46410 46420 46420J 46420K 46430 8401 8401 9011906428 9011906428 9011906428 9011906428 9011906428 9011906428 9011908C04 9011908C04 9017006004 9017606045 9017606045 9017906299 9046806017 9046806017 91611G0612 91611G0612 9699110080 9699110080
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-06162B0

ACV40..5F..SE;ACV40..ATEVA,GD,SPV

DK.GRAY,TRIM1#

 1
46201-06162B0

ACV40..5F..SE

DK.GRAY,TRIM4#

 1
46341 - EQUALIZER, PARKING BRAKE
46341-33030

ACV40

 1
46341-33030

ACV40,AHV40,GSV40

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-06101

ACV40..ARL;ACV40..5F..GCC

 1
46410-06102

ACV40..5F..GCC;ACV40,AHV40..ARL

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-33140

ACV40..ARL;ACV40..5F..GCC

TYPE B:REFER ILLUST.

 1
46420-33140

ACV40..5F..GCC

 1
46420-06121

ACV40..ARL;ACV40..5F..GCC

TYPE A:REFER ILLUST.

 1
46420-06121

ACV40..ARL;ACV40..5F..GCC

 1
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
90949-01C61

ACV40,AHV40,GSV40

 1
90949-01C61

ACV40

 1
46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE)
90949-01C62

ACV40

 1
90949-01C62

ACV40,AHV40,GSV40

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-33140

ACV40..5F..GCC

 1
46430-06121

ACV40..ARL;ACV40..5F..GCC

TYPE A:REFER ILLUST.

 1
46430-06121

ACV40..ARL;ACV40..5F..GCC

 1
46430-33140

ACV40..ARL;ACV40..5F..GCC

TYPE B:REFER ILLUST.

 1
Common parts
90119-06428
90119-08C04
90170-06004
90176-06045
90179-06299
90468-06017
91611-G0612
96991-10080
Linked diagrams
8401

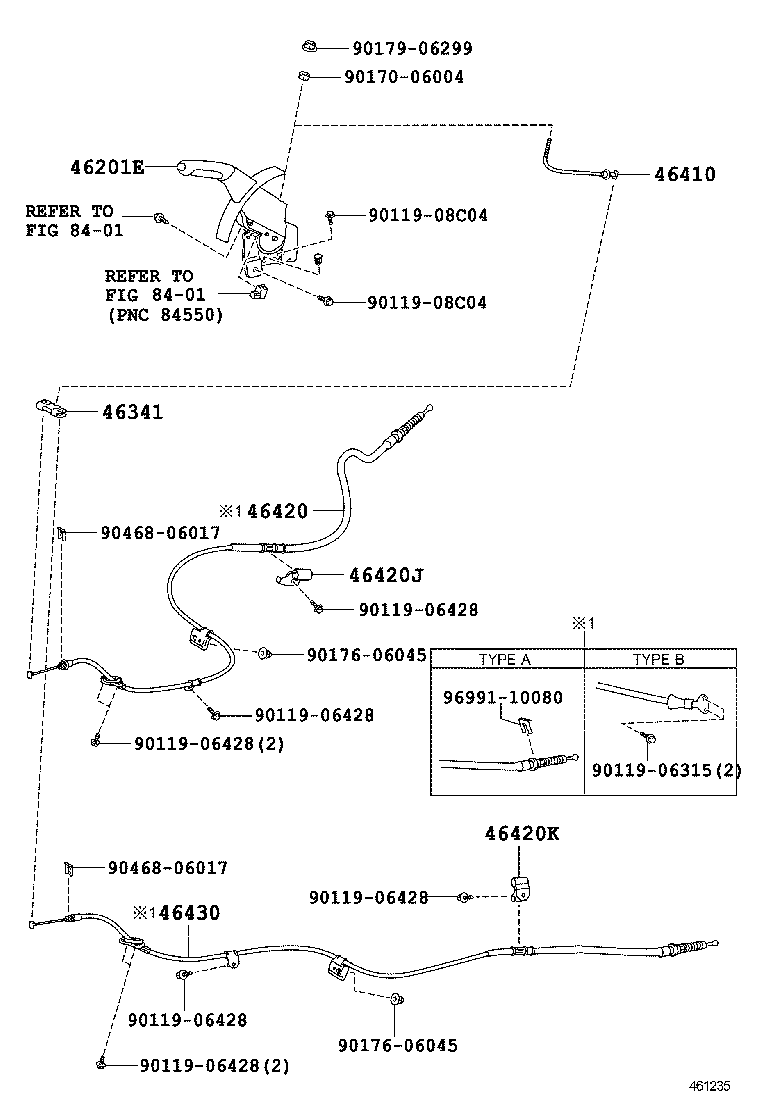

ILLUST NO. 1 OF 2(1107- )5F..GCC ; (1107- )ACV40..ARL

Click highlighted areas on diagram

diagram 46201E 46341 46410 46420 46420J 46420K 46430 8401 8401 9011906315 9011906428 9011906428 9011906428 9011906428 9011906428 9011906428 9011908C04 9011908C04 9017006004 9017606045 9017606045 9017906299 9046806017 9046806017 9699110080
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-06162B0

ACV40..5F..SE;ACV40..ATEVA,GD,SPV

DK.GRAY,TRIM1#

 1
46201-06162B0

ACV40..5F..SE

DK.GRAY,TRIM4#

 1
46341 - EQUALIZER, PARKING BRAKE
46341-33030

ACV40

 1
46341-33030

ACV40,AHV40,GSV40

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-06101

ACV40..ARL;ACV40..5F..GCC

 1
46410-06102

ACV40..5F..GCC;ACV40,AHV40..ARL

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-33140

ACV40..ARL;ACV40..5F..GCC

TYPE B:REFER ILLUST.

 1
46420-33140

ACV40..5F..GCC

 1
46420-06121

ACV40..ARL;ACV40..5F..GCC

TYPE A:REFER ILLUST.

 1
46420-06121

ACV40..ARL;ACV40..5F..GCC

 1
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
90949-01C61

ACV40,AHV40,GSV40

 1
90949-01C61

ACV40

 1
46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE)
90949-01C62

ACV40

 1
90949-01C62

ACV40,AHV40,GSV40

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-33140

ACV40..5F..GCC

 1
46430-06121

ACV40..ARL;ACV40..5F..GCC

TYPE A:REFER ILLUST.

 1
46430-06121

ACV40..ARL;ACV40..5F..GCC

 1
46430-33140

ACV40..ARL;ACV40..5F..GCC

TYPE B:REFER ILLUST.

 1
Common parts
90119-06315
90119-06428
90119-08C04
90170-06004
90176-06045
90179-06299
90468-06017
96991-10080
Linked diagrams
8401
