Toyota Camry/aurion/hv(arl) ACV40 REAR LICENSE PLATE LAMP

Home Blog About Contact Search

ACV40L-DEMSKV (2006)

Toyota Camry/Aurion/Hv(Arl)

Production Jun 2006 - Jun 2009

Engine 2AZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

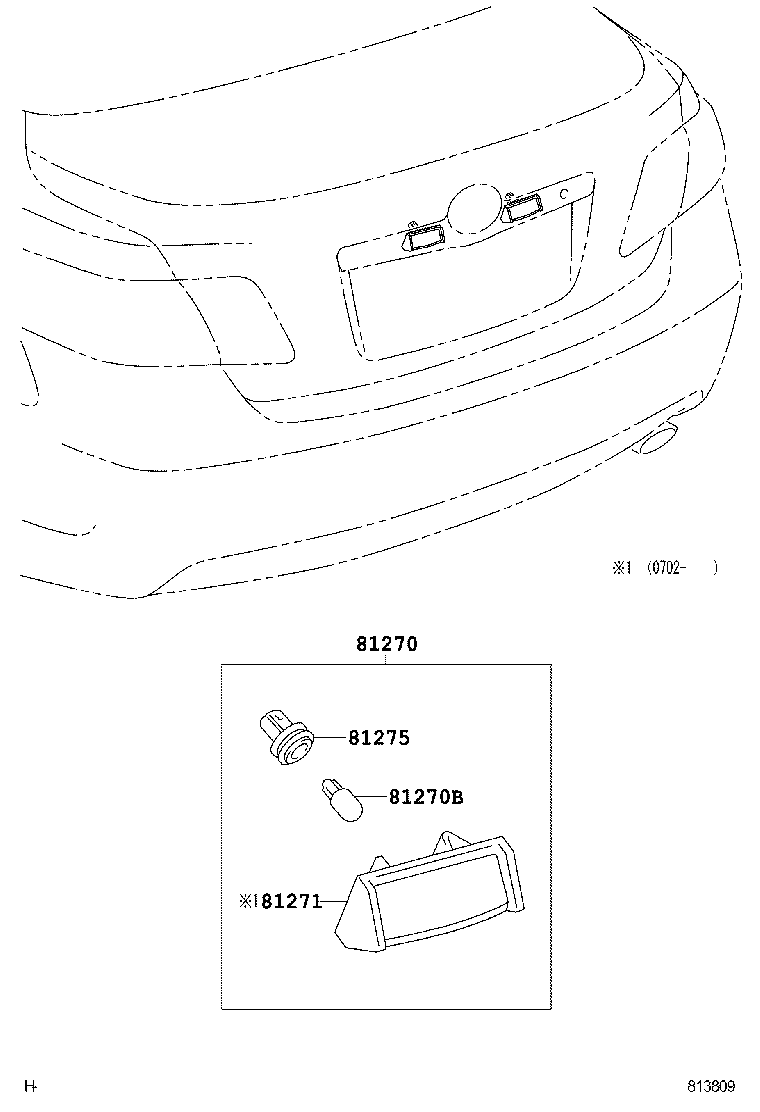

Click highlighted areas on diagram

Part #	Description	Period	Qty
81270 - LAMP ASSY, LICENSE PLATE
81270-YC060	ACV40	06/2006 - 01/2007	2
81270-06052	ACV40	02/2007 - 06/2009	2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050	ACV40 12V 5W	02/2007 - 06/2009	2
84999-YC010	ACV40 12V 5W	06/2006 - 02/2007	2
81271 - LENS, LICENSE PLATE LAMP
81271-06050	ACV40	02/2007 - 06/2009	2
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
81515-8Y001	ACV40	06/2006 - 02/2007	2
90075-99005	ACV40	02/2007 - 06/2009	2
