ACV40L-DEMNKV (2006)
Toyota Camry/Aurion/Hv(Arl)
Production
Jun 2006
-
Jun 2009
Engine
2AZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0606- )GCC

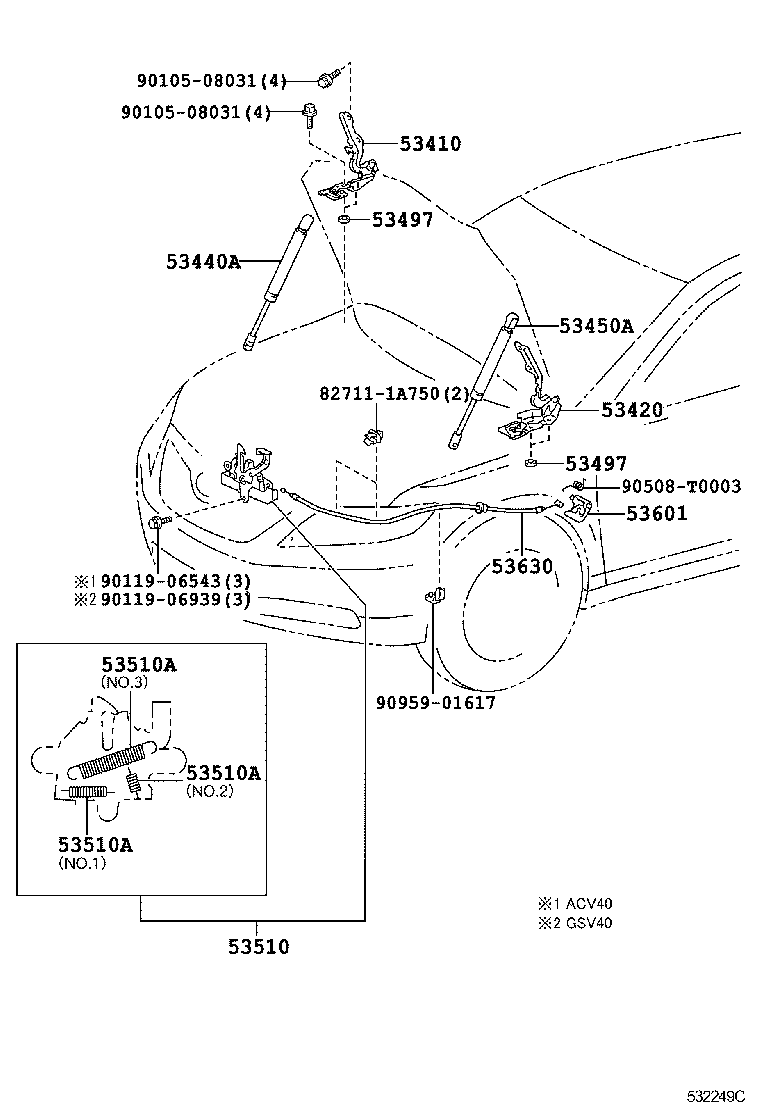

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-06160 |
ACV40,GSV40 |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-06170 |
ACV40,GSV40 |
1 | ||
| 53440A - SUPPORT ASSY, HOOD, RH | ||||
| 53440-06060 |
ACV40 |
1 | ||
| 53450A - SUPPORT ASSY, HOOD, LH | ||||
| 53450-06050 |
ACV40 |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-06040 |
ACV40,GSV40 |
2 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-06040 |
ACV40,GSV40 |
2 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-06120 |
ACV40..GCC |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09055 |
ACV40 WD=0.9,CW=21,NO.1 |
1 | ||
| 90506-12063 |
ACV40 WD=1.2,CW=8.5,NO.2 |
1 | ||
| 90506-18067 |
ACV40 WD=1.8,CW=13,NO.3 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09055 |
ACV40 WD=0.9,CW=21,NO.1 |
1 | ||
| 90506-12063 |
ACV40 WD=1.2,CW=8.5,NO.2 |
1 | ||
| 90506-18067 |
ACV40 WD=1.8,CW=13,NO.3 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09055 |
ACV40 WD=0.9,CW=21,NO.1 |
1 | ||
| 90506-12063 |
ACV40 WD=1.2,CW=8.5,NO.2 |
1 | ||
| 90506-18067 |
ACV40 WD=1.8,CW=13,NO.3 |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53611-YC030B3 |
ACV40,GSV40..(GD,GL,GLX,TOU)..GCC GRAY,TRIM1# |
1 | ||
| 53611-YC030E2 |
ACV40,GSV40..(GD,GL,GLX,TOU)..GCC GREGE,TRIM4# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-06110 |
ACV40 |
1 | ||
| Common parts | ||||
| 82711-1A750 | ||||
| 90105-08031 | ||||
| 90119-06543 | ||||
| 90119-06939 | ||||
| 90508-T0003 | ||||
| 90959-01617 | ||||
