ACV40L-DEMNKV (2006)

Toyota Camry/Aurion/Hv(Arl)

Production Jun 2006 - Jun 2009
Engine 2AZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0606- )2AZFE

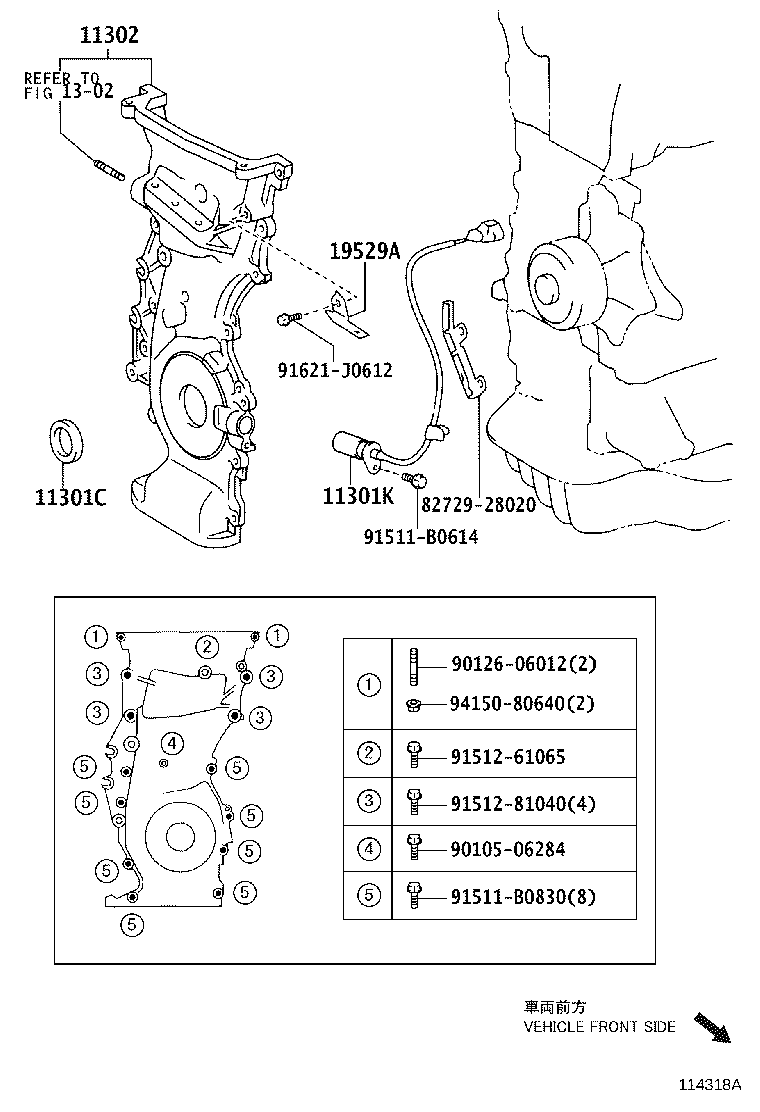

Click highlighted areas on diagram

diagram 11301C 11301K 11302 1302 19529A 8272928020 9010506284 9012606012 91511B0614 91511B0830 9151261065 9151281040 91621J0612 9415080640
Part # Description Qty Price
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-T0053

2AZFE..ACV40

 1
11301K - SENSOR, CRANK POSITION
90919-05047

2AZFE..ACV40

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-28071

2AZFE..ACV40

 1
19529A - CLAMP
19529-28010

2AZFE..ACV40

 1
Common parts
82729-28020
90105-06284
90126-06012
91511-B0614
91511-B0830
91512-61065
91512-81040
91621-J0612
94150-80640
Linked diagrams
1302
