ACV40L-DEMDKV (2006)

Toyota Camry/Aurion/Hv(Arl)

Production Jun 2006 - Jun 2009
Engine 2AZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(0606- )

Click highlighted areas on diagram

CONTROL PANEL

diagram 55900 55900 55902C 55902D 55905J 9046710203 9356855016 9356855016
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-06210

ACV40..GCC

 1
55900 - CONTROL ASSY, AIR CONDITIONER
55900-06210

ACV40..GCC

 1
Common parts
90467-10203
93568-55016

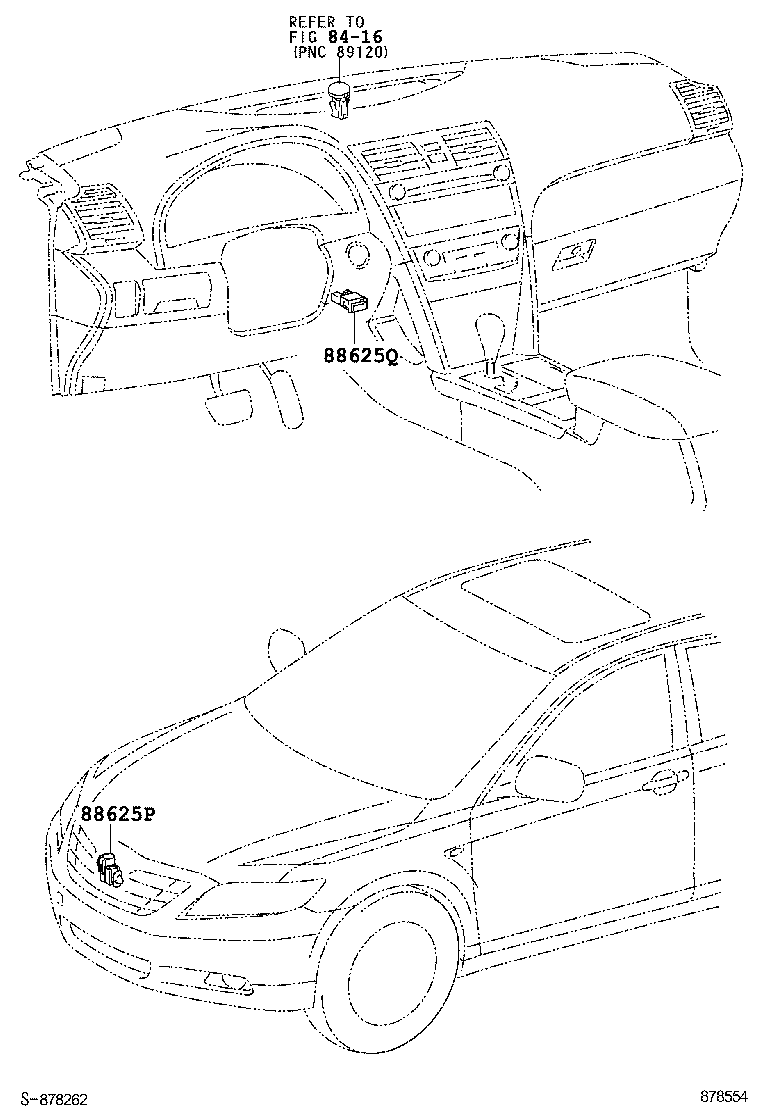

ILLUST NO. 3 OF 3(0606- )GCC

Click highlighted areas on diagram

SENSOR

diagram 8416 88625P 88625Q
Part # Description Qty Price
88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR)
88625-YC041

ACV40

 1
Linked diagrams
8416

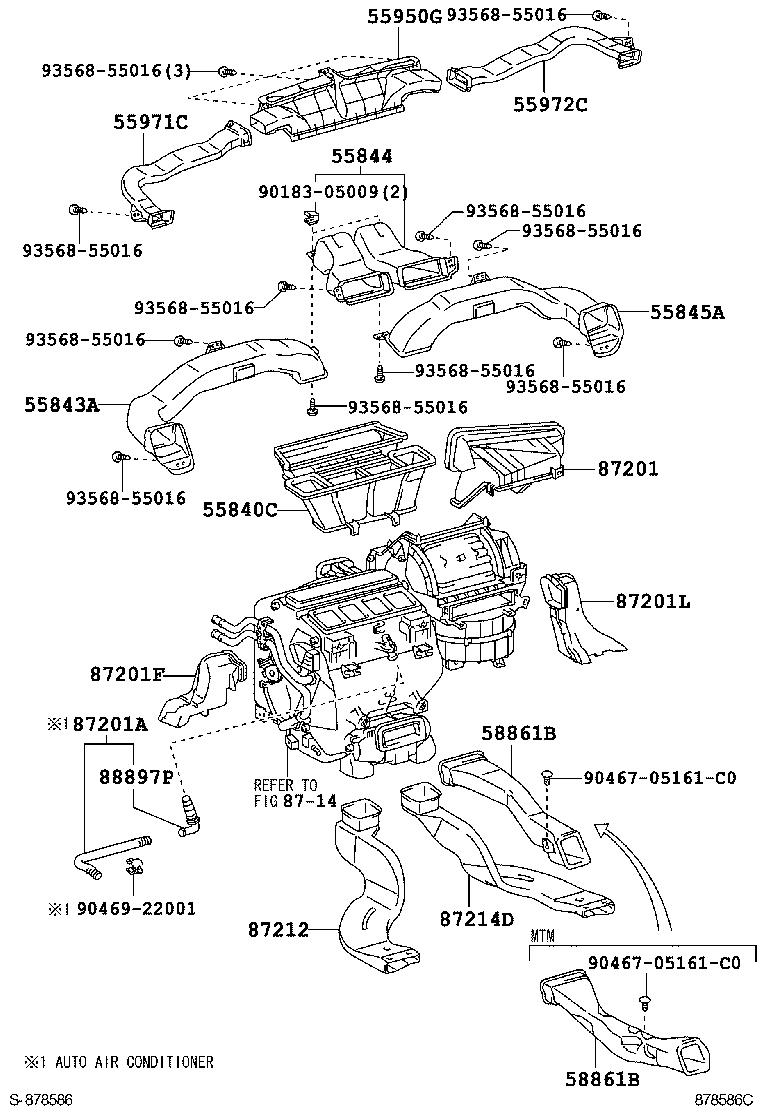

ILLUST NO. 2 OF 3(0606- )GCC

Click highlighted areas on diagram

AIR DUCT

diagram 55840C 55843A 55844 55845A 55950G 55971C 55972C 58861B 58861B 8714 87201 87201A 87201F 87201L 87212 87214D 88897P 9018305009 9046705161C0 9046705161C0 9046922001 9356855016 9356855016 9356855016 9356855016 9356855016 9356855016 9356855016 9356855016 9356855016 9356855016 9356855016
Part # Description Qty Price
55840C - DUCT ASSY, HEATER TO REGISTER, NO.6
55840-06060

ACV40

 1
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-06090

ACV40,GSV40

 1
55843-06091

ACV40

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-06070

ACV40

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-06051

ACV40

 1
55845-06050

ACV40,GSV40

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-06060

ACV40

 1
55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-06040

ACV40,GSV40

 1
55971-06041

ACV40

 1
55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-06040

ACV40,GSV40

 1
55972-06041

ACV40

 1
58861B - DUCT, CONSOLE BOX, NO.1
58861-06050

ACV40..ARL;ACV40..5F..GCC

 1
58861B - DUCT, CONSOLE BOX, NO.1
58861-06050

ACV40..ARL;ACV40..5F..GCC

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-06350

ACV40..GCC

 1
87201F - DUCT SUB-ASSY, AIR, NO.3
87201-06360

ACV40..GCC

 1
87201L - DUCT SUB-ASSY, AIR, NO.4
87201-06370

ACV40..GCC

 1
87212 - DUCT, AIR, REAR NO.1
87213-06060

ACV40

 1
87214D - DUCT, AIR, REAR NO.3
87212-06060

ACV40

 1
88897P - ASPIRATOR
88897-06020

ACV40

 1
Common parts
90183-05009
90467-05161C0
90469-22001
93568-55016
Linked diagrams
8714
