ACV40L-DEMDKV (2006)

Toyota Camry/Aurion/Hv(Arl)

Production Jun 2006 - Jun 2009
Engine 2AZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0606- )ACV40,AHV40

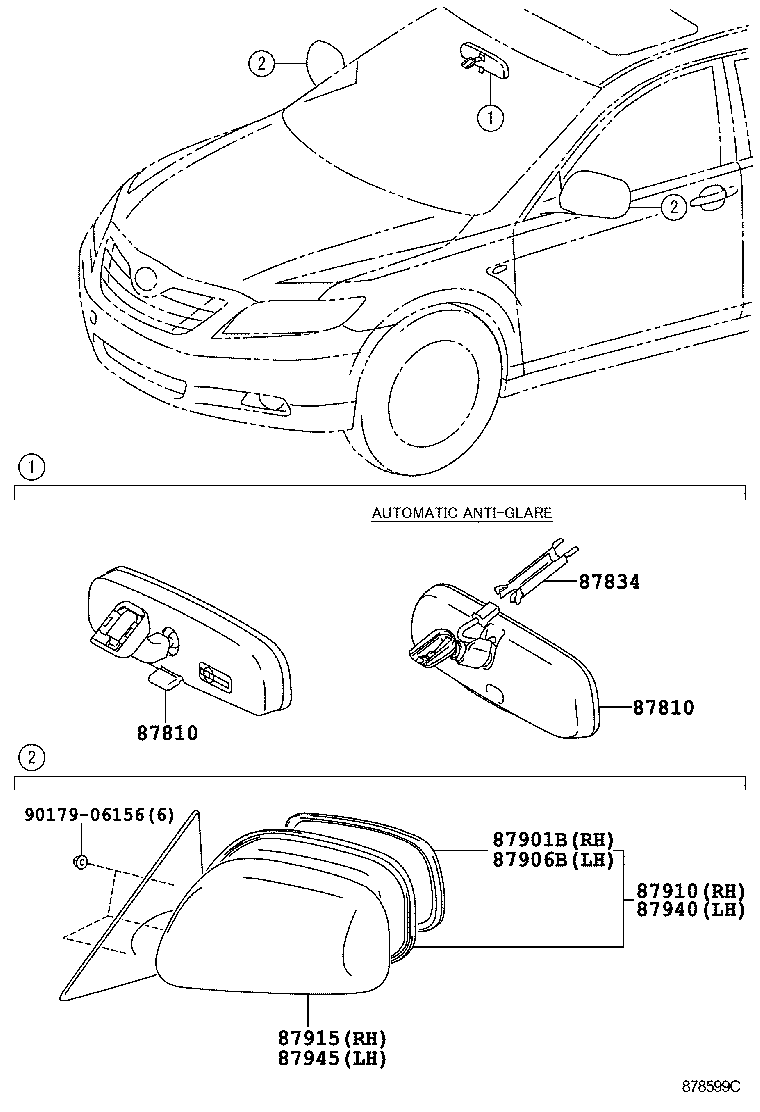

Click highlighted areas on diagram

diagram 87810 87810 87834 87901B 87906B 87910 87915 87940 87945 9017906156
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-06100

ACV40

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-06100

ACV40

 1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87931-06220

ACV40..GCC

 1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87961-06290

ACV40..GCC

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-06909

ACV40..GCC

PAINT REQ.

 1
87915 - COVER, OUTER MIRROR, RH
87915-06904

ACV40

PAINT REQ.

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-06909

ACV40..GCC

PAINT REQ.

 1
87945 - COVER, OUTER MIRROR, LH
87945-06904

ACV40

PAINT REQ.

 1
Common parts
90179-06156
