ACV40L-DEMDKV (2006)

Toyota Camry/Aurion/Hv(Arl)

Production Jun 2006 - Jun 2009
Engine 2AZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

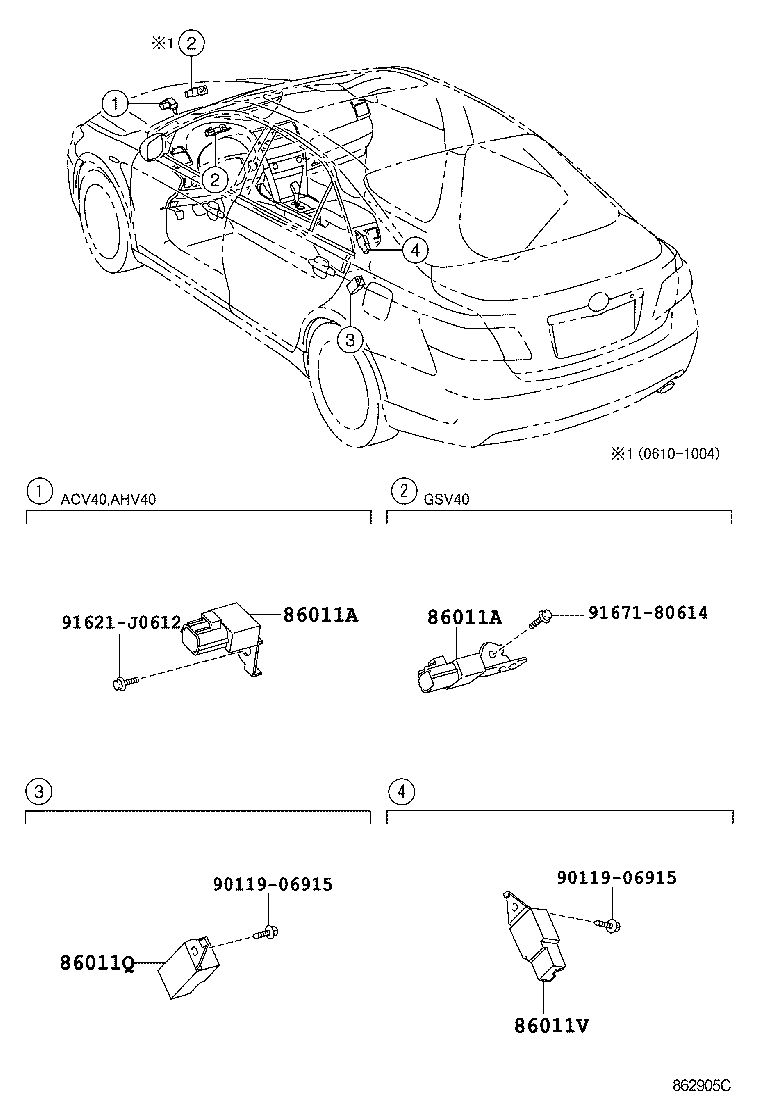

ILLUST NO. 3 OF 3(0606- )

Click highlighted areas on diagram

CONDENSER

diagram 86011A 86011A 86011Q 86011V 9011906915 9011906915 91621J0612 9167180614
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04157

ACV40

 1
86011A - CONDENSER, RADIO SETTING
90980-04157

ACV40

 1
86011Q - CONDENSER, RADIO SETTING
90980-04148

ACV40

 1
86011V - CONDENSER, RADIO SETTING
90980-04198

ACV40

 1
Common parts
90119-06915
91621-J0612
91671-80614

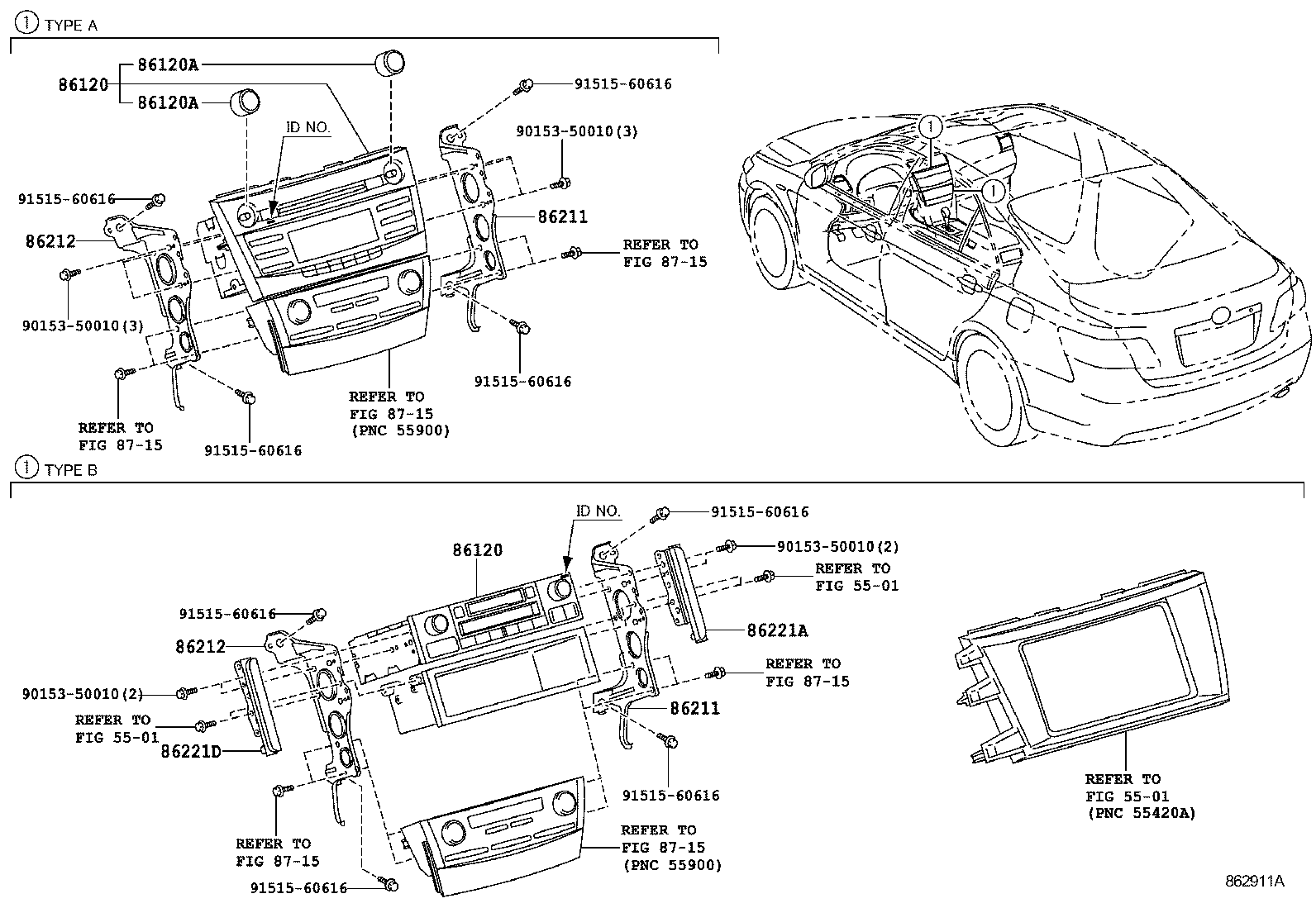

ILLUST NO. 1 OF 3(0606- )GCC

Click highlighted areas on diagram

diagram 5501 5501 5501 86120 86120 86120A 86120A 86211 86211 86212 86212 86221A 86221D 8715 8715 8715 8715 8715 8715 9015350010 9015350010 9015350010 9015350010 9151560616 9151560616 9151560616 9151560616 9151560616 9151560616 9151560616 9151560616
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-06290

ACV40..GL

FUJITSU TEN,ID=12826,AUDIO-CD AM/FM UNI 4SPEAKER

 1
86120-06370

ACV40..GL

FUJITSU TEN,ID=17421,AUDIO-W/O(W/COVER)4SP

 1
86120-06370

ACV40..GL

FUJITSU TEN,ID=17421

 1
86120-06291

ACV40..GL

FUJITSU TEN,ID=12826,AUDIO-CD AM/FM UNI 4SPEAKER

 1
86120-06290

ACV40..GL

FUJITSU TEN,ID=12826,TYPE A:REFER ILLUST.

 1
86120-06370

ACV40..GL

FUJITSU TEN,ID=17421,TYPE B:REFER ILLUST.

 1
86120-06291

ACV40..GL

FUJITSU TEN,ID=12826,TYPE A:REFER ILLUST.

 1
86120 - RECEIVER ASSY, RADIO
86120-06290

ACV40..GL

FUJITSU TEN,ID=12826,AUDIO-CD AM/FM UNI 4SPEAKER

 1
86120-06370

ACV40..GL

FUJITSU TEN,ID=17421,AUDIO-W/O(W/COVER)4SP

 1
86120-06370

ACV40..GL

FUJITSU TEN,ID=17421

 1
86120-06291

ACV40..GL

FUJITSU TEN,ID=12826,AUDIO-CD AM/FM UNI 4SPEAKER

 1
86120-06290

ACV40..GL

FUJITSU TEN,ID=12826,TYPE A:REFER ILLUST.

 1
86120-06370

ACV40..GL

FUJITSU TEN,ID=17421,TYPE B:REFER ILLUST.

 1
86120-06291

ACV40..GL

FUJITSU TEN,ID=12826,TYPE A:REFER ILLUST.

 1
86120A - KNOB, RADIO RECEIVER SWITCH
90011-23013

ACV40..GL

AUDIO-CD AM/FM UNI 4SPEAKER

 2
86120A - KNOB, RADIO RECEIVER SWITCH
90011-23013

ACV40..GL

AUDIO-CD AM/FM UNI 4SPEAKER

 2
86211 - BRACKET, RADIO, NO.1
86211-33210

ACV40

 1
86211 - BRACKET, RADIO, NO.1
86211-33210

ACV40

 1
86212 - BRACKET, RADIO, NO.2
86212-33210

ACV40

 1
86212 - BRACKET, RADIO, NO.2
86212-33210

ACV40

 1
86221A - PANEL, RADIO RECEIVER
86221-52060

ACV40..GL

 1
86221D - PANEL, RADIO RECEIVER
86221-52050

ACV40..GL

 1
Common parts
90153-50010
91515-60616
Linked diagrams
5501
8715
