ACV40L-DEMDKV (2006)

Toyota Camry/Aurion/Hv(Arl)

Production Jun 2006 - Jun 2009
Engine 2AZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0606- )ACV40,AHV40

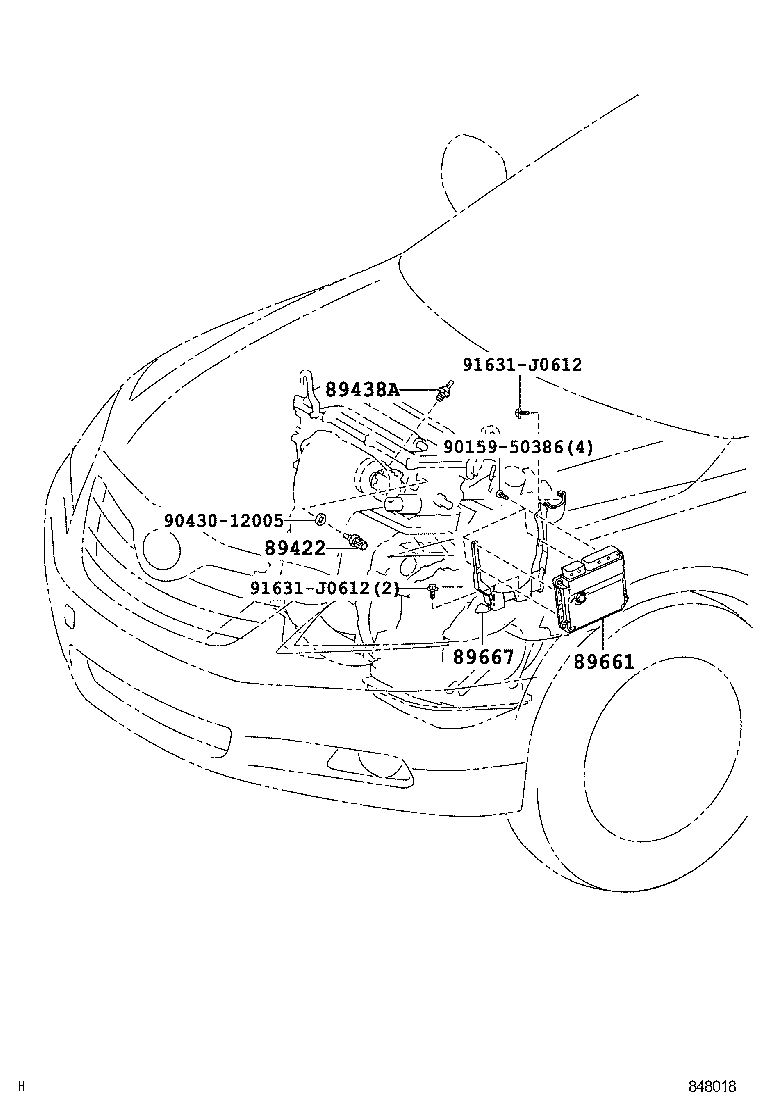

Click highlighted areas on diagram

diagram 89422 89438A 89661 89667 9015950386 9043012005 91631J0612 91631J0612
Part # Description Qty Price
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

ACV40,GSV40

 1
89438A - SWITCH, POWER STEERING OIL PRESSURE
89438-33010

ACV40,GSV40

 1
89661 - COMPUTER, ENGINE CONTROL
89661-06E40

ACV40..5F..GCC

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-33180

ACV40

 1
Common parts
90159-50386
90430-12005
91631-J0612
