ACV40L-DEASKV (2006)
Toyota Camry/Aurion/Hv(Arl)
Production
Jun 2006
-
Jun 2009
Engine
2AZFE
Transmission
5FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

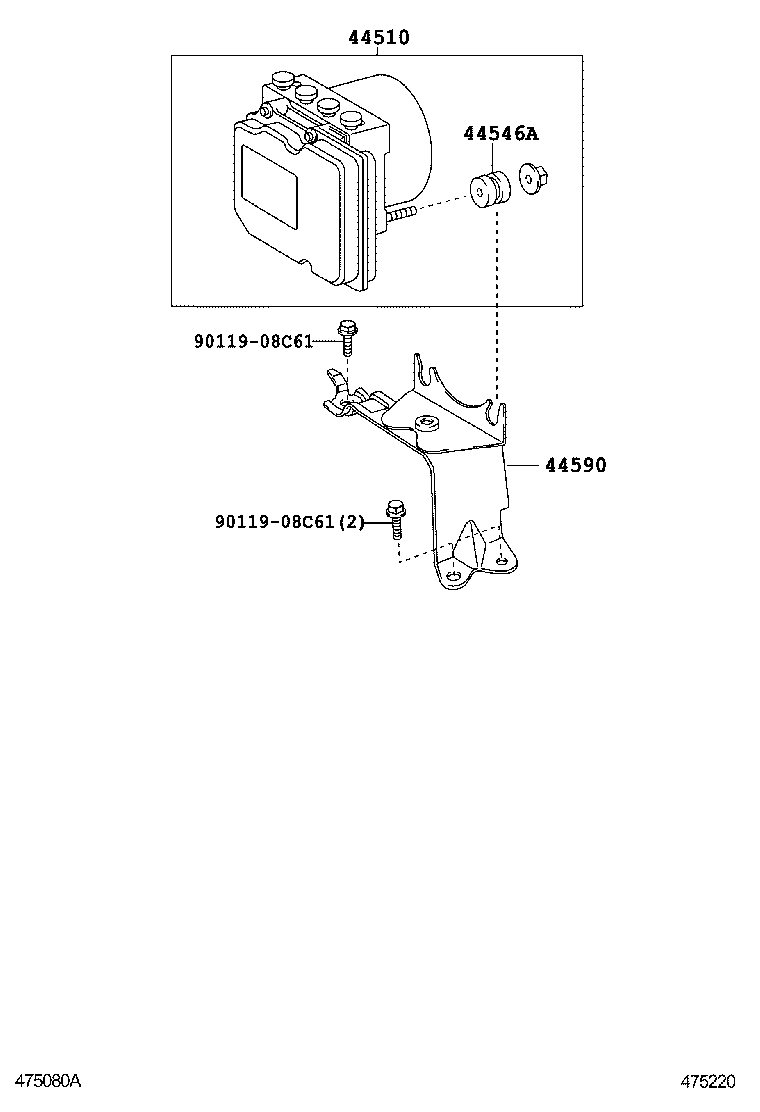

ILLUST NO. 2 OF 2(0606-0708)ATEVA,SPV ; (0606-0906)ALT ; (0606-)GL,GLX,SE,TOU
Click highlighted areas on diagram
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-06100 |
ACV40..ALT,GL,GLX,SE |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-8Y001 |
ACV40 |
2 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-06210 |
ACV40..ALT,GL,GLX,SE |
1 | ||
| Common parts | ||||
| 90119-08C61 | ||||

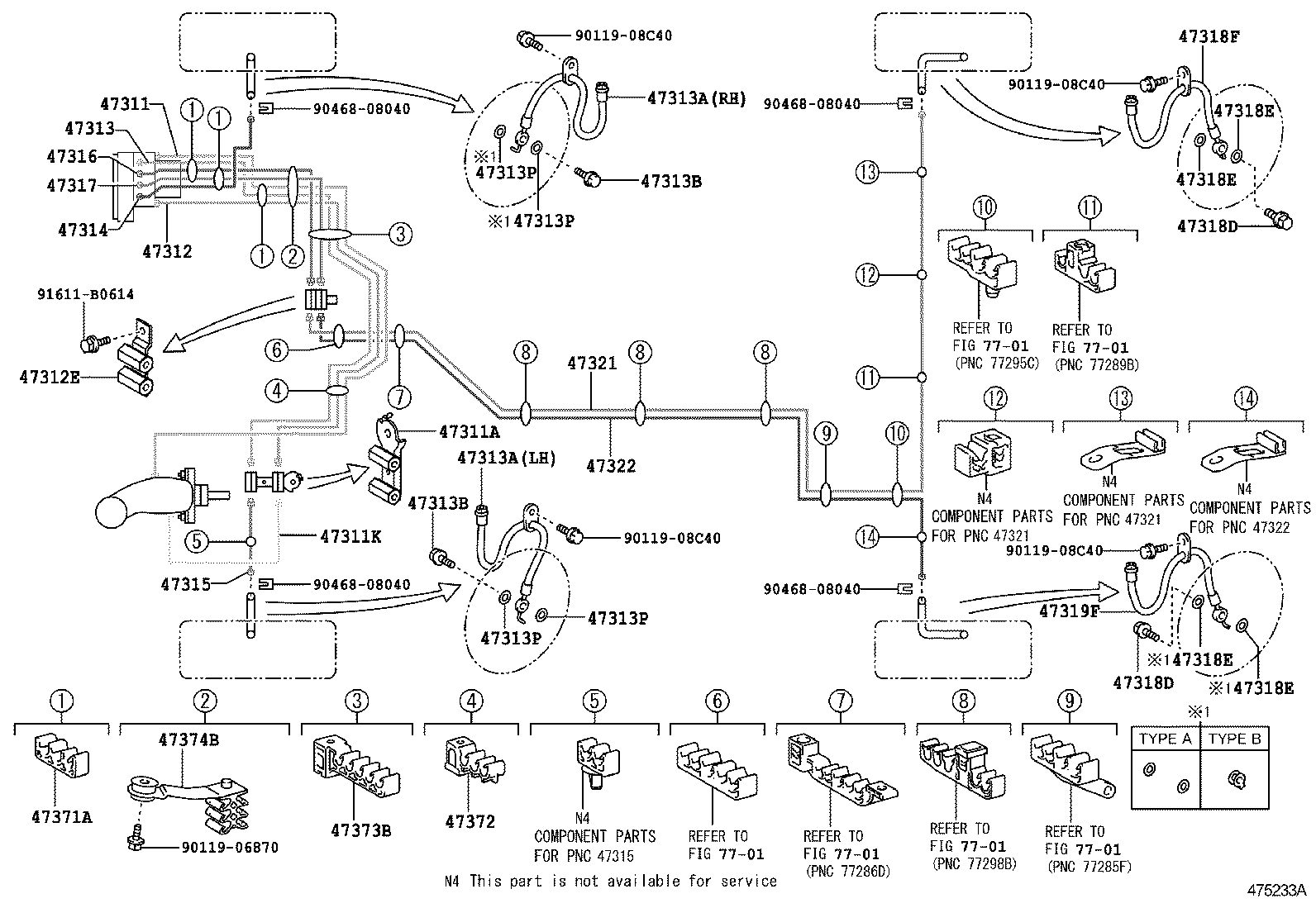

ILLUST NO. 1 OF 2(0606- )GL,GLX,SE,TOU
Click highlighted areas on diagram
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-06300 |
ACV40..GCC |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90412-10263 |
ACV40..GCC |
1 | ||
| 47311K - TUBE, BRAKE MASTER CYLINDER TO WAY | ||||
| 47311-33160 |
ACV40..GCC |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-06220 |
ACV40..GCC |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10246 |
ACV40..5F..GCC;ACV40..5FC..(ALT,GL,GLX,SE) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-06210 |
ACV40..GCC |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-T2030 |
ACV40 LH |
1 | ||
| 90947-T2029 |
ACV40 RH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-T2030 |
ACV40 LH |
1 | ||
| 90947-T2029 |
ACV40 RH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ACV40 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ACV40 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90089-43002 |
ACV40 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90089-43002 |
ACV40 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90089-43002 |
ACV40 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90089-43002 |
ACV40 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-06200 |
ACV40..GCC |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-06170 |
ACV40..5FC..GCC |
1 | ||
| 47315-06230 |
ACV40..5F..GCC |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-06270 |
ACV40..GCC |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-06260 |
ACV40..GCC |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
ACV40 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
ACV40 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90089-43002 |
ACV40 |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90089-43002 |
ACV40 |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90089-43002 |
ACV40 |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90089-43002 |
ACV40 |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90080-94141 |
ACV40 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90080-94144 |
ACV40 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-06110 |
ACV40,GSV40 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-06110 |
ACV40,GSV40 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00857 |
ACV40..ALT,GL,GLX,SE |
3 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01C95 |
ACV40..GCC |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01D28 |
ACV40..GCC |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-04035 |
ACV40..ALT,GL,GLX,SE |
1 | ||
| Common parts | ||||
| 90119-06870 | ||||
| 90119-08C40 | ||||
| 90468-08040 | ||||
| 91611-B0614 | ||||
| Linked diagrams | ||||
| 7701 | ||||
