Toyota Camry/aurion/hv(arl) ACV40 WIRING & CLAMP

ACV40L-DEANKV (2006)

Toyota Camry/Aurion/Hv(Arl)

Production Jun 2006 - Jun 2009

Engine 2AZFE

Transmission 5FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

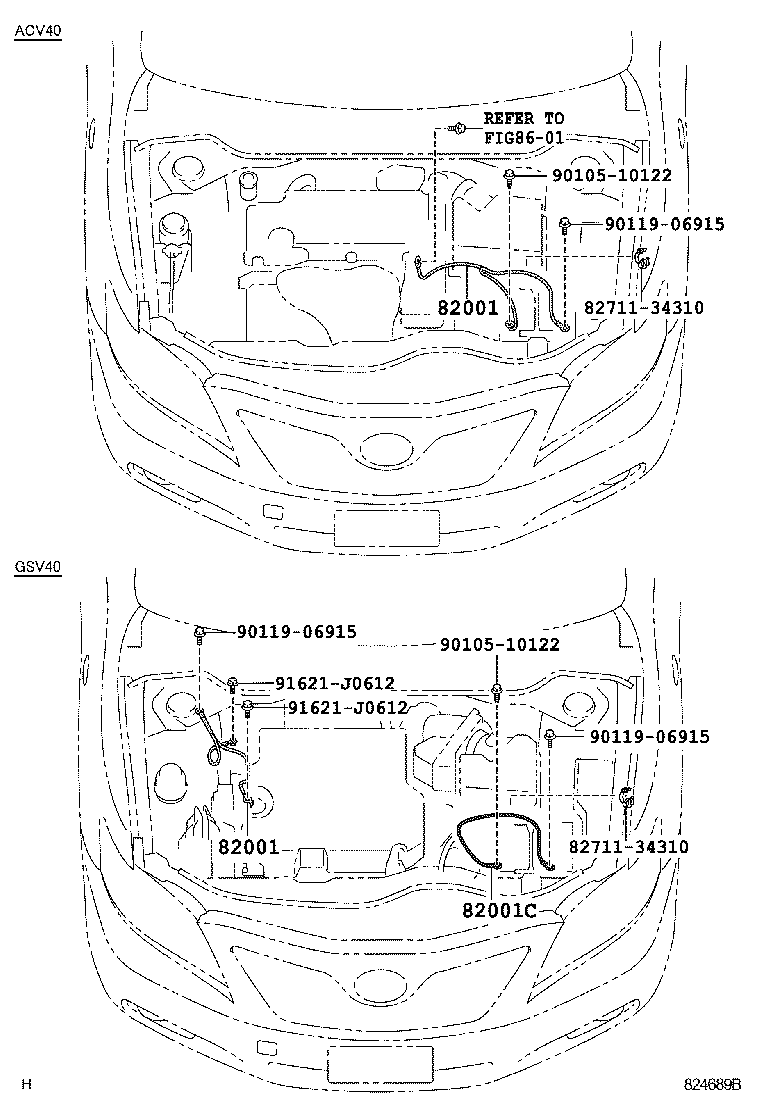

ILLUST NO. 9 OF10(0606- )ACV40,GSV40

Click highlighted areas on diagram

CABLE BOND

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07428	ACV40	06/2006 - 06/2009	1
82001 - CABLE, BOND, NO.1
90980-07428	ACV40	06/2006 - 06/2009	1
Common parts
82711-34310
90105-10122
90119-06915
91621-J0612
Linked diagrams
8601

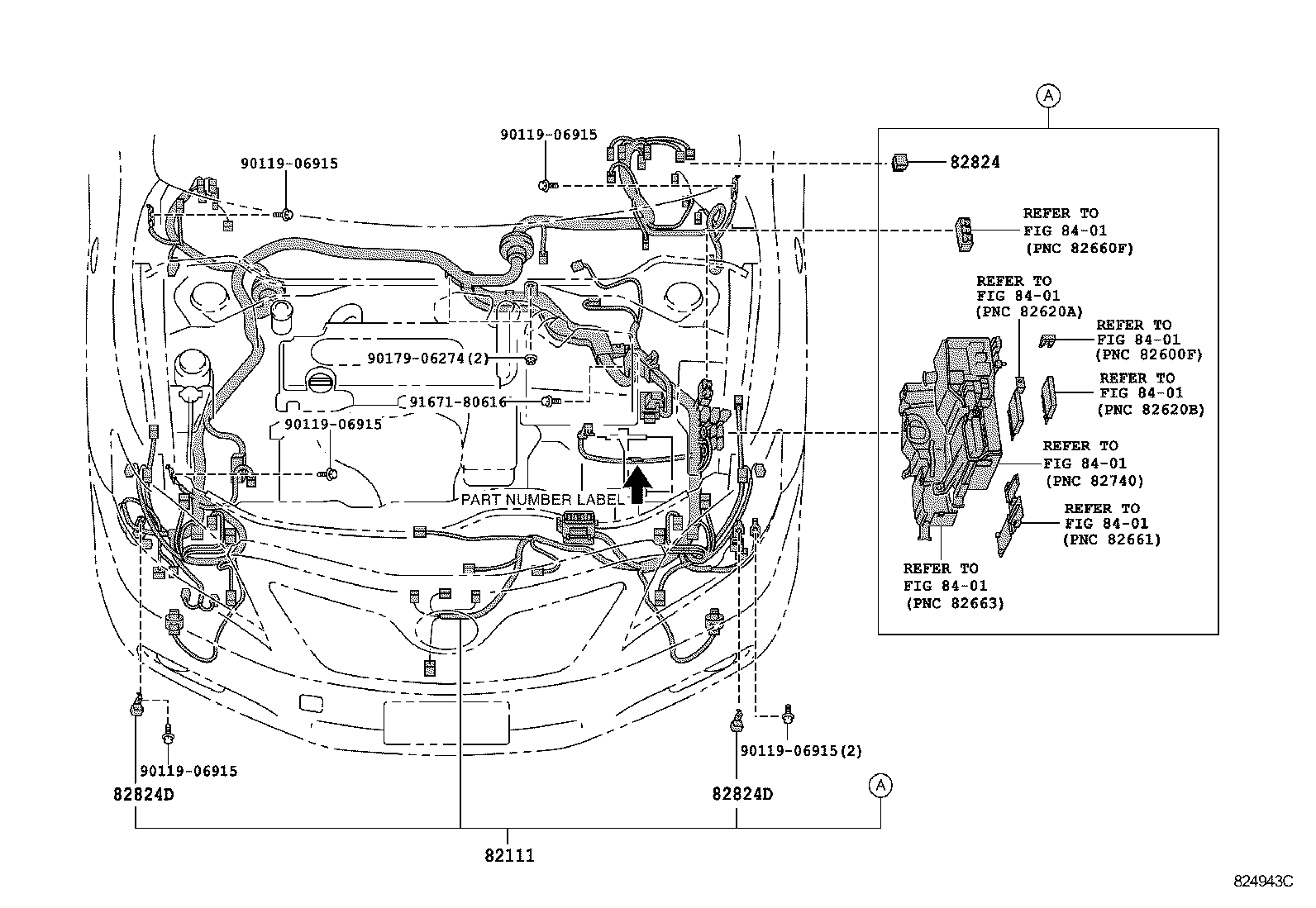

ILLUST NO. 1 OF10(0606- )ACV40..GCC

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-06G50	ACV40..GL	06/2006 - 06/2009	1
82111-06G60	ACV40..GL WIRELESS DOOR LOCK-WITH	06/2006 - 06/2009	1
82111-06G60	ACV40..GLX,SE	06/2006 - 06/2009	1
82111-06G60	ACV40..GL PART NUMBER LABEL=82111-06G60	06/2006 - 06/2009	1
82111-06G60	ACV40..GLX,SE PART NUMBER LABEL=82111-06G60	06/2006 - 06/2009	1
82111-06G50	ACV40..GL PART NUMBER LABEL=82111-06G50	06/2006 - 06/2009	1
Common parts
90119-06915
90179-06274
91671-80616
Linked diagrams
8401

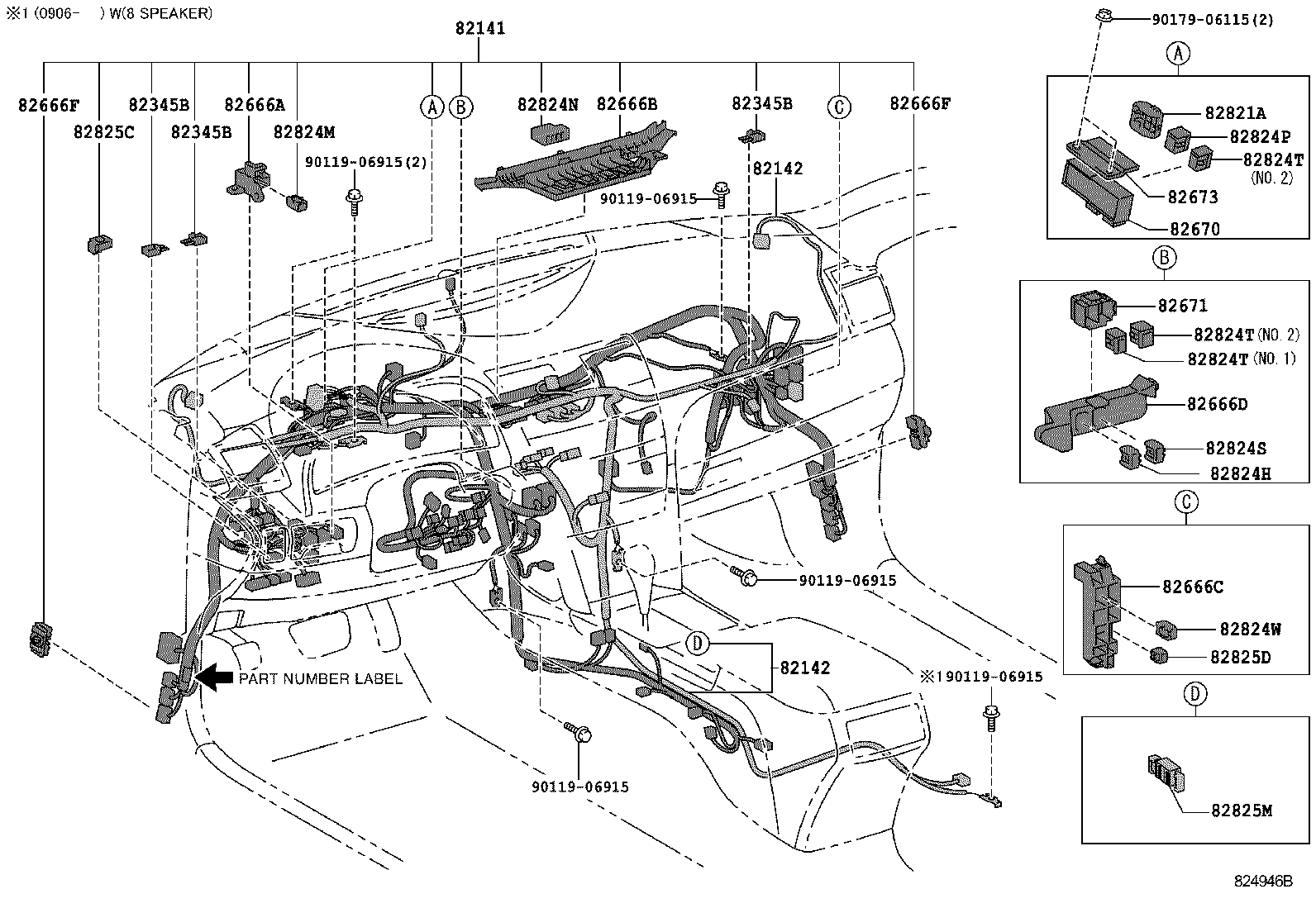

ILLUST NO. 3 OF10(0606- )GCC

Click highlighted areas on diagram

INSTRUMENT PANEL

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-06L30	ACV40..5FC..(GLX,SE)	06/2006 - 06/2009	1
82141-06L30	ACV40..5FC..GL WIRELESS DOOR LOCK-WITH	06/2006 - 06/2009	1
82141-06L70	ACV40..5F..GLX SUN SHADE-WITH POWER	06/2006 - 06/2009	1
82141-06L20	ACV40..5FC..GL	06/2006 - 06/2009	1
82141-06L50	ACV40..5F..GL	06/2006 - 06/2009	1
82141-06L60	ACV40..5F..(GLX,SE)	06/2006 - 06/2009	1
82141-06L60	ACV40..5F..GL WIRELESS DOOR LOCK-WITH	06/2006 - 06/2009	1
82141-06L40	ACV40..5FC..GLX SUN SHADE-WITH POWER	06/2006 - 06/2009	1
82141-06L60	ACV40..5F..GL PART NUMBER LABEL=82141-06L60	06/2006 - 06/2009	1
82141-06L50	ACV40..5F..GL PART NUMBER LABEL=82141-06L50	06/2006 - 06/2009	1
82141-06L30	ACV40..5FC..(GLX,SE) PART NUMBER LABEL=82141-06L30	06/2006 - 06/2009	1
82141-06L20	ACV40..5FC..GL PART NUMBER LABEL=82141-06L20	06/2006 - 06/2009	1
82141-06L30	ACV40..5FC..GL PART NUMBER LABEL=82141-06L30	06/2006 - 06/2009	1
82141-06L60	ACV40..5F..(GLX,SE) PART NUMBER LABEL=82141-06L60	06/2006 - 06/2009	1
82141-06L40	ACV40..5FC..GLX PART NUMBER LABEL=82141-06L40	06/2006 - 06/2009	1
82141-06L70	ACV40..5F..GLX PART NUMBER LABEL=82141-06L70	06/2006 - 06/2009	1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-06240	ACV40..GLX,SE	06/2006 - 06/2009	1
82142-06230	ACV40..GL	06/2006 - 06/2009	1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-06240	ACV40..GLX,SE	06/2006 - 06/2009	1
82142-06230	ACV40..GL	06/2006 - 06/2009	1
Common parts
90119-06915
90179-06115

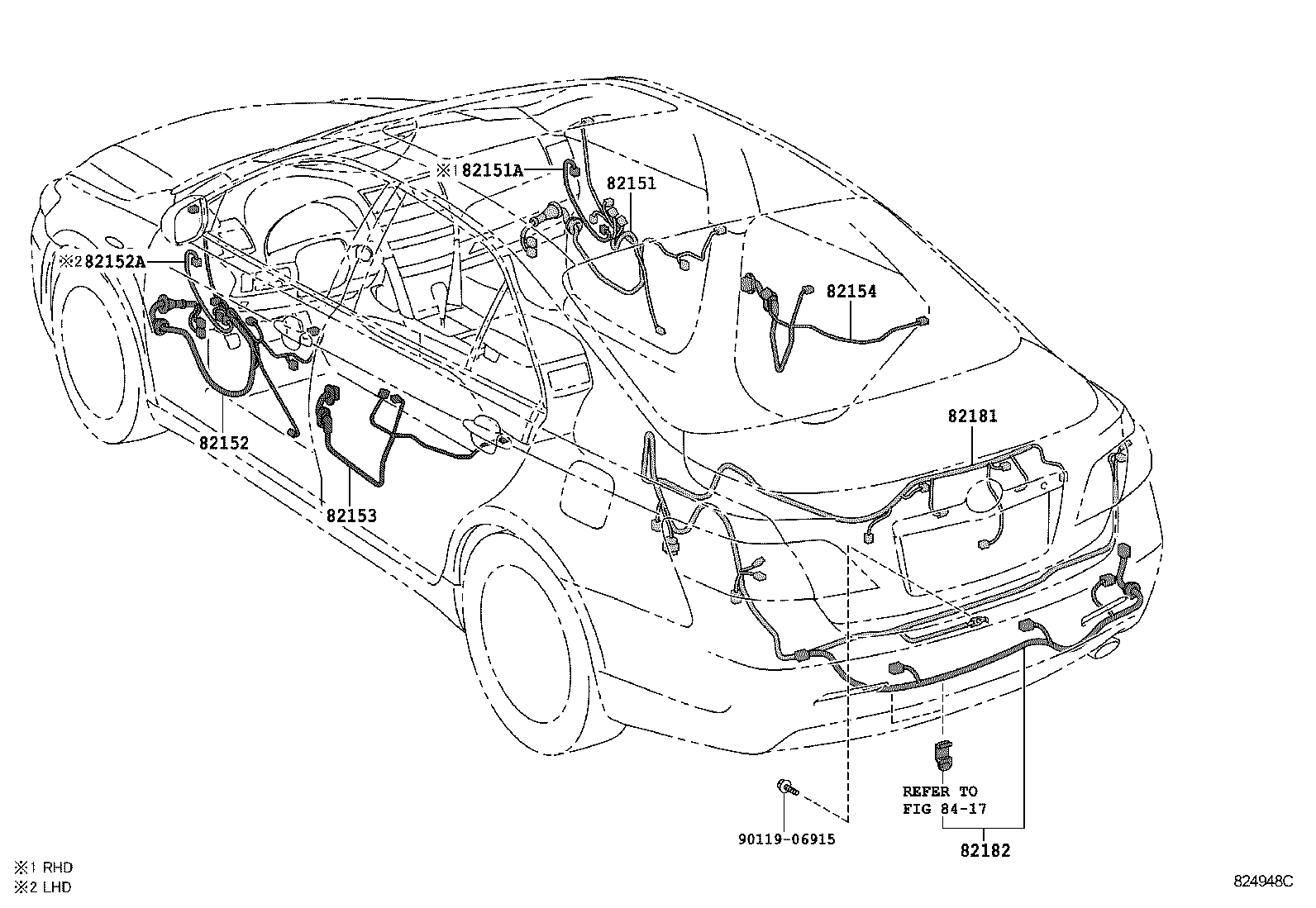

ILLUST NO. 4 OF10(0606- )

Click highlighted areas on diagram

DOOR

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-06680	ACV40..GL WIRELESS DOOR LOCK-WITH	06/2006 - 06/2009	1
82151-06680	ACV40..GLX,SE	06/2006 - 06/2009	1
82151-06670	ACV40..GL	06/2006 - 06/2009	1
82152 - WIRE, FRONT DOOR, LH
82152-06780	ACV40..GL	06/2006 - 06/2009	1
82152-06790	ACV40..GLX,SE	06/2006 - 06/2009	1
82152A - WIRE, FRONT DOOR, NO.2, LH
82156-06080	ACV40,GSV40..(GD,GLX,SE,TOU)..GCC	06/2006 - 08/2009	1
82156-06070	ACV40..GL	06/2006 - 06/2009	1
82153 - WIRE, REAR DOOR, NO.1
82153-06170	ACV40	06/2006 - 06/2009	1
82154 - WIRE, REAR DOOR, NO.2
82154-06220	ACV40	06/2006 - 06/2009	1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-06150	ACV40..ALT,ATEVA,GD,GLX,SE,SPV	06/2006 - 02/2007	1
82181-06151	ACV40..ALT,ATEVA,GD,GLX,SE,SPV	02/2007 - 06/2009	1
82181-06141	ACV40..GL	02/2007 - 06/2009	1
82181-06151	ACV40..GL WIRELESS DOOR LOCK-WITH	02/2007 - 06/2009	1
82181-06150	ACV40..GL WIRELESS DOOR LOCK-WITH	06/2006 - 02/2007	1
82181-06140	ACV40..GL	06/2006 - 02/2007	1
Common parts
90119-06915
Linked diagrams
8417

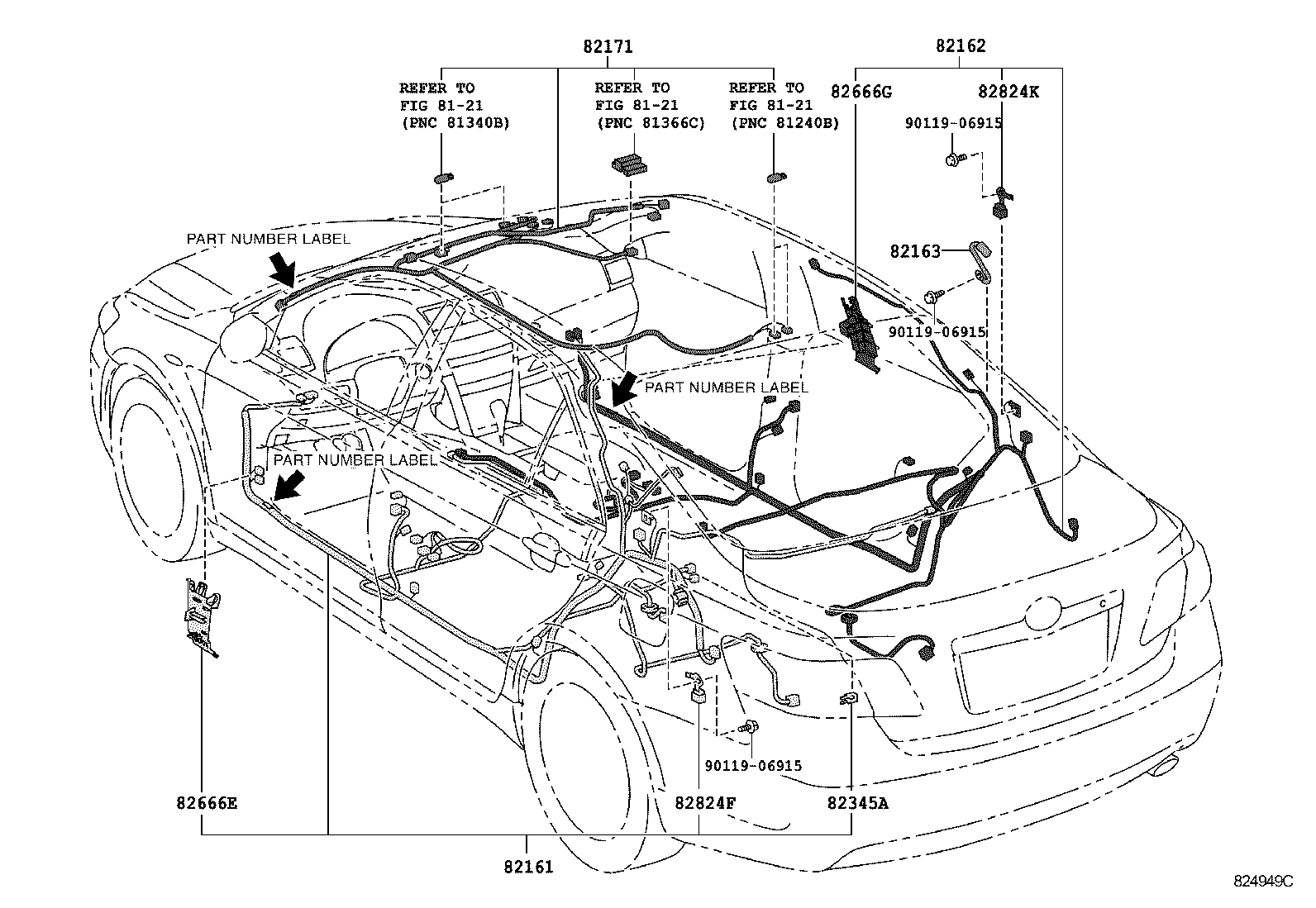

ILLUST NO. 5 OF10(0606- )ACV40,GSV40

Click highlighted areas on diagram

FLOOR & ROOF

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-06D70	ACV40..5F..GLX SUN SHADE-WITH POWER	06/2006 - 06/2009	1
82161-06D20	ACV40..5FC..GLX SUN SHADE-WITH POWER	06/2006 - 06/2009	1
82161-06D50	ACV40..5F..GL	06/2006 - 06/2009	1
82161-06D10	ACV40..5FC..(GLX,SE)	06/2006 - 06/2009	1
82161-06D00	ACV40..5FC..GL	06/2006 - 06/2009	1
82161-06D60	ACV40..5F..(GLX,SE)	06/2006 - 06/2009	1
82161-06D00	ACV40..5FC..GL PART NUMBER LABEL=82161-06D00	06/2006 - 06/2009	1
82161-06D70	ACV40..5F..GLX PART NUMBER LABEL=82161-06D70	06/2006 - 06/2009	1
82161-06D60	ACV40..5F..(GLX,SE) PART NUMBER LABEL=82161-06D60	06/2006 - 06/2009	1
82161-06D20	ACV40..5FC..GLX PART NUMBER LABEL=82161-06D20	06/2006 - 06/2009	1
82161-06D10	ACV40..5FC..(GLX,SE) PART NUMBER LABEL=82161-06D10	06/2006 - 06/2009	1
82161-06D50	ACV40..5F..GL PART NUMBER LABEL=82161-06D50	06/2006 - 06/2009	1
82162 - WIRE, FLOOR, NO.2
82162-06580	ACV40..5F..GCC	06/2006 - 06/2009	1
82162-06540	ACV40..5FC..GCC	06/2006 - 06/2009	1
82162-06540	ACV40..5FC..GCC PART NUMBER LABEL=82162-06540	06/2006 - 06/2009	1
82162-06580	ACV40..5F..GCC PART NUMBER LABEL=82162-06580	06/2006 - 06/2009	1
82163 - WIRE, FLOOR, NO.3
82163-06150	ACV40	06/2006 - 06/2009	1
82171 - WIRE, ROOF, NO.1
82171-06720	ACV40..GLX	06/2006 - 06/2009	1
82171-06730	ACV40..ATEVA,GLX,SE,SPV SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF)	06/2006 - 06/2009	1
82171-06710	ACV40..ALT,ATEVA,GL,SE,SPV	06/2006 - 06/2009	1
82171-06710	ACV40..ALT,ATEVA,GL,SE,SPV PART NUMBER LABEL=82171-06710	06/2006 - 06/2009	1
82171-06730	ACV40..ATEVA,GLX,SE,SPV PART NUMBER LABEL=82171-06730	06/2006 - 06/2009	1
82171-06720	ACV40..GLX PART NUMBER LABEL=82171-06720	06/2006 - 06/2009	1
Common parts
90119-06915
Linked diagrams
8121

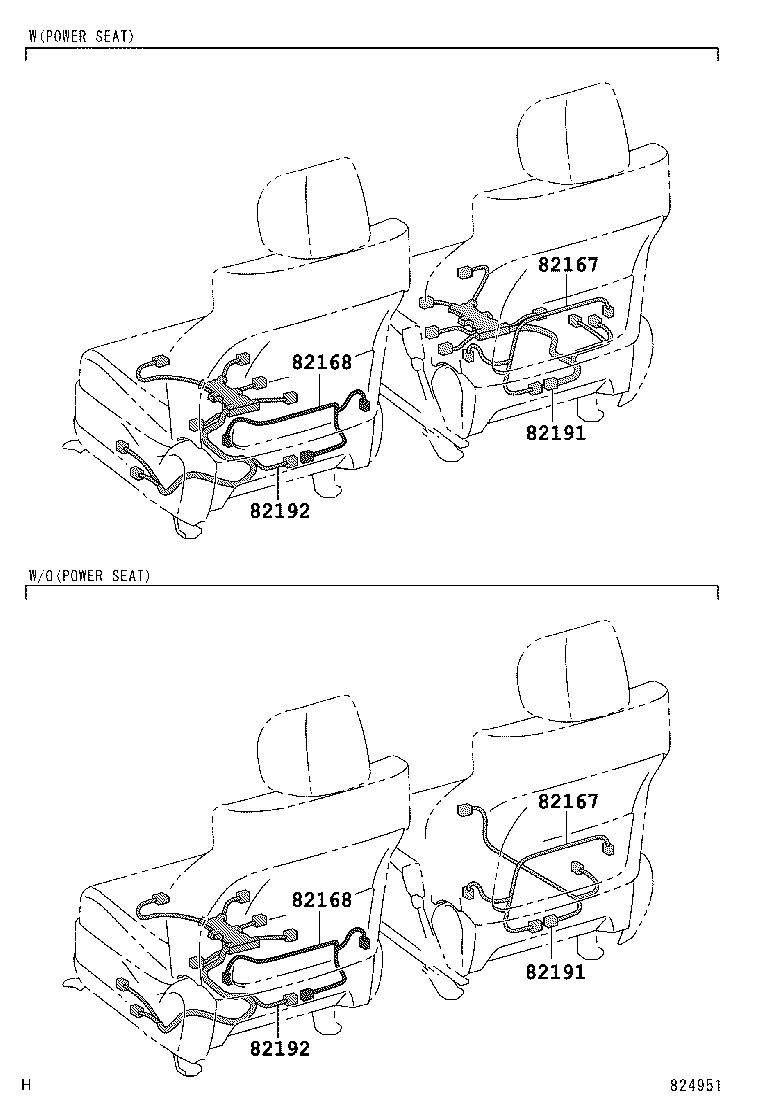

ILLUST NO. 7 OF10(0606- )ALT,ATEVA,ATX,GD,GLX,HBD,PRD,PRE,SE,SPV,SPVS,SPVZ,TOU

Click highlighted areas on diagram

SEAT

Part #	Description	Period	Qty
82168 - WIRE, SEAT, NO.2
8219B-06070	ACV40,GSV40..ATEVA,GD,GLX,PRD,PRE,SE,SPV,SPVZ,TOU	06/2006 - 08/2009	1
82168 - WIRE, SEAT, NO.2
8219B-06070	ACV40,GSV40..ATEVA,GD,GLX,PRD,PRE,SE,SPV,SPVZ,TOU	06/2006 - 08/2009	1
82192 - WIRE, FRONT SEAT, LH
82192-06140	ACV40,GSV40..(GD,GLX,SE,TOU)..GCC	06/2006 - 08/2009	1
82192 - WIRE, FRONT SEAT, LH
82192-06140	ACV40,GSV40..(GD,GLX,SE,TOU)..GCC	06/2006 - 08/2009	1

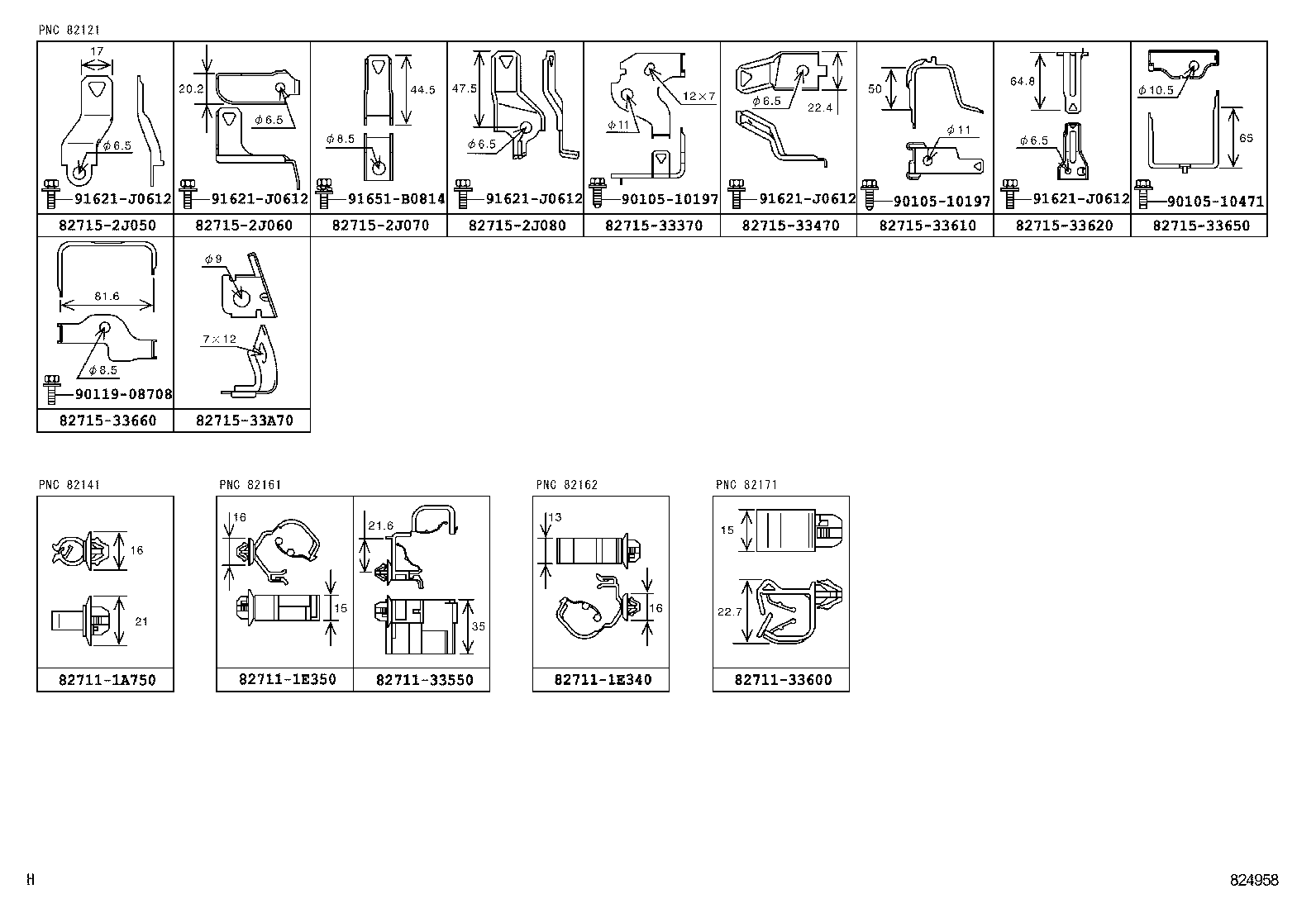

ILLUST NO. 8 OF10(0606- )ACV40

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-1A750
82711-1E340
82711-1E350
82711-33550
82711-33600
82715-2J050
82715-2J060
82715-2J070
82715-2J080
82715-33370
82715-33470
82715-33610
82715-33620
82715-33650
82715-33660
82715-33A70
90105-10197
90105-10471
90119-08708
91621-J0612
91651-B0814

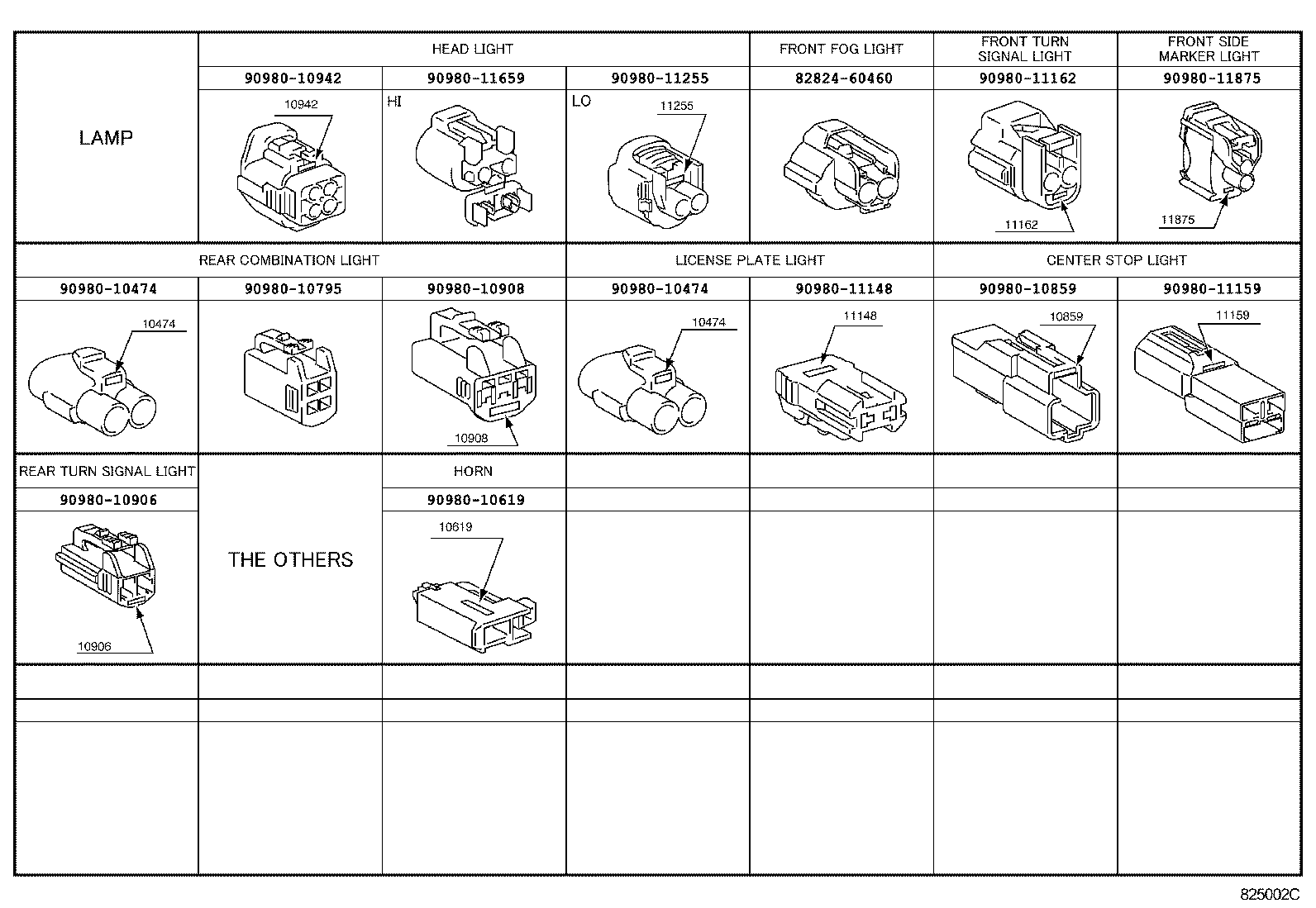

ILLUST NO.10 OF10(0606- )ACV40

Click highlighted areas on diagram

CONNECTOR

Part #	Description	Period	Qty	Price
Common parts
82824-60460
90980-10474
90980-10619
90980-10795
90980-10859
90980-10906
90980-10908
90980-10942
90980-11148
90980-11159
90980-11162
90980-11255
90980-11659
90980-11875

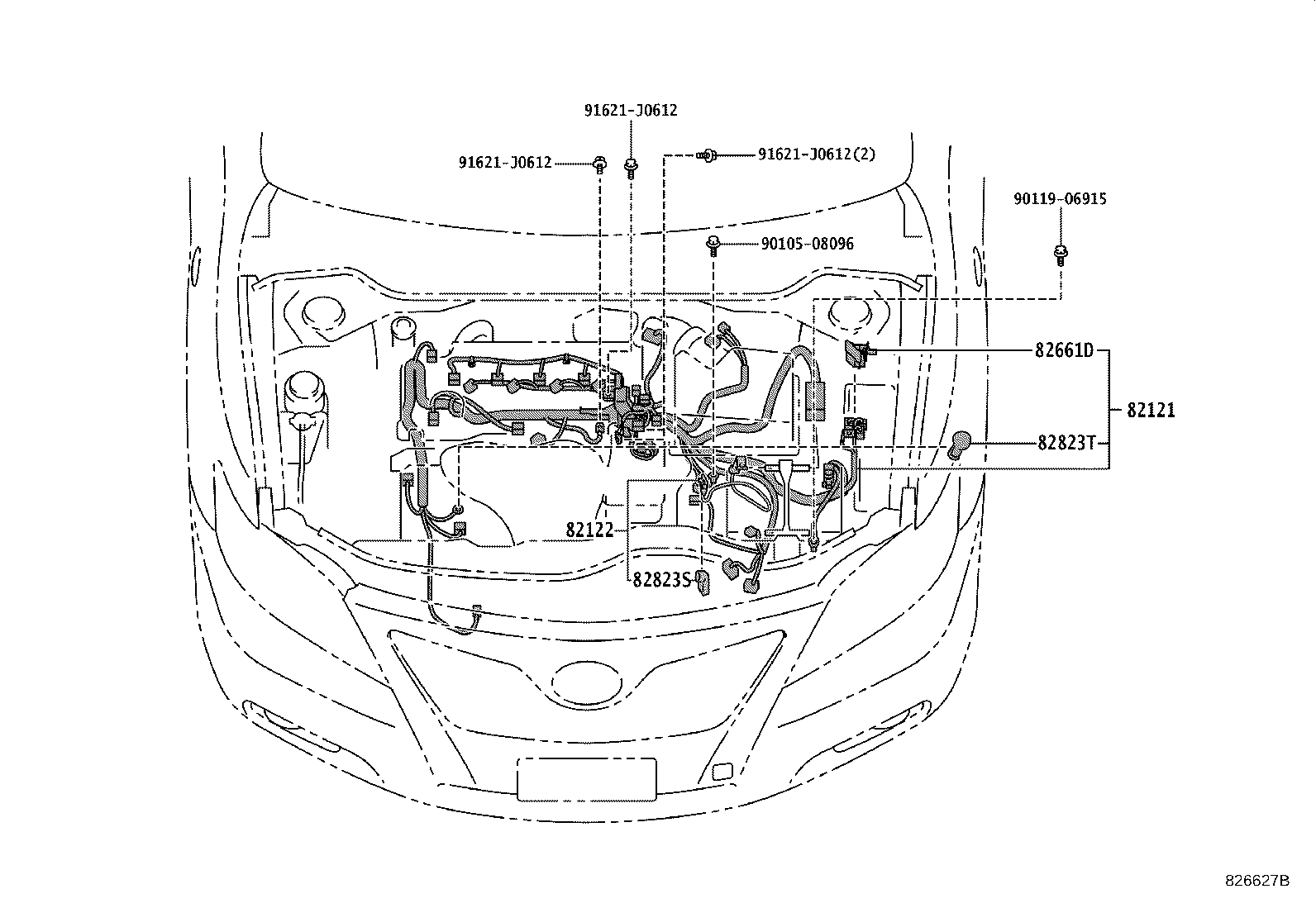

ILLUST NO. 2 OF10(0606- )ACV40

Click highlighted areas on diagram

ENGINE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-06860	ACV40..5F	06/2006 - 07/2006	1
82121-06852	ACV40..5FC	03/2007 - 06/2009	1
82121-06861	ACV40..5F	07/2006 - 06/2009	1
82121-06851	ACV40..5FC	07/2006 - 03/2007	1
82121-06850	ACV40..5FC	06/2006 - 07/2006	1
82122 - WIRE, ENGINE, NO.2
82122-06070	ACV40	06/2006 - 06/2009	1
Common parts
90105-08096
90119-06915
91621-J0612
