ACV40L-DEANKV (2006)
Toyota Camry/Aurion/Hv(Arl)

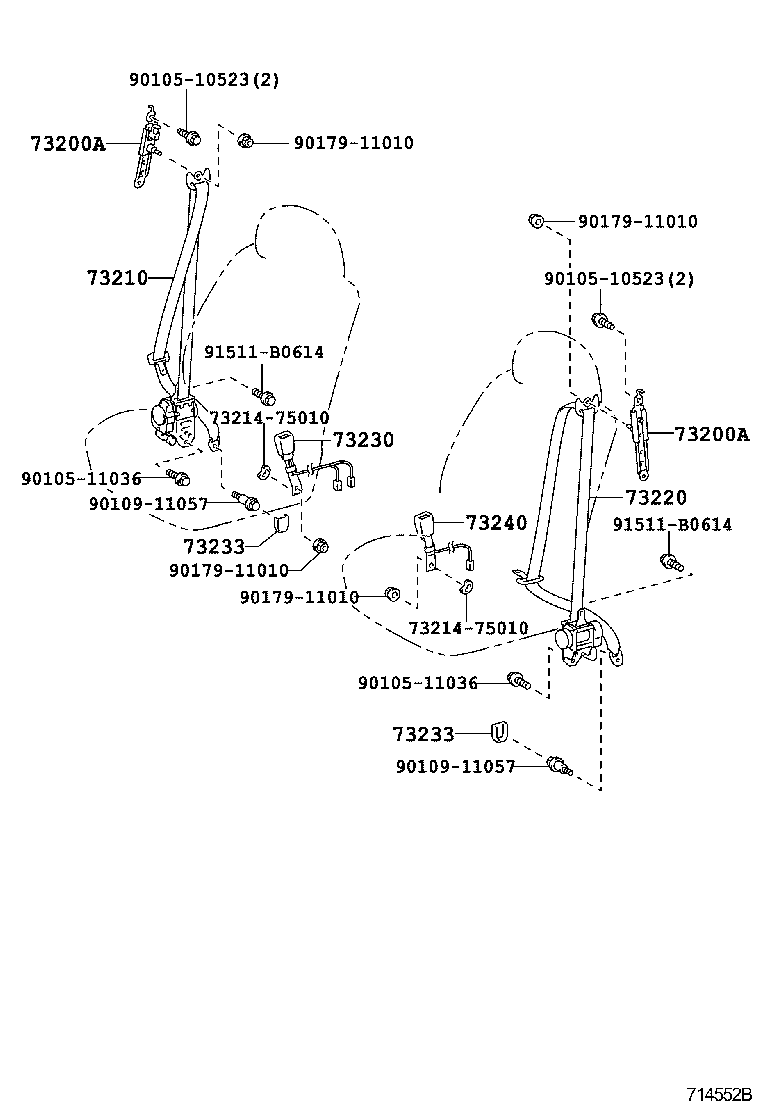

ILLUST NO. 1 OF 2(0606- )
FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
ACV40 |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
ACV40 |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-06240B0 |
ACV40,GSV40..(GD,GL,GLX,TOU)..GCC GRAY,TRIM1# |
1 | ||
| 73210-06240E0 |
ACV40,GSV40..(GD,GL,GLX,TOU)..GCC GREGE,TRIM4# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-06270E0 |
ACV40,GSV40..(GD,GL,GLX,TOU)..GCC GREGE,TRIM4# |
1 | ||
| 73220-06270B0 |
ACV40,GSV40..(GD,GL,GLX,TOU)..GCC GRAY,TRIM1# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-06130E0 |
ACV40,GSV40..GL,GLX,TOU GREGE,TRIM4# |
1 | ||
| 73230-06130B1 |
ACV40,GSV40..GL,GLX,TOU GRAY,TRIM1# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-33010E6 |
ACV40,GSV40..ATEVA,GD,GL,GLX,PRD,PRE,TOU GREGE,TRIM4# |
2 | ||
| 73233-33010P3 |
ACV40,GSV40..(GD,GL,GLX,TOU)..GCC GRAY,TRIM1# |
2 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-33010E6 |
ACV40,GSV40..ATEVA,GD,GL,GLX,PRD,PRE,TOU GREGE,TRIM4# |
2 | ||
| 73233-33010P3 |
ACV40,GSV40..(GD,GL,GLX,TOU)..GCC GRAY,TRIM1# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-06190E0 |
ACV40,GSV40..GLX,TOU GREGE,TRIM4# |
1 | ||
| 73230-06160E0 |
ACV40..GL GREGE,TRIM4# |
1 | ||
| 73230-06160B1 |
ACV40..GL GRAY,TRIM1# |
1 | ||
| 73230-06190B1 |
ACV40,GSV40..GLX,TOU GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-10523 | ||||
| 90105-11036 | ||||
| 90109-11057 | ||||
| 90179-11010 | ||||
| 91511-B0614 | ||||

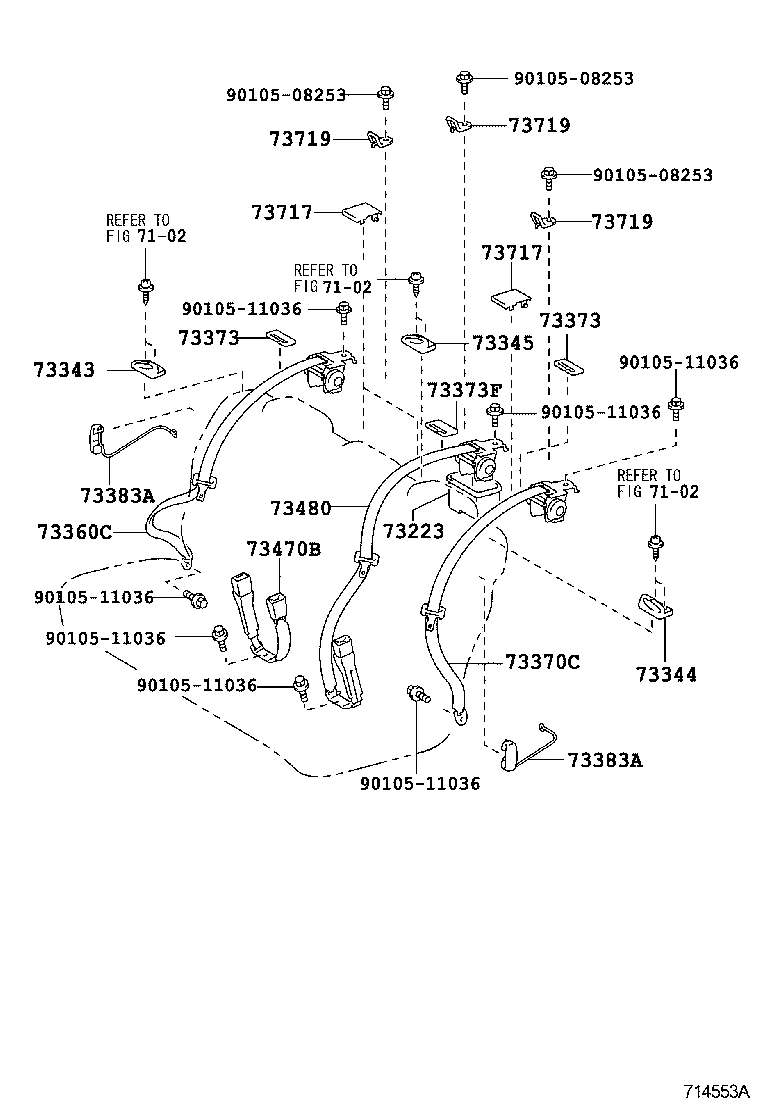

ILLUST NO. 2 OF 2(0606- )
REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73223 - COVER, SEAT BELT RETRACTOR | ||||
| 73223-06030 |
ACV40 |
1 | ||
| 73343 - GUIDE, REAR SEAT SHOULDER BELT, RH | ||||
| 73343-33010E0 |
ACV40,GSV40..ATEVA,GD,GL,GLX,PRD,PRE,TOU GREGE,TRIM4# |
1 | ||
| 73343-33010B1 |
ACV40,GSV40..(GD,GL,GLX,TOU)..GCC GRAY,TRIM1# |
1 | ||
| 73344 - GUIDE, REAR SEAT SHOULDER BELT, LH | ||||
| 73344-33010B1 |
ACV40,GSV40..(GD,GL,GLX,TOU)..GCC GRAY,TRIM1# |
1 | ||
| 73344-33010E0 |
ACV40,GSV40..ATEVA,GD,GL,GLX,PRD,PRE,TOU GREGE,TRIM4# |
1 | ||
| 73345 - GUIDE, REAR SEAT SHOULDER BELT, CENTER | ||||
| 73344-33010B1 |
ACV40,GSV40..(GD,GL,GLX,TOU)..GCC GRAY,TRIM1# |
1 | ||
| 73344-33010E0 |
ACV40,GSV40..ATEVA,GD,GL,GLX,PRD,PRE,TOU GREGE,TRIM4# |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-06220E0 |
ACV40,GSV40..ATEVA,GD,GL,GLX,PRD,PRE,TOU GREGE,TRIM4# |
1 | ||
| 73360-06220B0 |
ACV40,GSV40..(GD,GL,GLX,TOU)..GCC GRAY,TRIM1# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73360-06220B0 |
ACV40,GSV40..(GD,GL,GLX,TOU)..GCC GRAY,TRIM1# |
1 | ||
| 73360-06220E0 |
ACV40,GSV40..ATEVA,GD,GL,GLX,PRD,PRE,TOU GREGE,TRIM4# |
1 | ||
| 73373 - COVER, REAR SEAT SHOULDER BELT | ||||
| 73373-33010E4 |
ACV40,GSV40..ATEVA,GD,GL,GLX,PRD,PRE,TOU GREGE,TRIM4# |
2 | ||
| 73373-33010B8 |
ACV40,GSV40..(GD,GL,GLX,TOU)..GCC GRAY,TRIM1# |
2 | ||
| 73373 - COVER, REAR SEAT SHOULDER BELT | ||||
| 73373-33010E4 |
ACV40,GSV40..ATEVA,GD,GL,GLX,PRD,PRE,TOU GREGE,TRIM4# |
2 | ||
| 73373-33010B8 |
ACV40,GSV40..(GD,GL,GLX,TOU)..GCC GRAY,TRIM1# |
2 | ||
| 73373F - COVER, REAR SEAT SHOULDER BELT HOLE | ||||
| 73373-33030B0 |
ACV40,GSV40..(GD,GL,GLX,TOU)..GCC GRAY,TRIM1# |
1 | ||
| 73373-33030E0 |
ACV40,GSV40..ATEVA,GD,GL,GLX,PRD,PRE,TOU GREGE,TRIM4# |
1 | ||
| 73383A - HOOK, RR SEAT BELT | ||||
| 73383-33020 |
ACV40,GSV40..ALT,ATEVA,GD,GL,GLX,TOU |
2 | ||
| 73383A - HOOK, RR SEAT BELT | ||||
| 73383-33020 |
ACV40,GSV40..ALT,ATEVA,GD,GL,GLX,TOU |
2 | ||
| 73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH | ||||
| 73470-06090B0 |
ACV40,GSV40..(GD,GL,GLX,TOU)..GCC GRAY,TRIM1# |
1 | ||
| 73470-06090E0 |
ACV40,GSV40..ATEVA,GD,GL,GLX,PRD,PRE,TOU GREGE,TRIM4# |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-06080B0 |
ACV40,GSV40..(GD,GL,GLX,TOU)..GCC GRAY,TRIM1# |
1 | ||
| 73480-06080E0 |
ACV40,GSV40..ATEVA,GD,GL,GLX,PRD,PRE,TOU GREGE,TRIM4# |
1 | ||
| 73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73717-06020E0 |
ACV40,GSV40..ATEVA,GL,GLX,PRD,TOU GREGE,TRIM4# |
3 | ||
| 73717-YC020B2 |
ACV40,GSV40..GLX,TOU SUN SHADE-WITH POWER,GRAY,TRIM1# |
3 | ||
| 73717-06020B1 |
ACV40,GSV40..GL,GLX,TOU GRAY,TRIM1# |
3 | ||
| 73717-YC020E1 |
ACV40,GSV40..GLX,TOU SUN SHADE-WITH POWER,GREGE,TRIM4# |
3 | ||
| 73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73717-06020E0 |
ACV40,GSV40..ATEVA,GL,GLX,PRD,TOU GREGE,TRIM4# |
3 | ||
| 73717-YC020B2 |
ACV40,GSV40..GLX,TOU SUN SHADE-WITH POWER,GRAY,TRIM1# |
3 | ||
| 73717-06020B1 |
ACV40,GSV40..GL,GLX,TOU GRAY,TRIM1# |
3 | ||
| 73717-YC020E1 |
ACV40,GSV40..GLX,TOU SUN SHADE-WITH POWER,GREGE,TRIM4# |
3 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-33030 |
ACV40,GSV40 |
3 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-33030 |
ACV40,GSV40 |
3 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-33030 |
ACV40,GSV40 |
3 | ||
| Common parts | ||||
| 90105-08253 | ||||
| 90105-11036 | ||||
| Linked diagrams | ||||
| 7102 | ||||
