ACV40L-DEANKV (2006)
Toyota Camry/Aurion/Hv(Arl)
(0606- )GL

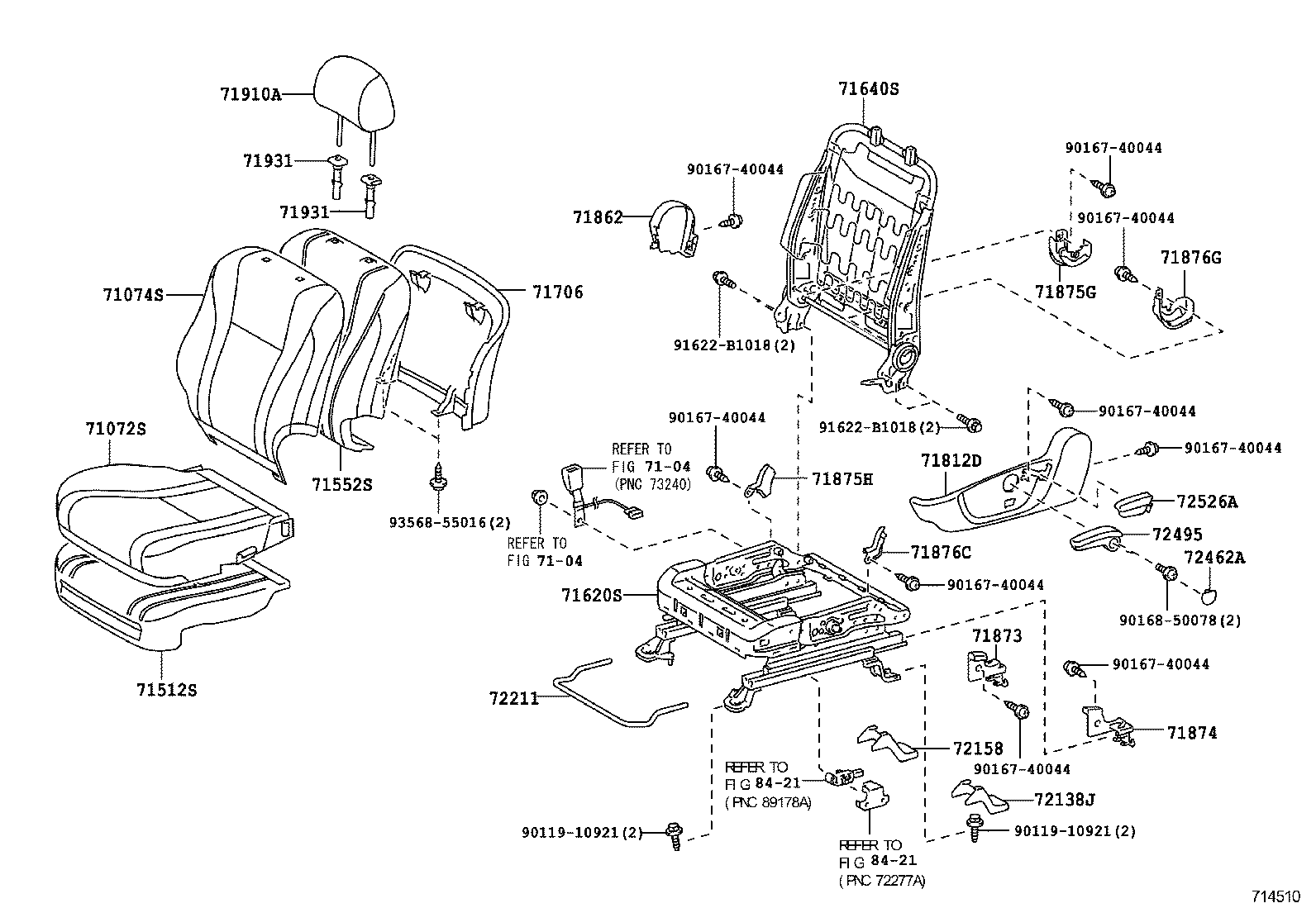

DRIVER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-06670E0 |
ACV40..GL GREGE,TRIM4# |
1 | ||
| 71072-06700B0 |
ACV40,GSV40..GLX,TOU GRAY,TRIM1# |
1 | ||
| 71072-06670B0 |
ACV40..GL GRAY,TRIM1# |
1 | ||
| 71072-06700E0 |
ACV40,GSV40..GLX,TOU GREGE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-06670B1 |
ACV40,GSV40..GLX,TOU GRAY,TRIM1# |
1 | ||
| 71074-06830E0 |
ACV40..GL GREGE,TRIM4# |
1 | ||
| 71074-06830B0 |
ACV40..GL GRAY,TRIM1# |
1 | ||
| 71074-06670E1 |
ACV40,GSV40..GLX,TOU GREGE,TRIM4# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-06200 |
ACV40..GLX |
1 | ||
| 71512-06190 |
ACV40..GL |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-06170 |
ACV40..ALT,GL,GLX |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-06160 |
ACV40..GLX,SE |
1 | ||
| 71620-06110 |
ACV40..GL |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-06250 |
ACV40..GLX |
1 | ||
| 71640-06210 |
ACV40..ALT,GL |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71706-06030B1 |
ACV40,GSV40..(GD,GL,GLX,TOU)..GCC GRAY,TRIM1# |
1 | ||
| 71706-06030E0 |
ACV40,GSV40..ATEVA,GD,GL,GLX,TOU GREGE,TRIM4# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-06160B0 |
ACV40..GL GRAY,TRIM1# |
1 | ||
| 71812-06160E0 |
ACV40..GL GREGE,TRIM4# |
1 | ||
| 71812-06170B1 |
ACV40,GSV40..(GD,GLX,TOU)..GCC GRAY,TRIM1# |
1 | ||
| 71812-06170E0 |
ACV40,GSV40..ATEVA,GD,GLX,PRD,PRE,TOU GREGE,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-06090E0 |
ACV40..GL GREGE,TRIM4# |
1 | ||
| 71862-06090B1 |
ACV40..GL GRAY,TRIM1# |
1 | ||
| 71862-06110E0 |
ACV40,GSV40..ATEVA,GD,GLX,PRD,PRE,TOU GREGE,TRIM4# |
1 | ||
| 71862-06110B1 |
ACV40,GSV40..(GD,GLX,TOU)..GCC GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-06330 |
ACV40 |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-06310 |
ACV40 |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-06380 |
ACV40 |
1 | ||
| 71875H - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-06140E0 |
ACV40..GL GREGE,TRIM4# |
1 | ||
| 71875-06140B1 |
ACV40..GL GRAY,TRIM1# |
1 | ||
| 71875-06160B1 |
ACV40,GSV40..(GD,GLX,TOU)..GCC GRAY,TRIM1# |
1 | ||
| 71875-06160E0 |
ACV40,GSV40..ATEVA,GD,GLX,PRD,PRE,TOU GREGE,TRIM4# |
1 | ||
| 71876C - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-06350B1 |
ACV40..GL GRAY,TRIM1# |
1 | ||
| 71876-06350E0 |
ACV40..GL GREGE,TRIM4# |
1 | ||
| 71876-06360E0 |
ACV40,GSV40..ATEVA,GD,GLX,PRD,PRE,TOU GREGE,TRIM4# |
1 | ||
| 71876-06360B1 |
ACV40,GSV40..(GD,GLX,TOU)..GCC GRAY,TRIM1# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-06150E0 |
ACV40,GSV40..ATEVA,GD,GLX,PRD,PRE,TOU GREGE,TRIM4# |
1 | ||
| 71876-06410 |
ACV40,GSV40..ALT,GL,SPVS |
1 | ||
| 71876-06150B1 |
ACV40,GSV40..(GD,GLX,TOU)..GCC GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-06340B2 |
ACV40..GL GRAY,TRIM1# |
2 | ||
| 71910-06340E0 |
ACV40..GL GREGE,TRIM4# |
2 | ||
| 71910-06370E0 |
ACV40,GSV40..GLX,TOU GREGE,TRIM4# |
2 | ||
| 71910-06340E1 |
ACV40..GL GREGE,TRIM4# |
2 | ||
| 71910-06370B0 |
ACV40,GSV40..GLX,TOU GRAY,TRIM1# |
2 | ||
| 71910-06340B5 |
ACV40..GL GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020E1 |
ACV40,GSV40..ATEVA,GD,GL,GLX,PRE,TOU W(LOCK)&W(BUTTON),GREGE,TRIM4# |
2 | ||
| 71930-42020B7 |
ACV40,GSV40..(GD,GL,GLX,TOU)..GCC W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020E1 |
ACV40,GSV40..ATEVA,GD,GL,GLX,PRE,TOU W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
2 | ||
| 71931-42020B7 |
ACV40,GSV40..(GD,GL,GLX,TOU)..GCC W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020E1 |
ACV40,GSV40..ATEVA,GD,GL,GLX,PRE,TOU W(LOCK)&W(BUTTON),GREGE,TRIM4# |
2 | ||
| 71930-42020B7 |
ACV40,GSV40..(GD,GL,GLX,TOU)..GCC W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020E1 |
ACV40,GSV40..ATEVA,GD,GL,GLX,PRE,TOU W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
2 | ||
| 71931-42020B7 |
ACV40,GSV40..(GD,GL,GLX,TOU)..GCC W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72138-06060B1 |
ACV40,GSV40..(GD,GL,GLX,TOU)..GCC GRAY,TRIM1# |
1 | ||
| 72138-06060E0 |
ACV40,GSV40..ATEVA,GD,GL,GLX,PRD,PRE,TOU GREGE,TRIM4# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-06070B1 |
ACV40,GSV40..(GD,GL,GLX,TOU)..GCC GRAY,TRIM1# |
1 | ||
| 72158-06070E0 |
ACV40,GSV40..ATEVA,GD,GL,GLX,PRD,PRE,TOU GREGE,TRIM4# |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-06030 |
ACV40..GLX,SE |
1 | ||
| 72211-06030 |
ACV40..ALT,GL |
2 | ||
| 72462A - COVER, VERTICAL ADJUSTER LH | ||||
| 72462-06030B1 |
ACV40..GL GRAY,TRIM1# |
1 | ||
| 72462-06030E0 |
ACV40..GL GREGE,TRIM4# |
1 | ||
| 72495 - HANDLE, VERTICAL ADJUSTING, LH | ||||
| 72494-06050B0 |
ACV40..GL GRAY,TRIM1# |
1 | ||
| 72494-06050E0 |
ACV40..GL GREGE,TRIM4# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-06070B0 |
ACV40..GL GRAY,TRIM1# |
1 | ||
| 72526-06070E0 |
ACV40..GL GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 91622-B1018 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8421 | ||||
(0606- )GL,GLX,SE,TOU

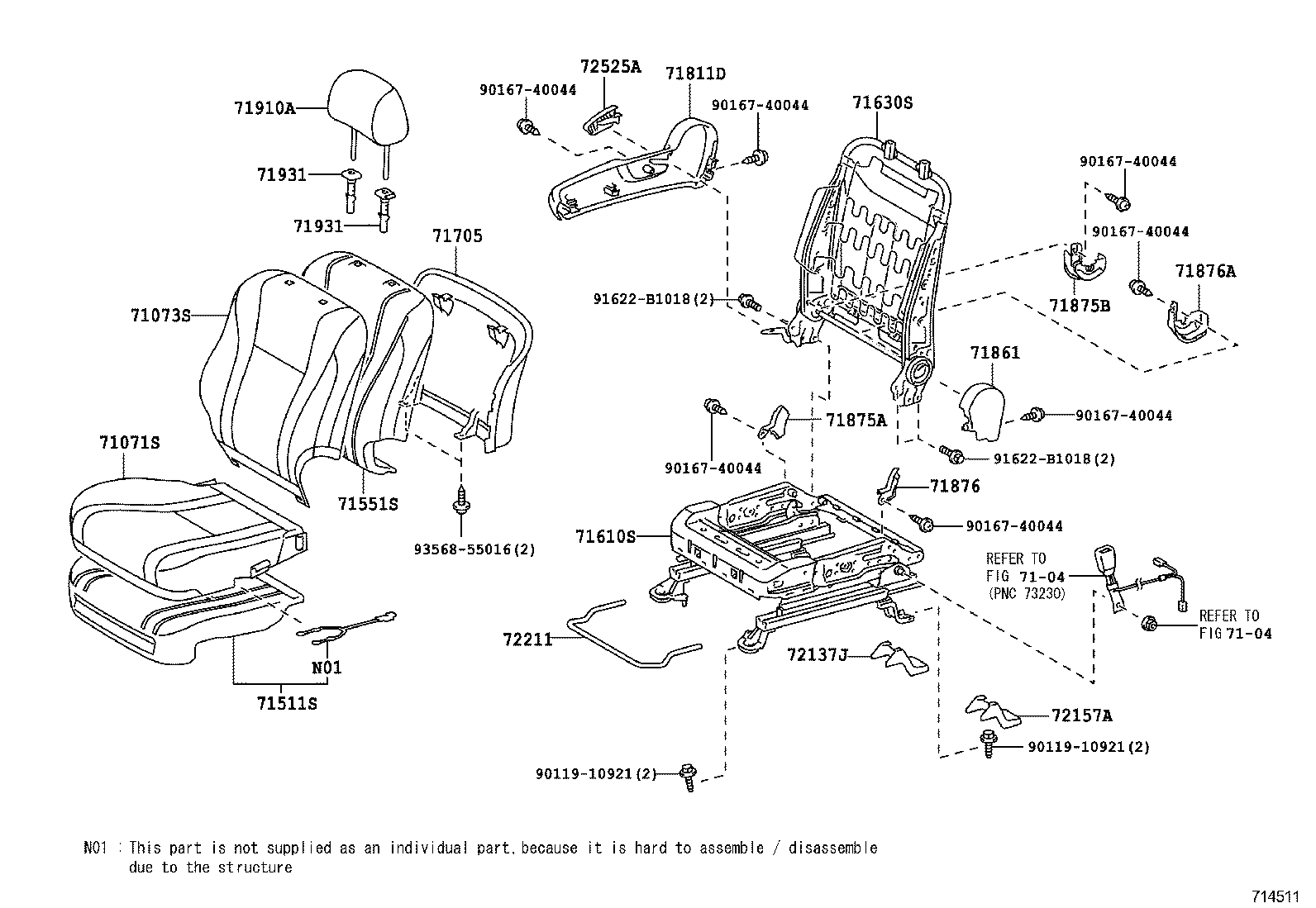

PASSENGER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-06640B0 |
ACV40..GL GRAY,TRIM1# |
1 | ||
| 71071-06640E0 |
ACV40..GL GREGE,TRIM4# |
1 | ||
| 71071-06680B0 |
ACV40,GSV40..GLX,TOU GRAY,TRIM1# |
1 | ||
| 71071-06680E0 |
ACV40,GSV40..GLX,TOU GREGE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-06A90B0 |
ACV40..GL GRAY,TRIM1# |
1 | ||
| 71073-06830E1 |
ACV40,GSV40..GLX,TOU GREGE,TRIM4# |
1 | ||
| 71073-06A90E0 |
ACV40..GL GREGE,TRIM4# |
1 | ||
| 71073-06830B1 |
ACV40,GSV40..GLX,TOU GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-06010 |
ACV40..GL,GLX |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-06230 |
ACV40..ALT,GL,GLX |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-06090 |
ACV40..GCC |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-06270 |
ACV40..GL,GLX |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-06070B1 |
ACV40,GSV40..(GD,GL,GLX,TOU)..GCC GRAY,TRIM1# |
1 | ||
| 71705-06070E0 |
ACV40,GSV40..ATEVA,GD,GL,GLX,TOU GREGE,TRIM4# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-06130B1 |
ACV40,GSV40..GL,GLX,TOU GRAY,TRIM1# |
1 | ||
| 71811-06130E0 |
ACV40,GSV40..GL,GLX,TOU GREGE,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-06080E0 |
ACV40,GSV40..GL,GLX,TOU GREGE,TRIM4# |
1 | ||
| 71861-06080B1 |
ACV40,GSV40..GL,GLX,TOU GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-06140E0 |
ACV40,GSV40..GL,GLX,TOU GREGE,TRIM4# |
1 | ||
| 71875-06140B1 |
ACV40,GSV40..GL,GLX,TOU GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-06380 |
ACV40..ALT,GL,GLX,SE |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-06350B1 |
ACV40,GSV40..GL,GLX,TOU GRAY,TRIM1# |
1 | ||
| 71876-06350E0 |
ACV40,GSV40..GL,GLX,TOU GREGE,TRIM4# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-06410 |
ACV40 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-06340B2 |
ACV40..GL GRAY,TRIM1# |
2 | ||
| 71910-06340E0 |
ACV40..GL GREGE,TRIM4# |
2 | ||
| 71910-06370E0 |
ACV40,GSV40..GLX,TOU GREGE,TRIM4# |
2 | ||
| 71910-06340E1 |
ACV40..GL GREGE,TRIM4# |
2 | ||
| 71910-06370B0 |
ACV40,GSV40..GLX,TOU GRAY,TRIM1# |
2 | ||
| 71910-06340B5 |
ACV40..GL GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020E1 |
ACV40,GSV40..ATEVA,GD,GL,GLX,PRE,TOU W(LOCK)&W(BUTTON),GREGE,TRIM4# |
2 | ||
| 71930-42020B7 |
ACV40,GSV40..(GD,GL,GLX,TOU)..GCC W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020E1 |
ACV40,GSV40..ATEVA,GD,GL,GLX,PRE,TOU W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
2 | ||
| 71931-42020B7 |
ACV40,GSV40..(GD,GL,GLX,TOU)..GCC W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020E1 |
ACV40,GSV40..ATEVA,GD,GL,GLX,PRE,TOU W(LOCK)&W(BUTTON),GREGE,TRIM4# |
2 | ||
| 71930-42020B7 |
ACV40,GSV40..(GD,GL,GLX,TOU)..GCC W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020E1 |
ACV40,GSV40..ATEVA,GD,GL,GLX,PRE,TOU W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
2 | ||
| 71931-42020B7 |
ACV40,GSV40..(GD,GL,GLX,TOU)..GCC W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-06070B1 |
ACV40,GSV40..(GD,GL,GLX,TOU)..GCC GRAY,TRIM1# |
1 | ||
| 72137-06070E0 |
ACV40,GSV40..ATEVA,GD,GL,GLX,PRD,PRE,TOU GREGE,TRIM4# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-06070E0 |
ACV40,GSV40..ATEVA,GD,GL,GLX,PRD,PRE,TOU GREGE,TRIM4# |
1 | ||
| 72157-06070B1 |
ACV40,GSV40..(GD,GL,GLX,TOU)..GCC GRAY,TRIM1# |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-06030 |
ACV40..GLX,SE |
1 | ||
| 72211-06030 |
ACV40..ALT,GL |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-06040E0 |
ACV40,GSV40..GL,GLX,TOU GREGE,TRIM4# |
1 | ||
| 72525-06040B1 |
ACV40,GSV40..GL,GLX,TOU GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 91622-B1018 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 7104 | ||||

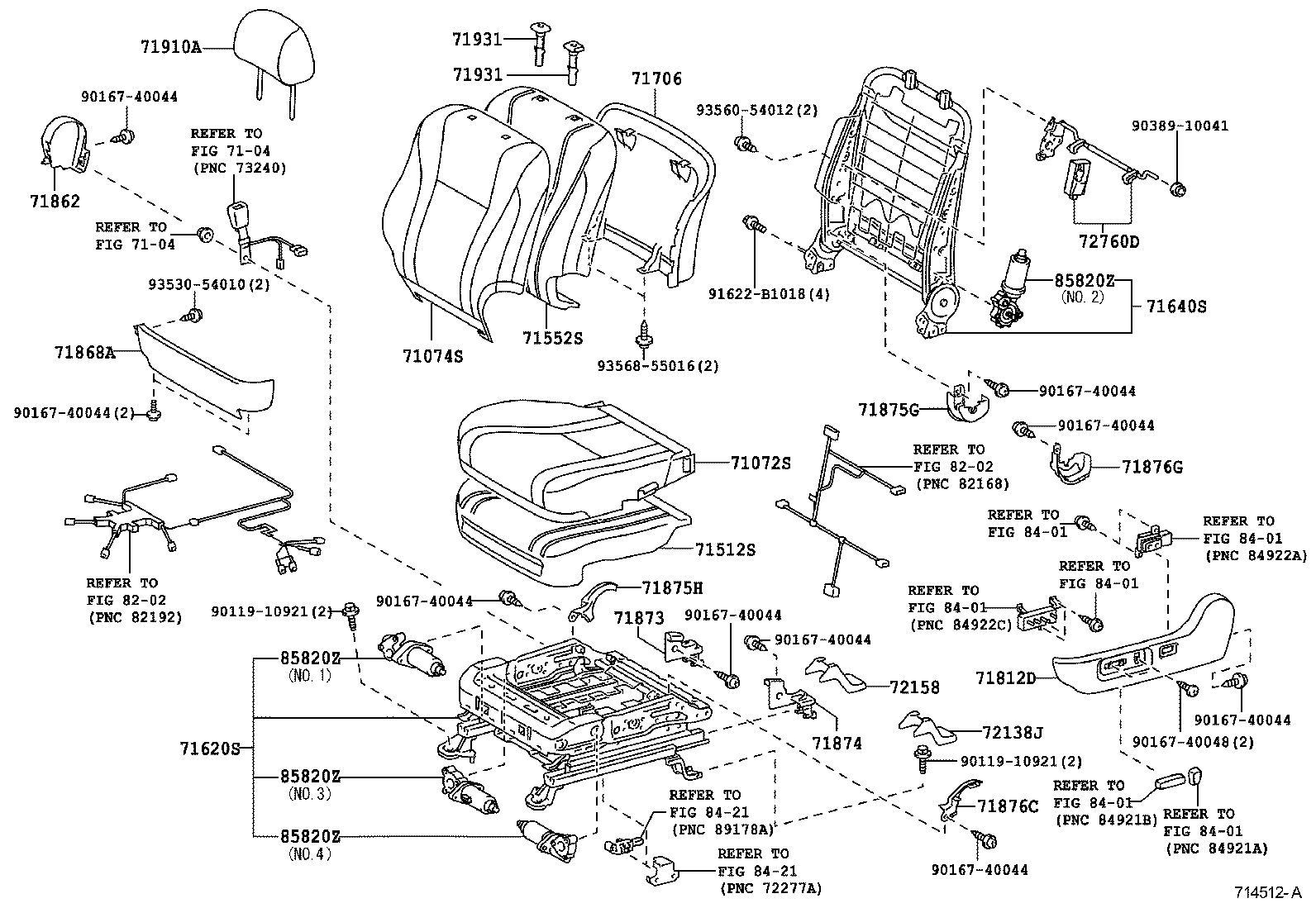

(0606- )GD,GLX,SE,TOU..GCC
DRIVER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-06670E0 |
ACV40..GL GREGE,TRIM4# |
1 | ||
| 71072-06700B0 |
ACV40,GSV40..GLX,TOU GRAY,TRIM1# |
1 | ||
| 71072-06670B0 |
ACV40..GL GRAY,TRIM1# |
1 | ||
| 71072-06700E0 |
ACV40,GSV40..GLX,TOU GREGE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-06670B1 |
ACV40,GSV40..GLX,TOU GRAY,TRIM1# |
1 | ||
| 71074-06830E0 |
ACV40..GL GREGE,TRIM4# |
1 | ||
| 71074-06830B0 |
ACV40..GL GRAY,TRIM1# |
1 | ||
| 71074-06670E1 |
ACV40,GSV40..GLX,TOU GREGE,TRIM4# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-06200 |
ACV40..GLX |
1 | ||
| 71512-06190 |
ACV40..GL |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-06170 |
ACV40..ALT,GL,GLX |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-06160 |
ACV40..GLX,SE |
1 | ||
| 71620-06110 |
ACV40..GL |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-06250 |
ACV40..GLX |
1 | ||
| 71640-06210 |
ACV40..ALT,GL |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71706-06030B1 |
ACV40,GSV40..(GD,GL,GLX,TOU)..GCC GRAY,TRIM1# |
1 | ||
| 71706-06030E0 |
ACV40,GSV40..ATEVA,GD,GL,GLX,TOU GREGE,TRIM4# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-06160B0 |
ACV40..GL GRAY,TRIM1# |
1 | ||
| 71812-06160E0 |
ACV40..GL GREGE,TRIM4# |
1 | ||
| 71812-06170B1 |
ACV40,GSV40..(GD,GLX,TOU)..GCC GRAY,TRIM1# |
1 | ||
| 71812-06170E0 |
ACV40,GSV40..ATEVA,GD,GLX,PRD,PRE,TOU GREGE,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-06090E0 |
ACV40..GL GREGE,TRIM4# |
1 | ||
| 71862-06090B1 |
ACV40..GL GRAY,TRIM1# |
1 | ||
| 71862-06110E0 |
ACV40,GSV40..ATEVA,GD,GLX,PRD,PRE,TOU GREGE,TRIM4# |
1 | ||
| 71862-06110B1 |
ACV40,GSV40..(GD,GLX,TOU)..GCC GRAY,TRIM1# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-06070E0 |
ACV40,GSV40..ATEVA,GD,GLX,PRD,PRE,TOU GREGE,TRIM4# |
1 | ||
| 71868-06070B1 |
ACV40,GSV40..(GD,GLX,TOU)..GCC GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-06330 |
ACV40 |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-06310 |
ACV40 |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-06380 |
ACV40 |
1 | ||
| 71875H - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-06140E0 |
ACV40..GL GREGE,TRIM4# |
1 | ||
| 71875-06140B1 |
ACV40..GL GRAY,TRIM1# |
1 | ||
| 71875-06160B1 |
ACV40,GSV40..(GD,GLX,TOU)..GCC GRAY,TRIM1# |
1 | ||
| 71875-06160E0 |
ACV40,GSV40..ATEVA,GD,GLX,PRD,PRE,TOU GREGE,TRIM4# |
1 | ||
| 71876C - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-06350B1 |
ACV40..GL GRAY,TRIM1# |
1 | ||
| 71876-06350E0 |
ACV40..GL GREGE,TRIM4# |
1 | ||
| 71876-06360E0 |
ACV40,GSV40..ATEVA,GD,GLX,PRD,PRE,TOU GREGE,TRIM4# |
1 | ||
| 71876-06360B1 |
ACV40,GSV40..(GD,GLX,TOU)..GCC GRAY,TRIM1# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-06150E0 |
ACV40,GSV40..ATEVA,GD,GLX,PRD,PRE,TOU GREGE,TRIM4# |
1 | ||
| 71876-06410 |
ACV40,GSV40..ALT,GL,SPVS |
1 | ||
| 71876-06150B1 |
ACV40,GSV40..(GD,GLX,TOU)..GCC GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-06340B2 |
ACV40..GL GRAY,TRIM1# |
2 | ||
| 71910-06340E0 |
ACV40..GL GREGE,TRIM4# |
2 | ||
| 71910-06370E0 |
ACV40,GSV40..GLX,TOU GREGE,TRIM4# |
2 | ||
| 71910-06340E1 |
ACV40..GL GREGE,TRIM4# |
2 | ||
| 71910-06370B0 |
ACV40,GSV40..GLX,TOU GRAY,TRIM1# |
2 | ||
| 71910-06340B5 |
ACV40..GL GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020E1 |
ACV40,GSV40..ATEVA,GD,GL,GLX,PRE,TOU W(LOCK)&W(BUTTON),GREGE,TRIM4# |
2 | ||
| 71930-42020B7 |
ACV40,GSV40..(GD,GL,GLX,TOU)..GCC W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020E1 |
ACV40,GSV40..ATEVA,GD,GL,GLX,PRE,TOU W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
2 | ||
| 71931-42020B7 |
ACV40,GSV40..(GD,GL,GLX,TOU)..GCC W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020E1 |
ACV40,GSV40..ATEVA,GD,GL,GLX,PRE,TOU W(LOCK)&W(BUTTON),GREGE,TRIM4# |
2 | ||
| 71930-42020B7 |
ACV40,GSV40..(GD,GL,GLX,TOU)..GCC W(LOCK)&W(BUTTON),GRAY,TRIM1# |
2 | ||
| 71931-42020E1 |
ACV40,GSV40..ATEVA,GD,GL,GLX,PRE,TOU W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
2 | ||
| 71931-42020B7 |
ACV40,GSV40..(GD,GL,GLX,TOU)..GCC W(LOCK)&W/O(BUTTON),GRAY,TRIM1# |
2 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72138-06060B1 |
ACV40,GSV40..(GD,GL,GLX,TOU)..GCC GRAY,TRIM1# |
1 | ||
| 72138-06060E0 |
ACV40,GSV40..ATEVA,GD,GL,GLX,PRD,PRE,TOU GREGE,TRIM4# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-06070B1 |
ACV40,GSV40..(GD,GL,GLX,TOU)..GCC GRAY,TRIM1# |
1 | ||
| 72158-06070E0 |
ACV40,GSV40..ATEVA,GD,GL,GLX,PRD,PRE,TOU GREGE,TRIM4# |
1 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-06040 |
ACV40..ATEVA,GD,GLX,SE,SPV |
1 | ||
| 85820Z - MOTOR ASSY, POWER SEAT | ||||
| 85801-06040 |
ACV40..ATEVA,GLX,SE,SPV NO.2 |
1 | ||
| 85801-06080 |
ACV40..ATEVA,GLX,SE,SPV NO.4 |
1 | ||
| 85801-06020 |
ACV40..ATEVA,GLX,SE,SPV NO.1 |
1 | ||
| 85801-06060 |
ACV40..ATEVA,GLX,SE,SPV NO.3 |
1 | ||
| 85820Z - MOTOR ASSY, POWER SEAT | ||||
| 85801-06040 |
ACV40..ATEVA,GLX,SE,SPV NO.2 |
1 | ||
| 85801-06080 |
ACV40..ATEVA,GLX,SE,SPV NO.4 |
1 | ||
| 85801-06020 |
ACV40..ATEVA,GLX,SE,SPV NO.1 |
1 | ||
| 85801-06060 |
ACV40..ATEVA,GLX,SE,SPV NO.3 |
1 | ||
| 85820Z - MOTOR ASSY, POWER SEAT | ||||
| 85801-06040 |
ACV40..ATEVA,GLX,SE,SPV NO.2 |
1 | ||
| 85801-06080 |
ACV40..ATEVA,GLX,SE,SPV NO.4 |
1 | ||
| 85801-06020 |
ACV40..ATEVA,GLX,SE,SPV NO.1 |
1 | ||
| 85801-06060 |
ACV40..ATEVA,GLX,SE,SPV NO.3 |
1 | ||
| 85820Z - MOTOR ASSY, POWER SEAT | ||||
| 85801-06040 |
ACV40..ATEVA,GLX,SE,SPV NO.2 |
1 | ||
| 85801-06080 |
ACV40..ATEVA,GLX,SE,SPV NO.4 |
1 | ||
| 85801-06020 |
ACV40..ATEVA,GLX,SE,SPV NO.1 |
1 | ||
| 85801-06060 |
ACV40..ATEVA,GLX,SE,SPV NO.3 |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 90167-40048 | ||||
| 90389-10041 | ||||
| 91622-B1018 | ||||
| 93530-54010 | ||||
| 93560-54012 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
