ACV40L-DEANKV (2006)

Toyota Camry/Aurion/Hv(Arl)

Production Jun 2006 - Jun 2009
Engine 2AZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0606- )ACV40..GCC

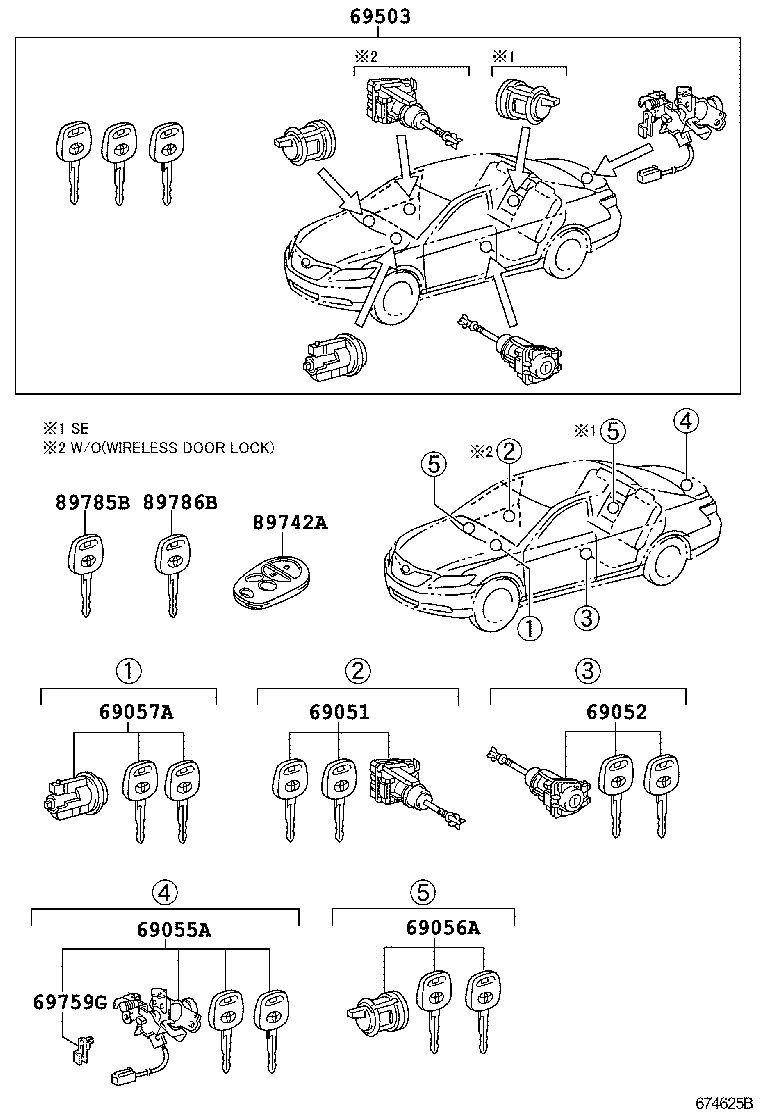

Click highlighted areas on diagram

W/O(SMART ENTRY)

diagram 69051 69052 69055A 69056A 69057A 69503 69759G 89742A 89785B 89786B
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-06040

ACV40..ALT,ATEVA,GD,GL,SPV

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-04020

ACV40..GCC

 1
69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69055-06070

ACV40..GCC

 1
69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-06040

ACV40

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-04030

ACV40

 1
69503 - CYLINDER SET, LOCK
69005-06390

ACV40..GLX

 1
69005-06380

ACV40..GL

 1
69005-06390

ACV40..GL

WIRELESS DOOR LOCK-WITH

 1
69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER
69759-06020

ACV40

 1
89742A - TRANSMITTER, DOOR CONTROL
89742-06030

ACV40..GL

WIRELESS DOOR LOCK-WITH

 2
89742-06030

ACV40..ALT,ATEVA,GD,GLX,SE,SPV

 2
89785B - TRANSMITTER, TRANSPONDER KEY MASTER
89785-08020

ACV40

 1
89786B - TRANSMITTER, TRANSPONDER KEY SUB
89786-08020

ACV40

BLANK KEY

 1
