ACV40L-DEADKV (2006)

Toyota Camry/Aurion/Hv(Arl)

Production Jun 2006 - Jun 2009
Engine 2AZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0606- )5F

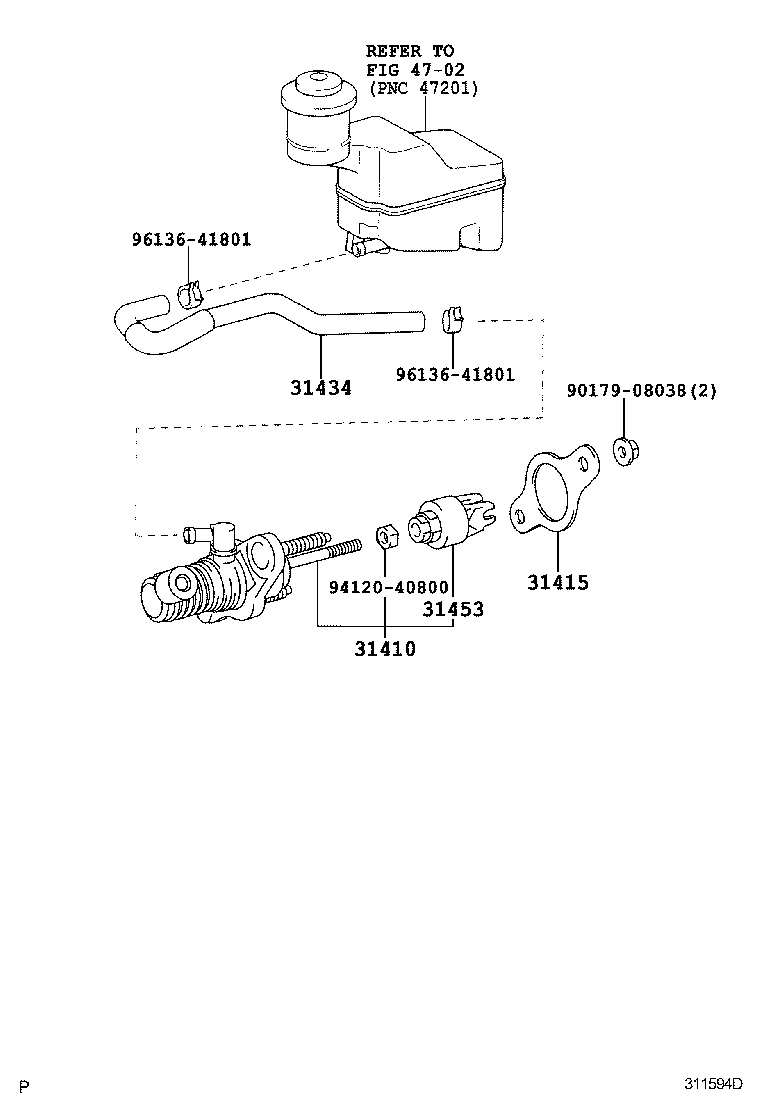

Click highlighted areas on diagram

diagram 31410 31415 31434 31453 4702 9017908038 9412040800 9613641801 9613641801
Part # Description Qty Price
31410 - CYLINDER ASSY, CLUTCH MASTER
31420-33030

ACV40..5F

 1
31415 - GASKET, CLUTCH MASTER CYLINDER
31415-60020

ACV40..5F

 1
31434 - TUBE, CLUTCH RESERVOIR
31434-33070

ACV40..5F..GCC

 1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31404-52010

ACV40..5F

 1
Common parts
90179-08038
94120-40800
96136-41801
Linked diagrams
4702
