Toyota Calya B401 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
GR
CALYA
B401RA-GQZFJ (2016)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

B401RA-GQZFJ (2016)

Toyota Calya

Production Jun 2016 - Sep 9999

Engine 3NRVE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

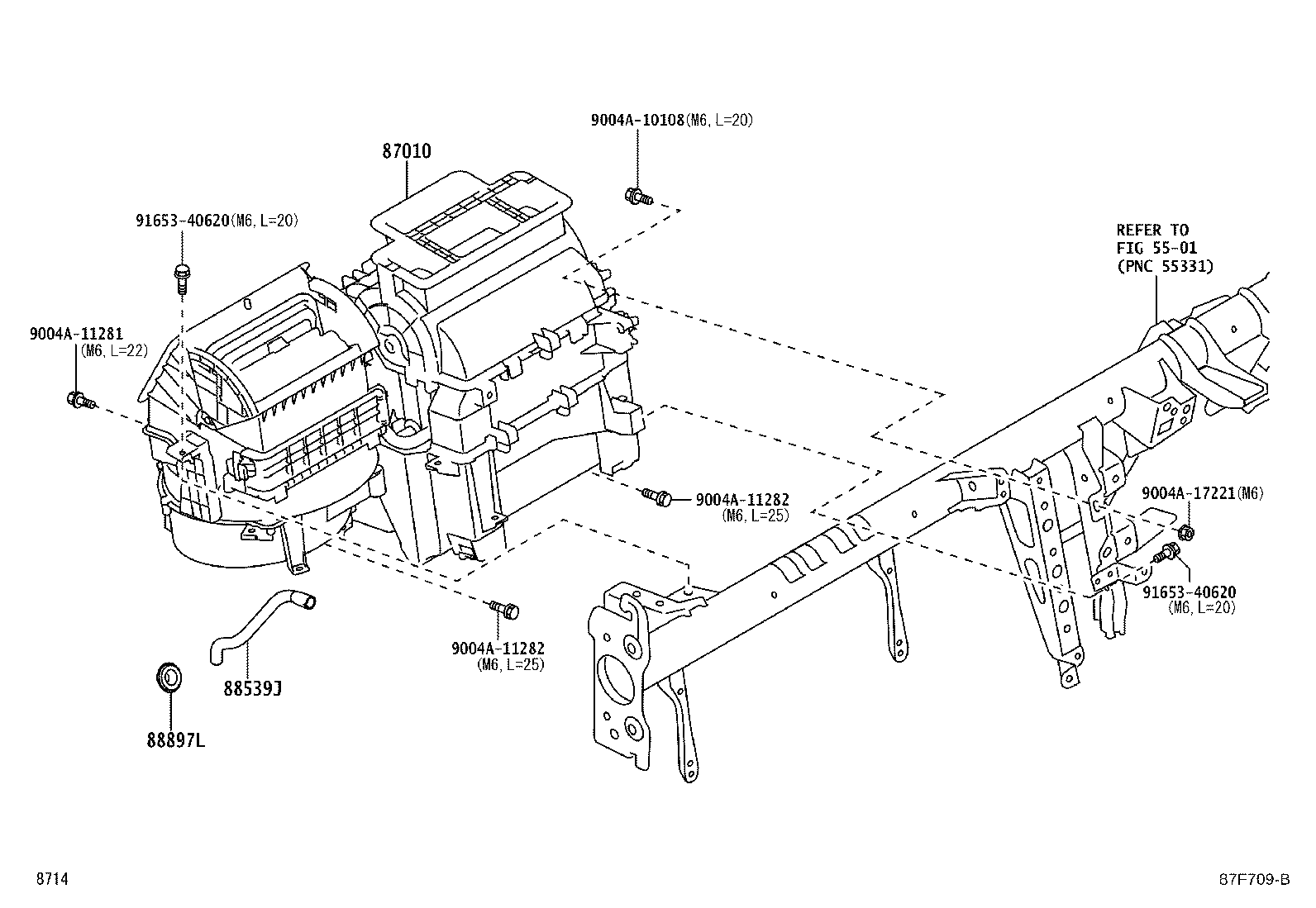

(1606-1909) ; (1909- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
87010 - UNIT ASSY, AIR CONDITIONER
87010-BZ410	B401	06/2016 - 09/2019	1
87010-BZ410	B401	09/2019 - 12/2999	1
88539J - HOSE, DRAIN COOLER
88539-BZ260	B401	09/2019 - 12/2999	1
88539-BZ260	B401	06/2016 - 09/2019	1
88897L - GROMMET (FOR DRAIN HOSE)
88897-87Z13	B401	06/2016 - 09/2019	1
88897-87Z13	B401	09/2019 - 12/2999	1
Common parts
9004A-10108
9004A-11281
9004A-11282
9004A-17221
91653-40620
Linked diagrams
5501

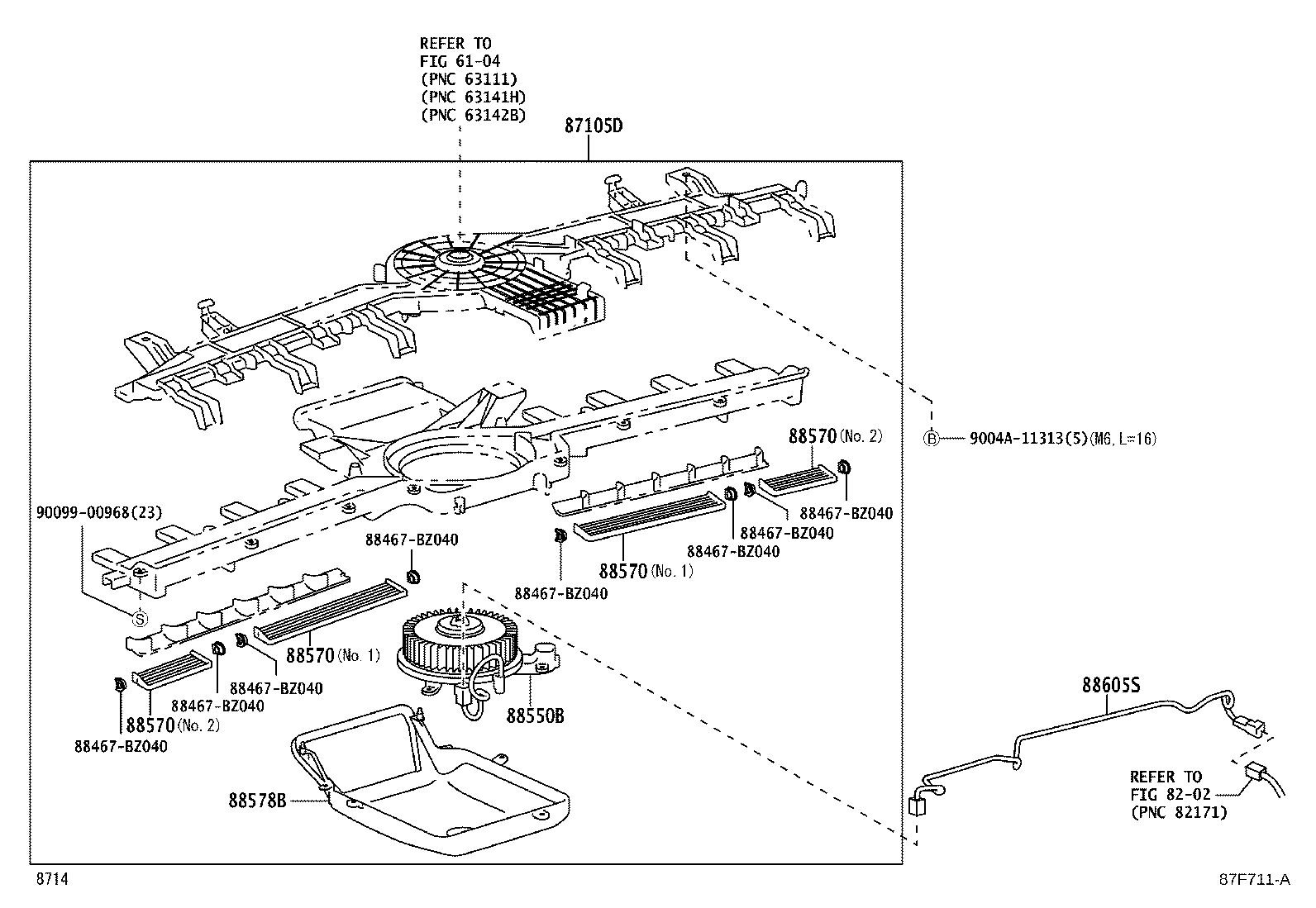

(1606-1909) ; (1909- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
87105D - FAN SUB-ASSY, BLOWER
87105-BZ021	B401	04/2017 - 09/2019	1
87105-BZ021	B401	09/2019 - 12/2999	1
87105-BZ020	B401	06/2016 - 03/2017	1
88550B - MOTOR ASSY, BLOWER
88550-B4010	B401 FR UNIT	06/2016 - 09/2019	1
88550-BZ110	B401 RR UNIT	06/2016 - 12/2017	1
88550-BZ100	B401 RR UNIT	12/2017 - 09/2019	1
88550-BZ100	B401 RR UNIT	09/2019 - 12/2999	1
88550-B4010	B401 FR UNIT	09/2019 - 12/2999	1
88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET
88570-BZ030	B401 NO.1	06/2016 - 09/2019	2
88570-BZ040	B401 NO.2	06/2016 - 09/2019	2
88570-BZ030	B401 NO.1	09/2019 - 12/2999	2
88570-BZ040	B401 NO.2	09/2019 - 12/2999	2
88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET
88570-BZ030	B401 NO.1	06/2016 - 09/2019	2
88570-BZ040	B401 NO.2	06/2016 - 09/2019	2
88570-BZ030	B401 NO.1	09/2019 - 12/2999	2
88570-BZ040	B401 NO.2	09/2019 - 12/2999	2
88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET
88570-BZ030	B401 NO.1	06/2016 - 09/2019	2
88570-BZ040	B401 NO.2	06/2016 - 09/2019	2
88570-BZ030	B401 NO.1	09/2019 - 12/2999	2
88570-BZ040	B401 NO.2	09/2019 - 12/2999	2
88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET
88570-BZ030	B401 NO.1	06/2016 - 09/2019	2
88570-BZ040	B401 NO.2	06/2016 - 09/2019	2
88570-BZ030	B401 NO.1	09/2019 - 12/2999	2
88570-BZ040	B401 NO.2	09/2019 - 12/2999	2
88578B - PACKING, COOLING UNIT, NO.1
88578-BZ620	B401 FR UNIT	06/2016 - 09/2019	1
88578-BZB60	B401 RR UNIT	09/2019 - 12/2999	1
88578-BZ620	B401 FR UNIT	09/2019 - 12/2999	1
88578-BZB60	B401 RR UNIT	06/2016 - 09/2019	1
88605S - HARNESS SUB-ASSY, WIRING AIR CONDITIONER
88605-BZ120	B401	09/2019 - 12/2999	1
88605-BZ120	B401	06/2016 - 09/2019	1
Common parts
88467-BZ040
9004A-11313
90099-00968
Linked diagrams
6104
8202

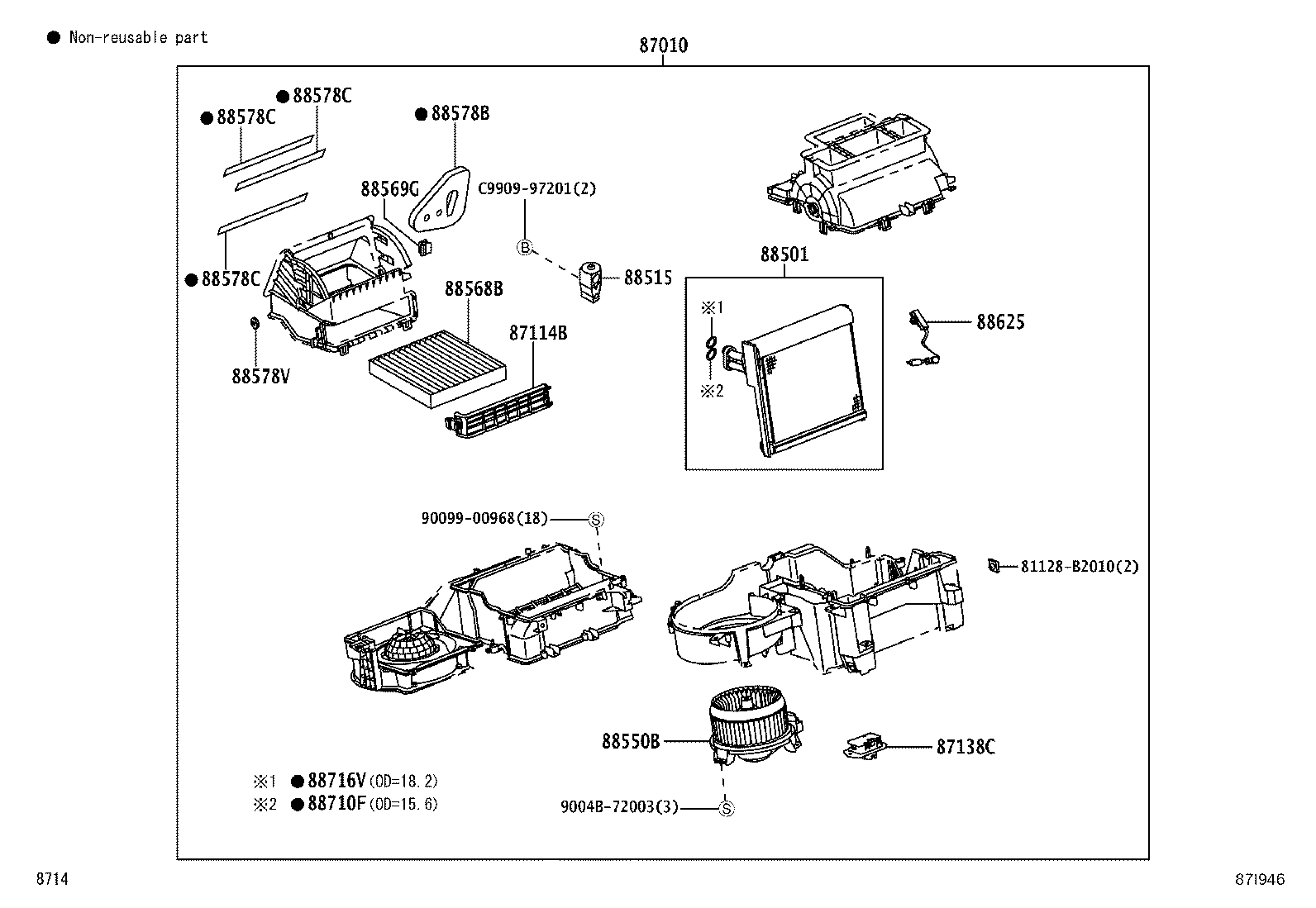

(1606-1909) ; (1909- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
87010 - UNIT ASSY, AIR CONDITIONER
87010-BZ410	B401	06/2016 - 09/2019	1
87010-BZ410	B401	09/2019 - 12/2999	1
87114B - COVER, HEATER
87114-BZ020	B401	06/2016 - 09/2019	1
87114-BZ020	B401	09/2019 - 12/2999	1
87138C - RESISTOR, BLOWER
87138-BZ080	B401	09/2019 - 12/2999	1
87138-BZ080	B401	06/2016 - 09/2019	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-BZ180	B401	06/2016 - 09/2019	1
88501-BZ180	B401	09/2019 - 12/2999	1
88515 - VALVE, COOLER EXPANSION
88515-BZ150	B401	06/2016 - 09/2019	1
88515-BZ150	B401	09/2019 - 12/2999	1
88550B - MOTOR ASSY, BLOWER
88550-B4010	B401 FR UNIT	06/2016 - 09/2019	1
88550-BZ110	B401 RR UNIT	06/2016 - 12/2017	1
88550-BZ100	B401 RR UNIT	12/2017 - 09/2019	1
88550-BZ100	B401 RR UNIT	09/2019 - 12/2999	1
88550-B4010	B401 FR UNIT	09/2019 - 12/2999	1
88568B - FILTER, AIR
88568-BZ060	B401	06/2016 - 09/2019	1
88568-BZ060	B401	09/2019 - 12/2999	1
88569G - CLAMP
88888-BZ010	B401	09/2019 - 12/2999	1
88888-BZ010	B401	06/2016 - 09/2019	1
88578B - PACKING, COOLING UNIT, NO.1
88578-BZ620	B401 FR UNIT	06/2016 - 09/2019	1
88578-BZB60	B401 RR UNIT	09/2019 - 12/2999	1
88578-BZ620	B401 FR UNIT	09/2019 - 12/2999	1
88578-BZB60	B401 RR UNIT	06/2016 - 09/2019	1
88578C - PACKING, COOLING UNIT, NO.2
88578-BZ740	B401	09/2019 - 12/2999	3
88578-BZ740	B401	06/2016 - 09/2019	3
88578C - PACKING, COOLING UNIT, NO.2
88578-BZ740	B401	09/2019 - 12/2999	3
88578-BZ740	B401	06/2016 - 09/2019	3
88578C - PACKING, COOLING UNIT, NO.2
88578-BZ740	B401	09/2019 - 12/2999	3
88578-BZ740	B401	06/2016 - 09/2019	3
88578V - PACKING, COOLING UNIT, NO.3
88578-BZ770	B401	09/2019 - 12/2999	1
88578-BZ770	B401	06/2016 - 09/2019	1
88625 - THERMISTOR, COOLER, NO.1
88625-BZ060	B401	09/2019 - 12/2999	1
88625-BZ060	B401	06/2016 - 09/2019	1
88710F - RING, O
15188-87402	B401 OD=15.6 ID=10.8	06/2016 - 09/2019	1
15188-87402	B401 OD=15.6 ID=10.8	09/2019 - 12/2999	1
88716V - RING, O(FOR COOLER UNIT)
15188-87403	B401 OD=18.2 ID=13.4	09/2019 - 12/2999	1
15188-87403	B401 OD=18.2 ID=13.4	06/2016 - 09/2019	1
Common parts
81128-B2010
9004B-72003
90099-00968
C9909-97201
