Toyota Calya B401 REAR DOOR LOCK & HANDLE

Part #	Description	Period	Qty
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69270-BZ130C0	B401..G BLACK,TRIM4#	09/2019 - 12/2999	1
69270-BZ130B0	B401..G DK.GRAY,TRIM4#	06/2016 - 06/2018	1
69270-BZ130C0	B401..G BLACK,TRIM4#	06/2018 - 09/2019	1
69270-BZ091C0	B401..E BLACK,TRIM4#	06/2018 - 09/2019	1
69270-BZ091C0	B401..E BLACK,TRIM4#	09/2019 - 12/2999	1
69270-BZ091B0	B401..E DK.GRAY,TRIM4#	06/2016 - 06/2018	1
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69280-BZ091C0	B401..E BLACK,TRIM4#	09/2019 - 12/2999	1
69280-BZ130C0	B401..G BLACK,TRIM4#	06/2018 - 09/2019	1
69280-BZ091B0	B401..E DK.GRAY,TRIM4#	06/2016 - 06/2018	1
69280-BZ091C0	B401..E BLACK,TRIM4#	06/2018 - 09/2019	1
69280-BZ130C0	B401..G BLACK,TRIM4#	09/2019 - 12/2999	1
69280-BZ130B0	B401..G DK.GRAY,TRIM4#	06/2016 - 06/2018	1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69210-BZ200A0	B401 WHITE,W09	09/2019 - 12/2999	1
69210-BZ200B4	B401 SILVER ME.,S28	09/2019 - 12/2999	1
69210-BZ200A0	B401 WHITE,W09	06/2016 - 09/2019	1
69210-BZ200D2	B401 RED,R40	06/2016 - 09/2019	1
69210-BZ200B1	B401 SILVER M.M.,1E7	06/2016 - 09/2019	1
69210-BZ200D3	B401 ORANGE ME.,R71	06/2016 - 09/2019	1
69210-BZ200D2	B401 RED,R40	09/2019 - 12/2999	1
69210-BZ200C1	B401 BLACK,X13	09/2019 - 12/2999	1
69210-BZ200D3	B401 ORANGE ME.,R71	09/2019 - 12/2999	1
69210-BZ200B3	B401 GRAY ME.,1G3	06/2016 - 09/2019	1
69210-BZ200B3	B401 GRAY ME.,1G3	09/2019 - 12/2999	1
69210-BZ200C1	B401 BLACK,X13	06/2016 - 09/2019	1
69210-BZ200E2	B401 BRONZE M.M.,4T3	09/2019 - 12/2999	1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69220-BZ200B4	B401 SILVER ME.,S28	09/2019 - 12/2999	1
69220-BZ200D3	B401 ORANGE ME.,R71	09/2019 - 12/2999	1
69220-BZ200C1	B401 BLACK,X13	09/2019 - 12/2999	1
69220-BZ200B1	B401 SILVER M.M.,1E7	06/2016 - 09/2019	1
69220-BZ200A0	B401 WHITE,W09	09/2019 - 12/2999	1
69220-BZ200D2	B401 RED,R40	09/2019 - 12/2999	1
69220-BZ200B3	B401 GRAY ME.,1G3	09/2019 - 12/2999	1
69220-BZ200C1	B401 BLACK,X13	06/2016 - 09/2019	1
69220-BZ200E2	B401 BRONZE M.M.,4T3	09/2019 - 12/2999	1
69220-BZ200B3	B401 GRAY ME.,1G3	06/2016 - 09/2019	1
69220-BZ200D2	B401 RED,R40	06/2016 - 09/2019	1
69220-BZ200A0	B401 WHITE,W09	06/2016 - 09/2019	1
69220-BZ200D3	B401 ORANGE ME.,R71	06/2016 - 09/2019	1
69330 - LOCK ASSY, REAR DOOR, RH
69330-BZ200	B401	06/2016 - 01/2017	1
69330-BZ201	B401	02/2017 - 09/2019	1
69330-BZ201	B401	09/2019 - 12/2999	1
69331C - ROD, REAR DOOR LOCK OPEN, RH
69331-BZ060	B401	09/2019 - 12/2999	1
69331-BZ060	B401	06/2016 - 09/2019	1
69332A - ROD, REAR DOOR LOCK OPEN, LH
69332-BZ060	B401	09/2019 - 12/2999	1
69332-BZ060	B401	06/2016 - 09/2019	1
69340 - LOCK ASSY, REAR DOOR, LH
69340-BZ201	B401	09/2019 - 12/2999	1
69340-BZ200	B401	06/2016 - 01/2017	1
69340-BZ201	B401	02/2017 - 09/2019	1
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-BZ010	B401 RH	09/2019 - 12/2999	1
69410-BZ010	B401 RH	06/2016 - 09/2019	1
69420 - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-BZ010	B401 LH	09/2019 - 12/2999	1
69410-BZ010	B401 LH	06/2016 - 09/2019	1
69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69730-BZ200	B401 INN HANDLE SIDE	09/2019 - 12/2999	1
69730-BZ200	B401 INN HANDLE SIDE	06/2016 - 09/2019	1
69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69730-BZ200	B401 INN HANDLE SIDE	09/2019 - 12/2999	1
69730-BZ200	B401 INN HANDLE SIDE	06/2016 - 09/2019	1
69749I - CLAMP, DOOR LOCK LINK
69749-BZ100	B401	09/2019 - 12/2999	2
69749-BZ100	B401	06/2016 - 09/2019	2
69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69770-BZ110	B401 DOOR LOCK	06/2016 - 09/2019	1
69770-BZ110	B401 DOOR LOCK	09/2019 - 12/2999	1
69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH
69780-BZ100	B401 DOOR LOCK	09/2019 - 12/2999	1
69780-BZ100	B401 DOOR LOCK	06/2016 - 09/2019	1
Common parts
90041-05504
9004A-15045
9004A-15068
9004A-16093
90148-60022
90148-60083
91621-40610

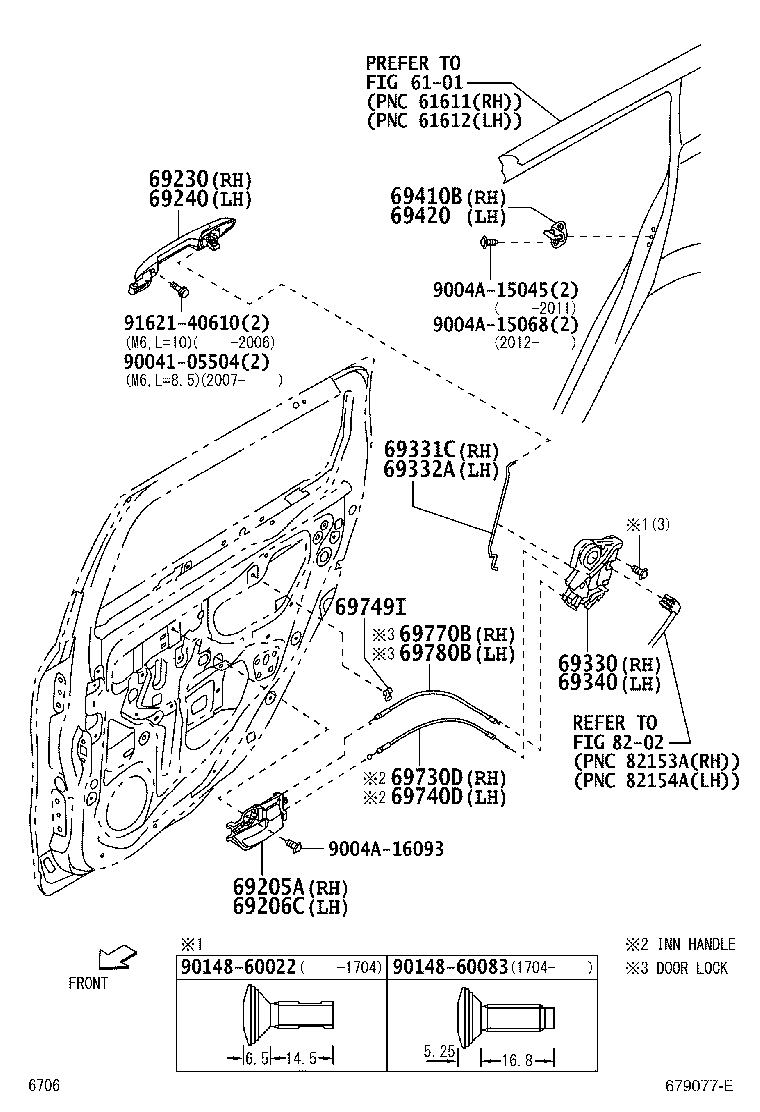

Linked diagrams
6101
8202

B401RA-GQZFJ (2016)

(1606-1909) ; (1909- )
