B401RA-GQZFJ (2016)

Toyota Calya

Production Jun 2016 - Sep 9999
Engine 3NRVE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1606-1909) ; (1909- )

Click highlighted areas on diagram

3NR

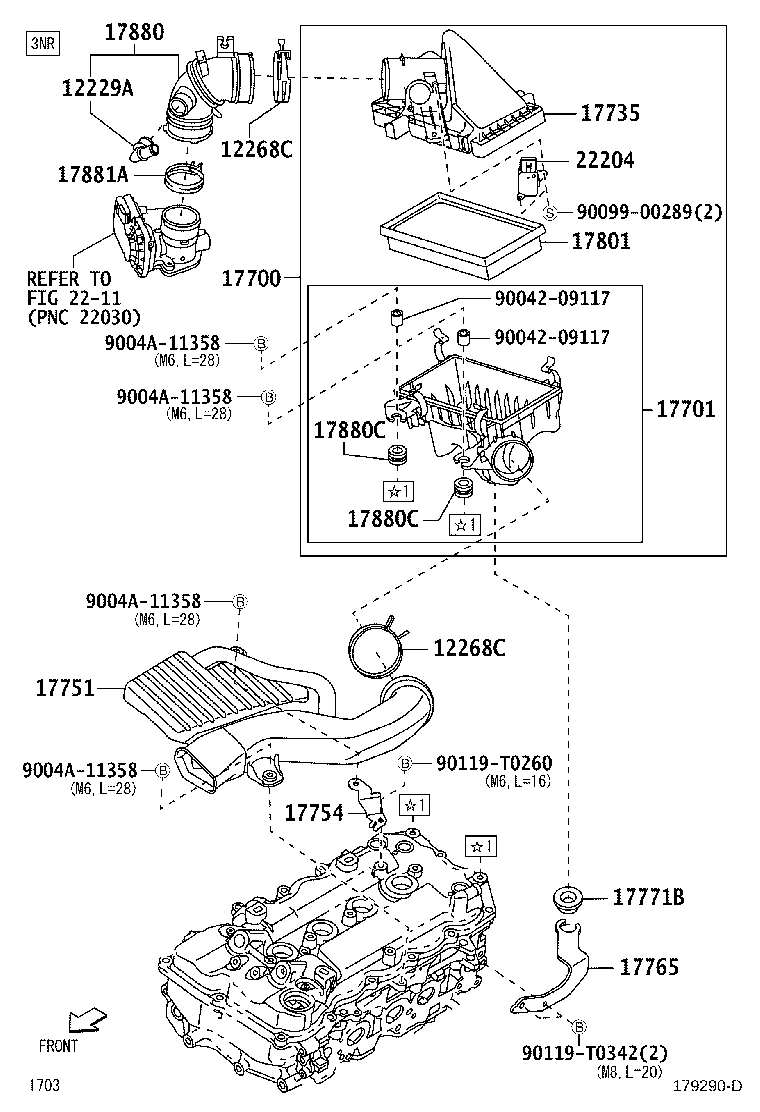

diagram 12229A 12268C 12268C 17700 17701 17735 17751 17754 17765 17771B 17801 17880 17880C 17880C 17881A 2211 22204 9004209117 9004209117 9004A11358 9004A11358 9004A11358 9004A11358 9009900289 90119T0260 90119T0342
Part # Description Qty Price
12229A - PIPE, VENTILATION
12229-BZ020

3NRVE..B401

 1
12229-BZ020

3NRVE..B401

 1
12268C - CLIP, HOSE
90466-62002

3NRVE..B401

 1
90466-62002

3NRVE..B401

 1
12268C - CLIP, HOSE
90466-62002

3NRVE..B401

 1
90466-62002

3NRVE..B401

 1
17700 - CLEANER ASSY, AIR
17700-BZ180

3NRVE..B401

 1
17700-BZ180

3NRVE..B401

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-BZ170

3NRVE..B401

 1
17701-BZ170

3NRVE..B401

 1
17735 - CAP, AIR CLEANER
17735-BZ020

3NRVE..B401

 1
17735-BZ020

3NRVE..B401

 1
17751 - INLET, AIR CLEANER, NO.1
17751-BZ110

3NRVE..B401

 1
17751-BZ110

3NRVE..B401

 1
17754 - STAY, AIR CLEANER INLET
17754-BZ020

3NRVE..B401

 1
17754-BZ020

3NRVE..B401

 1
17765 - STAY, AIR CLEANER, NO.1
17765-BZ030

3NRVE..B401

 1
17765-BZ030

3NRVE..B401

 1
17771B - GROMMET(FOR AIR CLEANER BRACKET)
9004A-48056

3NRVE..B401

 1
9004A-48056

3NRVE..B401

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-BZ130

3NRVE..B401

 1
17801-BZ130

3NRVE..B401

 1
17880 - HOSE ASSY, AIR CLEANER
17880-BZ040

3NRVE..B401

 1
17880-BZ040

3NRVE..B401

 1
17880C - GROMMET(FOR AIR CLEANER HOSE)
90044-80392

3NRVE..B401

 2
17880C - GROMMET(FOR AIR CLEANER HOSE)
90044-80392

3NRVE..B401

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90466-54002

3NRVE..B401

 1
90466-54002

3NRVE..B401

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-BZ010

3NRVE..B401

 1
22204-BZ010

3NRVE..B401

 1
Common parts
90042-09117
9004A-11358
90099-00289
90119-T0260
90119-T0342
Linked diagrams
2211
