B401RA-GQQFJ (2016)

Toyota Calya

Production Jun 2016 - Sep 9999
Engine 3NRVE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

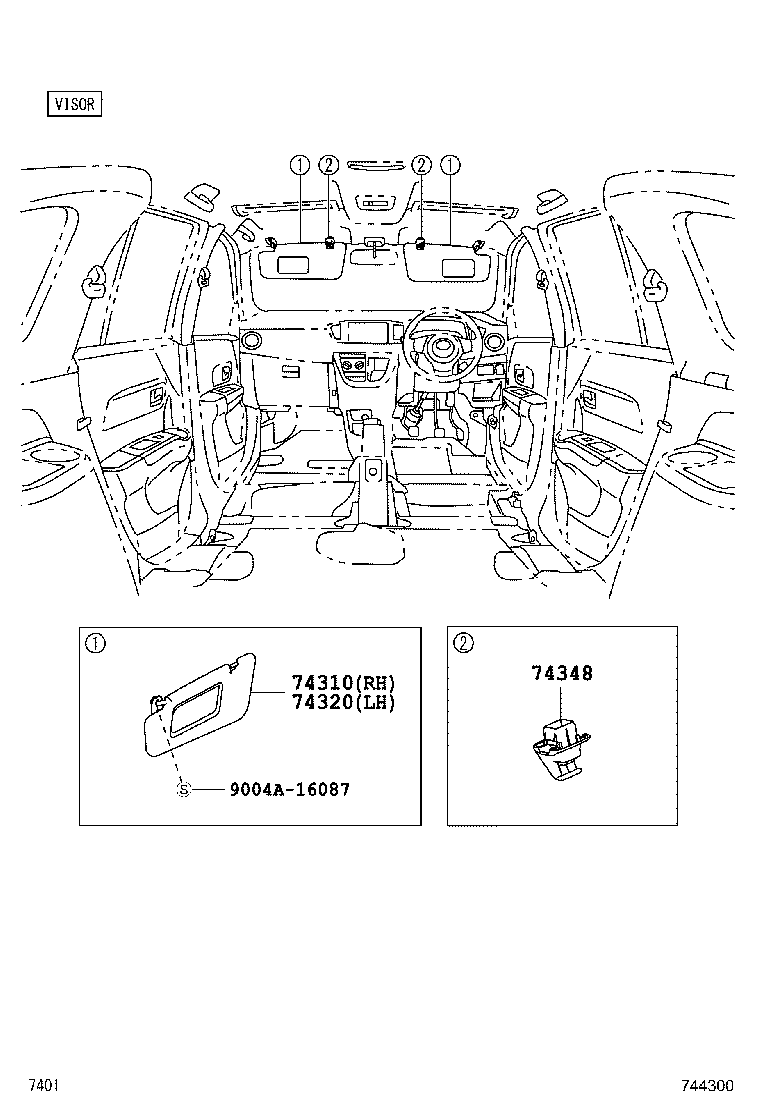

ILLUST NO. 2 OF 2(1606-1909) ; (1909- )

Click highlighted areas on diagram

VISOR

diagram 74310 74320 74348 9004A16087
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-BZ510B0

B401..E

LT.GRAY,TRIM4#

 1
74310-BZ520B0

B401..G

LT.GRAY,TRIM4#

 1
74310-BZ520B0

B401..G

LT.GRAY,TRIM4#

 1
74310-BZ510B0

B401..E

LT.GRAY,TRIM4#

 1
74320 - VISOR ASSY, LH
74320-BZ700B0

B401..G

LT.GRAY,TRIM4#

 1
74320-BZ690B0

B401..E

LT.GRAY,TRIM4#

 1
74320-BZ700B0

B401..G

LT.GRAY,TRIM4#

 1
74320-BZ690B0

B401..E

LT.GRAY,TRIM4#

 1
74348 - HOLDER, VISOR
74348-BZ060B1

B401

LT.GRAY,TRIM4#

 2
74348-BZ060B1

B401

LT.GRAY,TRIM4#

 2
Common parts
9004A-16087

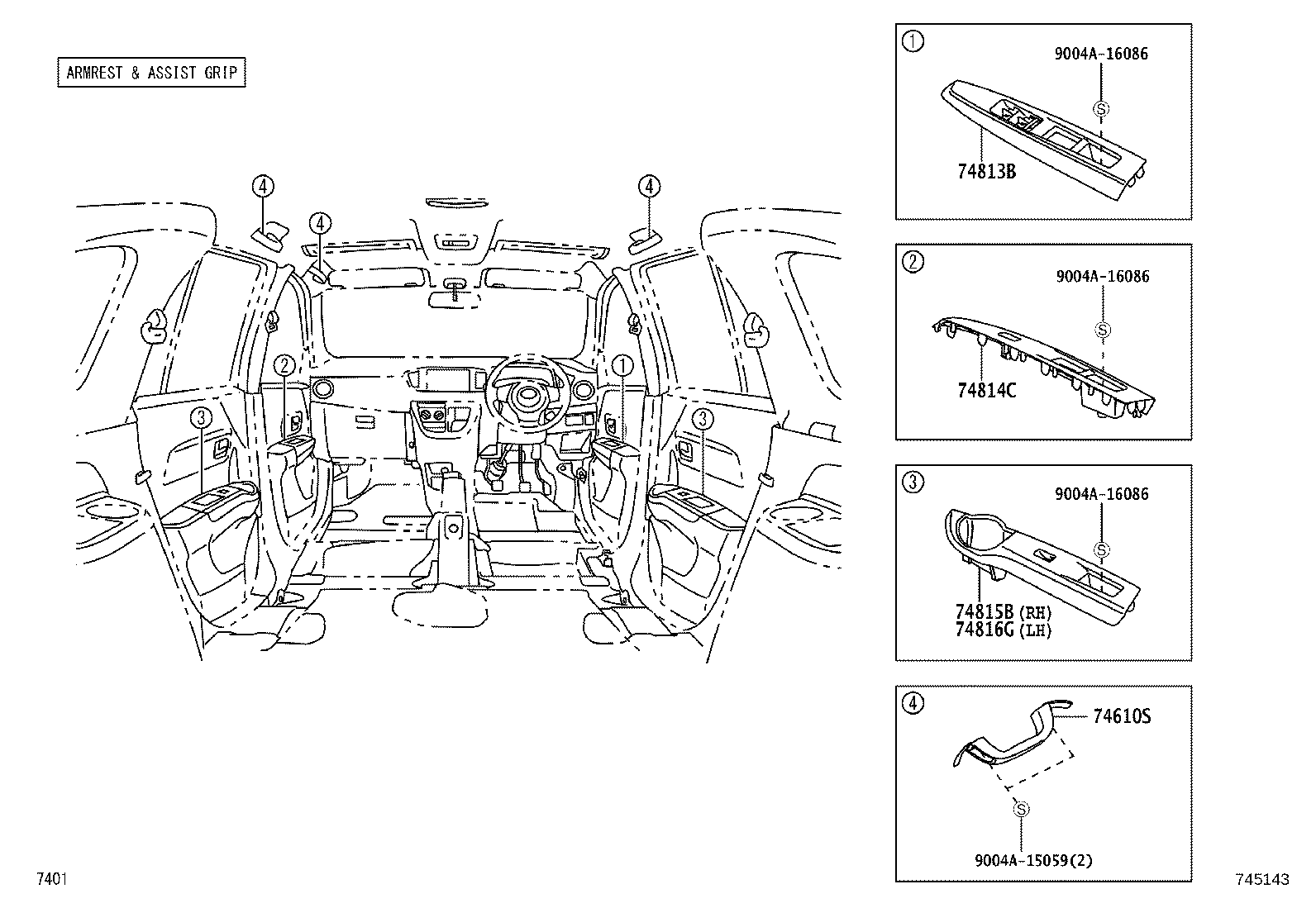

ILLUST NO. 1 OF 2(1606-1909) ; (1909- )

Click highlighted areas on diagram

ARMREST&ASSIST GRIP

diagram 74610S 74813B 74814C 74815B 74816G 9004A15059 9004A16086 9004A16086 9004A16086
Part # Description Qty Price
74610S - GRIP ASSY, ASSIST
74611-BZ060B1

B401

LT.GRAY,TRIM4#

 3
74611-BZ060B1

B401

LT.GRAY,TRIM4#

 3
74813B - HANDLE, FRONT DOOR PULL, RH
74813-BZ130E3

B401..E

OAK,TRIM4#

 1
74813-BZ130E4

B401..E

DARK BROWN,TRIM4#

 1
74813-BZ140B2

B401..G

SILVER,TRIM4#

 1
74813-BZ140B2

B401..G

SILVER,TRIM4#

 1
74814C - HANDLE, FRONT DOOR PULL, LH
74814-BZ120E4

B401..E

DARK BROWN,TRIM4#

 1
74814-BZ130B2

B401..G

SILVER,TRIM4#

 1
74814-BZ130B2

B401..G

SILVER,TRIM4#

 1
74814-BZ120E3

B401..E

OAK,TRIM4#

 1
74815B - HANDLE, REAR DOOR PULL
74815-BZ030E4

B401..E

DARK BROWN,TRIM4#

 1
74815-BZ040B2

B401..G

SILVER,TRIM4#

 1
74815-BZ030E3

B401..E

OAK,TRIM4#

 1
74815-BZ040B2

B401..G

SILVER,TRIM4#

 1
74816G - HANDLE, REAR DOOR PULL, LH
74816-BZ020E4

B401..E

DARK BROWN,TRIM4#

 1
74816-BZ020E3

B401..E

OAK,TRIM4#

 1
74816-BZ030B2

B401..G

SILVER,TRIM4#

 1
74816-BZ030B2

B401..G

SILVER,TRIM4#

 1
Common parts
9004A-15059
9004A-16086
