Toyota Calya B401 FRONT SPRING & SHOCK ABSORBER

Part #	Description	Period	Qty
48044 - SEAT SUB-ASSY, FRONT SPRING, NO.1
48044-BZ090	B401 RH	09/2019 - 12/2999	1
48044-BZ090	B401 RH	06/2016 - 09/2019	1
48054 - SEAT SUB-ASSY, FRONT SPRING, NO.2
48044-BZ090	B401 LH	06/2016 - 09/2019	1
48044-BZ090	B401 LH	09/2019 - 12/2999	1
48131 - SPRING, FRONT COIL, RH
48131-BZ780	B401	06/2016 - 10/2017	1
48131-BZ781	B401	09/2019 - 12/2999	1
48131-BZ781	B401	10/2017 - 09/2019	1
48132 - SPRING, FRONT COIL, LH
48131-BZ781	B401	09/2019 - 12/2999	1
48131-BZ780	B401	06/2016 - 10/2017	1
48131-BZ781	B401	10/2017 - 09/2019	1
48157B - INSULATOR, FRONT COIL SPRING, UPPER RH
48157-BZ070	B401	09/2019 - 12/2999	1
48157-BZ070	B401	06/2016 - 09/2019	1
48157C - INSULATOR, FRONT COIL SPRING, UPPER LH
48157-BZ070	B401	06/2016 - 09/2019	1
48157-BZ070	B401	09/2019 - 12/2999	1
48331B - BUMPER, FRONT SPRING, RH
48331-BZ150	B401	06/2016 - 09/2019	1
48331-BZ150	B401	09/2019 - 12/2999	1
48331C - BUMPER, FRONT SPRING, LH
48331-BZ150	B401	06/2016 - 09/2019	1
48331-BZ150	B401	09/2019 - 12/2999	1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-BZB50	B401 MARK 48510-BZB50	09/2019 - 12/2999	1
48510-BZB50	B401 MARK 48510-BZB50	06/2016 - 09/2019	1
48510N - BUSH(FOR FRONT SHOCK ABSORBER RH)
90043-85174	B401	06/2016 - 09/2019	1
90043-85174	B401	09/2019 - 12/2999	1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48520-BZ660	B401 MARK 48520-BZ660	09/2019 - 12/2999	1
48520-BZ660	B401 MARK 48520-BZ660	06/2016 - 09/2019	1
48520C - BUSH(FOR FRONT SHOCK ABSORBER LH)
90043-85174	B401	06/2016 - 09/2019	1
90043-85174	B401	09/2019 - 12/2999	1
48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION
48609-BZ070	B401	06/2016 - 09/2019	2
48609-BZ070	B401	09/2019 - 12/2999	2
48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH
48684-BZ010	B401	06/2016 - 09/2019	1
48684-BZ010	B401	09/2019 - 11/2020	1
48684-BZ110	B401	12/2020 - 12/2999	1
48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH
48684-BZ110	B401	12/2020 - 12/2999	1
48684-BZ010	B401	06/2016 - 09/2019	1
48684-BZ010	B401	09/2019 - 11/2020	1
48810 - LINK ASSY, FRONT STABILIZER, LH
48820-BZ060	B401	06/2016 - 09/2019	1
48820-BZ060	B401	09/2019 - 12/2999	1
48811 - BAR, STABILIZER, FRONT
48811-BZ220	B401	09/2019 - 12/2999	1
48811-BZ220	B401	06/2016 - 09/2019	1
48815D - BUSH, FRONT STABILIZER BAR, RH
48815-BZ240	B401	09/2019 - 12/2999	1
48815-BZ240	B401	06/2016 - 09/2019	1
48815E - BUSH, FRONT STABILIZER BAR, LH
48815-BZ240	B401	06/2016 - 09/2019	1
48815-BZ240	B401	09/2019 - 12/2999	1
48820B - LINK ASSY, FRONT STABILIZER, RH
48820-BZ060	B401	09/2019 - 12/2999	1
48820-BZ060	B401	06/2016 - 09/2019	1
48824A - BRACKET, FRONT STABILIZER, NO.1 RH
48824-BZ180	B401	06/2016 - 09/2019	1
48824-BZ180	B401	09/2019 - 12/2999	1
48829A - BRACKET, FRONT STABILIZER, NO.1 LH
48824-BZ180	B401	09/2019 - 12/2999	1
48824-BZ180	B401	06/2016 - 09/2019	1
Common parts
90041-77018
90041-79316
9004A-17253
9004A-17255
9004A-17256
91551-00820

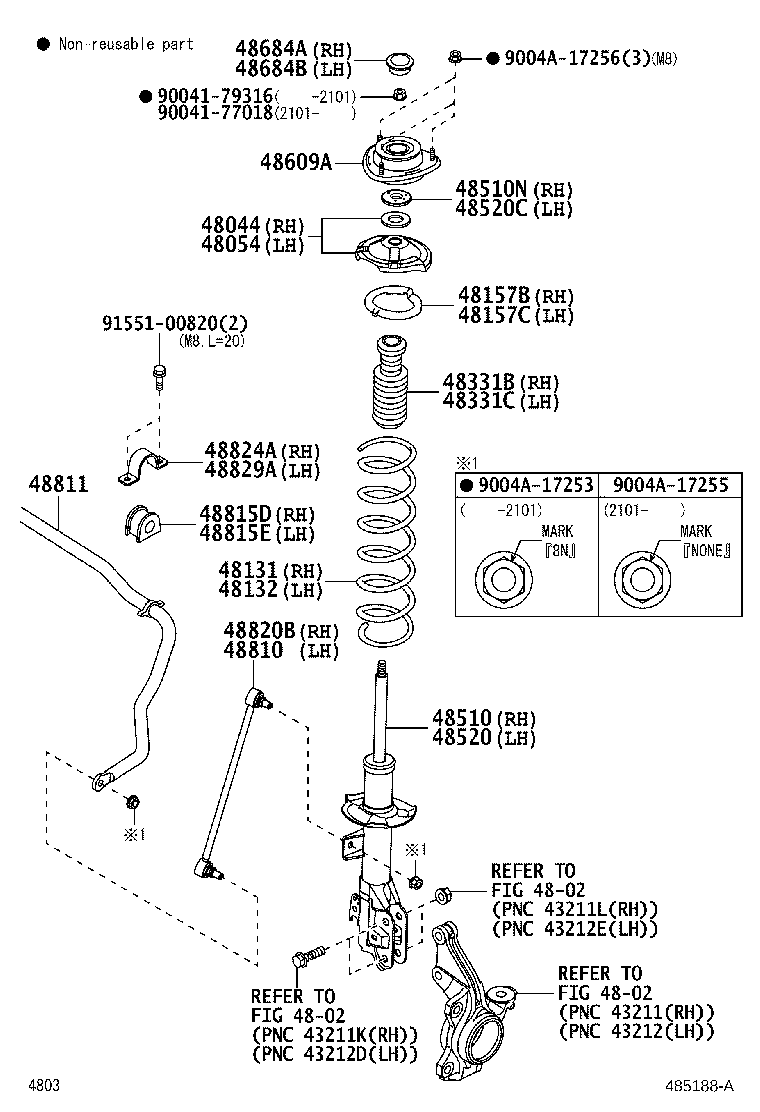

Linked diagrams
4802

B401RA-GQQFJ (2016)

(1606- )
