B401RA-GQQFJ (2016)
Toyota Calya
(1606-1909) ; (1909- )

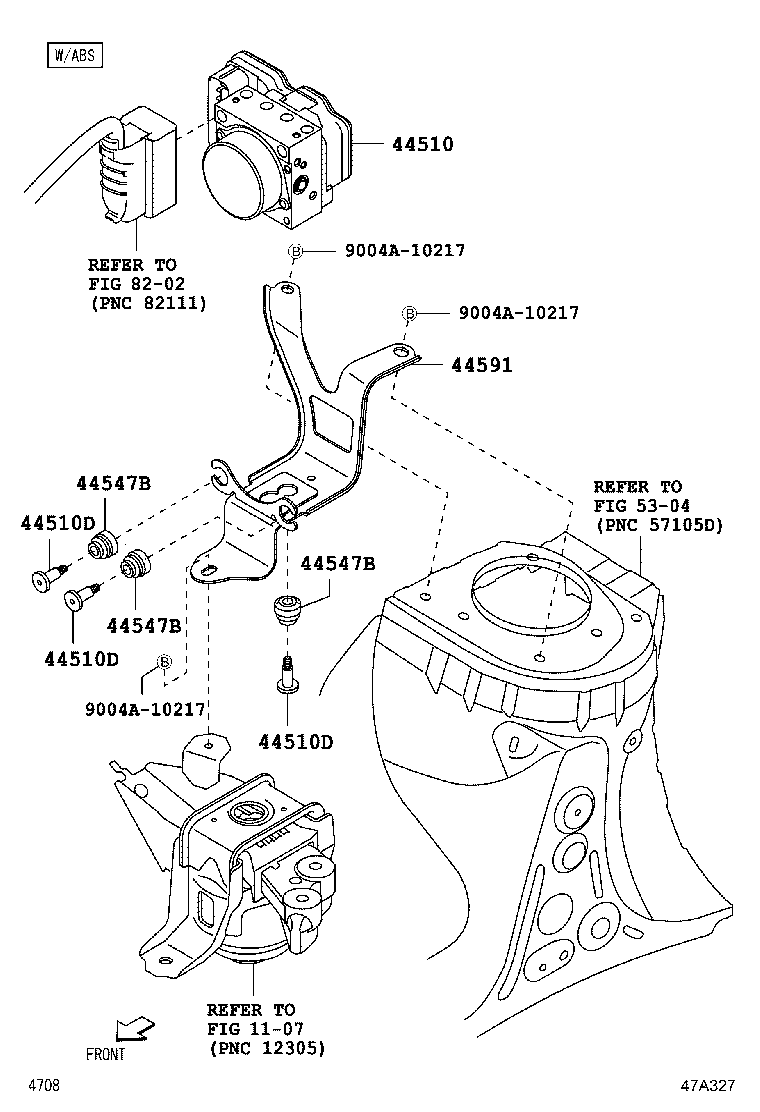

W/ABS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-BZ050 |
B401..4FC;B401..5F..G |
1 | ||
| 44050-BZ050 |
B401..4FC |
1 | ||
| 44510D - BOLT(FOR BRAKE ACTUATOR) | ||||
| 44548-BZ040 |
B401..4FC |
3 | ||
| 44548-BZ040 |
B401..4FC;B401..5F..G |
3 | ||
| 44510D - BOLT(FOR BRAKE ACTUATOR) | ||||
| 44548-BZ040 |
B401..4FC |
3 | ||
| 44548-BZ040 |
B401..4FC;B401..5F..G |
3 | ||
| 44510D - BOLT(FOR BRAKE ACTUATOR) | ||||
| 44548-BZ040 |
B401..4FC |
3 | ||
| 44548-BZ040 |
B401..4FC;B401..5F..G |
3 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-BZ030 |
B401..4FC |
3 | ||
| 44547-BZ030 |
B401..4FC;B401..5F..G |
3 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-BZ030 |
B401..4FC |
3 | ||
| 44547-BZ030 |
B401..4FC;B401..5F..G |
3 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-BZ030 |
B401..4FC |
3 | ||
| 44547-BZ030 |
B401..4FC;B401..5F..G |
3 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-BZ220 |
B401..4FC;B401..5F..G |
1 | ||
| 44591-BZ220 |
B401..4FC |
1 | ||
| Common parts | ||||
| 9004A-10217 | ||||
| Linked diagrams | ||||
| 1107 | ||||
| 5304 | ||||
| 8202 | ||||
(1606-1909) ; (1909- )

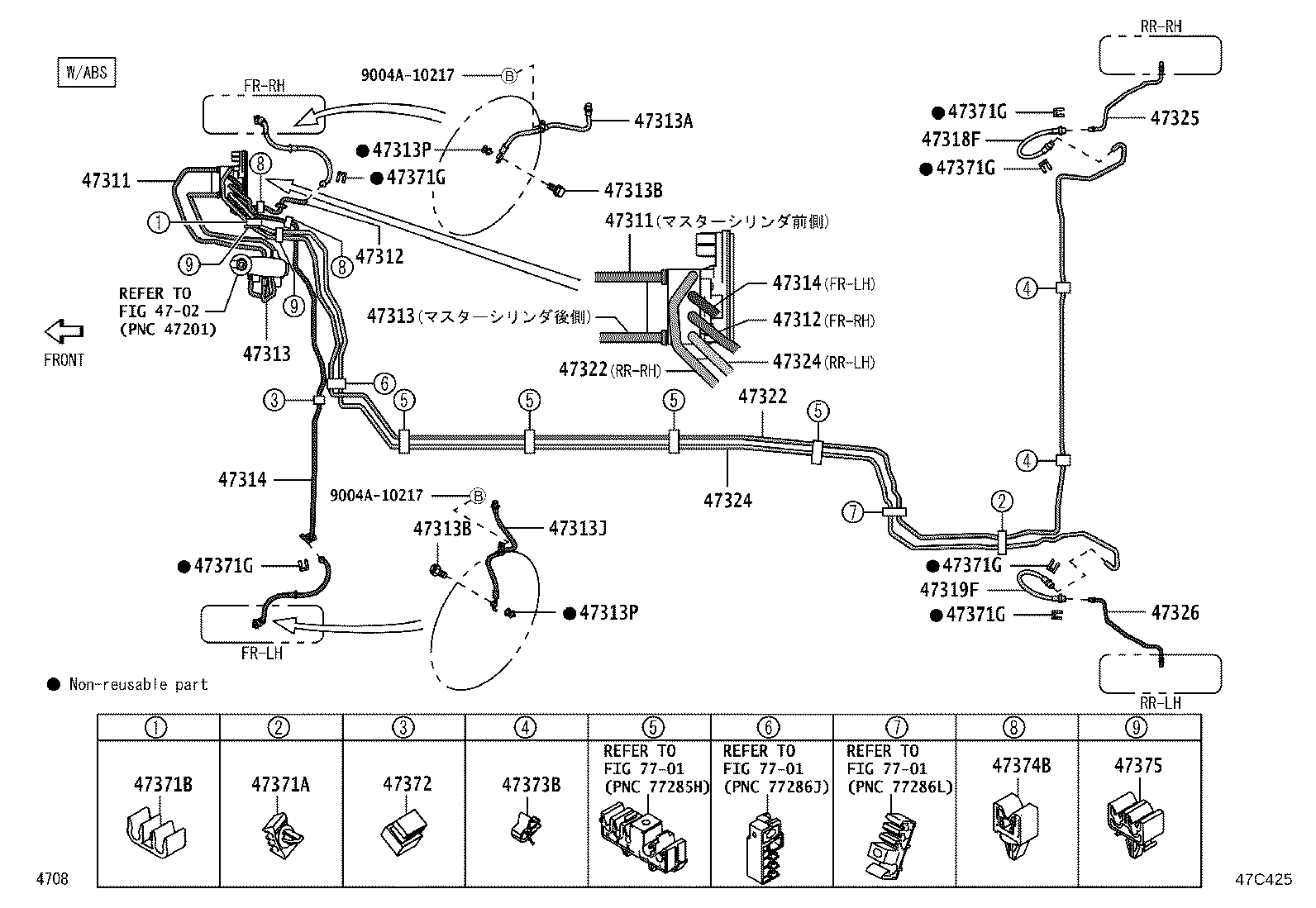

W/ABS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-BZ500 |
B401..4FC |
1 | ||
| 47311-BZ500 |
B401..4FC;B401..5F..G |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-BZ500 |
B401..4FC |
1 | ||
| 47311-BZ500 |
B401..4FC;B401..5F..G |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-BZ520 |
B401..4FC |
1 | ||
| 47312-BZ520 |
B401..4FC;B401..5F..G |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-BZ520 |
B401..4FC |
1 | ||
| 47312-BZ520 |
B401..4FC;B401..5F..G |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-BZ480 |
B401..4FC;B401..5F..G |
1 | ||
| 47313-BZ480 |
B401..4FC |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-BZ480 |
B401..4FC;B401..5F..G |
1 | ||
| 47313-BZ480 |
B401..4FC |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 9004A-94119 |
B401 RH |
1 | ||
| 9004A-94119 |
B401 RH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
B401 |
2 | ||
| 90401-10058 |
B401 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
B401 |
2 | ||
| 90401-10058 |
B401 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 9004A-94120 |
B401 LH |
1 | ||
| 9004A-94120 |
B401 LH |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
B401 |
2 | ||
| 47389-50020 |
B401 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
B401 |
2 | ||
| 47389-50020 |
B401 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-BZ540 |
B401..4FC |
1 | ||
| 47314-BZ540 |
B401..4FC;B401..5F..G |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-BZ540 |
B401..4FC |
1 | ||
| 47314-BZ540 |
B401..4FC;B401..5F..G |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 9004A-94121 |
B401 |
1 | ||
| 9004A-94121 |
B401 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 9004A-94121 |
B401 |
1 | ||
| 9004A-94121 |
B401 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-BZ330 |
B401..4FC |
1 | ||
| 47322-BZ330 |
B401..4FC;B401..5F..G |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-BZ330 |
B401..4FC |
1 | ||
| 47322-BZ330 |
B401..4FC;B401..5F..G |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-BZ390 |
B401..4FC;B401..5F..G |
1 | ||
| 47324-BZ390 |
B401..4FC |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-BZ390 |
B401..4FC;B401..5F..G |
1 | ||
| 47324-BZ390 |
B401..4FC |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-BZ260 |
B401 |
1 | ||
| 47325-BZ260 |
B401 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-BZ260 |
B401 |
1 | ||
| 47326-BZ260 |
B401 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90044-64485 |
B401..4FC |
2 | ||
| 90044-64485 |
B401..4FC;B401..5F..G |
2 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90044-64731 |
B401..4FC;B401..5F..G |
1 | ||
| 90044-64731 |
B401..4FC |
1 | ||
| 47371G - CLAMP, BRAKE TUBE, NO.11 | ||||
| 90044-65441 |
B401 |
4 | ||
| 90044-65441 |
B401 |
4 | ||
| 47371G - CLAMP, BRAKE TUBE, NO.11 | ||||
| 90044-65441 |
B401 |
4 | ||
| 90044-65441 |
B401 |
4 | ||
| 47371G - CLAMP, BRAKE TUBE, NO.11 | ||||
| 90044-65441 |
B401 |
4 | ||
| 90044-65441 |
B401 |
4 | ||
| 47371G - CLAMP, BRAKE TUBE, NO.11 | ||||
| 90044-65441 |
B401 |
4 | ||
| 90044-65441 |
B401 |
4 | ||
| 47371G - CLAMP, BRAKE TUBE, NO.11 | ||||
| 90044-65441 |
B401 |
4 | ||
| 90044-65441 |
B401 |
4 | ||
| 47371G - CLAMP, BRAKE TUBE, NO.11 | ||||
| 90044-65441 |
B401 |
4 | ||
| 90044-65441 |
B401 |
4 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 9004A-46299 |
B401 |
1 | ||
| 9004A-46299 |
B401 |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90044-64659 |
B401 |
2 | ||
| 90044-64659 |
B401 |
2 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90044-64804 |
B401..4FC |
2 | ||
| 90044-64804 |
B401..4FC;B401..5F..G |
2 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90044-64780 |
B401..4FC |
2 | ||
| 90044-64780 |
B401..4FC;B401..5F..G |
2 | ||
| Common parts | ||||
| 9004A-10217 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||
