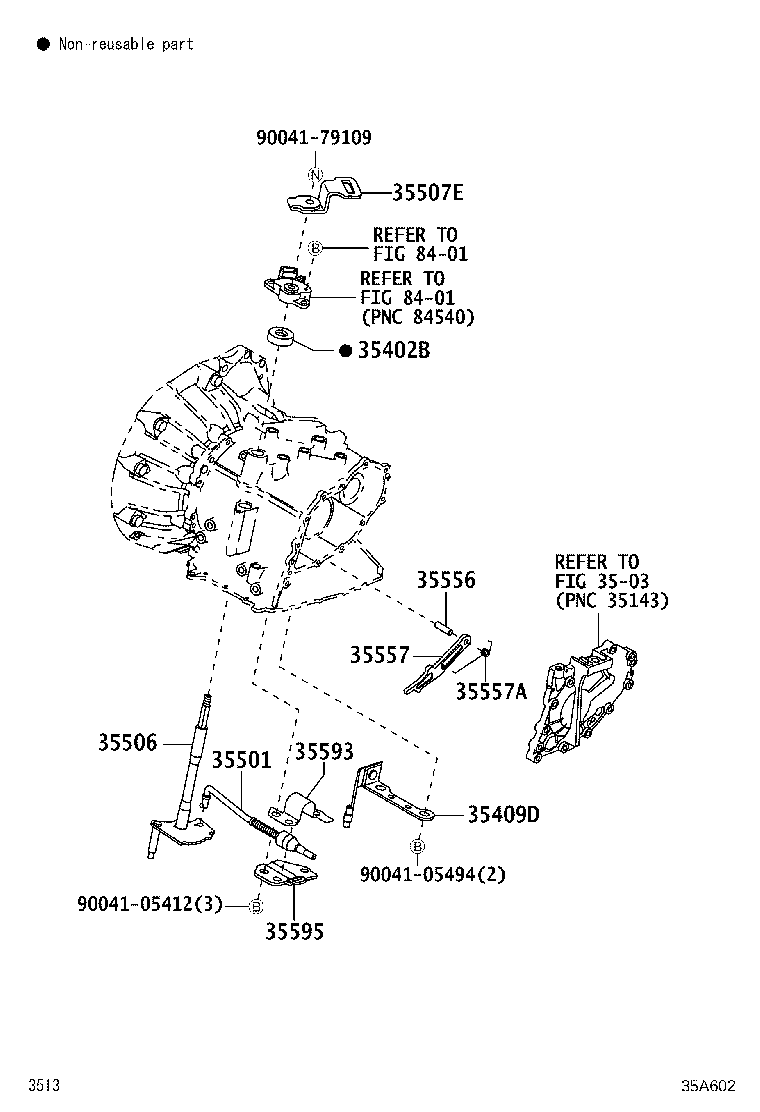

Toyota Calya B401 THROTTLE LINK & VALVE LEVER (ATM)

Part #	Description	Period	Qty
35402B - SEAL,OIL(FOR MANUAL VALVE)
90043-11256	B401..4FC	06/2016 - 09/2019	1
90043-11256	B401..4FC	09/2019 - 12/2999	1
35409D - SPRING SUB-ASSY, MANUAL DETENT
35409-B1010	B401..4FC	06/2016 - 09/2019	1
35409-B1010	B401..4FC	09/2019 - 12/2999	1
35501 - ROD SUB-ASSY, PARKING LOCK
35501-B1010	B401..4FC	09/2019 - 12/2999	1
35501-B1010	B401..4FC	06/2016 - 09/2019	1
35506 - SHAFT SUB-ASSY, MANUAL VALVE LEVER
35506-B1010	B401..4FC	06/2016 - 09/2019	1
35506-B1010	B401..4FC	09/2019 - 12/2999	1
35507E - LEVER,TRANSMISSION CONTROL SHAFT
35572-B1020	B401..4FC	06/2016 - 09/2019	1
35572-B1020	B401..4FC	09/2019 - 12/2999	1
35556 - SHAFT, PARKING LOCK PAWL
35556-87202	B401..4FC	09/2019 - 12/2999	1
35556-87202	B401..4FC	06/2016 - 09/2019	1
35557 - PAWL, PARKING LOCK
35557-B1010	B401..4FC	09/2019 - 12/2999	1
35557-B1010	B401..4FC	06/2016 - 09/2019	1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90045-08418	B401..4FC	06/2016 - 09/2019	1
90045-08418	B401..4FC	09/2019 - 12/2999	1
35593 - SLEEVE, CAM GUIDE
35593-B1010	B401..4FC	06/2016 - 09/2019	1
35593-B1010	B401..4FC	09/2019 - 12/2999	1
35595 - BRACKET, PARKING LOCK PAWL
35595-B1010	B401..4FC	09/2019 - 12/2999	1
35595-B1010	B401..4FC	06/2016 - 09/2019	1
Common parts
90041-05412
90041-05494
90041-79109
Linked diagrams
3503
8401

B401RA-GQQFJ (2016)
