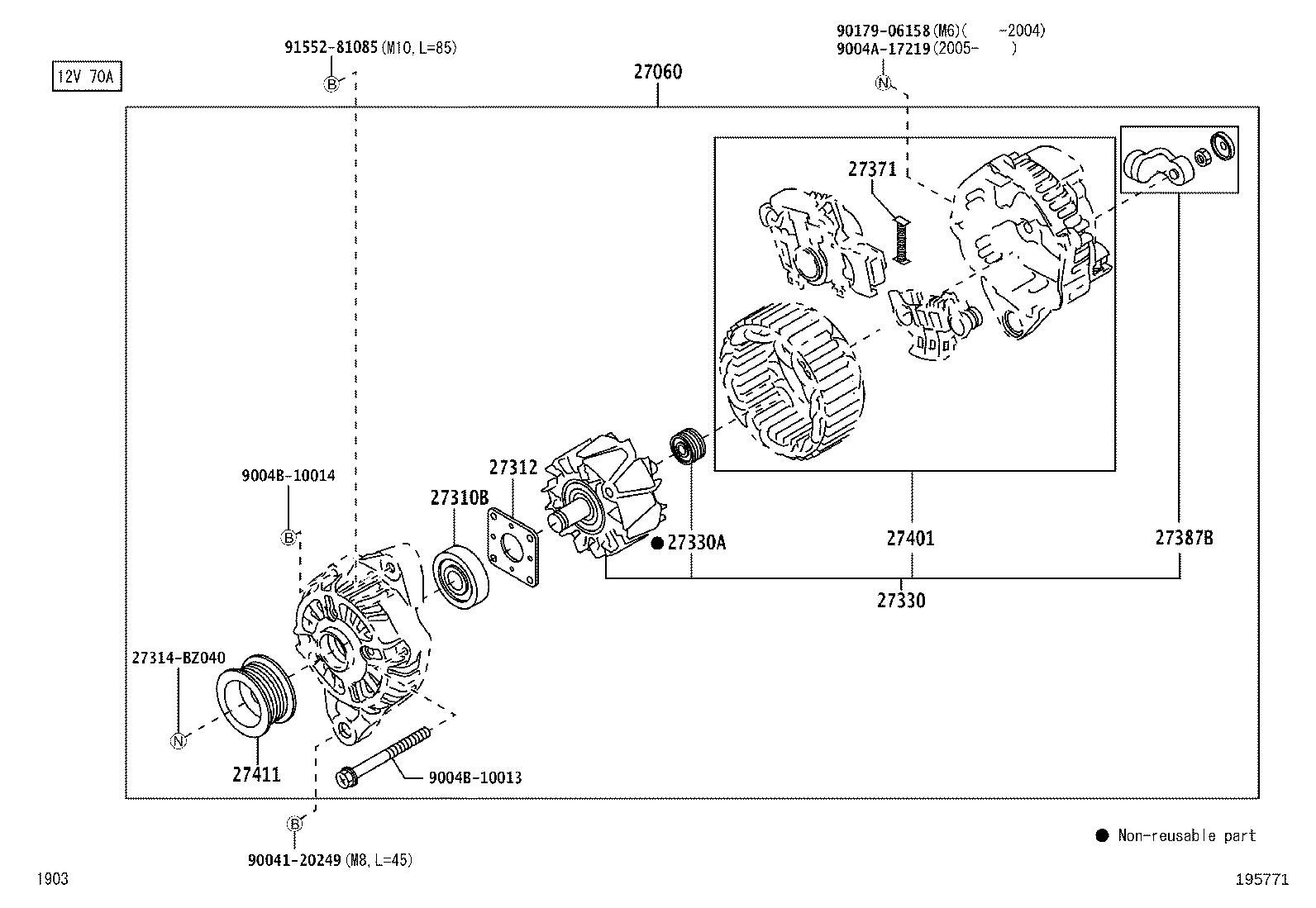

Toyota Calya B401 ALTERNATOR - JDM Part Detective

Part #	Description	Period	Qty
27060 - ALTERNATOR ASSY, W/REGULATOR
27060-BZ360	3NRVE..B401	09/2019 - 12/2999	1
27060-BZ360	3NRVE..B401	06/2016 - 09/2019	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
9004B-37015	3NRVE..B401	09/2019 - 12/2999	1
9004B-37015	3NRVE..B401	06/2016 - 09/2019	1
27312 - PLATE, RETAINER
27312-BZ040	3NRVE..B401	09/2019 - 12/2999	1
27312-BZ040	3NRVE..B401	06/2016 - 09/2019	1
27330 - ROTOR ASSY, ALTERNATOR
27330-BZ070	3NRVE..B401	06/2016 - 09/2019	1
27330-BZ070	3NRVE..B401	09/2019 - 12/2999	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
9004B-37014	3NRVE..B401	06/2016 - 09/2019	1
9004B-37014	3NRVE..B401	09/2019 - 12/2999	1
27371 - BRUSH, ALTERNATOR
27371-BZ020	3NRVE..B401	09/2019 - 12/2999	2
27371-BZ020	3NRVE..B401	06/2016 - 09/2019	2
27387B - INSULATOR, ALTERNATOR TERMINAL
27387-BZ060	3NRVE..B401	09/2019 - 12/2999	1
27387-BZ060	3NRVE..B401	06/2016 - 09/2019	1
27401 - STATOR SUB-ASSY ALTERNATOR W/RECTIFIER
27401-BZ030	3NRVE..B401	09/2019 - 12/2999	1
27401-BZ030	3NRVE..B401	06/2016 - 09/2019	1
27411 - PULLEY, ALTERNATOR
27411-BZ110	3NRVE..B401	09/2019 - 12/2999	1
27411-BZ110	3NRVE..B401	06/2016 - 09/2019	1
Common parts
27314-BZ040
90041-20249
9004A-17219
9004B-10013
9004B-10014
90179-06158
91552-81085

B401RA-GQQFJ (2016)
