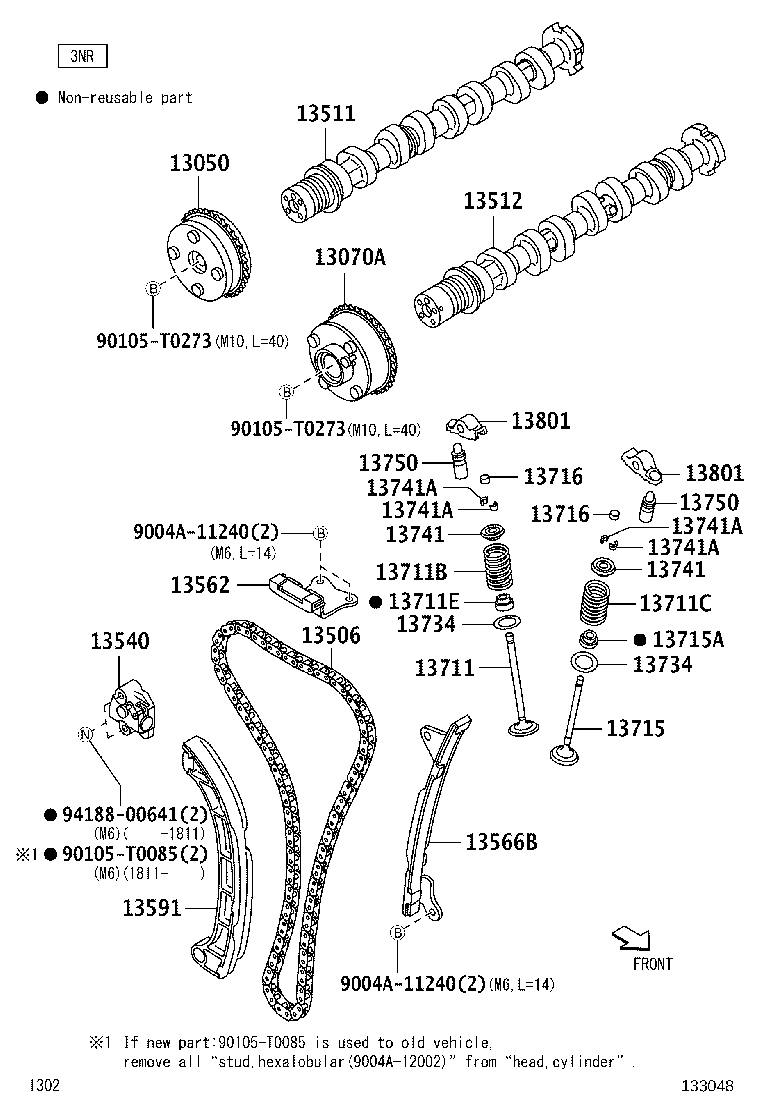

Toyota Calya B401 CAMSHAFT & VALVE

Part #	Description	Period	Qty
13050 - GEAR ASSY, CAMSHAFT TIMING
13050-0Y020	3NRVE..B401	09/2019 - 12/2999	1
13050-0Y020	3NRVE..B401	06/2016 - 09/2019	1
13070A - GEAR ASSY, CAMSHAFT TIMING EXHAUST
13070-BZ010	3NRVE..B401	09/2019 - 12/2999	1
13070-BZ010	3NRVE..B401	06/2016 - 09/2019	1
13506 - CHAIN SUB-ASSY
13506-0Y040	3NRVE..B401	06/2016 - 09/2019	1
13506-0Y040	3NRVE..B401	09/2019 - 12/2999	1
13511 - CAMSHAFT
13501-BZ040	3NRVE..B401	09/2019 - 12/2999	1
13501-BZ040	3NRVE..B401	06/2016 - 09/2019	1
13512 - CAMSHAFT, NO.2
13502-BZ040	3NRVE..B401	09/2019 - 12/2999	1
13502-BZ040	3NRVE..B401	06/2016 - 09/2019	1
13540 - TENSIONER ASSY, CHAIN, NO.1
13540-0Y010	3NRVE..B401	06/2016 - 09/2019	1
13540-0Y010	3NRVE..B401	09/2019 - 12/2999	1
13562 - DAMPER, CHAIN VIBRATION, NO.2
13562-0Y020	3NRVE..B401	06/2016 - 09/2019	1
13562-0Y020	3NRVE..B401	09/2019 - 12/2999	1
13566B - GUIDE, TIMING CHAIN
13566-0Y010	3NRVE..B401	06/2016 - 09/2019	1
13566-0Y010	3NRVE..B401	09/2019 - 12/2999	1
13591 - ARM, TIMING CHAIN TENSION
13591-0Y010	3NRVE..B401	09/2019 - 12/2999	1
13591-0Y010	3NRVE..B401	06/2016 - 09/2019	1
13711 - VALVE, INTAKE
13711-0Y020	3NRVE..B401	06/2016 - 09/2019	8
13711-0Y020	3NRVE..B401	09/2019 - 12/2999	8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-T0045	3NRVE..B401	06/2016 - 09/2019	8
90501-T0045	3NRVE..B401	09/2019 - 12/2999	8
13711C - SPRING, COMPRESSION(FOR OUTER)
90501-T0045	3NRVE..B401	06/2016 - 09/2019	8
90501-T0045	3NRVE..B401	09/2019 - 12/2999	8
13711E - SEAL, INTAKE VALVE STEM OIL
90913-T2004	3NRVE..B401	09/2019 - 12/2999	8
90913-T2004	3NRVE..B401	06/2016 - 09/2019	8
13715 - VALVE, EXHAUST
13715-0Y020	3NRVE..B401	09/2019 - 12/2999	8
13715-0Y020	3NRVE..B401	06/2016 - 09/2019	8
13715A - SEAL, EXHAUST VALVE STEM OIL
90913-T2005	3NRVE..B401	09/2019 - 12/2999	8
90913-T2005	3NRVE..B401	06/2016 - 09/2019	8
13716 - CAP, VALVE STEM
13716-0C020	3NRVE..B401	09/2019 - 12/2019	16
13716-0C030	3NRVE..B401	01/2020 - 12/2999	16
13716-0C020	3NRVE..B401	06/2016 - 09/2019	16
13716 - CAP, VALVE STEM
13716-0C020	3NRVE..B401	09/2019 - 12/2019	16
13716-0C030	3NRVE..B401	01/2020 - 12/2999	16
13716-0C020	3NRVE..B401	06/2016 - 09/2019	16
13734 - SEAT, VALVE SPRING
13734-0C010	3NRVE..B401	06/2016 - 09/2019	16
13734-0C010	3NRVE..B401	09/2019 - 12/2999	16
13734 - SEAT, VALVE SPRING
13734-0C010	3NRVE..B401	06/2016 - 09/2019	16
13734-0C010	3NRVE..B401	09/2019 - 12/2999	16
13741 - RETAINER, VALVE SPRING
13741-0Y010	3NRVE..B401	06/2016 - 09/2019	16
13741-0Y010	3NRVE..B401	09/2019 - 12/2999	16
13741 - RETAINER, VALVE SPRING
13741-0Y010	3NRVE..B401	06/2016 - 09/2019	16
13741-0Y010	3NRVE..B401	09/2019 - 12/2999	16
13741A - LOCK, VALVE SPRING RETAINER
90913-03028	3NRVE..B401	06/2016 - 09/2019	32
90913-03028	3NRVE..B401	09/2019 - 12/2999	32
13741A - LOCK, VALVE SPRING RETAINER
90913-03028	3NRVE..B401	06/2016 - 09/2019	32
90913-03028	3NRVE..B401	09/2019 - 12/2999	32
13741A - LOCK, VALVE SPRING RETAINER
90913-03028	3NRVE..B401	06/2016 - 09/2019	32
90913-03028	3NRVE..B401	09/2019 - 12/2999	32
13741A - LOCK, VALVE SPRING RETAINER
90913-03028	3NRVE..B401	06/2016 - 09/2019	32
90913-03028	3NRVE..B401	09/2019 - 12/2999	32
13750 - ADJUSTER ASSY, VALVE LASH
13750-0C040	3NRVE..B401	06/2016 - 09/2019	16
13750-0C040	3NRVE..B401	09/2019 - 12/2999	16
13750 - ADJUSTER ASSY, VALVE LASH
13750-0C040	3NRVE..B401	06/2016 - 09/2019	16
13750-0C040	3NRVE..B401	09/2019 - 12/2999	16
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13801-0C030	3NRVE..B401	06/2016 - 09/2019	16
13801-0C030	3NRVE..B401	09/2019 - 12/2999	16
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13801-0C030	3NRVE..B401	06/2016 - 09/2019	16
13801-0C030	3NRVE..B401	09/2019 - 12/2999	16
Common parts
9004A-11240
90105-T0085
90105-T0273
94188-00641

B401RA-GQQFJ (2016)

(1606-1909) ; (1909- )
