B401RA-GMZFJ (2016)

Toyota Calya

Production Jun 2016 - Sep 9999
Engine 3NRVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1606-1909)G ; (1909- )G

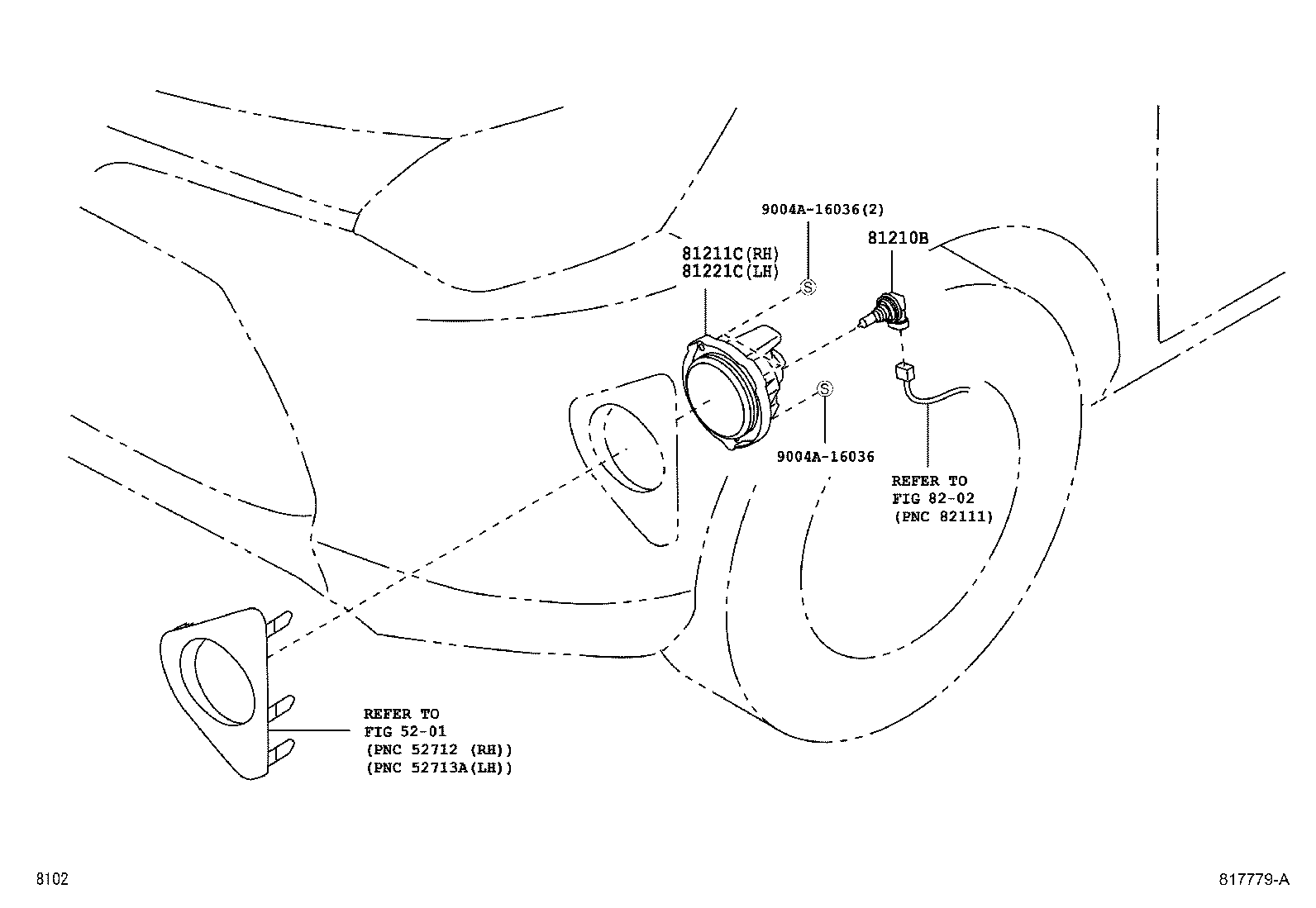

Click highlighted areas on diagram

diagram 5201 81210B 81211C 81221C 8202 9004A16036 9004A16036
Part # Description Qty Price
81210B - BULB, FOG LAMP
90049-51185

B401..G

12V 19W H16

 2
90049-51185

B401..G

12V 19W H16

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-BZ060

B401..G

 1
81211-BZ060

B401..G

 1
81221C - LAMP UNIT, FOG LAMP, LH
81221-BZ060

B401..G

 1
81221-BZ060

B401..G

 1
Common parts
9004A-16036
Linked diagrams
5201
8202
