B401RA-GMZFJ (2016)
Toyota Calya
Production
Jun 2016
-
Sep 9999
Engine
3NRVE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1606-1909) ; (1909- )

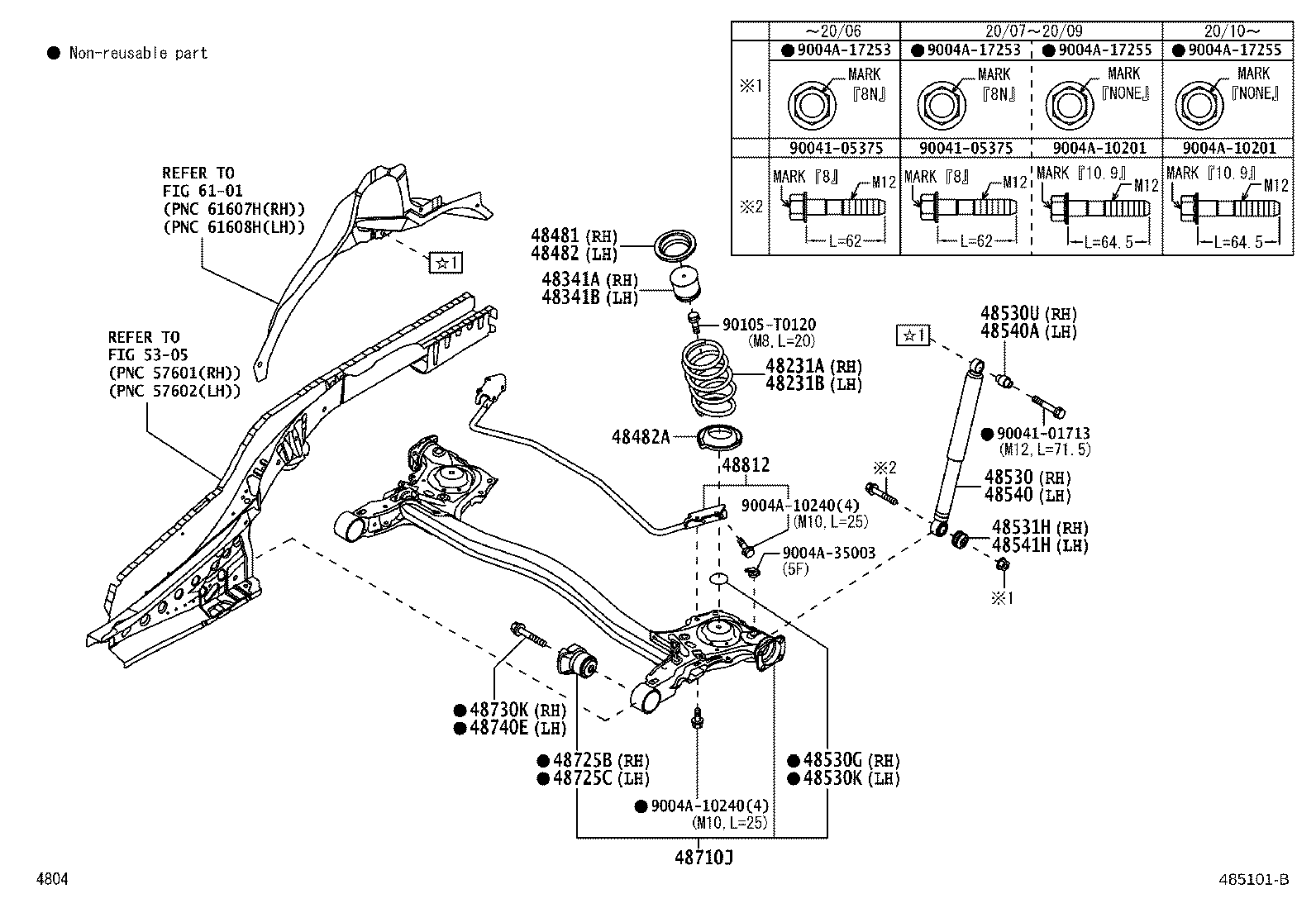

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-BZ670 |
B401 |
1 | ||
| 48231-BZ671 |
B401 |
1 | ||
| 48231-BZ671 |
B401 |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-BZ670 |
B401 |
1 | ||
| 48231-BZ671 |
B401 |
1 | ||
| 48231-BZ671 |
B401 |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-BZ671 |
B401 |
1 | ||
| 48231-BZ670 |
B401 |
1 | ||
| 48231-BZ671 |
B401 |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-BZ671 |
B401 |
1 | ||
| 48231-BZ670 |
B401 |
1 | ||
| 48231-BZ671 |
B401 |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-BZ120 |
B401 |
1 | ||
| 48341-BZ120 |
B401 |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-BZ120 |
B401 |
1 | ||
| 48341-BZ120 |
B401 |
1 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-BZ090 |
B401 |
1 | ||
| 48481-BZ090 |
B401 |
1 | ||
| 48482 - SEAT, REAR SPRING, UPPER LH | ||||
| 48481-BZ090 |
B401 |
1 | ||
| 48481-BZ090 |
B401 |
1 | ||
| 48482A - SEAT, REAR SPRING, LOWER | ||||
| 48482-BZ110 |
B401 |
2 | ||
| 48482-BZ110 |
B401 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-BZ160 |
B401 MARK 48530-BZ160 |
1 | ||
| 48530-BZ160 |
B401 MARK 48530-BZ160 |
1 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 47131-BZ080 |
B401 RH |
1 | ||
| 47131-BZ080 |
B401 RH |
1 | ||
| 48530K - CUSHION, REAR SHOCK ABSORBER, NO.2 | ||||
| 47131-BZ080 |
B401 LH |
1 | ||
| 47131-BZ080 |
B401 LH |
1 | ||
| 48530U - BUSH(FOR REAR SHOCK ABSORBER RH) | ||||
| 48537-BZ070 |
B401 |
1 | ||
| 48537-BZ070 |
B401 |
1 | ||
| 48531H - BUSH(FOR REAR SHOCK ABSORBER RH) | ||||
| 48537-BZ080 |
B401 |
1 | ||
| 48537-BZ080 |
B401 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-BZ160 |
B401 MARK 48530-BZ160 |
1 | ||
| 48530-BZ160 |
B401 MARK 48530-BZ160 |
1 | ||
| 48540A - BUSH(FOR REAR SHOCK ABSORBER LH) | ||||
| 48537-BZ070 |
B401 |
1 | ||
| 48537-BZ070 |
B401 |
1 | ||
| 48541H - BUSH(FOR REAR SHOCK ABSORBER LH) | ||||
| 48537-BZ080 |
B401 |
1 | ||
| 48537-BZ080 |
B401 |
1 | ||
| 48710J - ARM ASSY, REAR SUSPENSION, NO.1 | ||||
| 48710-BZ381 |
B401 |
1 | ||
| 48710-BZ380 |
B401 |
1 | ||
| 48710-BZ381 |
B401 |
1 | ||
| 48725B - BUSH, REAR SUSPENSION ARM, NO.1 | ||||
| 48725-BZ070 |
B401 RH |
1 | ||
| 48725-BZ040 |
B401 RH |
1 | ||
| 48725-BZ040 |
B401 RH |
1 | ||
| 48725C - BUSH, REAR SUSPENSION ARM, NO.2 | ||||
| 48725-BZ070 |
B401 LH |
1 | ||
| 48725-BZ040 |
B401 LH |
1 | ||
| 48725-BZ040 |
B401 LH |
1 | ||
| 48730K - BOLT(FOR REAR SUSPENSION ARM NO.2 RH) | ||||
| 48718-B1020 |
B401 |
1 | ||
| 9004A-11377 |
B401 |
1 | ||
| 48718-B1020 |
B401 |
1 | ||
| 48740E - BOLT(FOR REAR SUSPENSION ARM NO.2 LH) | ||||
| 48718-B1020 |
B401 |
1 | ||
| 48718-B1020 |
B401 |
1 | ||
| 9004A-11377 |
B401 |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48083-BZ030 |
B401..G |
1 | ||
| 48083-BZ030 |
B401..G |
1 | ||
| Common parts | ||||
| 90041-01713 | ||||
| 90041-05375 | ||||
| 9004A-10201 | ||||
| 9004A-10240 | ||||
| 9004A-17253 | ||||
| 9004A-17255 | ||||
| 9004A-35003 | ||||
| 90105-T0120 | ||||
| Linked diagrams | ||||
| 5305 | ||||
| 6101 | ||||
