Toyota Calya B401 BRAKE MASTER CYLINDER

Part #	Description	Period	Qty
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-BZ800	B401..5F	02/2018 - 09/2019	1
47201-BZ810	B401..5F..E ABS (ANTI-LOCK BRK SYSTM)-ABS	09/2019 - 12/2999	1
47201-BZ810	B401..4FC;B401..5F..G	09/2019 - 12/2999	1
47201-BZ630	B401..5F	06/2016 - 01/2018	1
47201-BZ810	B401..5F ABS (ANTI-LOCK BRK SYSTM)-ABS	02/2018 - 09/2019	1
47201-BZ800	B401..5F..E	09/2019 - 12/2999	1
47201-BZ610	B401..5F ABS (ANTI-LOCK BRK SYSTM)-ABS	06/2016 - 01/2018	1
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
90043-01352	B401	09/2019 - 12/2999	1
90043-01352	B401	06/2016 - 09/2019	1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-BZ310	B401	09/2019 - 12/2999	1
47220-BZ310	B401	06/2016 - 09/2019	1
47210U - PIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)
90042-43029	B401	06/2016 - 09/2019	1
90042-43029	B401	09/2019 - 12/2999	1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-BZ130	B401	09/2019 - 12/2999	1
47230-BZ130	B401	06/2016 - 09/2019	1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-BZ110	B401	09/2019 - 12/2999	2
47255-BZ110	B401	06/2016 - 09/2019	2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-BZ110	B401	09/2019 - 12/2999	2
47255-BZ110	B401	06/2016 - 09/2019	2
47268A - NUT, BRAKE MASTER CYLINDER
90041-79124	B401	09/2019 - 12/2999	2
90041-79124	B401	06/2016 - 09/2019	2
47268A - NUT, BRAKE MASTER CYLINDER
90041-79124	B401	09/2019 - 12/2999	2
90041-79124	B401	06/2016 - 09/2019	2

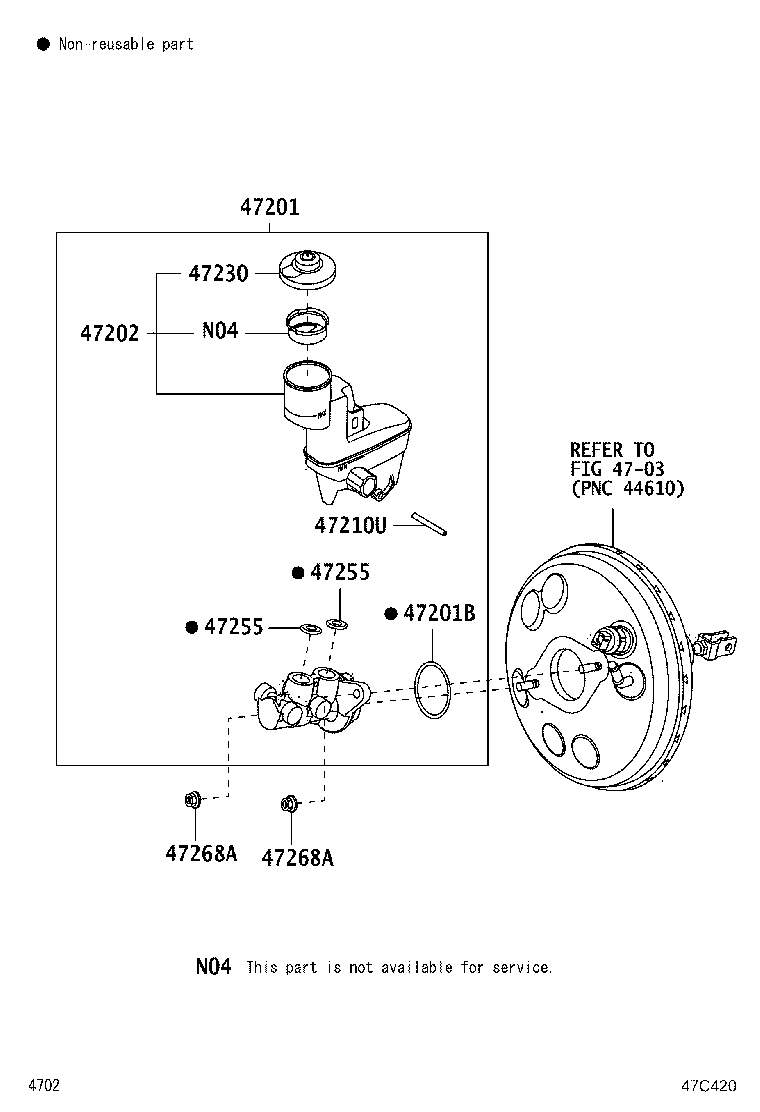

Linked diagrams
4703

B401RA-GMZFJ (2016)
