Toyota Calya B401 BACK DOOR PANEL & GLASS

Part #	Description	Period	Qty
75129C - CUSHION, REAR LICENCE PLATE
75129-BZ010	B401	09/2019 - 12/2999	2
75129-BZ010	B401	06/2016 - 09/2019	2
Linked diagrams
7501
7504

Part #	Description	Period	Qty
64780A - PANEL ASSY, BACK DOOR TRIM
64780-BZ170C0	B401 BLACK,TRIM4#	06/2016 - 02/2017	1
64780-BZ170C1	B401 BLACK,TRIM4#	09/2019 - 12/2999	1
64780-BZ170C1	B401 BLACK,TRIM4#	02/2017 - 09/2019	1
64780D - RETAINER(FOR BACK DOOR TRIM BOARD)
67771-B5020C0	B401 BLACK,TRIM4#	09/2019 - 12/2999	11
67771-B5020C0	B401 BLACK,TRIM4#	04/2017 - 09/2019	11
67771-B5020B2	B401 DK.GRAY,TRIM4#	06/2016 - 04/2017	11
64790D - CAP, BACK DOOR TRIM PANEL
67772-87701	B401	06/2016 - 09/2019	11
67772-87701	B401	09/2019 - 12/2999	11
64827B - CLIP, BACK WINDOW GLASS, RH
64827-BZ100	B401	06/2016 - 09/2019	1
64827-BZ100	B401	09/2019 - 12/2999	1
64828B - CLIP, BACK WINDOW GLASS, LH
64828-BZ070	B401	06/2016 - 09/2019	1
64828-BZ070	B401	09/2019 - 12/2999	1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-BZA50	B401	06/2016 - 09/2019	1
67005-BZD40	B401	09/2019 - 12/2999	1
67005B - CUSHION(FOR BACK DOOR PANEL)
9004A-54016	B401	09/2019 - 12/2999	4
9004A-54016	B401	06/2016 - 09/2019	4
67005B - CUSHION(FOR BACK DOOR PANEL)
9004A-54016	B401	09/2019 - 12/2999	4
9004A-54016	B401	06/2016 - 09/2019	4
67005B - CUSHION(FOR BACK DOOR PANEL)
9004A-54016	B401	09/2019 - 12/2999	4
9004A-54016	B401	06/2016 - 09/2019	4
67005B - CUSHION(FOR BACK DOOR PANEL)
9004A-54016	B401	09/2019 - 12/2999	4
9004A-54016	B401	06/2016 - 09/2019	4
67818B - SPACER, BACK WINDOW GLASS
64818-BZ050	B401	06/2016 - 09/2019	7
64818-BZ050	B401	09/2019 - 12/2999	7
67818B - SPACER, BACK WINDOW GLASS
64818-BZ050	B401	06/2016 - 09/2019	7
64818-BZ050	B401	09/2019 - 12/2999	7
67818B - SPACER, BACK WINDOW GLASS
64818-BZ050	B401	06/2016 - 09/2019	7
64818-BZ050	B401	09/2019 - 12/2999	7
67818B - SPACER, BACK WINDOW GLASS
64818-BZ050	B401	06/2016 - 09/2019	7
64818-BZ050	B401	09/2019 - 12/2999	7
67818B - SPACER, BACK WINDOW GLASS
64818-BZ050	B401	06/2016 - 09/2019	7
64818-BZ050	B401	09/2019 - 12/2999	7
67818B - SPACER, BACK WINDOW GLASS
64818-BZ050	B401	06/2016 - 09/2019	7
64818-BZ050	B401	09/2019 - 12/2999	7
67818B - SPACER, BACK WINDOW GLASS
64818-BZ050	B401	06/2016 - 09/2019	7
64818-BZ050	B401	09/2019 - 12/2999	7
67837L - SEAL, DOOR DUST PROOF
67837-BZ030	B401	06/2016 - 09/2019	2
67837-BZ030	B401	09/2019 - 12/2999	2
67837L - SEAL, DOOR DUST PROOF
67837-BZ030	B401	06/2016 - 09/2019	2
67837-BZ030	B401	09/2019 - 12/2999	2
67881A - WEATHERSTRIP, BACK DOOR
67881-BZ160	B401	06/2016 - 09/2019	1
67881-BZ160	B401	09/2019 - 12/2999	1
67893A - PROTECTOR, BACK DOOR PANEL, NO.1
67893-BZ030	B401	09/2019 - 12/2999	1
67893-BZ030	B401	06/2016 - 09/2019	1
67894B - PROTECTOR, BACK DOOR PANEL, NO.2
67894-BZ030	B401	06/2016 - 09/2019	1
67894-BZ030	B401	09/2019 - 12/2999	1
68131 - GLASS, BACK DOOR
68131-BZ520	B401	09/2019 - 12/2999	1
68131-BZ520	B401	06/2016 - 09/2019	1
74811D - HANDLE, DOOR PULL
74811-BZ030	B401	06/2016 - 09/2019	1
74811-BZ030	B401	09/2019 - 12/2999	1
Common parts
75395-BZ010
9004A-95069
Linked diagrams
5701
6709

B401RA-GMQFJ (2016)

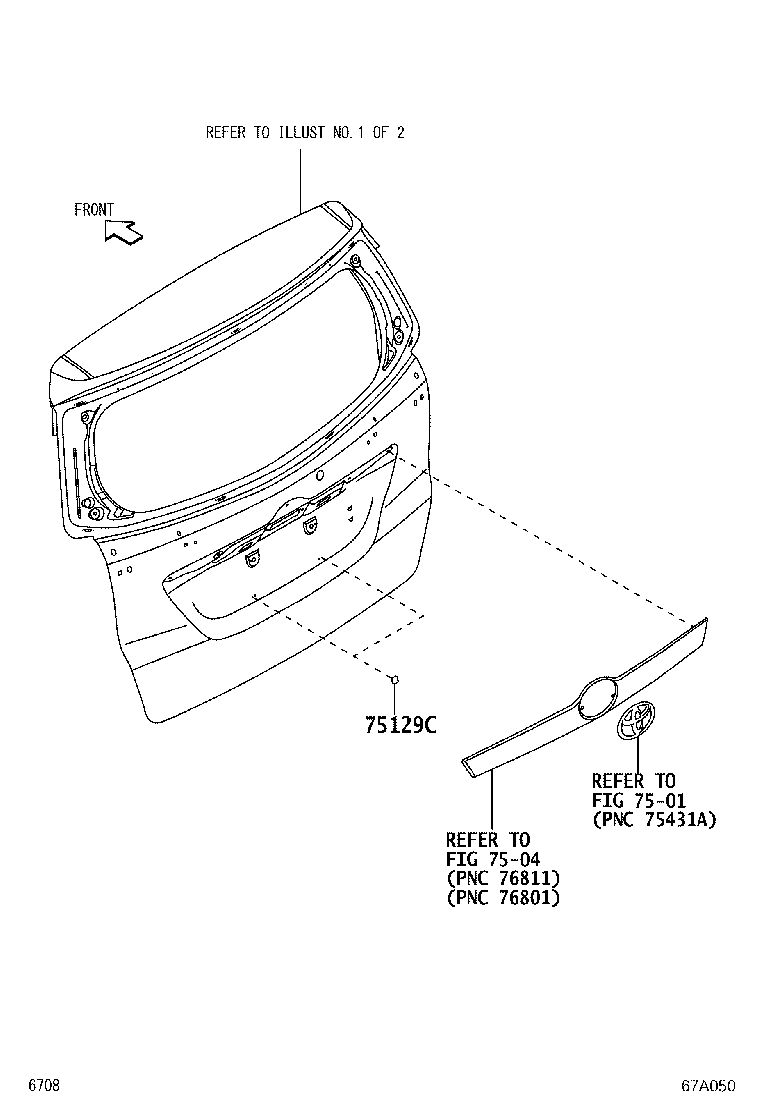

ILLUST NO. 2 OF 2(1606-1909) ; (1909- )

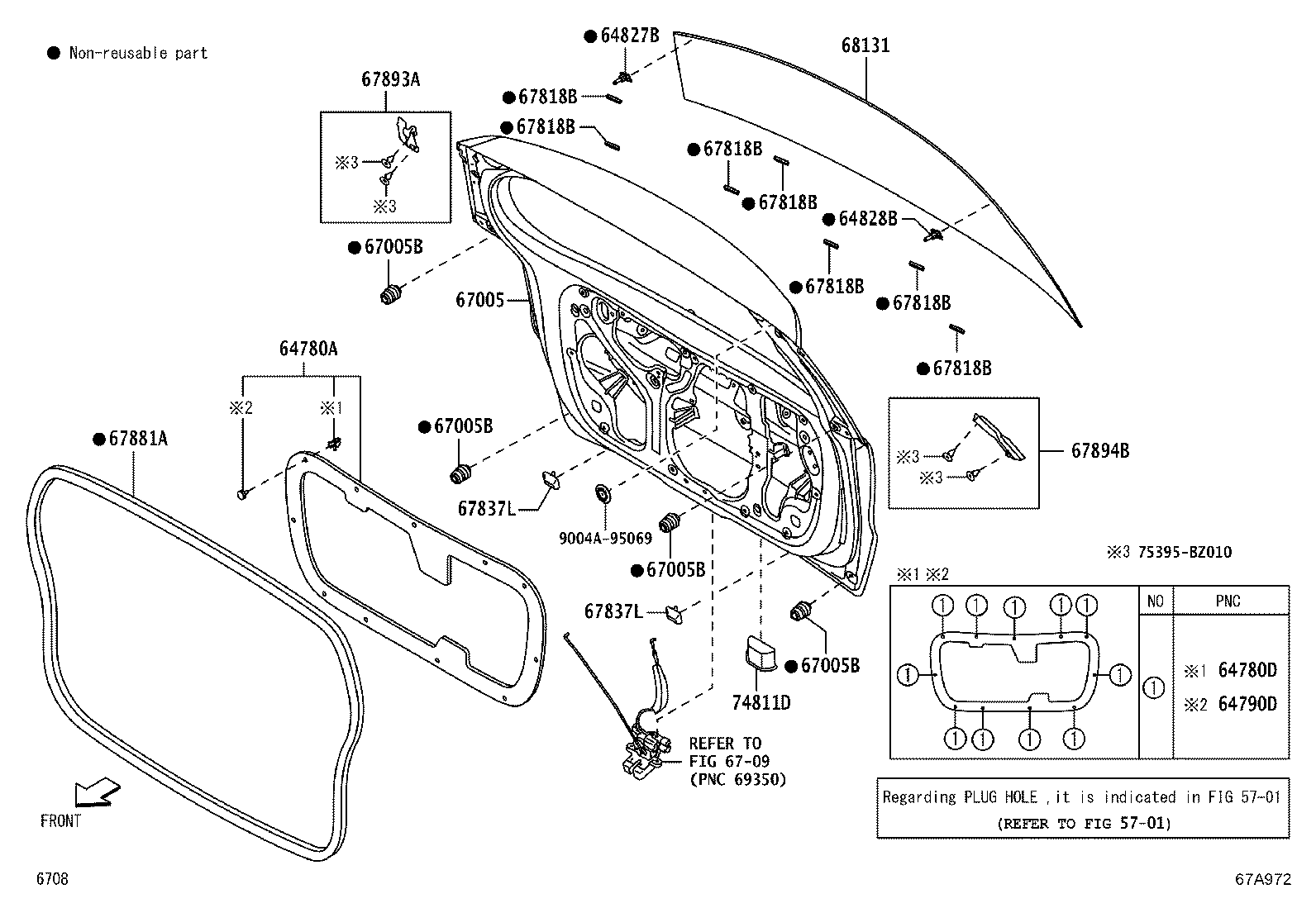

ILLUST NO. 1 OF 2(1606-1909) ; (1909- )
