B401RA-GMQFJ (2016)

Toyota Calya

Production Jun 2016 - Sep 9999
Engine 3NRVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1606-1909) ; (1909- )

Click highlighted areas on diagram

3NR

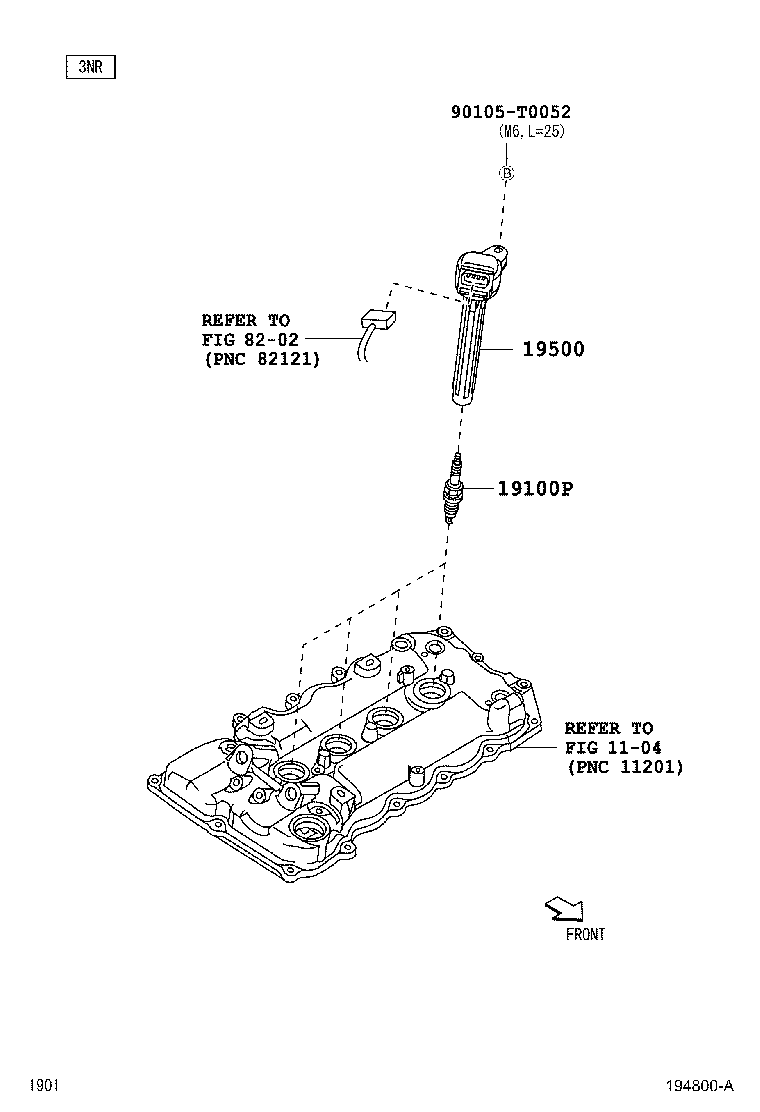

diagram 1104 19100P 19500 8202 90105T0052
Part # Description Qty Price
19100P - PLUG, SPARK
9004A-91068

3NRVE..B401

SC16HR11

 4
9004A-91068

3NRVE..B401

SC16HR11

 4
19500 - COIL ASSY, IGNITION
90919-T2011

3NRVE..B401

 4
90919-T2011

3NRVE..B401

 4
Common parts
90105-T0052
Linked diagrams
1104
8202
