Toyota Calya B401 CYLINDER BLOCK

Part #	Description	Period	Qty
11401 - BLOCK SUB-ASSY, CYLINDER
11410-B9030	3NRVE..B401	09/2019 - 12/2999	1
11410-B9030	3NRVE..B401	06/2016 - 09/2019	1
11401L - SEAL, ENGINE REAR OIL
90311-T0074	3NRVE..B401	06/2016 - 09/2019	1
90311-T0074	3NRVE..B401	09/2019 - 12/2999	1
11411A - PIN, RING(FOR CYLINDER BLOCK NO.1 )
90250-10030	3NRVE..B401	09/2019 - 12/2999	1
90250-10030	3NRVE..B401	06/2016 - 09/2019	1
11411B - PIN, RING(FOR CYLINDER BLOCK NO.2)
90250-08120	3NRVE..B401	09/2019 - 12/2999	2
90250-08120	3NRVE..B401	06/2016 - 09/2019	2
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-T2013	3NRVE..B401	06/2016 - 09/2019	10
90910-T2013	3NRVE..B401	09/2019 - 12/2999	10
11432M - UNION(FOR CYLINDER BLOCK)
90404-T0005	3NRVE..B401	06/2018 - 09/2019	1
90404-T0005	3NRVE..B401	09/2019 - 12/2999	1
90404-19011	3NRVE..B401	06/2016 - 05/2018	1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-04097	3NRVE..B401 L=12,OD=4.0	09/2019 - 12/2999	2
90250-04097	3NRVE..B401 L=12,OD=4.0	06/2016 - 09/2019	2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13017	3NRVE..B401	09/2019 - 12/2999	2
90253-13017	3NRVE..B401	06/2016 - 09/2019	2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13017	3NRVE..B401	09/2019 - 12/2999	2
90253-13017	3NRVE..B401	06/2016 - 09/2019	2
11444A - RING, O
90301-T0055	3NRVE..B401	09/2019 - 12/2999	1
90301-T0055	3NRVE..B401	06/2016 - 09/2019	1
11445 - SPACER, CYLINDER BLOCK WATER JACKET
11445-0Y020	3NRVE..B401	09/2019 - 12/2999	1
11445-0Y020	3NRVE..B401	06/2016 - 09/2019	1
11452 - GUIDE, OIL LEVEL GAGE
11409-BZ130	3NRVE..B401	06/2016 - 09/2019	1
11409-BZ130	3NRVE..B401	09/2019 - 12/2999	1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
9004A-30058	3NRVE..B401	09/2019 - 12/2999	1
9004A-30058	3NRVE..B401	06/2016 - 09/2019	1
12101 - PAN SUB-ASSY, OIL
12101-BZ110	3NRVE..B401	09/2019 - 12/2999	1
12101-BZ110	3NRVE..B401	06/2016 - 09/2019	1
12101A - PLUG(FOR OIL PAN DRAIN)
9004A-34015	3NRVE..B401	06/2016 - 09/2019	1
9004A-34015	3NRVE..B401	09/2019 - 12/2999	1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
9004A-43022	3NRVE..B401	09/2019 - 12/2999	1
9004A-43022	3NRVE..B401	06/2016 - 09/2019	1
12101C - RING, O(FOR OIL PAN)
90301-T0057	3NRVE..B401	09/2019 - 12/2999	1
90301-T0057	3NRVE..B401	06/2016 - 09/2019	1
12121 - PLATE, OIL PAN BAFFLE, NO.1
12121-0Y030	3NRVE..B401	09/2019 - 12/2999	1
12121-0Y030	3NRVE..B401	06/2016 - 09/2019	1
12122 - PLATE, OIL PAN BAFFLE, NO.2
12122-0Y010	3NRVE..B401	09/2019 - 12/2999	1
12122-0Y010	3NRVE..B401	06/2016 - 09/2019	1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-BZ110	3NRVE..B401	06/2016 - 09/2019	1
15301-BZ110	3NRVE..B401	09/2019 - 12/2999	1
Common parts
90119-T0260
90119-T0342
90301-T0059

Part #	Description	Period	Qty
11363A - COVER, FLYWHEEL HOUSING SIDE
11363-BZ010	3NRVE..B401	09/2019 - 12/2999	1
11363-BZ010	3NRVE..B401	06/2016 - 09/2019	1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113	3NRVE..B401 L=22,OD=10	06/2016 - 09/2019	2
90250-10113	3NRVE..B401 L=22,OD=10	09/2019 - 12/2999	2
15471A - GASKET(FOR CLYINDER BLOCK)
90430-T0023	3NRVE..B401	06/2016 - 09/2019	1
90430-T0023	3NRVE..B401	09/2019 - 12/2999	1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-0Y040	3NRVE..B401	09/2019 - 12/2999	4
15708-0Y040	3NRVE..B401	06/2016 - 09/2019	4
15797 - BOLT, OIL NOZZLE UNION
90110-T0002	3NRVE..B401	06/2016 - 09/2019	4
90110-T0002	3NRVE..B401	09/2019 - 12/2999	4
Common parts
90105-T0247
90105-T0271
Linked diagrams
8401

B401RA-GMQFJ (2016)

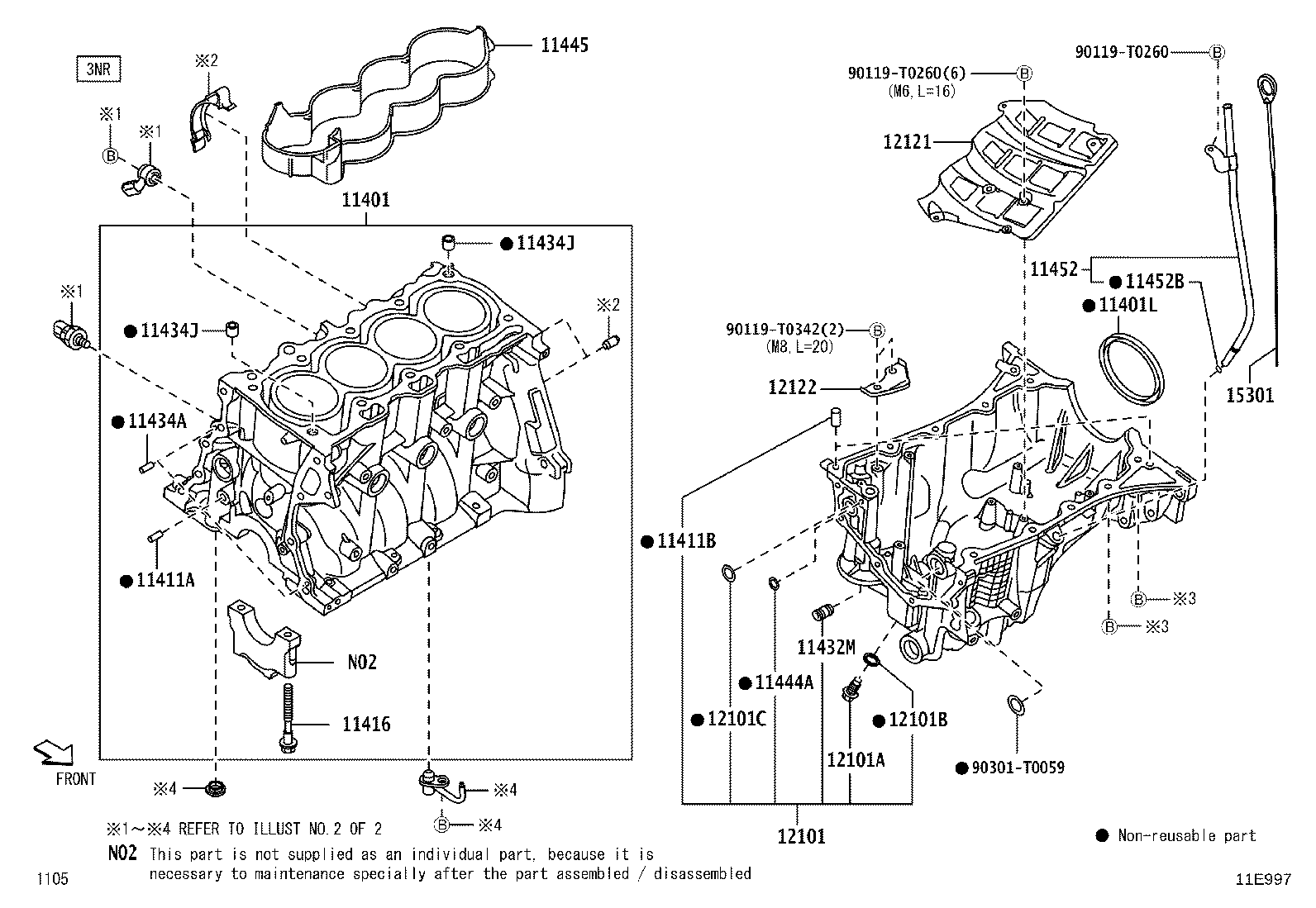

ILLUST NO. 1 OF 2(1606-1909) ; (1909- )

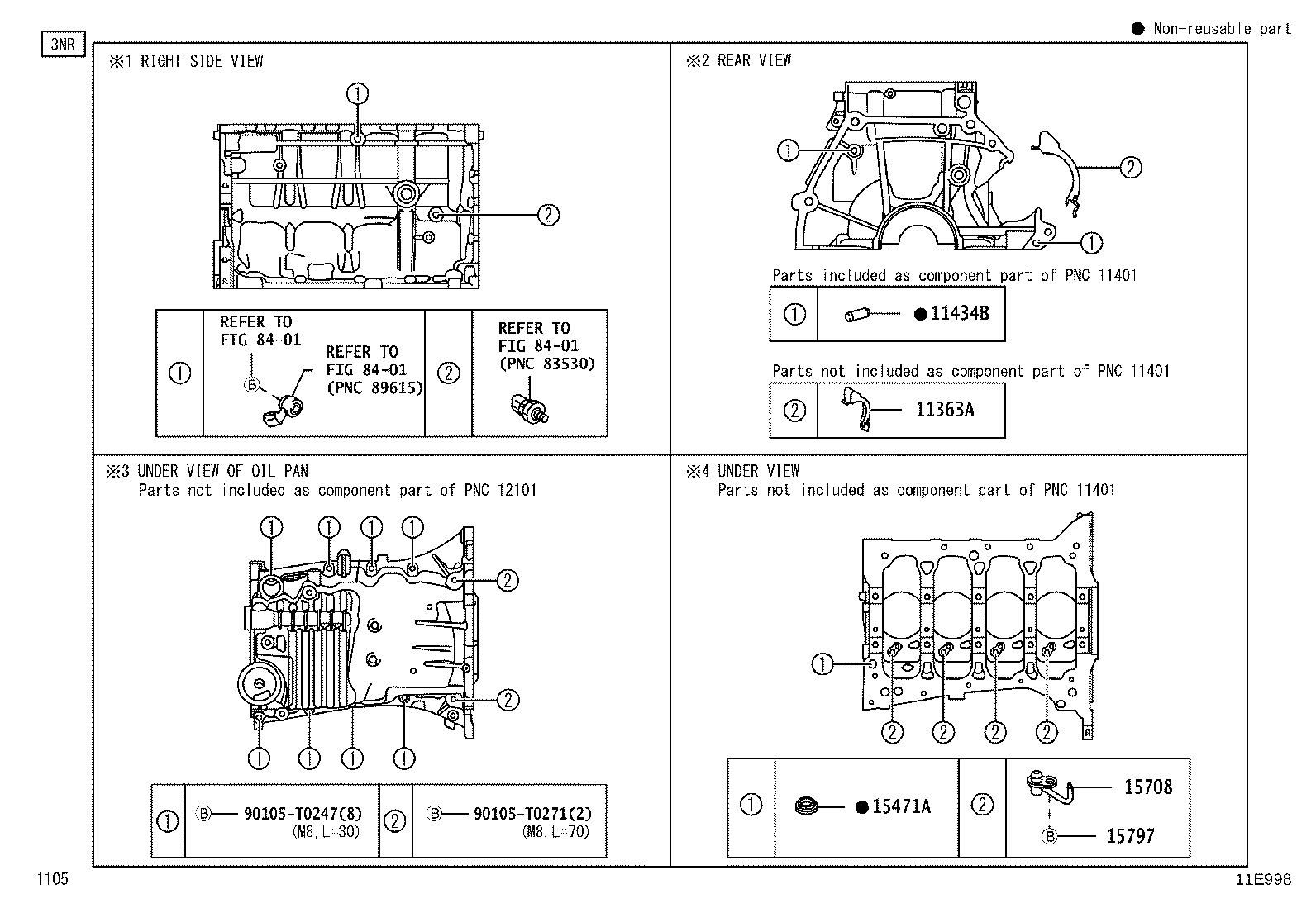

ILLUST NO. 2 OF 2(1606-1909) ; (1909- )
