Toyota C-hr (tup) ZYX10 FUEL TANK & TUBE

Part #	Description	Period	Qty

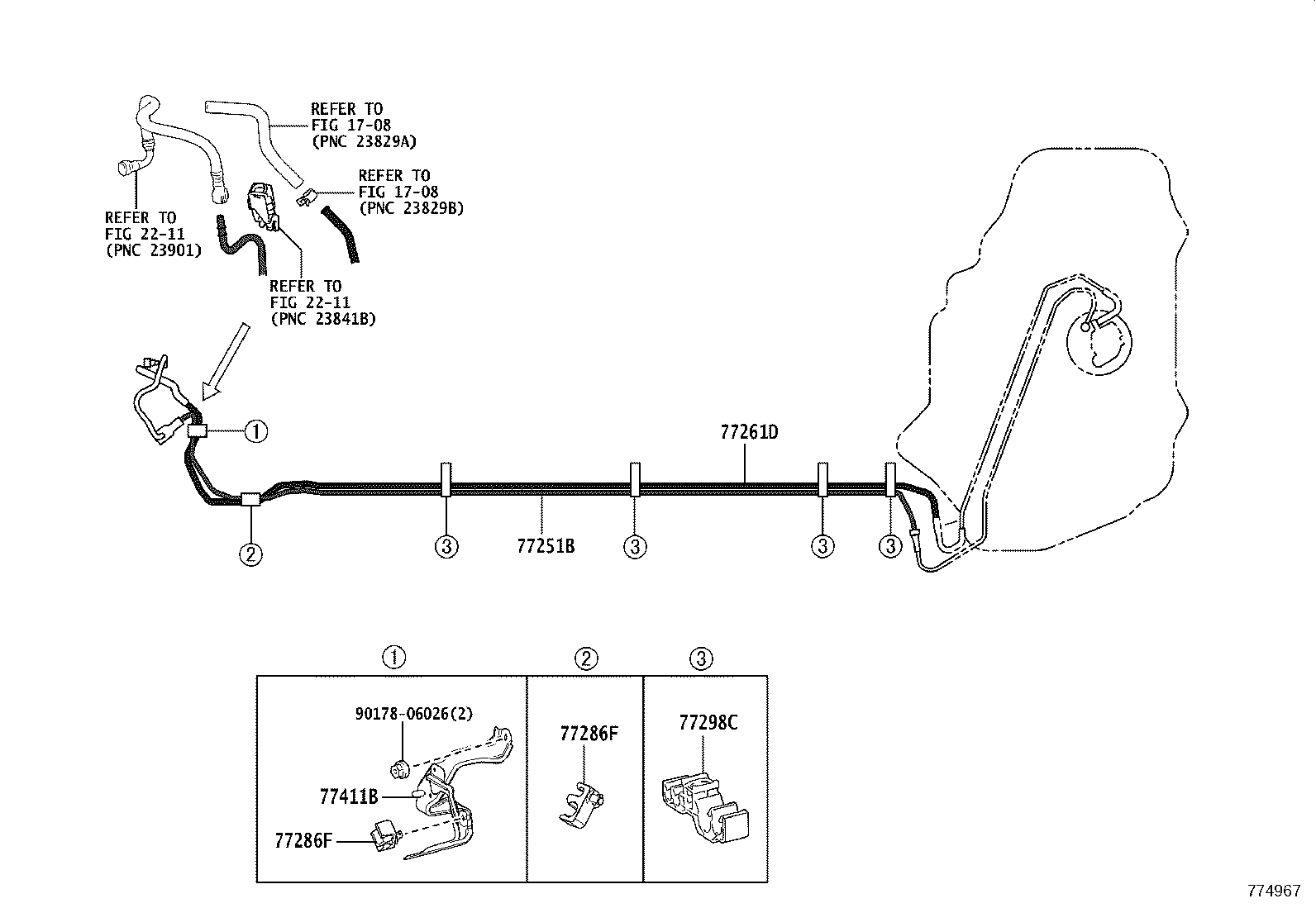

77251B - TUBE, FUEL MAIN
77251-F4011	ZYX10	09/2019 - 12/2999	1
77261D - TUBE, FUEL TANK TO CANISTER
77261-F4090	ZYX10	09/2019 - 12/2999	1
77286F - CLAMP, FUEL TUBE, NO.2
77286-78040	ZYX10	09/2019 - 12/2999	2
77286F - CLAMP, FUEL TUBE, NO.2
77286-78040	ZYX10	09/2019 - 12/2999	2
77298C - CLAMP, FUEL TUBE, NO.4
77298-10050	ZYX10	09/2019 - 12/2999	4
77411B - SUPPORT, FUEL TUBE GROMMET, NO.1
77411-F4020	ZYX10	09/2019 - 12/2999	1
Common parts
90178-06026
Linked diagrams
1708
2211

Part #	Description	Period	Qty
23221 - PUMP, FUEL
23210-0T010	2ZRFXE..ZYX10	09/2019 - 12/2999	1
23225A - SPACER, FUEL PUMP
23225-0T010	8NRFTS,2ZRFXE..NGX10,50,ZYX10	09/2019 - 12/2999	1
23280J - REGULATOR ASSY, FUEL PRESSURE
23280-21010	2ZRFXE..ZYX10	09/2019 - 12/2999	1
23280K - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-04013	8NRFTS,2ZRFXE..NGX10,50,ZYX10 NO.1:REFER ILLUST.	09/2019 - 12/2999	1
90301-15024	8NRFTS,2ZRFXE..NGX10,50,ZYX10 NO.2:REFER ILLUST.	09/2019 - 12/2999	1
23280K - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-04013	8NRFTS,2ZRFXE..NGX10,50,ZYX10 NO.1:REFER ILLUST.	09/2019 - 12/2999	1
90301-15024	8NRFTS,2ZRFXE..NGX10,50,ZYX10 NO.2:REFER ILLUST.	09/2019 - 12/2999	1
77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77020-02C21	ZYX10	09/2019 - 12/2999	1
77024A - PLATE SUB-ASSY, FUEL SUCTION
77024-02570	ZYX10	09/2019 - 12/2999	1
77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026-02150	ZYX10	09/2019 - 12/2999	1

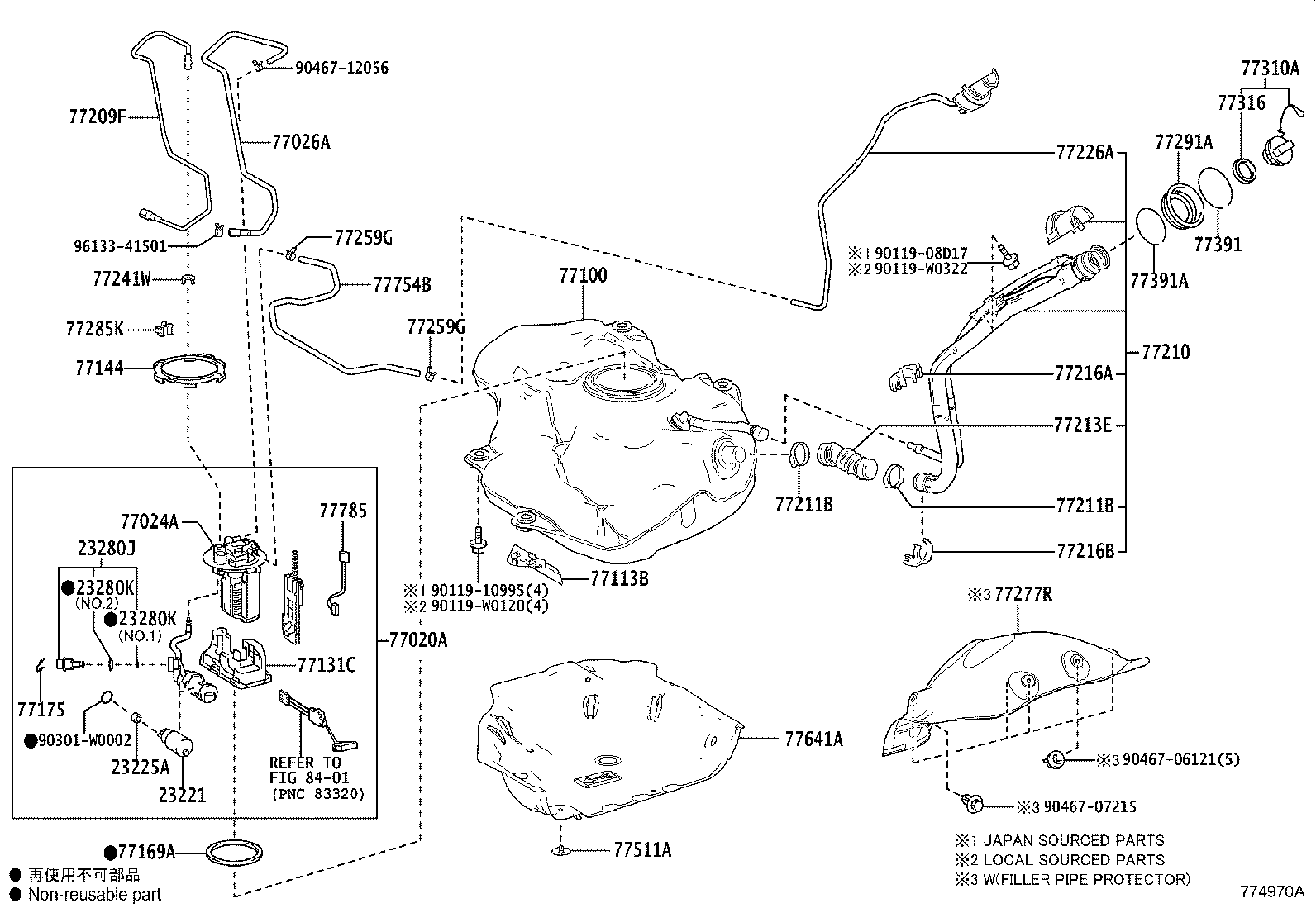

77100 - TANK ASSY, FUEL
77001-F4100	ZYX10	09/2019 - 12/2999	1
77113B - PLATE, FUEL TANK SIDE
77113-F4010	ZYX10	09/2019 - 12/2999	1
77131C - SUB-TANK, FUEL, NO.1
77103-K0040	ZYX10	12/2020 - 12/2999	1
77103-02100	ZYX10	09/2019 - 12/2020	1
77144 - RETAINER, FUEL PUMP GAUGE
77144-F4010	NGX10,ZYX10	09/2019 - 12/2999	1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-F4050	NGX10,ZYX10	09/2019 - 12/2999	1
77175 - SUPPORT, FUEL SUCTION, NO.2
77175-F4010	ZYX10	09/2019 - 12/2999	1
77209F - TUBE SUB-ASSY, FUEL TANK MAIN
77209-02380	ZYX10	09/2019 - 12/2999	1
77210 - PIPE ASSY, FUEL TANK FILLER
77210-F4081	NGX10,ZYX10	09/2019 - 12/2999	1
77211B - CLAMP (FOR FUEL FILLER PIPE)
90460-50008	NGX10,ZYX10	09/2019 - 12/2999	2
77211B - CLAMP (FOR FUEL FILLER PIPE)
90460-50008	NGX10,ZYX10	09/2019 - 12/2999	2
77213E - HOSE, FUEL TANK TO FILLER PIPE
77213-F4040	NGX10,ZYX10	09/2019 - 12/2999	1
77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1
77216-F4010	NGX10,ZYX10	09/2019 - 12/2999	1
77216B - SUPPORT, FUEL TANK FILLER PIPE, NO.2
77216-F4030	NGX10,ZYX10	09/2019 - 12/2999	1
77226A - TUBE, FUEL TANK BREATHER, NO.6
77226-F4020	NGX10,ZYX10	09/2019 - 12/2999	1
77241W - CLIP, TUBE JOINT
77241-32060	NGX10,50,ZYX10	09/2019 - 12/2999	1
77259G - CLIP, FUEL HOSE
90466-W0006	NGX10,50,ZYX10	09/2019 - 12/2999	1
77259G - CLIP, FUEL HOSE
90466-W0006	NGX10,50,ZYX10	09/2019 - 12/2999	1
77277R - PROTECTOR, FUEL TANK FILLER PIPE
77277-F4010	NGX10,50,ZYX10..D,N	09/2019 - 12/2999	1
77285K - CLAMP, FUEL TUBE, NO.1
77285-30350	NGX10,50,ZYX10	09/2019 - 12/2999	1
77291A - SHIELD, FUEL TANK FILLER PIPE
77291-F4010	NGX10,50,ZYX10	09/2019 - 12/2999	1
77310A - CAP ASSY, FUEL TANK
77300-48020	NGX10,50,ZYX10	09/2019 - 12/2999	1
77316 - GASKET, FUEL TANK CAP
77316-75020	NGX10,50,ZYX10	09/2019 - 12/2999	1
77391 - RING, FUEL INLET BOX
77391-75010	NGX10,50,ZYX10	09/2019 - 12/2999	1
77391A - RING, FUEL INLET BOX
77391-12020	NGX10,50,ZYX10	09/2019 - 12/2999	1
77511A - BRACKET, FUEL TANK
77512-35140	NGX10,ZYX10	09/2019 - 12/2999	4
77641A - PROTECTOR, FUEL TANK, NO.1
77641-F4090	ZYX10	09/2019 - 12/2999	1
77754B - HOSE, CHARCOAL CANISTER OUTLET
77754-02190	ZYX10	09/2019 - 12/2999	1
77785 - HARNESS, FUEL PUMP
77785-02160	ZYX10	09/2019 - 12/2999	1
Common parts
90119-08D17
90119-10995
90119-W0120
90119-W0322
90301-W0002
90467-06121
90467-07215
90467-12056
96133-41501
Linked diagrams
8401

ZYX10L-AHXNBV (2019)

ILLUST NO. 2 OF 3(1909- )ZYX10

ILLUST NO. 1 OF 3(1909- )ZYX10
