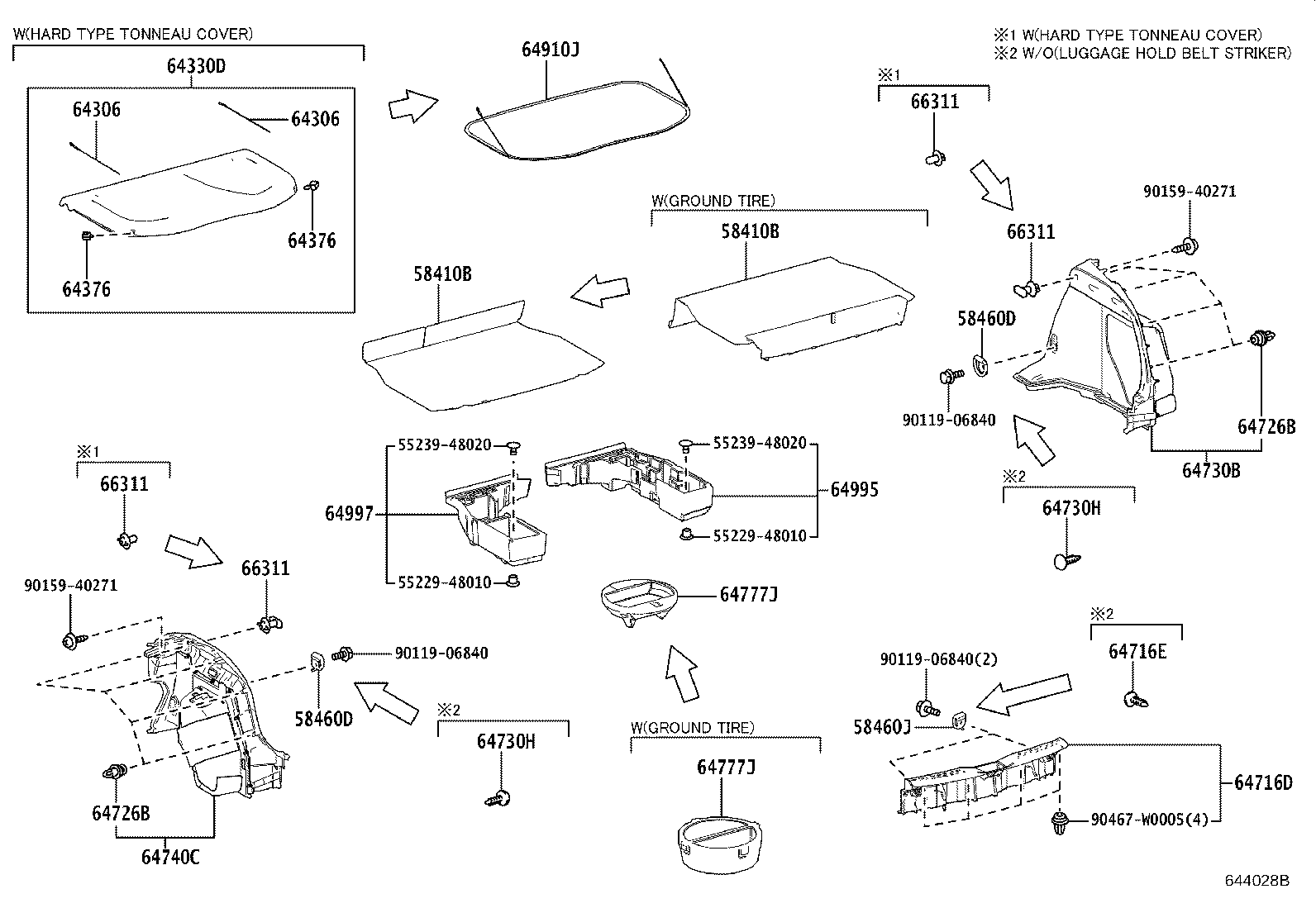

Toyota C-hr (tup) NGX10 DECK BOARD & DECK TRIM COVER

Part #	Description	Period	Qty
58410B - BOARD ASSY, DECK
58410-F4020C1	NGX10,50 SPARE TIRE-TEMPORARY(T145/70D18),BLACK,TRIM2#	10/2016 - 09/2019	1
58410-F4030C1	NGX10,50 BLACK,TRIM2#	10/2016 - 09/2019	1
58410B - BOARD ASSY, DECK
58410-F4020C1	NGX10,50 SPARE TIRE-TEMPORARY(T145/70D18),BLACK,TRIM2#	10/2016 - 09/2019	1
58410-F4030C1	NGX10,50 BLACK,TRIM2#	10/2016 - 09/2019	1
58460D - STRIKER ASSY, LUGGAGE HOLD BELT
58460-33020	NGX10,50 SPARE TIRE-TEMPORARY(T145/70D18)	10/2016 - 09/2019	2
58460D - STRIKER ASSY, LUGGAGE HOLD BELT
58460-33020	NGX10,50 SPARE TIRE-TEMPORARY(T145/70D18)	10/2016 - 09/2019	2
58460J - STRIKER ASSY, LUGGAGE HOLD BELT
58460-33020	NGX10,50 SPARE TIRE-TEMPORARY(T145/70D18)	10/2016 - 09/2019	2
64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
64306-F4010	NGX10,50 PACKAGE TRAY TRIM OR TONNEAU COVER-WITH(PACKAGE TRAY TRIM)	10/2016 - 09/2019	2
64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
64306-F4010	NGX10,50 PACKAGE TRAY TRIM OR TONNEAU COVER-WITH(PACKAGE TRAY TRIM)	10/2016 - 09/2019	2
64330D - PANEL ASSY, PACKAGE TRAY TRIM
64330-F4010C2	NGX10,50 PACKAGE TRAY TRIM OR TONNEAU COVER-WITH(PACKAGE TRAY TRIM),BLACK,TRIM2#	05/2018 - 09/2019	1
64330-F4010C1	NGX10,50 PACKAGE TRAY TRIM OR TONNEAU COVER-WITH(PACKAGE TRAY TRIM),EU BLACK,TRIM2#	10/2016 - 05/2018	1
64376 - SPACER, PACKAGE TRAY TRIM, NO.2
64376-12020	NGX10,50 PACKAGE TRAY TRIM OR TONNEAU COVER-WITH(PACKAGE TRAY TRIM)	10/2016 - 09/2019	2
64376 - SPACER, PACKAGE TRAY TRIM, NO.2
64376-12020	NGX10,50 PACKAGE TRAY TRIM OR TONNEAU COVER-WITH(PACKAGE TRAY TRIM)	10/2016 - 09/2019	2
64716D - COVER, DECK TRIM, REAR
64716-F4010C1	NGX10,50 BLACK,TRIM2#	05/2018 - 09/2019	1
64716-F4010C0	NGX10,50 EU BLACK,TRIM2#	10/2016 - 05/2018	1
64716E - CLIP(FOR DECK TRIM REAR COVER)
90467-W0006C4	NGX10,50 BLACK,TRIM2#	05/2018 - 09/2019	2
90467-W0006C2	NGX10,50 EU BLACK,TRIM2#	10/2016 - 05/2018	2
64726B - CLIP, DECK REAR TRIM
90467-W0005	NGX10,50	10/2016 - 09/2019	8
64726B - CLIP, DECK REAR TRIM
90467-W0005	NGX10,50	10/2016 - 09/2019	8
64730B - PANEL ASSY, DECK TRIM SIDE, RH
64730-F4030C1	NGX10,50 EU BLACK,TRIM2#	10/2016 - 05/2018	1
64730-F4030C2	NGX10,50 BLACK,TRIM2#	05/2018 - 09/2019	1
64730H - CLIP(FOR DECK TRIM SIDE PANEL)
90467-W0006C4	NGX10,50 BLACK,TRIM2#	05/2018 - 09/2019	2
90467-W0006C2	NGX10,50 EU BLACK,TRIM2#	10/2016 - 05/2018	2
64730H - CLIP(FOR DECK TRIM SIDE PANEL)
90467-W0006C4	NGX10,50 BLACK,TRIM2#	05/2018 - 09/2019	2
90467-W0006C2	NGX10,50 EU BLACK,TRIM2#	10/2016 - 05/2018	2
64740C - PANEL ASSY, DECK TRIM SIDE, LH
64740-F4020C1	NGX10,50 EU BLACK,TRIM2#	10/2016 - 05/2018	1
64740-F4020C2	NGX10,50 BLACK,TRIM2#	05/2018 - 09/2019	1
64777J - CUSHION, SPARE WHEEL
64777-F4030	NGX10,50 SPARE TIRE-TEMPORARY(T145/70D18)	10/2016 - 09/2019	1
64777-F4040	NGX10,50	10/2016 - 09/2019	1
64777J - CUSHION, SPARE WHEEL
64777-F4030	NGX10,50 SPARE TIRE-TEMPORARY(T145/70D18)	10/2016 - 09/2019	1
64777-F4040	NGX10,50	10/2016 - 09/2019	1
64910J - COVER ASSY, TONNEAU
64910-F4010	NGX10,50	10/2016 - 09/2019	1
64995 - BOX, DECK FLOOR, RH
64995-F4010	NGX10,50 SPARE TIRE-TEMPORARY(T145/70D18)	10/2016 - 09/2019	1
64995-F4020	NGX10,50	10/2016 - 09/2019	1
64997 - BOX, DECK FLOOR, LH
64997-F4010	NGX10,50 SPARE TIRE-TEMPORARY(T145/70D18)	10/2016 - 09/2019	1
64997-F4020	NGX10,50	10/2016 - 09/2019	1
66311 - HOOK, ROPE
66311-F4020C1	NGX10,50 PACKAGE TRAY TRIM OR TONNEAU COVER-WITH(PACKAGE TRAY TRIM),BLACK,TRIM2#	05/2018 - 09/2019	2
66311-F4010C0	NGX10,50 EU BLACK,TRIM2#	10/2016 - 05/2018	2
66311-F4020C0	NGX10,50 PACKAGE TRAY TRIM OR TONNEAU COVER-WITH(PACKAGE TRAY TRIM),EU BLACK,TRIM2#	10/2016 - 05/2018	2
66311-F4010C1	NGX10,50 BLACK,TRIM2#	05/2018 - 09/2019	2
66311 - HOOK, ROPE
66311-F4020C1	NGX10,50 PACKAGE TRAY TRIM OR TONNEAU COVER-WITH(PACKAGE TRAY TRIM),BLACK,TRIM2#	05/2018 - 09/2019	2
66311-F4010C0	NGX10,50 EU BLACK,TRIM2#	10/2016 - 05/2018	2
66311-F4020C0	NGX10,50 PACKAGE TRAY TRIM OR TONNEAU COVER-WITH(PACKAGE TRAY TRIM),EU BLACK,TRIM2#	10/2016 - 05/2018	2
66311-F4010C1	NGX10,50 BLACK,TRIM2#	05/2018 - 09/2019	2
66311 - HOOK, ROPE
66311-F4020C1	NGX10,50 PACKAGE TRAY TRIM OR TONNEAU COVER-WITH(PACKAGE TRAY TRIM),BLACK,TRIM2#	05/2018 - 09/2019	2
66311-F4010C0	NGX10,50 EU BLACK,TRIM2#	10/2016 - 05/2018	2
66311-F4020C0	NGX10,50 PACKAGE TRAY TRIM OR TONNEAU COVER-WITH(PACKAGE TRAY TRIM),EU BLACK,TRIM2#	10/2016 - 05/2018	2
66311-F4010C1	NGX10,50 BLACK,TRIM2#	05/2018 - 09/2019	2
66311 - HOOK, ROPE
66311-F4020C1	NGX10,50 PACKAGE TRAY TRIM OR TONNEAU COVER-WITH(PACKAGE TRAY TRIM),BLACK,TRIM2#	05/2018 - 09/2019	2
66311-F4010C0	NGX10,50 EU BLACK,TRIM2#	10/2016 - 05/2018	2
66311-F4020C0	NGX10,50 PACKAGE TRAY TRIM OR TONNEAU COVER-WITH(PACKAGE TRAY TRIM),EU BLACK,TRIM2#	10/2016 - 05/2018	2
66311-F4010C1	NGX10,50 BLACK,TRIM2#	05/2018 - 09/2019	2
Common parts
55229-48010
55239-48020
90119-06840
90159-40271
90467-W0005

NGX10R-AHFDX (2016)

(1610- )
