NGX10L-AHXNX (2016)
Toyota C-Hr (Tup)
(1610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67836D - COVER, REAR DOOR LOCK CHILD PROTECTION | ||||
| 67836-33030 |
NGX10,50 |
2 | ||
| 69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH | ||||
| 69050-F4030 |
NGX10,50..D,N |
1 | ||
| 69050-F4010 |
NGX10,50..E |
1 | ||
| 69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH | ||||
| 69060-F4010 |
NGX10,50..E |
1 | ||
| 69060-F4030 |
NGX10,50..D,N |
1 | ||
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69205-F4010C1 |
NGX10,50 BLACK,TRIM2# |
1 | ||
| 69205-F4010C0 |
NGX10,50 EU BLACK,TRIM2# |
1 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69206-F4010C0 |
NGX10,50 EU BLACK,TRIM2# |
1 | ||
| 69206-F4010C1 |
NGX10,50 BLACK,TRIM2# |
1 | ||
| 69219A - SEAL, REAR DOOR OUTSIDE HANDLE | ||||
| 69219-10020 |
NGX10,50 |
4 | ||
| 69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69227-F4010 |
NGX10,50 BLACK |
1 | ||
| 69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69228-F4010 |
NGX10,50 BLACK |
1 | ||
| 69229A - CAP, DOOR OUTSIDE HANDLE, NO.3 | ||||
| 69229-10010 |
NGX10,50 |
4 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69230-F4010A1 |
NGX10,50 WHITE PEARL CS.,070 ,2NA |
1 | ||
| 69230-F4010A0 |
NGX10,50 SUPER WHITE 2,040 |
1 | ||
| 69230-F4010G0 |
NGX10,50 RADIANT GREEN ME.,2NJ ,6W9 |
1 | ||
| 69230-F4010C0 |
NGX10,50 BLACK MC.,209 ,2ND |
1 | ||
| 69230-F4010B0 |
NGX10,50 SILVER ME.,1F7 |
1 | ||
| 69230-F4010B1 |
NGX10,50 GRAY ME.,1G3 ,2NB |
1 | ||
| 69230-F4011A0 |
NGX10,50 SUPER WHITE 2,040 |
1 | ||
| 69230-F4010J1 |
NGX10,50..E CYAN METALLIC,2RU ,2RV ,8W9 |
1 | ||
| 69230-F4010E0 |
NGX10,50 DK. BROWN M.M.,2NC ,4U3 |
1 | ||
| 69230-F4011A1 |
NGX10,50..D,N WHITE PEARL CS.,070 |
1 | ||
| 69230-F4010D0 |
NGX10,50 RED MC.,2NE ,2NF ,3T3 |
1 | ||
| 69230-F4010J1 |
NGX10,50..D,N CYAN METALLIC,8W9 |
1 | ||
| 69230-F4011B0 |
NGX10,50 SILVER ME.,1F7 |
1 | ||
| 69230-F4011A1 |
NGX10,50..E WHITE PEARL CS.,070 ,2NA |
1 | ||
| 69230-F4011B1 |
NGX10,50..E GRAY ME.,1G3 ,2NB |
1 | ||
| 69230-F4011J0 |
NGX10,50..D,N NEBULA BLUE ME.,8X2 |
1 | ||
| 69230-F4011C0 |
NGX10,50..E BLACK MC.,209 ,2ND |
1 | ||
| 69230-F4011B1 |
NGX10,50..D,N GRAY ME.,1G3 |
1 | ||
| 69230-F4011J1 |
NGX10,50..D,N CYAN METALLIC,8W9 |
1 | ||
| 69230-F4011B2 |
NGX10,50..D,N METAL STREAM ME,1K0 |
1 | ||
| 69230-F4010B2 |
NGX10,50 METAL STREAM ME,1K0 ,2NK |
1 | ||
| 69230-F4011B2 |
NGX10,50..E METAL STREAM ME,1K0 ,2NK |
1 | ||
| 69230-F4011E1 |
NGX10,50..D,N PHANTOM BROWN ME.,4W9 |
1 | ||
| 69230-F4011C0 |
NGX10,50..D,N BLACK MC.,209 |
1 | ||
| 69230-F4010J0 |
NGX10,50 NEBULA BLUE ME.,2NG ,2NH ,8X2 |
1 | ||
| 69230-F4011J1 |
NGX10,50..E CYAN METALLIC,2RU ,2RV ,8W9 |
1 | ||
| 69230-F4011D0 |
NGX10,50..E RED MC.,2NE ,2NF ,3T3 |
1 | ||
| 69230-F4011D0 |
NGX10,50..D,N RED MC.,3T3 |
1 | ||
| 69230-F4011F0 |
NGX10,50..E YELLOW M.M.,2TM |
1 | ||
| 69230-F4011E1 |
NGX10,50..E PHANTOM BROWN ME.,2TN ,4W9 |
1 | ||
| 69230-F4011J0 |
NGX10,50..E NEBULA BLUE ME.,2NG ,2NH ,8X2 |
1 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69240-F4010A1 |
NGX10,50 WHITE PEARL CS.,070 ,2NA |
1 | ||
| 69240-F4010A0 |
NGX10,50 SUPER WHITE 2,040 |
1 | ||
| 69240-F4010B0 |
NGX10,50 SILVER ME.,1F7 |
1 | ||
| 69240-F4010D0 |
NGX10,50 RED MC.,2NE ,2NF ,3T3 |
1 | ||
| 69240-F4010G0 |
NGX10,50 RADIANT GREEN ME.,2NJ ,6W9 |
1 | ||
| 69240-F4010J0 |
NGX10,50 NEBULA BLUE ME.,2NG ,2NH ,8X2 |
1 | ||
| 69240-F4011A1 |
NGX10,50..D,N WHITE PEARL CS.,070 |
1 | ||
| 69240-F4011A1 |
NGX10,50..E WHITE PEARL CS.,070 ,2NA |
1 | ||
| 69240-F4010B1 |
NGX10,50 GRAY ME.,1G3 ,2NB |
1 | ||
| 69240-F4010C0 |
NGX10,50 BLACK MC.,209 ,2ND |
1 | ||
| 69240-F4010B2 |
NGX10,50 METAL STREAM ME,1K0 ,2NK |
1 | ||
| 69240-F4010J1 |
NGX10,50..E CYAN METALLIC,2RU ,2RV ,8W9 |
1 | ||
| 69240-F4011B2 |
NGX10,50..E METAL STREAM ME,1K0 ,2NK |
1 | ||
| 69240-F4011D0 |
NGX10,50..D,N RED MC.,3T3 |
1 | ||
| 69240-F4011C0 |
NGX10,50..D,N BLACK MC.,209 |
1 | ||
| 69240-F4011A0 |
NGX10,50 SUPER WHITE 2,040 |
1 | ||
| 69240-F4011B1 |
NGX10,50..E GRAY ME.,1G3 ,2NB |
1 | ||
| 69240-F4011F0 |
NGX10,50..E YELLOW M.M.,2TM |
1 | ||
| 69240-F4011J0 |
NGX10,50..E NEBULA BLUE ME.,2NG ,2NH ,8X2 |
1 | ||
| 69240-F4011E1 |
NGX10,50..D,N PHANTOM BROWN ME.,4W9 |
1 | ||
| 69240-F4010E0 |
NGX10,50 DK. BROWN M.M.,2NC ,4U3 |
1 | ||
| 69240-F4011B1 |
NGX10,50..D,N GRAY ME.,1G3 |
1 | ||
| 69240-F4011C0 |
NGX10,50..E BLACK MC.,209 ,2ND |
1 | ||
| 69240-F4011J1 |
NGX10,50..D,N CYAN METALLIC,8W9 |
1 | ||
| 69240-F4011B2 |
NGX10,50..D,N METAL STREAM ME,1K0 |
1 | ||
| 69240-F4011J1 |
NGX10,50..E CYAN METALLIC,2RU ,2RV ,8W9 |
1 | ||
| 69240-F4011B0 |
NGX10,50 SILVER ME.,1F7 |
1 | ||
| 69240-F4011E1 |
NGX10,50..E PHANTOM BROWN ME.,2TN ,4W9 |
1 | ||
| 69240-F4011D0 |
NGX10,50..E RED MC.,2NE ,2NF ,3T3 |
1 | ||
| 69240-F4011J0 |
NGX10,50..D,N NEBULA BLUE ME.,8X2 |
1 | ||
| 69240-F4010J1 |
NGX10,50..D,N CYAN METALLIC,8W9 |
1 | ||
| 69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-F4010C0 |
NGX10,50 EU BLACK,TRIM2# |
1 | ||
| 69283-F4010C1 |
NGX10,50 BLACK,TRIM2# |
1 | ||
| 69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-F4010C1 |
NGX10,50 BLACK,TRIM2# |
1 | ||
| 69284-F4010C0 |
NGX10,50 EU BLACK,TRIM2# |
1 | ||
| 69318D - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
NGX10,50 |
2 | ||
| 69410B - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-20110 |
NGX10,50 |
2 | ||
| 69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH | ||||
| 69730-F4030 |
NGX10,50 |
1 | ||
| 69730E - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, NO.1 | ||||
| 69730-F4011 |
NGX10,50 |
1 | ||
| 69730-F4010 |
NGX10,50 |
1 | ||
| 69730F - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, NO.2 | ||||
| 69730-F4011 |
NGX10,50 |
1 | ||
| 69730-F4010 |
NGX10,50 |
1 | ||
| 69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH | ||||
| 69730-F4030 |
NGX10,50 |
1 | ||
| 69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH | ||||
| 69770-F4010 |
NGX10,50 |
1 | ||
| 69770-F4011 |
NGX10,50 |
1 | ||
| 69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH | ||||
| 69770-F4011 |
NGX10,50 |
1 | ||
| 69770-F4010 |
NGX10,50 |
1 | ||
| Common parts | ||||
| 90119-W0223 | ||||
| 90148-60083 | ||||
| 90148-W0004 | ||||
| 90469-06005 | ||||
| 93568-55016 | ||||

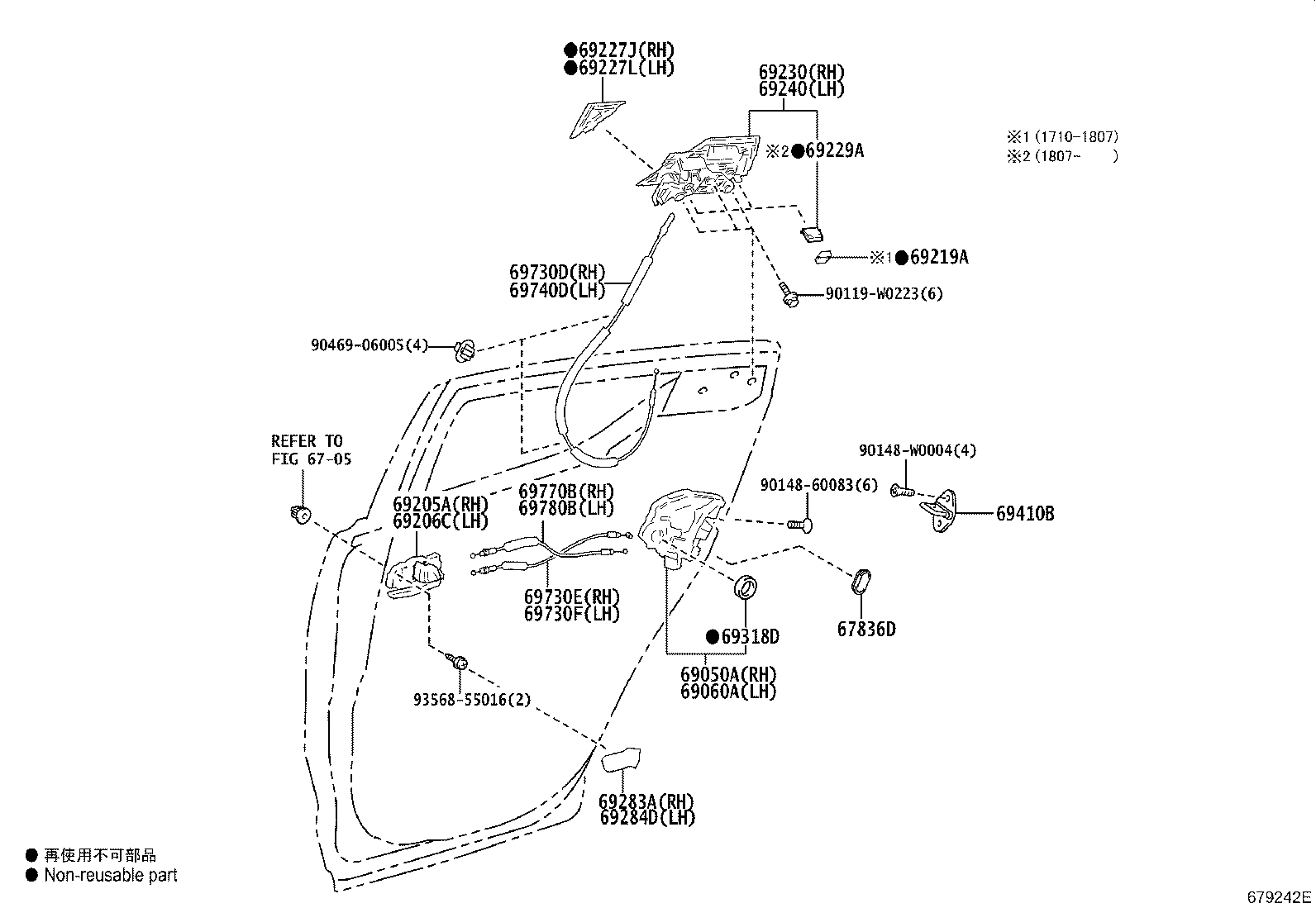

| Linked diagrams | ||||
| 6705 | ||||
