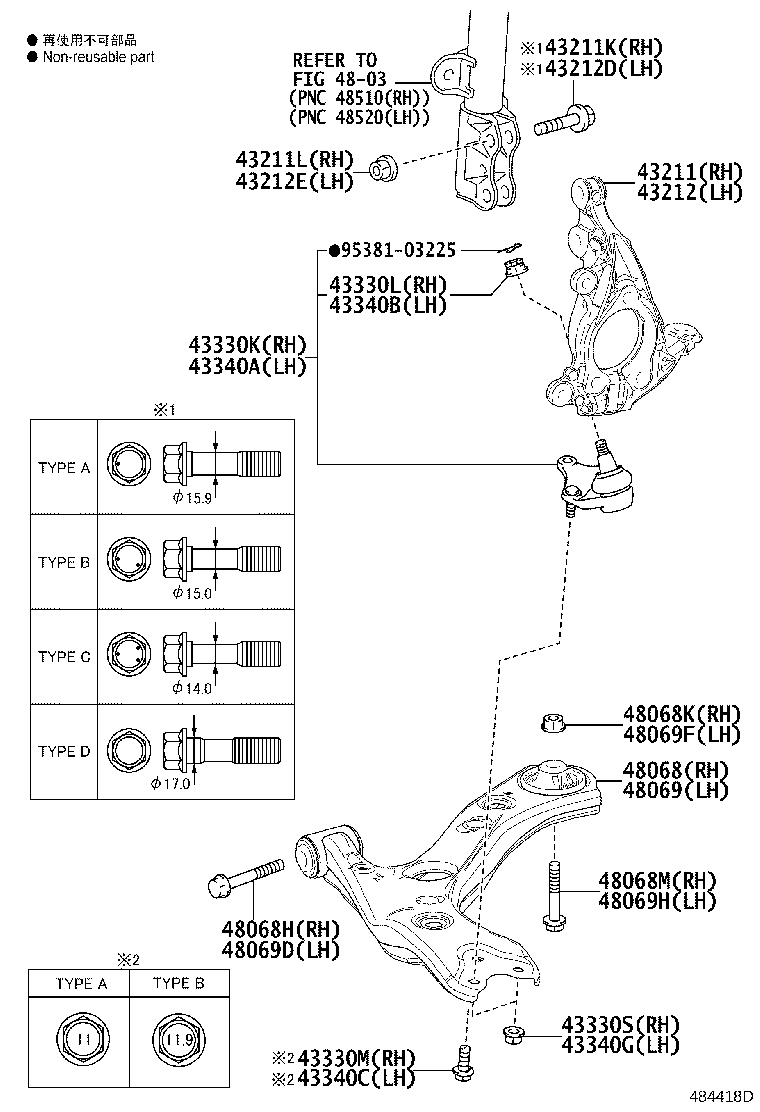

Toyota C-hr (tup) NGX10 FRONT AXLE ARM & STEERING KNUCKLE

Part #	Description	Period	Qty
43211 - KNUCKLE, STEERING, RH
43211-F4010	NGX10,50	10/2016 - 09/2019	1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-17010	NGX10,50 OD=15,TYPE B:REFER ILLUST.	10/2016 - 09/2019	1
90105-17011	NGX10,50 OD=14,TYPE C:REFER ILLUST.	10/2016 - 09/2019	1
90105-17009	NGX10,50 OD=15.9,TYPE A:REFER ILLUST.	10/2016 - 09/2019	1
90105-W0070	NGX10,50 OD=17,TYPE D:REFER ILLUST.	10/2016 - 09/2019	2
43211L - NUT (FOR STEERING KNUCKLE RH)
90178-17002	NGX10,50	10/2016 - 09/2019	2
43212 - KNUCKLE, STEERING, LH
43212-F4010	NGX10,50	10/2016 - 09/2019	1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-17010	NGX10,50 OD=15,TYPE B:REFER ILLUST.	10/2016 - 09/2019	1
90105-17011	NGX10,50 OD=14,TYPE C:REFER ILLUST.	10/2016 - 09/2019	1
90105-17009	NGX10,50 OD=15.9,TYPE A:REFER ILLUST.	10/2016 - 09/2019	1
90105-W0070	NGX10,50 OD=17,TYPE D:REFER ILLUST.	10/2016 - 09/2019	2
43212E - NUT (FOR STEERING KNUCKLE LH)
90178-17002	NGX10,50	10/2016 - 09/2019	2
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-09631	NGX10,50	10/2016 - 09/2019	1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-14003	NGX10,50	10/2016 - 09/2019	1
43330M - BOLT (FOR FRONT LOWER BALL JOINT RH)
90105-12346	NGX10,50 (J)	10/2016 - 09/2019	1
90105-W0077	NGX10,50 (L)	10/2016 - 09/2019	1
43330S - NUT (FOR FRONT LOWER BALL JOINT RH)
90178-12019	NGX10,50	10/2016 - 09/2019	2
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43330-09631	NGX10,50	10/2016 - 09/2019	1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-14003	NGX10,50	10/2016 - 09/2019	1
43340C - BOLT (FOR FRONT LOWER BALL JOINT LH)
90105-12346	NGX10,50 (J)	10/2016 - 09/2019	1
90105-W0077	NGX10,50 (L)	10/2016 - 09/2019	1
43340G - NUT (FOR FRONT LOWER BALL JOINT LH)
90178-12019	NGX10,50	10/2016 - 09/2019	2
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-10130	NGX10,50	10/2016 - 09/2019	1
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90105-16091	NGX10,50	10/2016 - 09/2019	1
48068K - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90178-W0045	NGX10,50 (L)	10/2016 - 09/2019	1
90179-14068	NGX10,50 (J)	10/2016 - 09/2019	1
48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90119-W0279	NGX10,50	10/2016 - 09/2019	1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-10110	NGX10,50	10/2016 - 09/2019	1
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90105-16091	NGX10,50	10/2016 - 09/2019	1
48069F - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90178-W0045	NGX10,50 (L)	10/2016 - 09/2019	1
90179-14068	NGX10,50 (J)	10/2016 - 09/2019	1
48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90119-W0279	NGX10,50	10/2016 - 09/2019	1
Common parts
95381-03225
Linked diagrams
4803

NGX10L-AHXNX (2016)

(1610- )
