NGX10L-AHFDX (2016)
Toyota C-Hr (Tup)
ILLUST NO. 1 OF11(1610- )NGX10,50..LHD

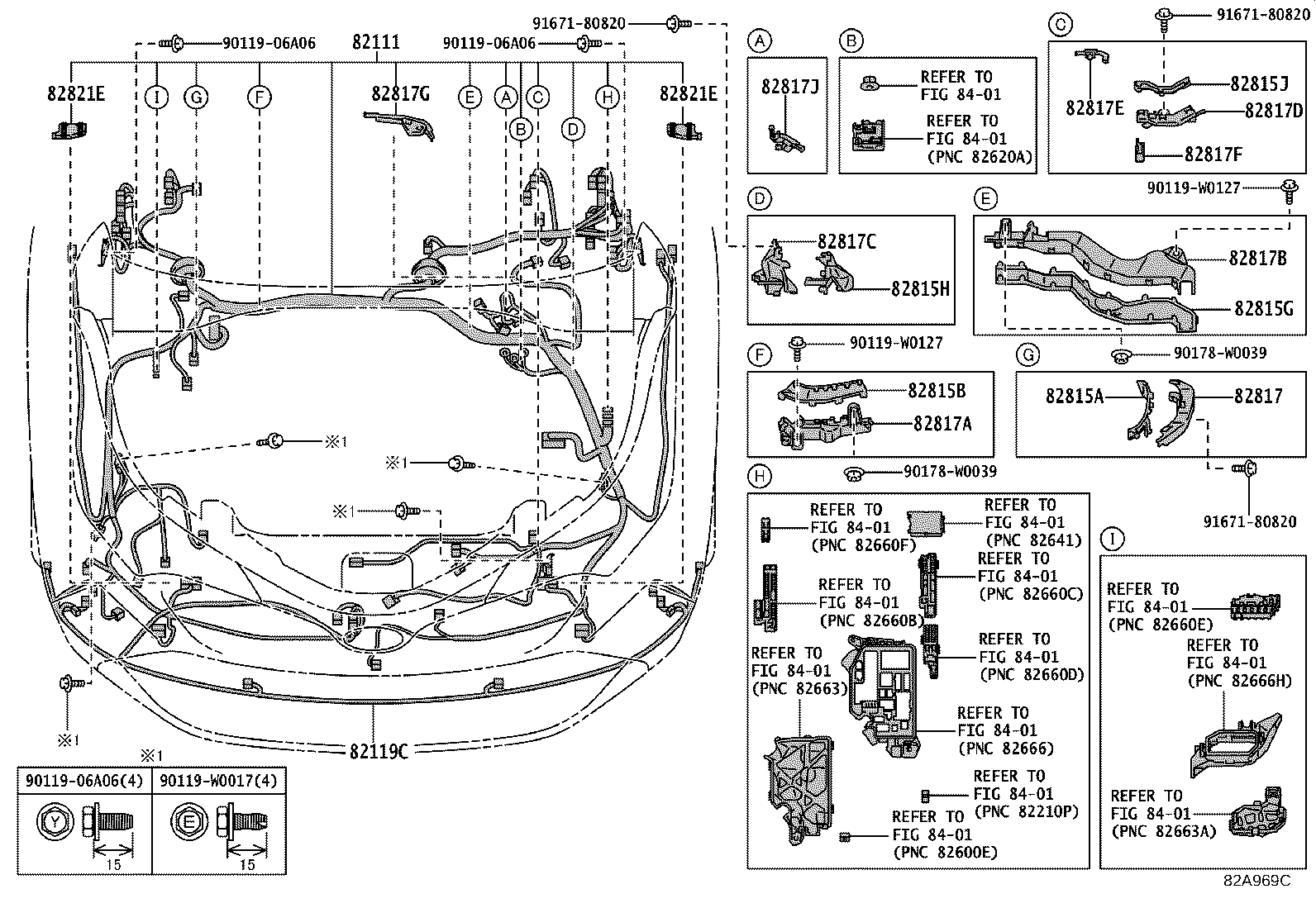

ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-F4K60 |
NGX10..LHD..6F |
1 | ||
| 82111-F4K70 |
NGX10..LHD..6F..E HEADLAMP-LED |
1 | ||
| 82111-F4W60 |
NGX10..LHD..6F |
1 | ||
| 82111-F4W70 |
NGX10..LHD..6F..E REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP) |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-F4200 |
NGX10,50..LHD |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-F4210 |
NGX10,50..LHD |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-F4220 |
NGX10,50..LHD |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-F4230 |
NGX10,50..LHD |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-F4280 |
NGX10,50 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-F4230 |
NGX10,50..LHD |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-F4240 |
NGX10,50..LHD |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-F4250 |
NGX10,50..LHD |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-F4260 |
NGX10,50..LHD |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-F4310 |
NGX10,50 |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-F4320 |
NGX10,50 |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-F4470 |
NGX10,50 |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-F4520 |
NGX10,50..LHD |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-F4480 |
NGX10,50..LHD |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-50780 |
NGX10,50..E HEADLAMP-LED |
2 | ||
| 82821-50780 |
NGX10,50..E REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP) |
2 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-50780 |
NGX10,50..E HEADLAMP-LED |
2 | ||
| 82821-50780 |
NGX10,50..E REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP) |
2 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-W0017 | ||||
| 90119-W0127 | ||||
| 90178-W0039 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF11(1610- )NGX10,50
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16364A - WIRE, COOLING FAN | ||||
| 16364-0Y010 |
8NRFTS..NGX10,50 |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-F4010 |
NGX10..6F |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-12170 |
NGX10,50 |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-12610 |
NGX10,50 |
1 | ||
| 82128A - WIRE, ENGINE, NO.8 | ||||
| 82128-12010 |
NGX10,50 |
1 | ||
| 82219 - WIRE, THERMO SENSOR | ||||
| 82219-12130 |
NGX10,50 |
1 | ||
| 82286A - WIRE, EARTH, NO.2 | ||||
| 82286-F4010 |
NGX10,50 |
1 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-02700 |
NGX10,50 |
1 | ||
| 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-02710 |
NGX10,50 |
1 | ||
| 82815N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82815-02720 |
NGX10,50 |
1 | ||
| 82815P - COVER, WIRING HARNESS PROTECTOR, NO.12 | ||||
| 82815-F4010 |
NGX10,50 |
1 | ||
| 82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13 | ||||
| 82815-F4100 |
NGX10,50 |
1 | ||
| 82815R - COVER, WIRING HARNESS PROTECTOR, NO.14 | ||||
| 82815-F4110 |
NGX10,50 |
1 | ||
| 82815S - COVER, WIRING HARNESS PROTECTOR, NO.15 | ||||
| 82815-F4120 |
NGX10,50 |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-02L30 |
NGX10,50 |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-02L40 |
NGX10,50 |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-02L50 |
NGX10,50 |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-02L60 |
NGX10,50 |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-F4010 |
NGX10,50 |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-F4110 |
NGX10,50 |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-F4120 |
NGX10,50 |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-F4130 |
NGX10,50 |
1 | ||
| 82818 - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-F4140 |
NGX10,50 |
1 | ||
| 82818B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-F4500 |
NGX10,50 |
1 | ||
| 82818C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-F4540 |
NGX10..6F |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
NGX10,50 |
1 | ||
| Common parts | ||||
| 90119-06923 | ||||
| 90119-06A06 | ||||
| 90119-W0017 | ||||
| 90119-W0037 | ||||
| 90119-W0066 | ||||
| 90119-W0103 | ||||
| 90119-W0199 | ||||
| 90178-W0019 | ||||
| 90178-W0024 | ||||
| 91671-80816 | ||||
| 91673-80625 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 8 OF11(1610- )

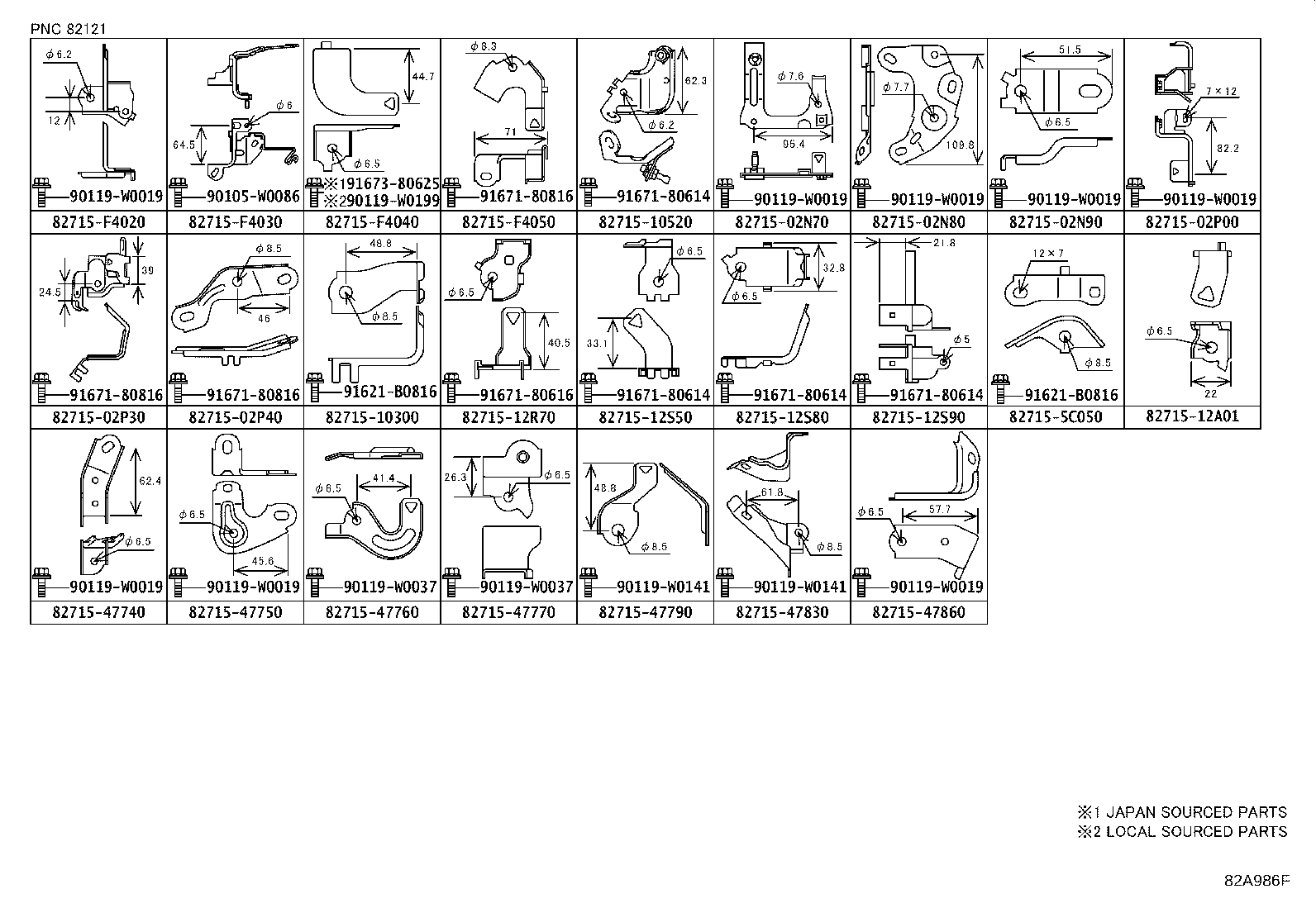

CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-02N70 | ||||
| 82715-02N80 | ||||
| 82715-02N90 | ||||
| 82715-02P00 | ||||
| 82715-02P30 | ||||
| 82715-02P40 | ||||
| 82715-10300 | ||||
| 82715-10520 | ||||
| 82715-12A01 | ||||
| 82715-12R70 | ||||
| 82715-12S50 | ||||
| 82715-12S80 | ||||
| 82715-12S90 | ||||
| 82715-47740 | ||||
| 82715-47750 | ||||
| 82715-47760 | ||||
| 82715-47770 | ||||
| 82715-47790 | ||||
| 82715-47830 | ||||
| 82715-47860 | ||||
| 82715-5C050 | ||||
| 82715-F4020 | ||||
| 82715-F4030 | ||||
| 82715-F4040 | ||||
| 82715-F4050 | ||||
| 90105-W0086 | ||||
| 90119-W0019 | ||||
| 90119-W0037 | ||||
| 90119-W0141 | ||||
| 90119-W0199 | ||||
| 91621-B0816 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91673-80625 | ||||

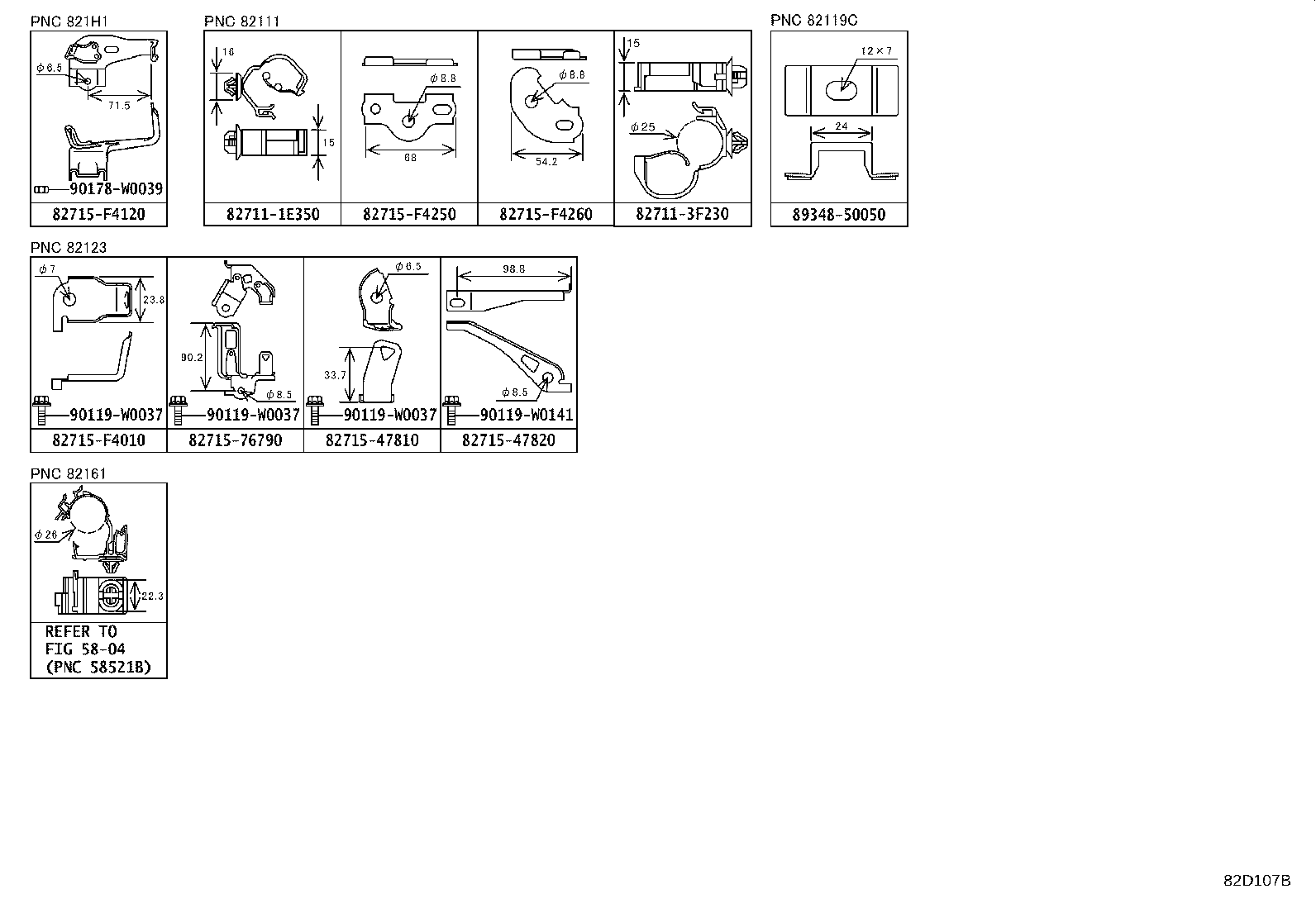

ILLUST NO. 3 OF11(1610- )LHD

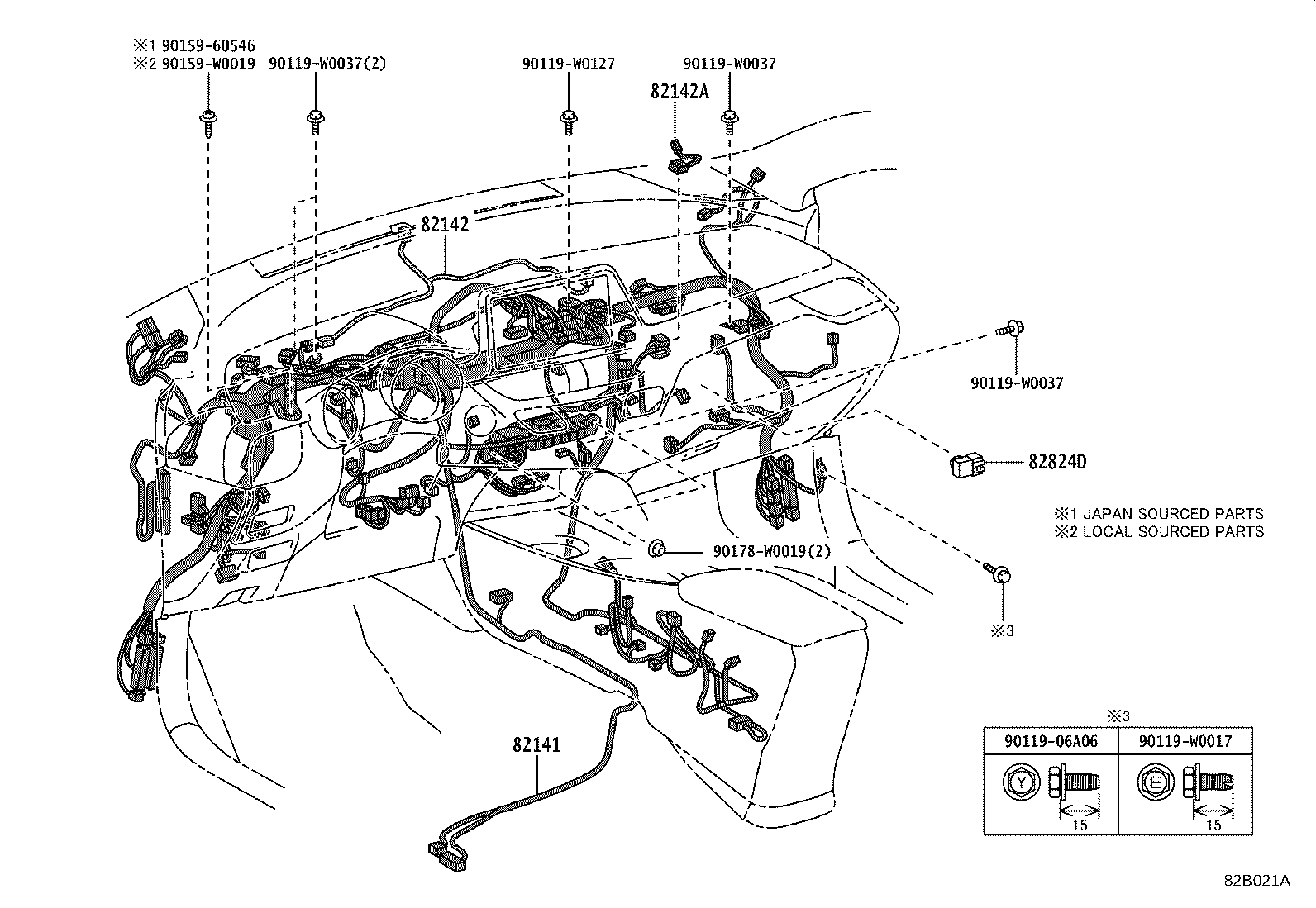

INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-F4870 |
NGX10..LHD..D |
1 | ||
| 82141-F4890 |
NGX10..LHD..D EGYPT SPEC |
1 | ||
| 82141-F4890 |
NGX10..LHD..D MIDDLE & NEAR EAST SPEC |
1 | ||
| 82141-F4890 |
NGX10..LHD..D JORDAN SPEC |
1 | ||
| 82141-F4890 |
NGX10..LHD..D ALGERIA SPEC |
1 | ||
| 82141-F4A00 |
NGX10..LHD..6F..N EGYPT SPEC |
1 | ||
| 82141-F4A00 |
NGX10..LHD..6F..N MIDDLE & NEAR EAST SPEC |
1 | ||
| 82141-F4890 |
NGX10..LHD..D MOROCCO SPEC |
1 | ||
| 82141-F4A00 |
NGX10..LHD..6F..N ALGERIA SPEC |
1 | ||
| 82141-F4A00 |
NGX10..LHD..6F..N MOROCCO SPEC |
1 | ||
| 82141-F4A30 |
NGX10..LHD..6F..E ALGERIA SPEC |
1 | ||
| 82141-F4A30 |
NGX10..LHD..6F..E TAIWAN SPEC |
1 | ||
| 82141-F4A00 |
NGX10..LHD..6F..N JORDAN SPEC |
1 | ||
| 82141-F4A40 |
NGX10..LHD..6F..E |
1 | ||
| 82141-F4A20 |
NGX10..LHD..6F..N |
1 | ||
| 82141-F4A30 |
NGX10..LHD..6F..E EGYPT SPEC |
1 | ||
| 82141-F4A30 |
NGX10..LHD..6F..E MIDDLE & NEAR EAST SPEC |
1 | ||
| 82141-F4A30 |
NGX10..LHD..6F..E MOROCCO SPEC |
1 | ||
| 82141-F4A30 |
NGX10..LHD..6F..E JORDAN SPEC |
1 | ||
| 82141-F4R80 |
NGX10..LHD..6F..N TAIWAN SPEC |
1 | ||
| 82145-F4140 |
NGX10..LHD..D |
1 | ||
| 82145-F4150 |
NGX10..LHD..D MOROCCO SPEC |
1 | ||
| 82145-F4160 |
NGX10..LHD..6F..N EGYPT SPEC |
1 | ||
| 82145-F4160 |
NGX10..LHD..6F..N MIDDLE & NEAR EAST SPEC |
1 | ||
| 82145-F4150 |
NGX10..LHD..D ALGERIA SPEC |
1 | ||
| 82145-F4170 |
NGX10..LHD..6F..N |
1 | ||
| 82141-F4R70 |
NGX10..LHD..D TAIWAN SPEC |
1 | ||
| 82145-F4160 |
NGX10..LHD..6F..N MOROCCO SPEC |
1 | ||
| 82145-F4150 |
NGX10..LHD..D MIDDLE & NEAR EAST SPEC |
1 | ||
| 82145-F4150 |
NGX10..LHD..D EGYPT SPEC |
1 | ||
| 82145-F4190 |
NGX10..LHD..6F..E |
1 | ||
| 82145-F4180 |
NGX10..LHD..6F..E ALGERIA SPEC |
1 | ||
| 82145-F4180 |
NGX10..LHD..6F..E MIDDLE & NEAR EAST SPEC |
1 | ||
| 82145-F4180 |
NGX10..LHD..6F..E MOROCCO SPEC |
1 | ||
| 82145-F4160 |
NGX10..LHD..6F..N ALGERIA SPEC |
1 | ||
| 82145-F4180 |
NGX10..LHD..6F..E EGYPT SPEC |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-F4030 |
NGX10,50..LHD..(D,N) |
1 | ||
| 82142-F4010 |
NGX10,50..LHD..N ANTI-BACTERIA & MINUS ION SUPPLY-WITH |
1 | ||
| 82142-F4120 |
NGX10,50..LHD..(D,N) |
1 | ||
| 82142-F4110 |
NGX10,50..LHD..N ANTI-BACTERIA & MINUS ION SUPPLY-WITH |
1 | ||
| 82142-F4110 |
NGX10,50..LHD..E |
1 | ||
| 82142-F4010 |
NGX10,50..LHD..E |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-02350 |
NGX10,50 |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-W0017 | ||||
| 90119-W0037 | ||||
| 90119-W0127 | ||||
| 90159-60546 | ||||
| 90159-W0019 | ||||
| 90178-W0019 | ||||
ILLUST NO. 4 OF11(1610- )

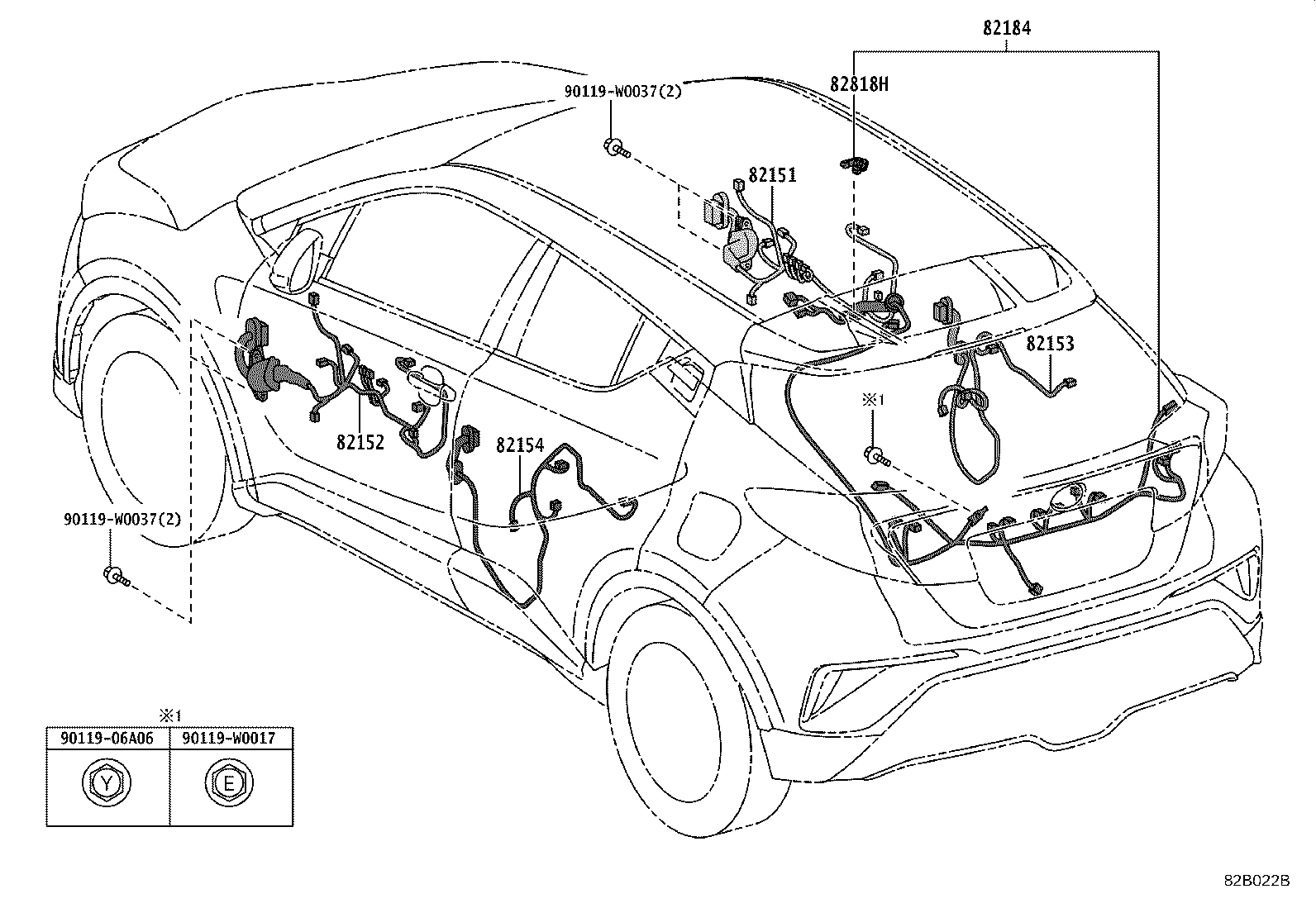

DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-F4010 |
NGX10..LHD..(D,N) MOROCCO SPEC |
1 | ||
| 82151-F4010 |
NGX10..LHD..(D,N) ALGERIA SPEC |
1 | ||
| 82151-F4010 |
NGX10..LHD..(D,N) EGYPT SPEC |
1 | ||
| 82151-F4010 |
NGX10..LHD..(D,N) MIDDLE & NEAR EAST SPEC |
1 | ||
| 82151-F4380 |
NGX10,50..LHD..E |
1 | ||
| 82151-F4030 |
NGX10,50..LHD..(D,N) |
1 | ||
| 82151-F4010 |
NGX10..LHD..(D,N) JORDAN SPEC |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-F4010 |
NGX10..LHD..(D,N) JORDAN SPEC |
1 | ||
| 82152-F4010 |
NGX10..LHD..(D,N) MOROCCO SPEC |
1 | ||
| 82152-F4010 |
NGX10..LHD..(D,N) MIDDLE & NEAR EAST SPEC |
1 | ||
| 82152-F4030 |
NGX10,50..LHD..(D,N) |
1 | ||
| 82152-F4010 |
NGX10..LHD..(D,N) EGYPT SPEC |
1 | ||
| 82152-F4010 |
NGX10..LHD..(D,N) ALGERIA SPEC |
1 | ||
| 82152-F4300 |
NGX10,50..LHD..E |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-F4020 |
NGX10,50 |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-F4020 |
NGX10,50 |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-F4030 |
NGX10,50 |
1 | ||
| 82184-F4050 |
NGX10,50..E REAR COMBINATION LAMP-LED TYPE(BACK UP LAMP & TURN LAMP) |
1 | ||
| 82184-F4050 |
NGX10,50..E HEADLAMP-LED |
1 | ||
| 82818H - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-F4440 |
NGX10,50 |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-W0017 | ||||
| 90119-W0037 | ||||
ILLUST NO. 5 OF11(1610- )

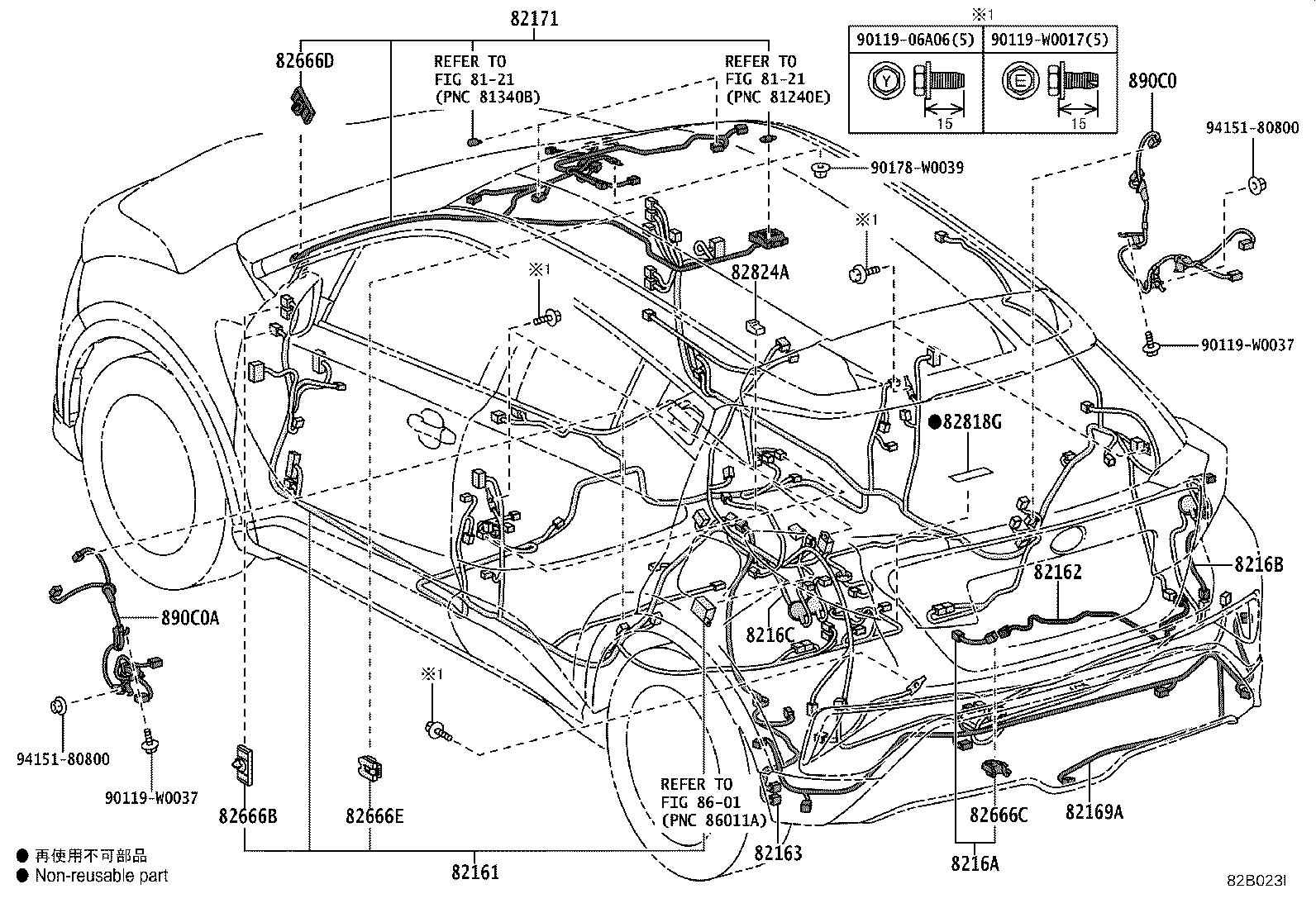

FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-F4L90 |
NGX10..LHD..E MOROCCO SPEC |
1 | ||
| 82161-F4610 |
NGX10..LHD..(D,N) MOROCCO SPEC |
1 | ||
| 82161-F4610 |
NGX10..LHD..(D,N) JORDAN SPEC |
1 | ||
| 82161-F4610 |
NGX10..LHD..(D,N) EGYPT SPEC |
1 | ||
| 82161-F4610 |
NGX10..LHD..(D,N) MIDDLE & NEAR EAST SPEC |
1 | ||
| 82161-F4640 |
NGX10..LHD..E MOROCCO SPEC |
1 | ||
| 82161-F4640 |
NGX10..LHD..E ALGERIA SPEC |
1 | ||
| 82161-F4620 |
NGX10..LHD..(D,N) |
1 | ||
| 82161-F4630 |
NGX10..LHD..(D,N) TAIWAN SPEC |
1 | ||
| 82161-F4640 |
NGX10..LHD..E MIDDLE & NEAR EAST SPEC |
1 | ||
| 82161-F4610 |
NGX10..LHD..(D,N) ALGERIA SPEC |
1 | ||
| 82161-F4640 |
NGX10..LHD..E EGYPT SPEC |
1 | ||
| 82161-F4650 |
NGX10..LHD..E |
1 | ||
| 82161-F4640 |
NGX10..LHD..E JORDAN SPEC |
1 | ||
| 82161-F4660 |
NGX10..LHD..E TAIWAN SPEC |
1 | ||
| 82161-F4L60 |
NGX10..LHD..(D,N) MIDDLE & NEAR EAST SPEC |
1 | ||
| 82161-F4L60 |
NGX10..LHD..(D,N) ALGERIA SPEC |
1 | ||
| 82161-F4L60 |
NGX10..LHD..(D,N) MOROCCO SPEC |
1 | ||
| 82161-F4M00 |
NGX10..LHD..E |
1 | ||
| 82161-F4L90 |
NGX10..LHD..E EGYPT SPEC |
1 | ||
| 82161-F4L60 |
NGX10..LHD..(D,N) EGYPT SPEC |
1 | ||
| 82161-F4L70 |
NGX10..LHD..(D,N) |
1 | ||
| 82161-F4L90 |
NGX10..LHD..E MIDDLE & NEAR EAST SPEC |
1 | ||
| 82161-F4L90 |
NGX10..LHD..E ALGERIA SPEC |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-F4010 |
NGX10..E HEADLAMP-LED |
1 | ||
| 82169A - WIRE, FLOOR, NO.6 | ||||
| 82169-F4010 |
NGX10,50..LHD MOROCCO SPEC |
1 | ||
| 82169-F4010 |
NGX10,50..LHD EGYPT SPEC |
1 | ||
| 82169-F4010 |
NGX50..LHD..N;NGX10..LHD..6F TAIWAN SPEC |
1 | ||
| 82169-F4010 |
NGX10,50..LHD ALGERIA SPEC |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-F4010 |
NGX10..D |
1 | ||
| 82171-F4430 |
NGX10,50..LHD..N |
1 | ||
| 82171-F4440 |
NGX10,50..LHD..N SUN VISOR-WITH(*DRP MIRROR & LAMP) |
1 | ||
| 82171-F4440 |
NGX10,50..LHD..E |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-60220 |
NGX10,50 |
2 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-60220 |
NGX10,50 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-26080 |
NGX10,50 |
1 | ||
| 82824A - CONNECTOR, WIRING HARNESS | ||||
| 90980-12373 |
NGX10..D,N;NGX50..RHD..N |
2 | ||
| 890C0 - WIRE ASSY, PARKING BRAKE, NO.1 | ||||
| 890C0-F4090 |
NGX10,50 |
1 | ||
| 890C0-F4010 |
NGX10,50 |
1 | ||
| 890C0A - WIRE ASSY, PARKING BRAKE, NO.2 | ||||
| 890C0-F4020 |
NGX10,50 |
1 | ||
| 890C0-F4100 |
NGX10,50 |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-W0017 | ||||
| 90119-W0037 | ||||
| 90178-W0039 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8601 | ||||
ILLUST NO. 7 OF11(1610- )

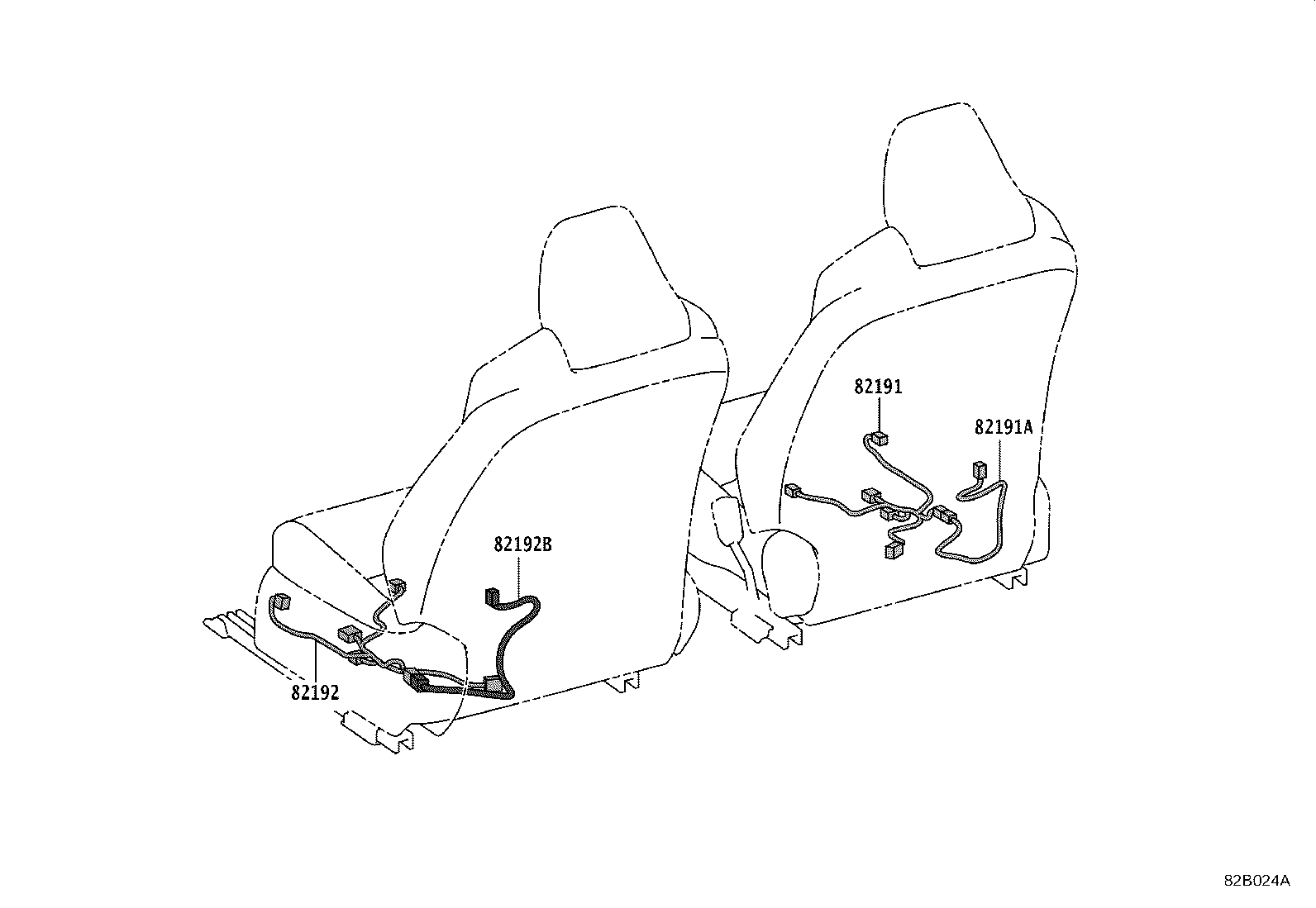

SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-F4011 |
NGX50..LHD;NGX10..LHD..E |
1 | ||
| 82191-F4010 |
NGX50..LHD;NGX10..LHD..E |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-F4021 |
NGX50..LHD;NGX10..LHD..E |
1 | ||
| 82192-F4020 |
NGX50..LHD;NGX10..LHD..E |
1 | ||
| 82192B - WIRE, FRONT SEAT, LH NO.2 | ||||
| 8219B-F4010 |
NGX50..LHD;NGX10..LHD..E |
1 | ||
ILLUST NO.10 OF11(1610- )
CONNECTOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10619 | ||||
| 90980-10795 | ||||
| 90980-10897 | ||||
| 90980-10942 | ||||
| 90980-11011 | ||||
| 90980-11019 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11194 | ||||
| 90980-11246 | ||||
| 90980-11660 | ||||
| 90980-12B01 | ||||
| 90980-12B90 | ||||
| 90980-12F30 | ||||
| 90980-WA052 | ||||

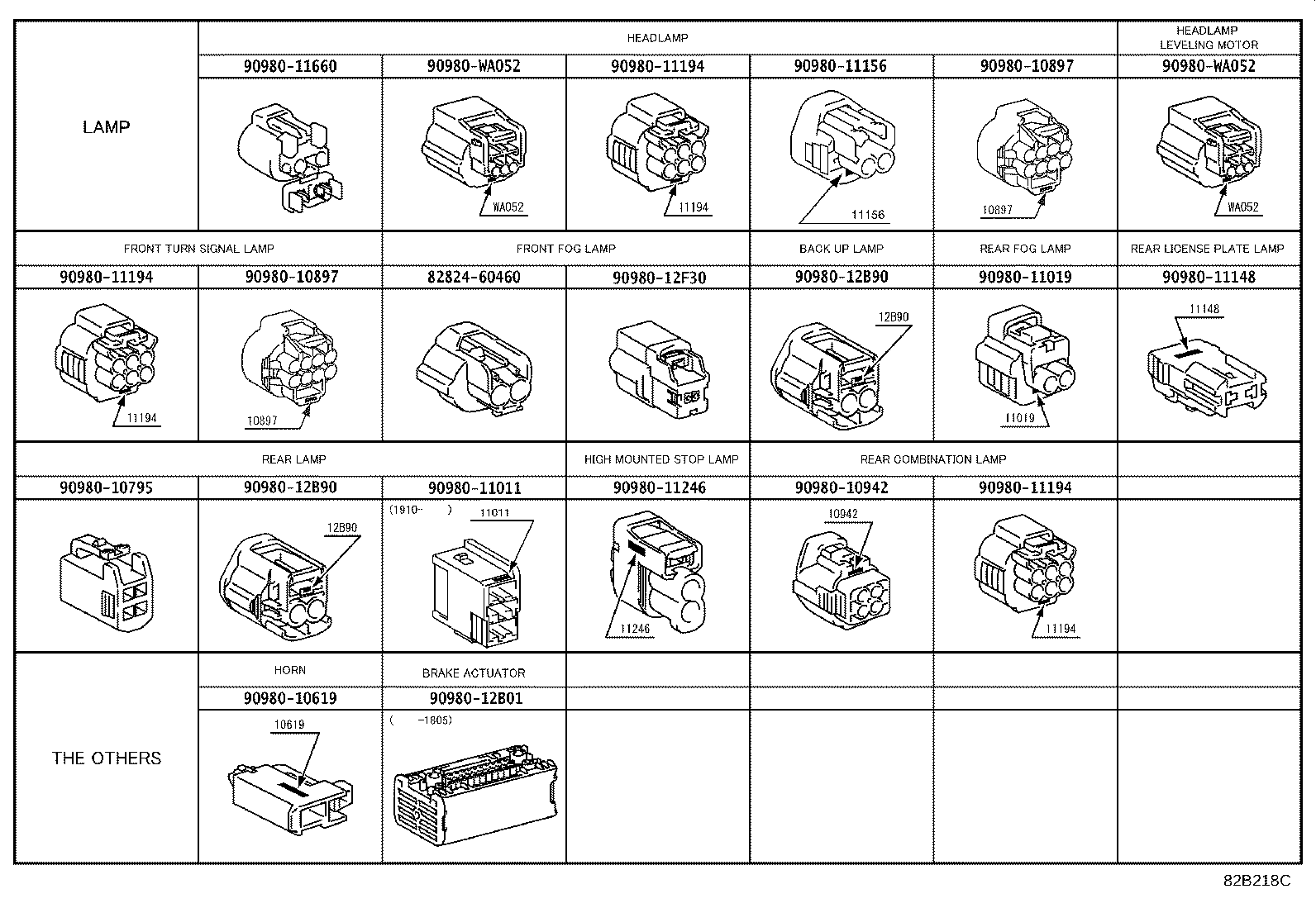

ILLUST NO.11 OF11(1610- )
CONNECTOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-78020 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11864 | ||||
| 90980-12211 | ||||
| 90980-12380 | ||||
| 90980-12416 | ||||
| 90980-12490 | ||||
| 90980-12520 | ||||
| 90980-12551 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12699 | ||||
| 90980-12790 | ||||
| 90980-12C39 | ||||

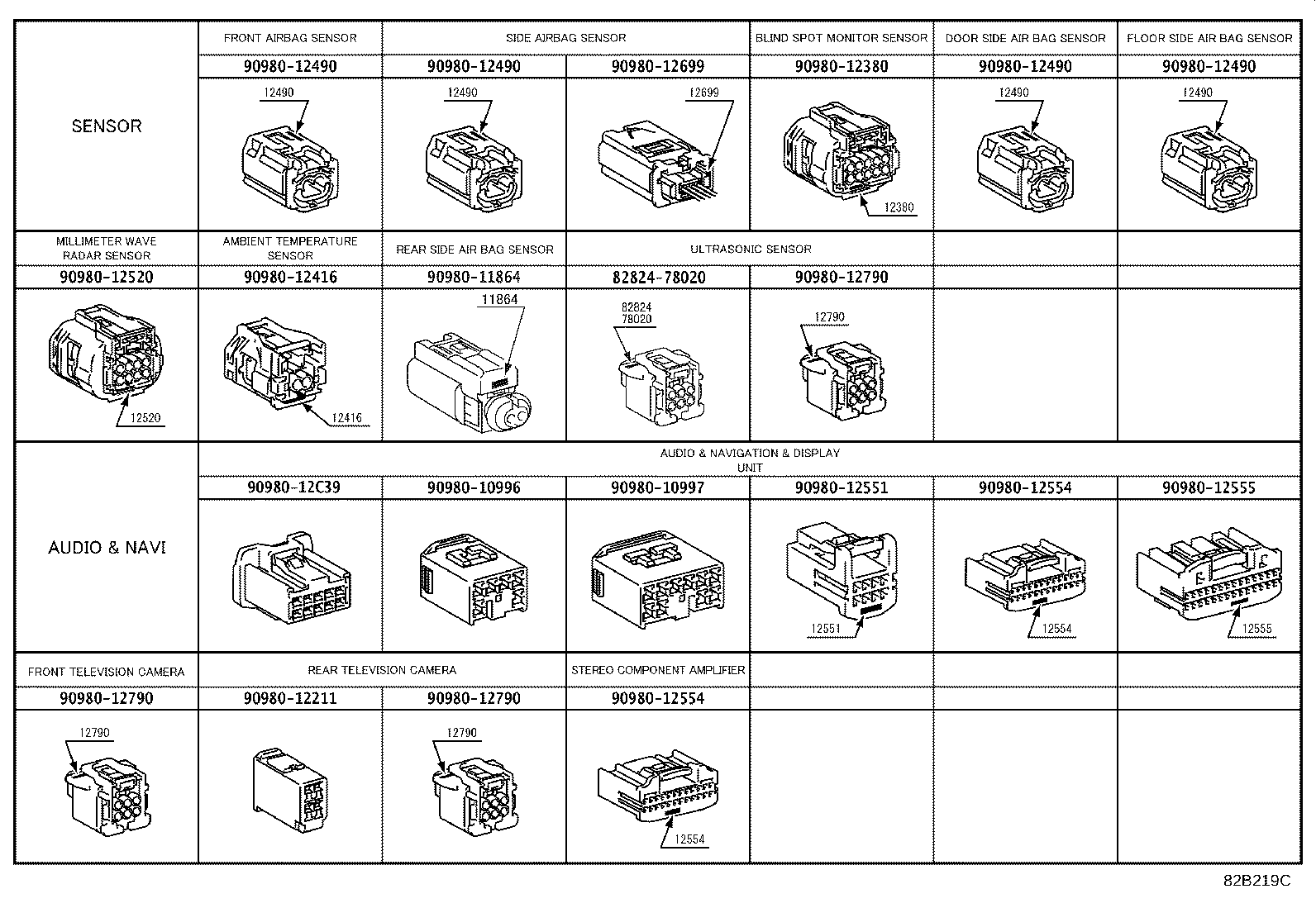

ILLUST NO. 9 OF11(1610- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E350 | ||||
| 82711-3F230 | ||||
| 82715-47810 | ||||
| 82715-47820 | ||||
| 82715-76790 | ||||
| 82715-F4010 | ||||
| 82715-F4120 | ||||
| 82715-F4250 | ||||
| 82715-F4260 | ||||
| 89348-50050 | ||||
| 90119-W0037 | ||||
| 90119-W0141 | ||||
| 90178-W0039 | ||||
| Linked diagrams | ||||
| 5804 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
