Toyota C-hr (tup) NGX10 REAR DISC BRAKE CALIPER & DUST COVER

Manufacturers Home
Toyota
GR
C-HR (TUP)
NGX10L-AHFDX (2016)
4707 - REAR DISC BRAKE CALIPER & DUST COVER

NGX10L-AHFDX (2016)

Toyota C-Hr (Tup)

Production Oct 2016 - Sep 2019

Engine 8NRFTS

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(1610-1805)

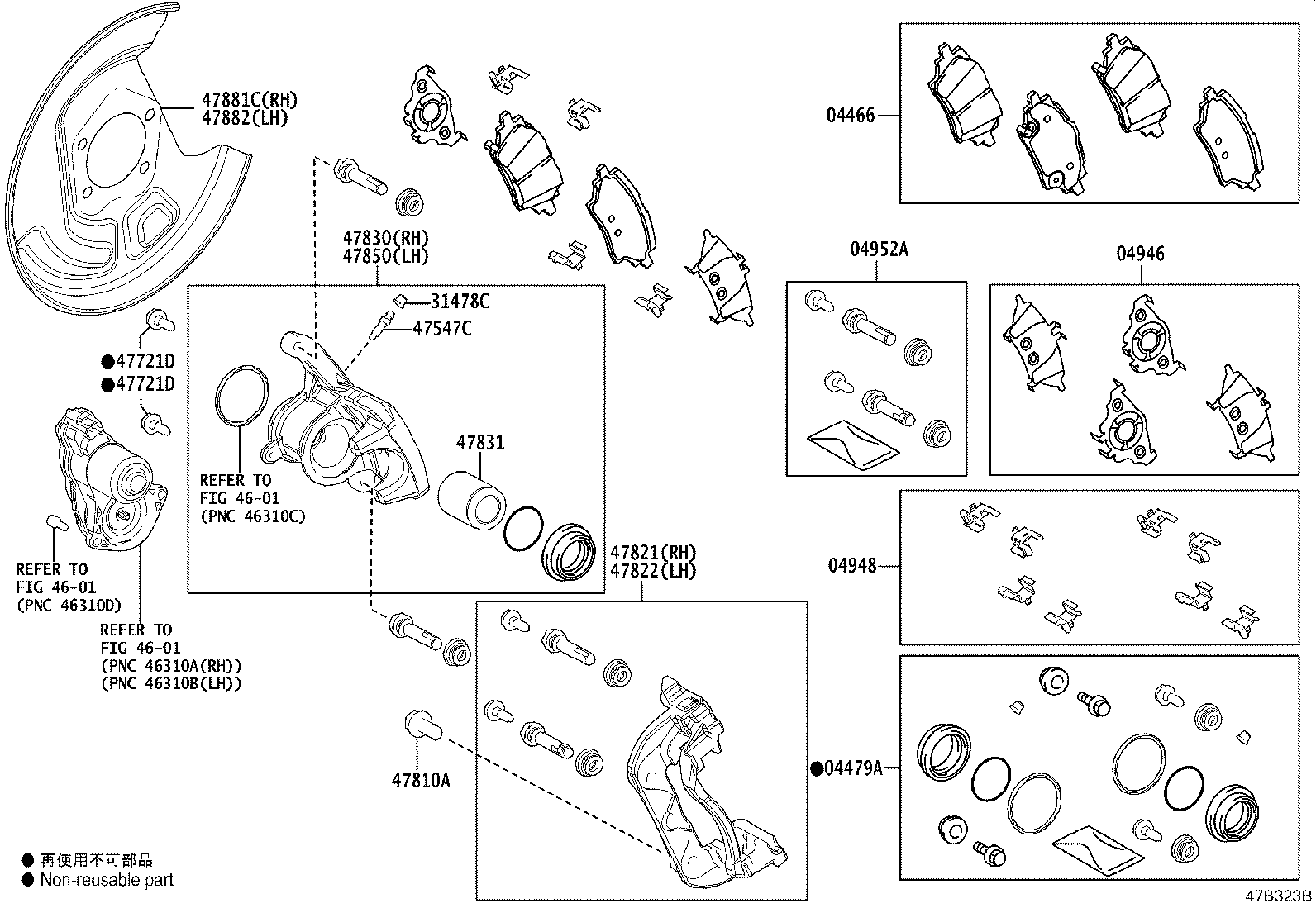

Click highlighted areas on diagram

Part #	Description	Period	Qty
04466 - PAD KIT, DISC BRAKE, REAR
04466-F4010	NGX10,50 MARK NBK D6360	05/2018 - 09/2019	1
04466-10010	NGX10,50 MARK AK NS554	10/2016 - 05/2018	1
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-10091	NGX10,50	05/2017 - 05/2018	1
04479-10090	NGX10,50	10/2016 - 05/2017	1
04479-F4010	NGX10,50	05/2018 - 09/2019	1
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-F4010	NGX10,50	05/2018 - 09/2019	1
04946-48130	NGX10,50	10/2016 - 05/2018	1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-F4010	NGX10,50	05/2018 - 09/2019	1
04948-58010	NGX10,50	10/2016 - 05/2018	1
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-30010	NGX10,50	10/2016 - 05/2018	2
90069-39027	NGX10,50	05/2018 - 09/2019	2
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47547-F4030	NGX10,50	05/2018 - 09/2019	2
47547-20010	NGX10,50	10/2016 - 05/2018	2
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90015-AA603	NGX10,50 *8-1.00PX23-12.5	10/2016 - 05/2018	4
90069-31417	NGX10,50 *8-1.00PX22-10	05/2018 - 09/2019	4
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90015-AA603	NGX10,50 *8-1.00PX23-12.5	10/2016 - 05/2018	4
90069-31417	NGX10,50 *8-1.00PX22-10	05/2018 - 09/2019	4
47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47875-33270	NGX10,50	05/2017 - 05/2018	4
47775-52190	NGX10,50	10/2016 - 05/2017	4
47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47875-33270	NGX10,50	05/2017 - 05/2018	4
47775-52190	NGX10,50	10/2016 - 05/2017	4
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90105-12174	NGX10,50	10/2016 - 09/2019	4
47814 - PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47814-78010	NGX10,50	10/2016 - 05/2018	2
47815 - PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
47815-78010	NGX10,50	10/2016 - 05/2018	2
47821 - MOUNTING, REAR DISC BRAKE CYLINDER, RH
47821-10030	NGX10,50	10/2016 - 05/2018	1
47821-F9010	NGX10,50	05/2018 - 09/2019	1
47822 - MOUNTING, REAR DISC BRAKE CYLINDER, LH
47822-F9010	NGX10,50	05/2018 - 09/2019	1
47822-10030	NGX10,50	10/2016 - 05/2018	1
47830 - CYLINDER ASSY, DISC BRAKE, REAR RH
47830-F4030	NGX10,50	05/2018 - 09/2019	1
47830-10030	NGX10,50	10/2016 - 05/2018	1
47831 - PISTON, REAR DISC BRAKE
47831-F4030	NGX10,50	05/2018 - 09/2019	2
47831-10030	NGX10,50	10/2016 - 05/2018	2
47850 - CYLINDER ASSY, DISC BRAKE, REAR LH
47850-F4030	NGX10,50	05/2018 - 09/2019	1
47850-10030	NGX10,50	10/2016 - 05/2018	1
47879R - BUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
47769-50010	NGX10,50	10/2016 - 05/2018	2
47881C - COVER, DISC BRAKE DUST, REAR RH
47881-F4010	NGX10,50	10/2016 - 05/2018	1
47881-F4030	NGX10,50	05/2018 - 09/2019	1
47882 - COVER, DISC BRAKE DUST, REAR LH
47882-F4010	NGX10,50	10/2016 - 05/2018	1
47882-F4030	NGX10,50	05/2018 - 09/2019	1
Linked diagrams
4601

(1805- )

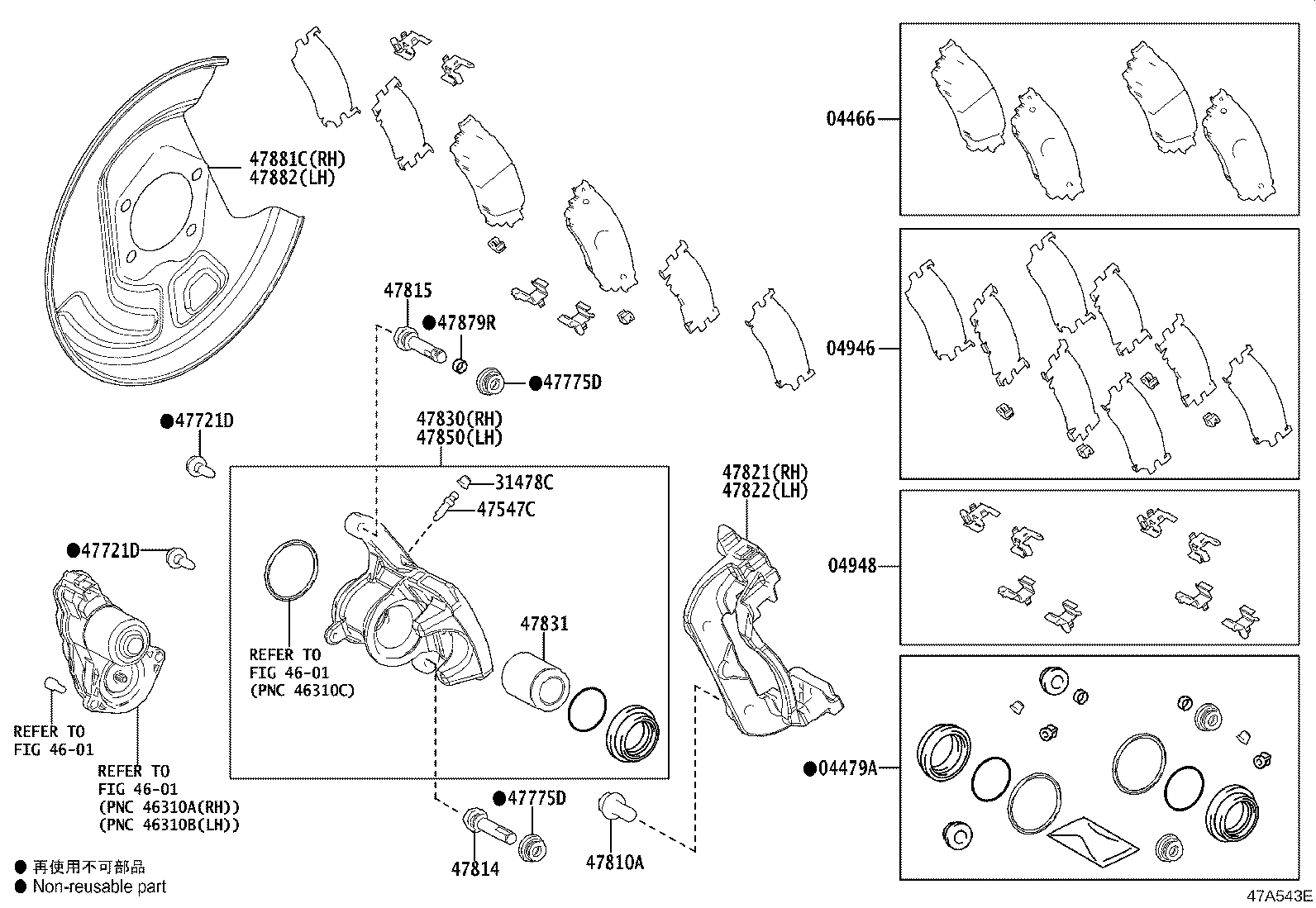

Click highlighted areas on diagram

Part #	Description	Period	Qty
04466 - PAD KIT, DISC BRAKE, REAR
04466-F4010	NGX10,50 MARK NBK D6360	05/2018 - 09/2019	1
04466-10010	NGX10,50 MARK AK NS554	10/2016 - 05/2018	1
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-10091	NGX10,50	05/2017 - 05/2018	1
04479-10090	NGX10,50	10/2016 - 05/2017	1
04479-F4010	NGX10,50	05/2018 - 09/2019	1
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-F4010	NGX10,50	05/2018 - 09/2019	1
04946-48130	NGX10,50	10/2016 - 05/2018	1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-F4010	NGX10,50	05/2018 - 09/2019	1
04948-58010	NGX10,50	10/2016 - 05/2018	1
04952A - PIN KIT, REAR DISC BRAKE CYLINDER SLIDE
04952-F4020	NGX10,50	05/2018 - 09/2019	2
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-30010	NGX10,50	10/2016 - 05/2018	2
90069-39027	NGX10,50	05/2018 - 09/2019	2
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47547-F4030	NGX10,50	05/2018 - 09/2019	2
47547-20010	NGX10,50	10/2016 - 05/2018	2
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90015-AA603	NGX10,50 *8-1.00PX23-12.5	10/2016 - 05/2018	4
90069-31417	NGX10,50 *8-1.00PX22-10	05/2018 - 09/2019	4
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90015-AA603	NGX10,50 *8-1.00PX23-12.5	10/2016 - 05/2018	4
90069-31417	NGX10,50 *8-1.00PX22-10	05/2018 - 09/2019	4
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90105-12174	NGX10,50	10/2016 - 09/2019	4
47821 - MOUNTING, REAR DISC BRAKE CYLINDER, RH
47821-10030	NGX10,50	10/2016 - 05/2018	1
47821-F9010	NGX10,50	05/2018 - 09/2019	1
47822 - MOUNTING, REAR DISC BRAKE CYLINDER, LH
47822-F9010	NGX10,50	05/2018 - 09/2019	1
47822-10030	NGX10,50	10/2016 - 05/2018	1
47830 - CYLINDER ASSY, DISC BRAKE, REAR RH
47830-F4030	NGX10,50	05/2018 - 09/2019	1
47830-10030	NGX10,50	10/2016 - 05/2018	1
47831 - PISTON, REAR DISC BRAKE
47831-F4030	NGX10,50	05/2018 - 09/2019	2
47831-10030	NGX10,50	10/2016 - 05/2018	2
47850 - CYLINDER ASSY, DISC BRAKE, REAR LH
47850-F4030	NGX10,50	05/2018 - 09/2019	1
47850-10030	NGX10,50	10/2016 - 05/2018	1
47881C - COVER, DISC BRAKE DUST, REAR RH
47881-F4010	NGX10,50	10/2016 - 05/2018	1
47881-F4030	NGX10,50	05/2018 - 09/2019	1
47882 - COVER, DISC BRAKE DUST, REAR LH
47882-F4010	NGX10,50	10/2016 - 05/2018	1
47882-F4030	NGX10,50	05/2018 - 09/2019	1
Linked diagrams
4601

NGX10L-AHFDX (2016)

(1610-1805)

(1805- )
