NGX10L-AHFDX (2016)

Toyota C-Hr (Tup)

Production Oct 2016 - Sep 2019
Engine 8NRFTS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1610- )6F

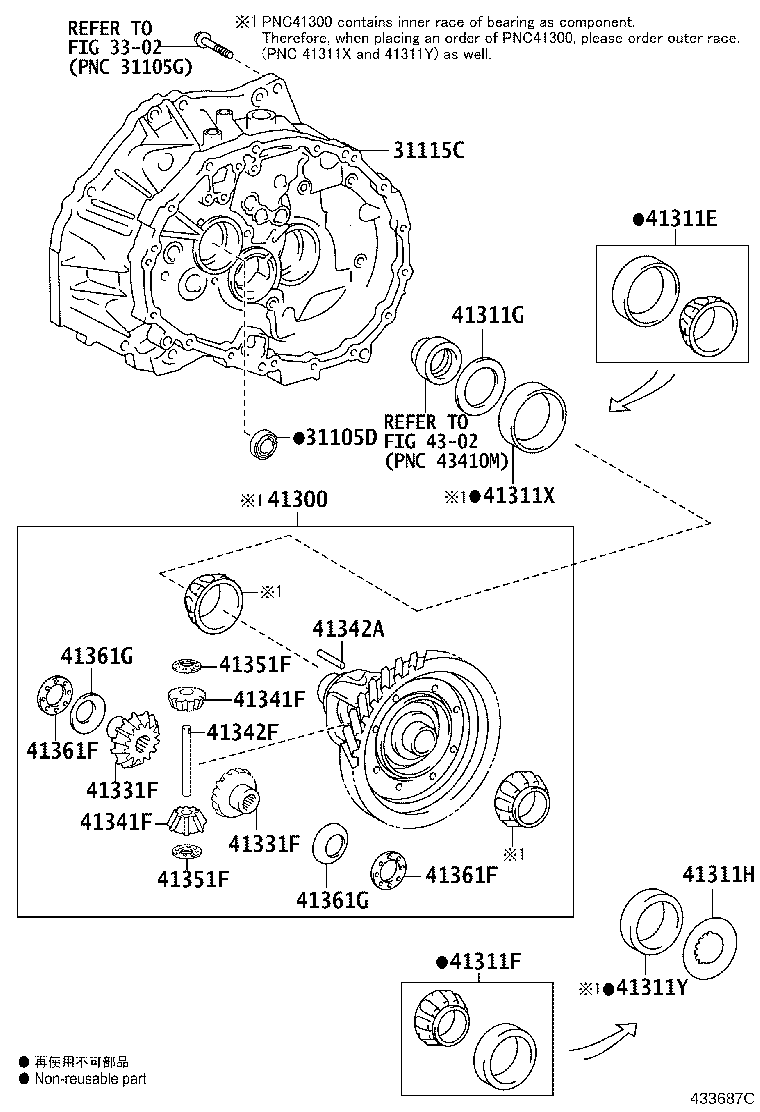

Click highlighted areas on diagram

EC6A

diagram 31105D 31115C 3302 41300 41311E 41311F 41311G 41311H 41311X 41311Y 41331F 41331F 41341F 41341F 41342A 41342F 41351F 41351F 41361F 41361F 41361G 41361G 4302
Part # Description Qty Price
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-25030

NGX10..6F

 1
31115C - CASE, FRONT TRANSAXLE(MTM)
31115-05031

NGX10..6F

 1
41300 - CASE ASSY, FRONT DIFFERENTIAL, W/RING GEAR
41300-02070

NGX10..6F

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90080-36143

NGX10..6F

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-W0013

NGX10..6F

 1
41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
90560-41003

NGX10..6F

T=2.1

 1
41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
90564-44039

NGX10..6F

T=2.100, MARK 10

 1
90564-44048

NGX10..6F

T=2.325, MARK 19

 1
90564-44047

NGX10..6F

T=2.300, MARK 18

 1
90564-44049

NGX10..6F

T=2.350, MARK 20

 1
90564-44054

NGX10..6F

T=2.475, MARK 25

 1
90564-44046

NGX10..6F

T=2.275, MARK 17

 1
90564-44044

NGX10..6F

T=2.225, MARK 15

 1
90564-44040

NGX10..6F

T=2.125, MARK 11

 1
90564-44053

NGX10..6F

T=2.450, MARK 24

 1
90564-44043

NGX10..6F

T=2.200, MARK 14

 1
90564-44052

NGX10..6F

T=2.425, MARK 23

 1
90564-44056

NGX10..6F

T=2.525, MARK 27

 1
90564-44045

NGX10..6F

T=2.250, MARK 16

 1
90564-44060

NGX10..6F

T=2.625, MARK 31

 1
90564-44050

NGX10..6F

T=2.375, MARK 21

 1
90564-44041

NGX10..6F

T=2.150, MARK 12

 1
90564-44058

NGX10..6F

T=2.575, MARK 29

 1
90564-44057

NGX10..6F

T=2.550, MARK 28

 1
90564-44061

NGX10..6F

T=2.650, MARK 32

 1
90564-44067

NGX10..6F

T=2.800, MARK 38

 1
90564-44059

NGX10..6F

T=2.600, MARK 30

 1
90564-44066

NGX10..6F

T=2.775, MARK 37

 1
90564-44042

NGX10..6F

T=2.175, MARK 13

 1
90564-44051

NGX10..6F

T=2.400, MARK 22

 1
90564-44062

NGX10..6F

T=2.675, MARK 33

 1
90564-44064

NGX10..6F

T=2.725, MARK 35

 1
90564-44069

NGX10..6F

T=2.850, MARK 40

 1
90564-44055

NGX10..6F

T=2.500, MARK 26

 1
90564-44065

NGX10..6F

T=2.750, MARK 36

 1
90564-44063

NGX10..6F

T=2.700, MARK 34

 1
90564-44068

NGX10..6F

T=2.825, MARK 39

 1
41311X - OUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE FRON
90080-36144

NGX10..6F

 1
41311Y - OUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE REAR
90366-W0014

NGX10..6F

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-0D070

NGX10..6F

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-0D070

NGX10..6F

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-0D070

NGX10..6F

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-0D070

NGX10..6F

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

NGX10..6F

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-52060

NGX10..6F

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-32010

NGX10..6F

 2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-32010

NGX10..6F

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22150

NGX10..6F

T=1.05,MARK 15

 2
41361-22040

NGX10..6F

T=1.20,MARK 04

 2
41361-48010

NGX10..6F

T=0.90,MARK 19

 2
41361-22030

NGX10..6F

T=1.10,MARK 03

 2
41361-22140

NGX10..6F

T=0.95,MARK 14

 2
41361-22020

NGX10..6F

T=1.00,MARK 02

 2
41361-22160

NGX10..6F

T=1.15,MARK 16

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22150

NGX10..6F

T=1.05,MARK 15

 2
41361-22040

NGX10..6F

T=1.20,MARK 04

 2
41361-48010

NGX10..6F

T=0.90,MARK 19

 2
41361-22030

NGX10..6F

T=1.10,MARK 03

 2
41361-22140

NGX10..6F

T=0.95,MARK 14

 2
41361-22020

NGX10..6F

T=1.00,MARK 02

 2
41361-22160

NGX10..6F

T=1.15,MARK 16

 2
41361G - WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEA
90208-35001

NGX10..6F

 2
41361G - WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEA
90208-35001

NGX10..6F

 2
Linked diagrams
3302
4302
