NGX10L-AHFDX (2016)
Toyota C-Hr (Tup)
Production
Oct 2016
-
Sep 2019
Engine
8NRFTS
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1610- )8NRFTS..NGX10

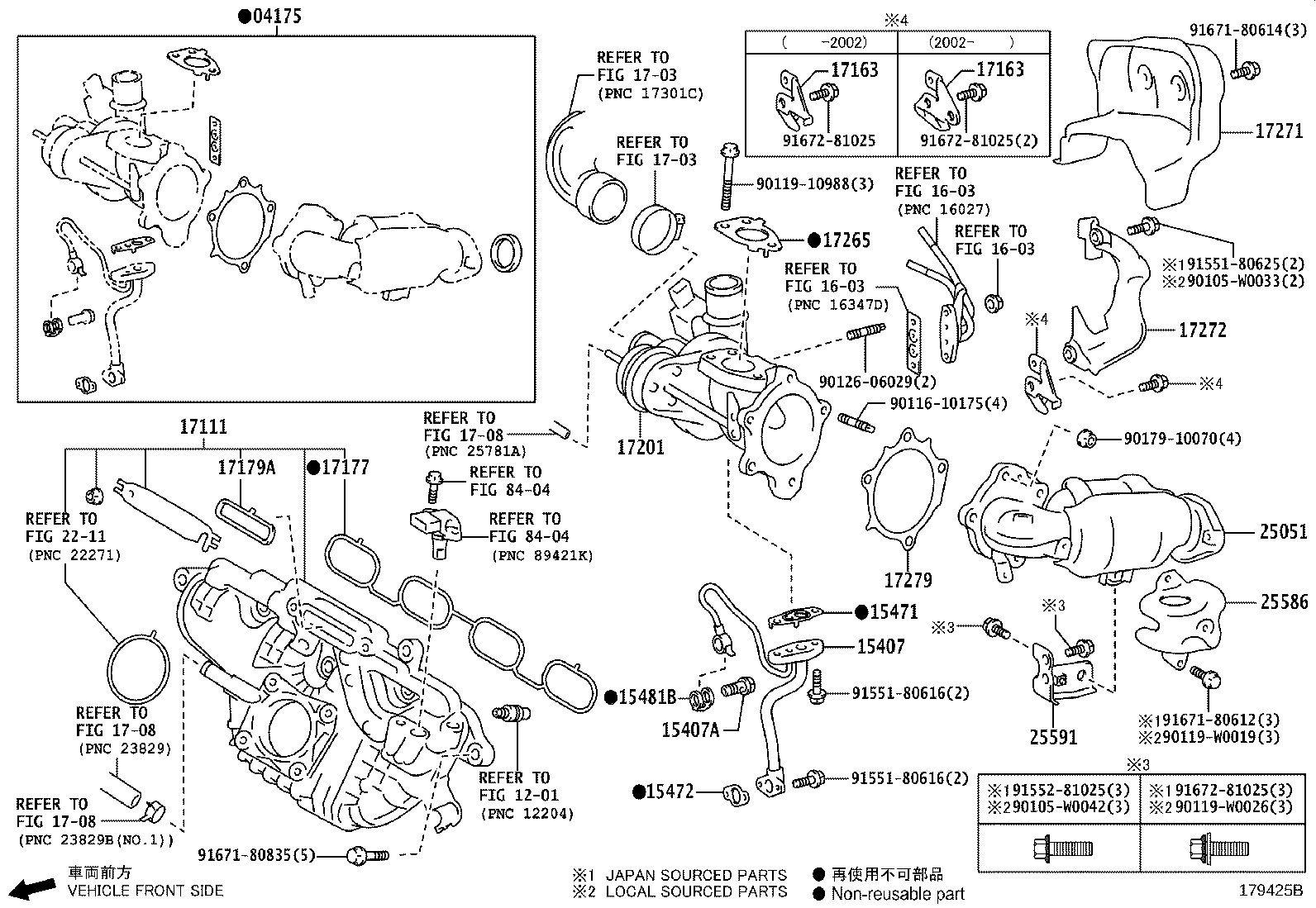

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-47010 |
8NRFTS..NGX10 |
1 | ||
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-47011 |
8NRFTS..NGX10,50 |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| 96341-11200 |
8NRFTS..NGX10,50 |
1 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-47010 |
8NRFTS..NGX10,50 |
1 | ||
| 15472 - GASKET, TURBO OIL OUTLET, NO.1 | ||||
| 15472-47010 |
8NRFTS..NGX10,50 |
1 | ||
| 15481B - GASKET(FOR UNION BOLT NO.1) | ||||
| 90430-12037 |
8NRFTS..NGX10,50 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17120-47100 |
8NRFTS..NGX10,50 |
1 | ||
| 17163 - BRACKET, HEAT INSULATOR, NO.1 | ||||
| 17586-47010 |
8NRFTS..NGX10,50 |
1 | ||
| 17586-47011 |
8NRFTS..NGX10,50 |
1 | ||
| 17163 - BRACKET, HEAT INSULATOR, NO.1 | ||||
| 17586-47010 |
8NRFTS..NGX10,50 |
1 | ||
| 17586-47011 |
8NRFTS..NGX10,50 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-47050 |
8NRFTS..NGX10,50 |
1 | ||
| 17179A - GASKET, INTAKE MANIFOLD, NO.2 | ||||
| 17179-47010 |
8NRFTS..NGX10,50 |
1 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-47011 |
8NRFTS..NGX10 |
1 | ||
| 17265 - GASKET, TURBOCHARGER | ||||
| 17265-47010 |
8NRFTS..NGX10,50 |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-47010 |
8NRFTS..NGX10,50 |
1 | ||
| 17272 - INSULATOR, TURBO, NO.2 | ||||
| 17272-47010 |
8NRFTS..NGX10,50 |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-47010 |
8NRFTS..NGX10 |
1 | ||
| 25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD | ||||
| 25051-47150 |
8NRFTS..NGX10 *114=*413 |
1 | ||
| 25586 - INSULATOR, MANIFOLD CONVERTER, NO.1 | ||||
| 25586-47010 |
8NRFTS..NGX10 |
1 | ||
| 25591 - BRACKET, MANIFOLD SUPPORT | ||||
| 25591-47010 |
8NRFTS..NGX10 |
1 | ||
| Common parts | ||||
| 90105-W0033 | ||||
| 90105-W0042 | ||||
| 90116-10175 | ||||
| 90119-10988 | ||||
| 90119-W0019 | ||||
| 90119-W0026 | ||||
| 90126-06029 | ||||
| 90179-10070 | ||||
| 91551-80616 | ||||
| 91551-80625 | ||||
| 91552-81025 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80835 | ||||
| 91672-81025 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1603 | ||||
| 1703 | ||||
| 1708 | ||||
| 2211 | ||||
| 8404 | ||||
