ZYX10R-CHXGBT (2018)
Toyota C-Hr (Thp)
Production
Feb 2018
-
Sep 9999
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 2(1802- )
Click highlighted areas on diagram

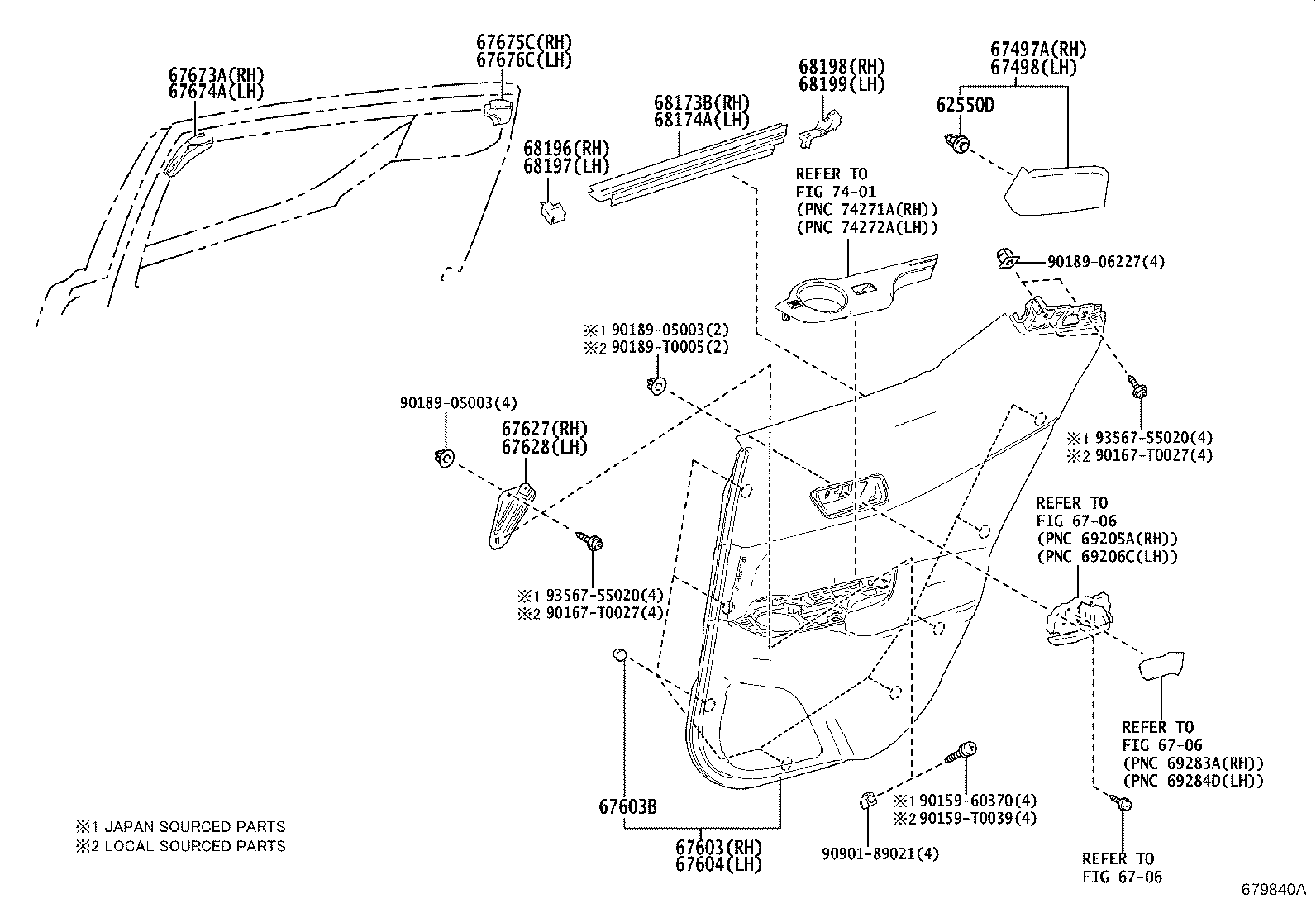

DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62550D - CLIP, REAR WINDOW SIDE GARNISH | ||||
| 90467-09206 |
ZYX10 |
2 | ||
| 67497A - BRACKET, REAR DOOR REAR FRAME, RH | ||||
| 67497-10010C1 |
ZYX10 BLACK,TRIM2# |
1 | ||
| 67498 - BRACKET, REAR DOOR REAR FRAME, LH | ||||
| 67498-10010C1 |
ZYX10 BLACK,TRIM2# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-F4020C0 |
ZYX10 BLACK/LICORICE,TRIM2# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
ZYX10 (J) |
8 | ||
| 90467-T0019 |
ZYX10 (L) |
8 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-F4020C0 |
ZYX10 BLACK/LICORICE,TRIM2# |
1 | ||
| 67627 - BRACKET, REAR DOOR TRIM, RH | ||||
| 67625-10010 |
ZYX10 |
1 | ||
| 67628 - BRACKET, REAR DOOR TRIM, LH | ||||
| 67635-10010 |
ZGX11,ZYX10..TH |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-10010 |
ZYX10 |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-10010 |
ZYX10 |
1 | ||
| 67675C - GARNISH, REAR DOOR FRAME, NO.2 RH | ||||
| 67675-10011 |
ZYX10 |
1 | ||
| 67675-10010 |
ZGX11,ZYX10 |
1 | ||
| 67676C - GARNISH, REAR DOOR FRAME, NO.2 LH | ||||
| 67676-10010 |
ZGX11,ZYX10 |
1 | ||
| 67676-10011 |
ZYX10 |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-F4020 |
ZYX10 |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-F4020 |
ZYX10 |
1 | ||
| 68196 - SEAL, REAR DOOR BELT, RH | ||||
| 68196-10010 |
ZYX10 |
1 | ||
| 68197 - SEAL, REAR DOOR BELT, LH | ||||
| 68197-10010 |
ZYX10 |
1 | ||
| 68198 - SEAL, REAR DOOR BELT, REAR RH | ||||
| 68198-10020 |
ZYX10 |
1 | ||
| 68199 - SEAL, REAR DOOR BELT, REAR LH | ||||
| 68199-10010 |
ZYX10 |
1 | ||
| Common parts | ||||
| 90159-60370 | ||||
| 90159-T0039 | ||||
| 90167-T0027 | ||||
| 90189-05003 | ||||
| 90189-06227 | ||||
| 90189-T0005 | ||||
| 90901-89021 | ||||
| 93567-55020 | ||||
| Linked diagrams | ||||
| 6706 | ||||
| 7401 | ||||
ILLUST NO. 1 OF 2(1802- )
Click highlighted areas on diagram

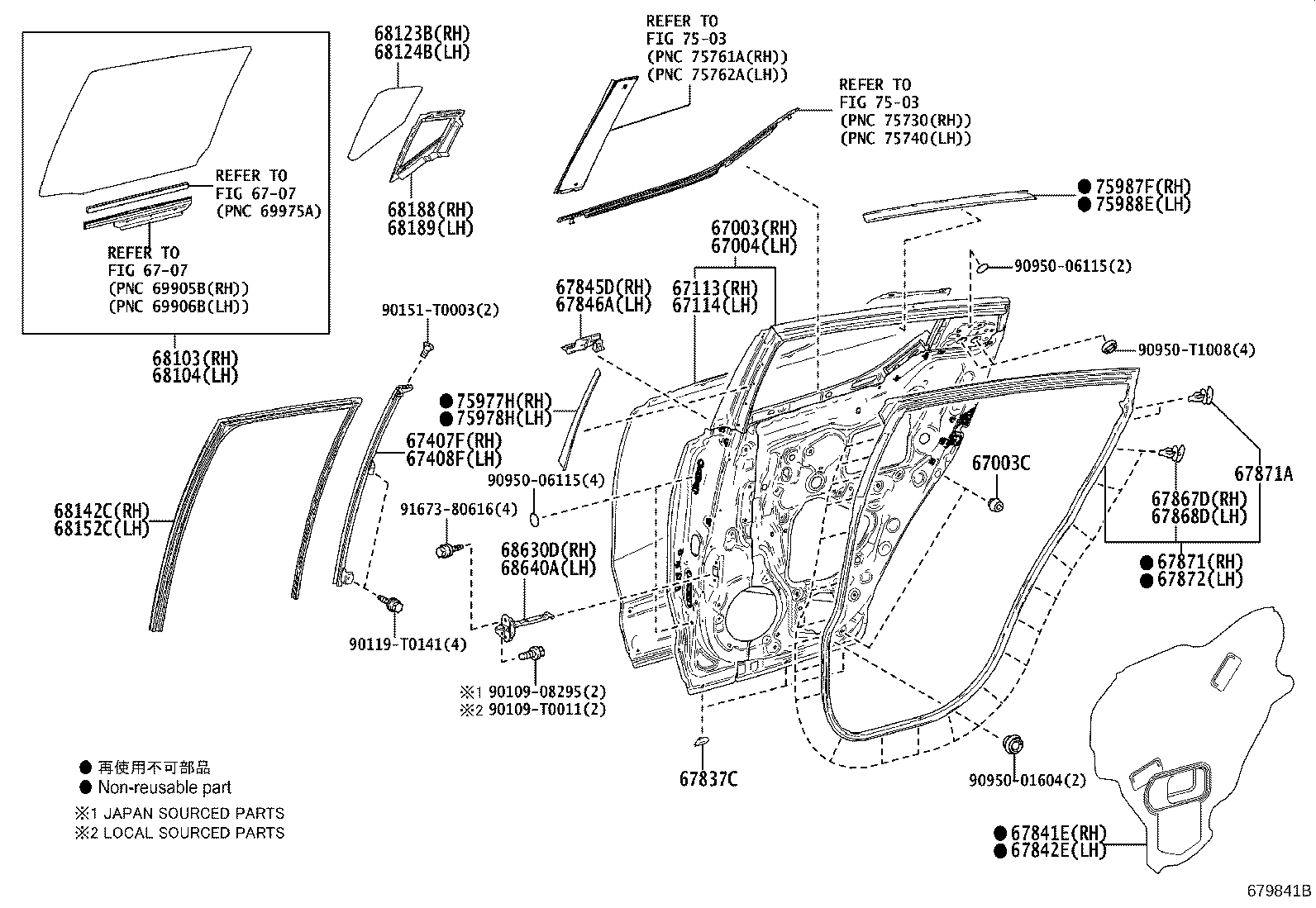

DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-F4030 |
ZYX10 |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09124 |
ZYX10 |
4 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-F4030 |
ZYX10 |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-F4020 |
ZYX10 |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-F4020 |
ZYX10 |
1 | ||
| 67407F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH | ||||
| 67407-F4020 |
ZYX10 |
1 | ||
| 67408F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH | ||||
| 67408-F4020 |
ZYX10 |
1 | ||
| 67837C - SEAL, REAR DOOR DUST PROOF | ||||
| 67837-10041 |
ZYX10 |
6 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-F4030 |
ZYX10 |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-F4030 |
ZYX10 |
1 | ||
| 67845D - SEAL, REAR DOOR FRONT OUTSIDE, RH | ||||
| 67845-10010 |
ZYX10 |
1 | ||
| 67846A - SEAL, REAR DOOR FRONT OUTSIDE, LH | ||||
| 67846-10010 |
ZYX10 |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ZYX10 |
22 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ZYX10 |
22 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-F4020 |
ZYX10 |
1 | ||
| 67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP) | ||||
| 67867-0C010 |
ZYX10 |
4 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-F4020 |
ZYX10 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-F4030 |
ZYX10 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-F4030 |
ZYX10 |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-F4030 |
ZYX10 |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-F4030 |
ZYX10 |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-F4020 |
ZYX10 |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-F4020 |
ZYX10 |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-F4020 |
ZYX10 |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-F4020 |
ZYX10 |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-F4020 |
ZYX10 |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68630-F4020 |
ZYX10 |
1 | ||
| 75977H - STRIPE, REAR DOOR OUTSIDE, LOWER RH | ||||
| 75977-F4020 |
ZYX10 |
1 | ||
| 75978H - STRIPE, REAR DOOR OUTSIDE, LOWER LH | ||||
| 75978-F4020 |
ZYX10 |
1 | ||
| 75987F - STRIPE, REAR DOOR, OUTSIDE, RH | ||||
| 75987-F4020 |
ZYX10 |
1 | ||
| 75988E - STRIPE, REAR DOOR, OUTSIDE LH | ||||
| 75988-F4020 |
ZYX10 |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90109-T0011 | ||||
| 90119-T0141 | ||||
| 90151-T0003 | ||||
| 90950-01604 | ||||
| 90950-06115 | ||||
| 90950-T1008 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 6707 | ||||
| 7503 | ||||
