ZYX10R-CHXEBT (2018)
Toyota C-Hr (Thp)

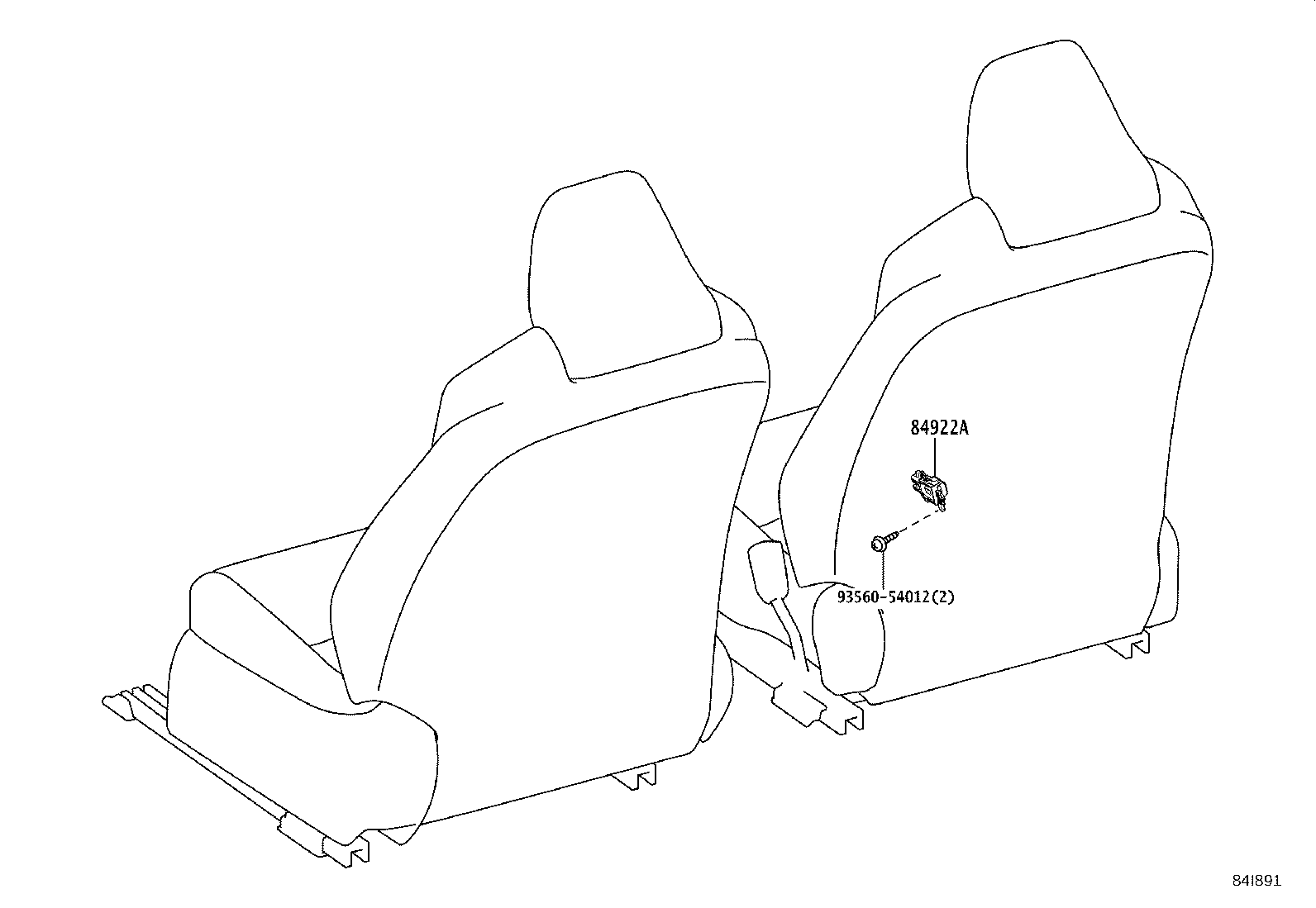

ILLUST NO. 7 OF 9(1802- )E,G
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-33090C0 |
ZYX10 BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 93560-54012 | ||||

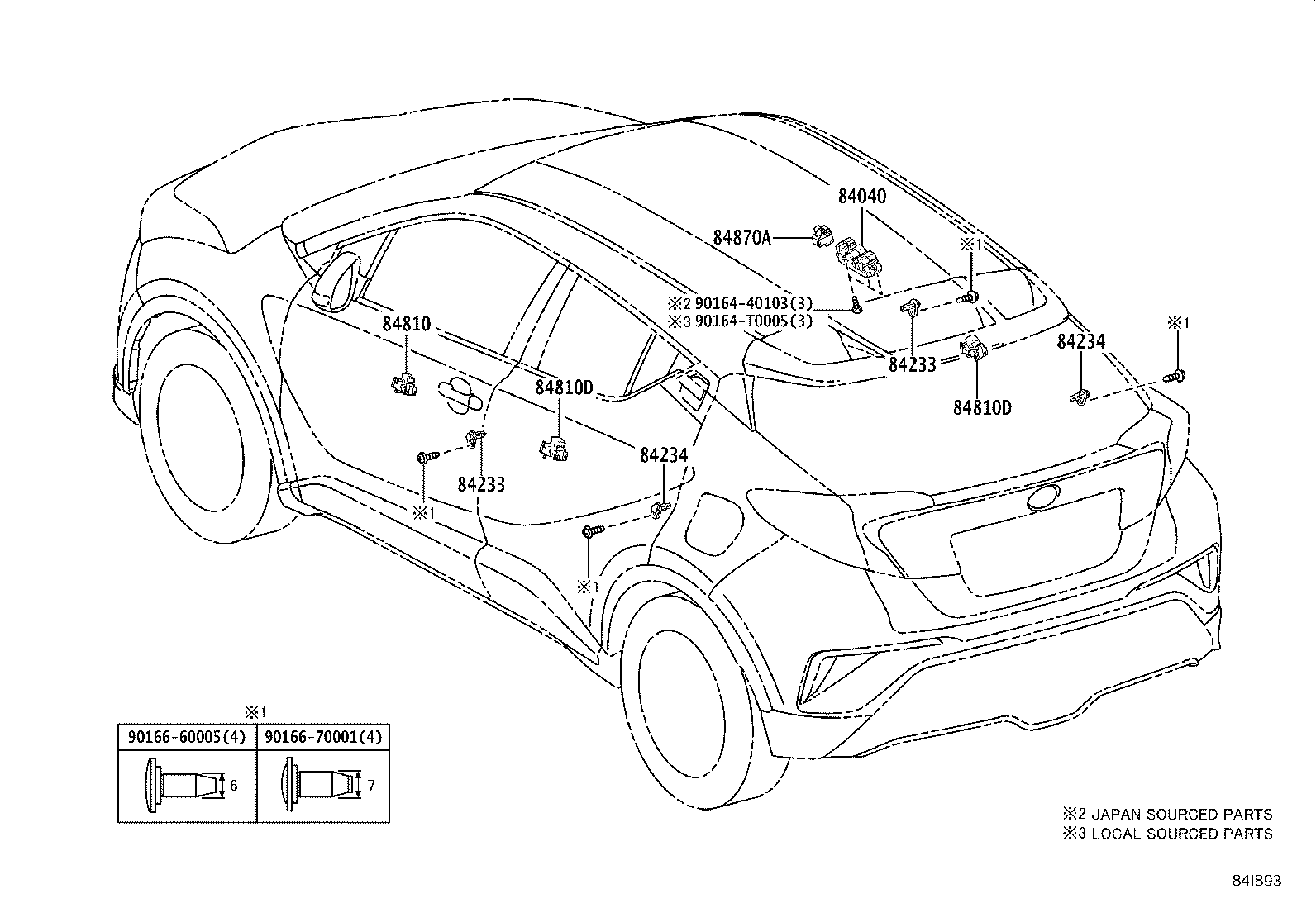

ILLUST NO. 8 OF 9(1802- )
DOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-10010 |
ZYX10 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ZYX10 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ZYX10 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ZYX10 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ZYX10 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-10030 |
ZYX10 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-10030 |
ZYX10 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-10030 |
ZYX10 |
2 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-47060 |
ZYX10 |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90164-T0005 | ||||
| 90166-60005 | ||||
| 90166-70001 | ||||

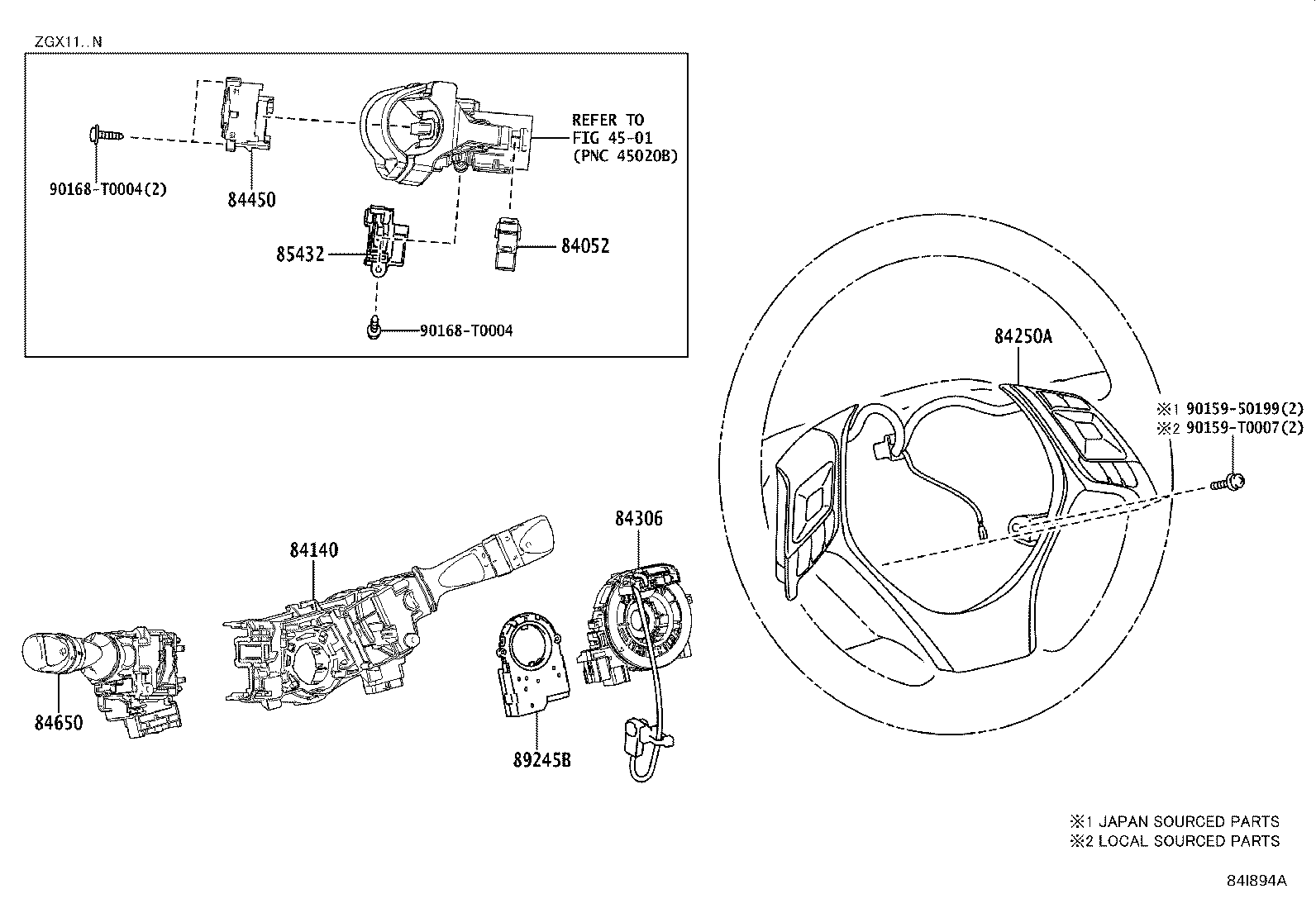

ILLUST NO. 6 OF 9(1802- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-0K570 |
ZYX10 |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-F4110 |
ZYX10..E |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-F4060 |
ZYX10 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-F4101 |
ZYX10..E |
1 | ||
| 84652-F4100 |
ZYX10..E;ZGX11..MA |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-0D010 |
ZYX10 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90159-T0007 | ||||
| 90168-T0004 | ||||
| Linked diagrams | ||||
| 4501 | ||||

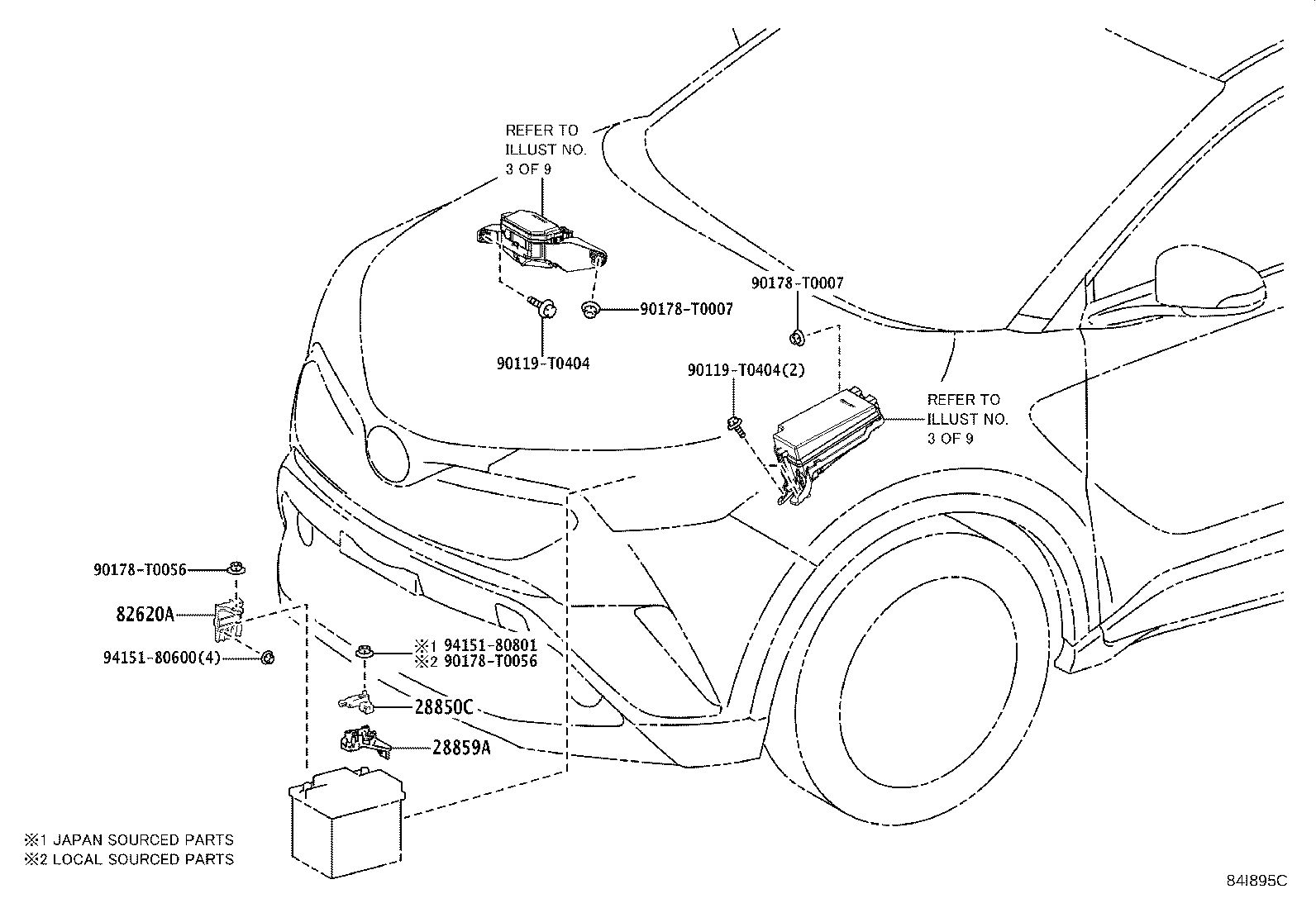

ILLUST NO. 2 OF 9(1802- )ZYX10
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850C - SENSOR ASSY, BATTERY STATE | ||||
| 28850-0Y020 |
2ZRFXE..ZYX10 |
1 | ||
| 28859A - HOLDER, BATTERY CURRENT SENSOR | ||||
| 28859-37040 |
2ZRFXE..ZYX10 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-47090 |
ZYX10 |
1 | ||
| Common parts | ||||
| 90119-T0404 | ||||
| 90178-T0007 | ||||
| 90178-T0056 | ||||
| 94151-80600 | ||||
| 94151-80801 | ||||

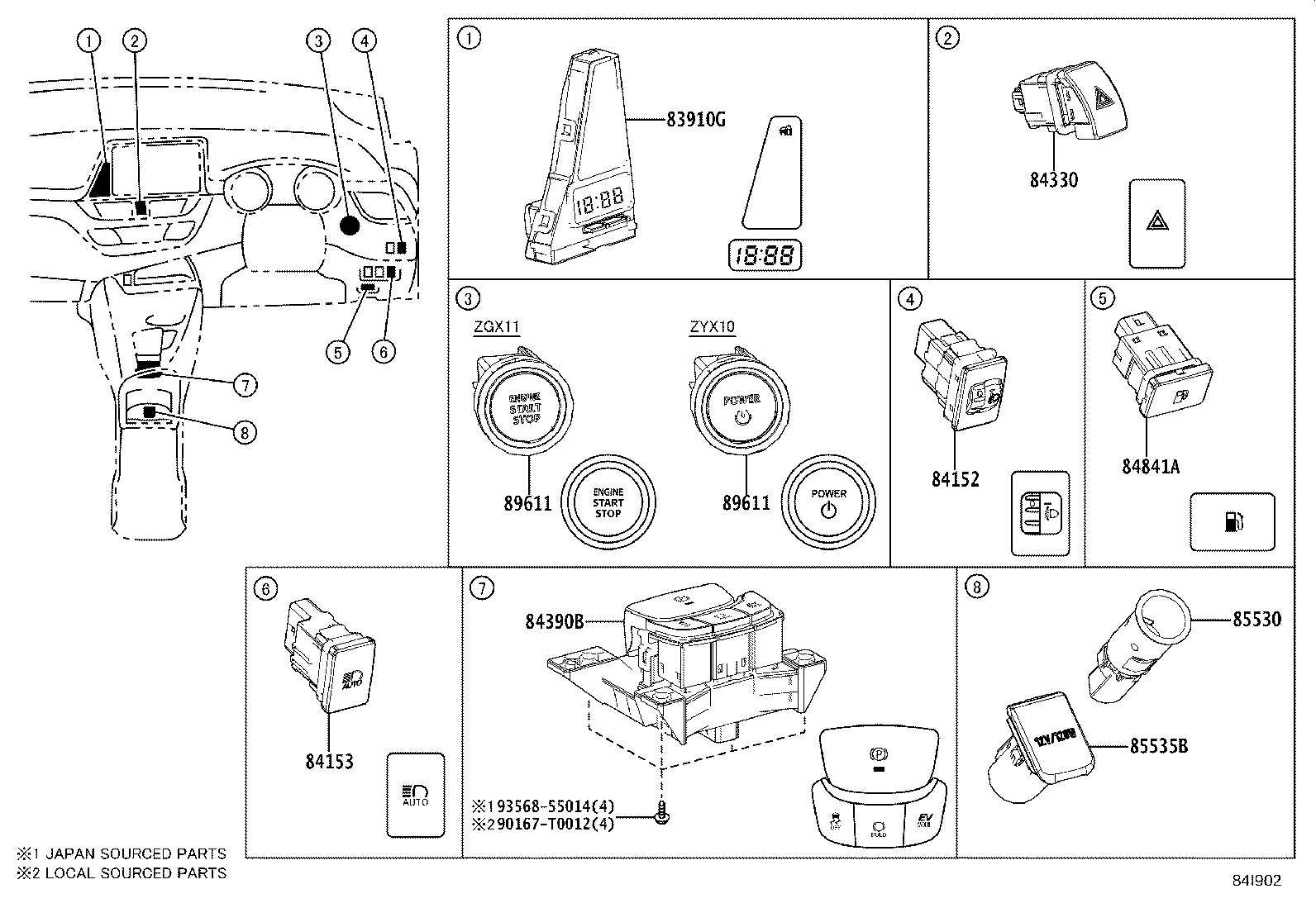

ILLUST NO. 5 OF 9(1802- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910G - CLOCK ASSY | ||||
| 83910-F4070 |
ZYX10 |
1 | ||
| 84153 - SWITCH, AUTO HIGH BEAM | ||||
| 84153-F4020 |
ZYX10..E |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-10200 |
ZYX10 |
1 | ||
| 84390B - SWITCH ASSY, ELECTRIC PARKING BRAKE | ||||
| 84390-10030 |
ZYX10 |
1 | ||
| 84390-10031 |
ZYX10 |
1 | ||
| 84841A - SWITCH, FUEL LID OPENER | ||||
| 84841-F4030 |
ZYX10 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-0K040 |
ZYX10 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-F4010 |
ZYX10 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-06070 |
ZYX10 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-06070 |
ZYX10 |
1 | ||
| Common parts | ||||
| 90167-T0012 | ||||
| 93568-55014 | ||||

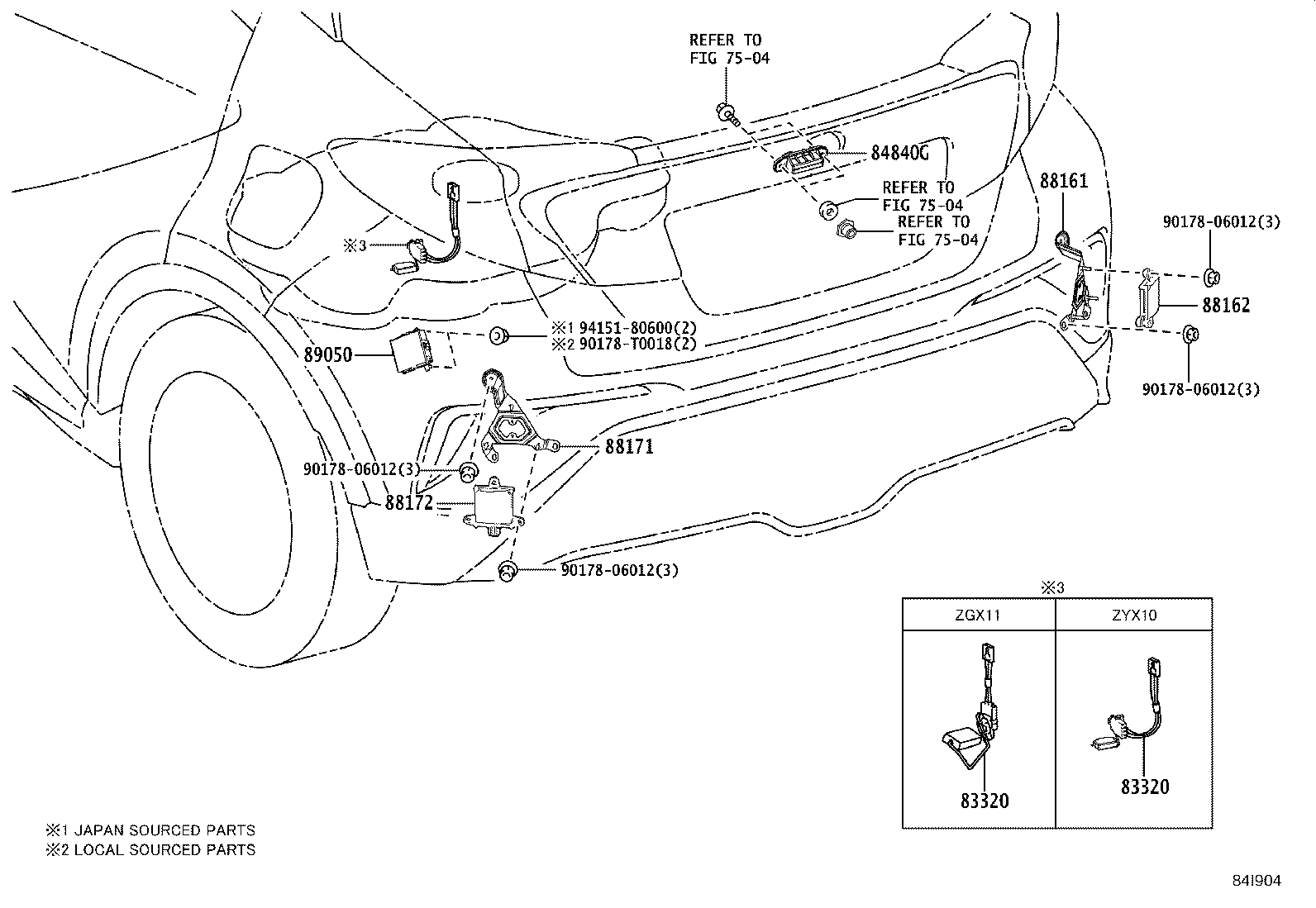

ILLUST NO. 9 OF 9(1802- )
FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-10270 |
ZYX10 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-10270 |
ZYX10 |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-47040 |
ZYX10 |
1 | ||
| 88161 - BRACKET, BLIND SPOT MONITOR, RH | ||||
| 88161-10020 |
ZYX10..E |
1 | ||
| 88162 - SENSOR, BLIND SPOT MONITOR, RH | ||||
| 88162-F4020 |
ZYX10..E;ZGX11..IDN,MA |
1 | ||
| 88162-F4021 |
ZYX10..E |
1 | ||
| 88171 - BRACKET, BLIND SPOT MONITOR, LH | ||||
| 88171-10020 |
ZYX10..E |
1 | ||
| 88172 - SENSOR, BLIND SPOT MONITOR, LH | ||||
| 88162-F4021 |
ZYX10..E |
1 | ||
| 88162-F4020 |
ZYX10..E;ZGX11..IDN,MA |
1 | ||
| 89050 - COMPUTER ASSY, PARKING BRAKE | ||||
| 89050-10010 |
ZYX10 |
1 | ||
| 89050-10011 |
ZYX10 |
1 | ||
| Common parts | ||||
| 90178-06012 | ||||
| 90178-T0018 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 7504 | ||||

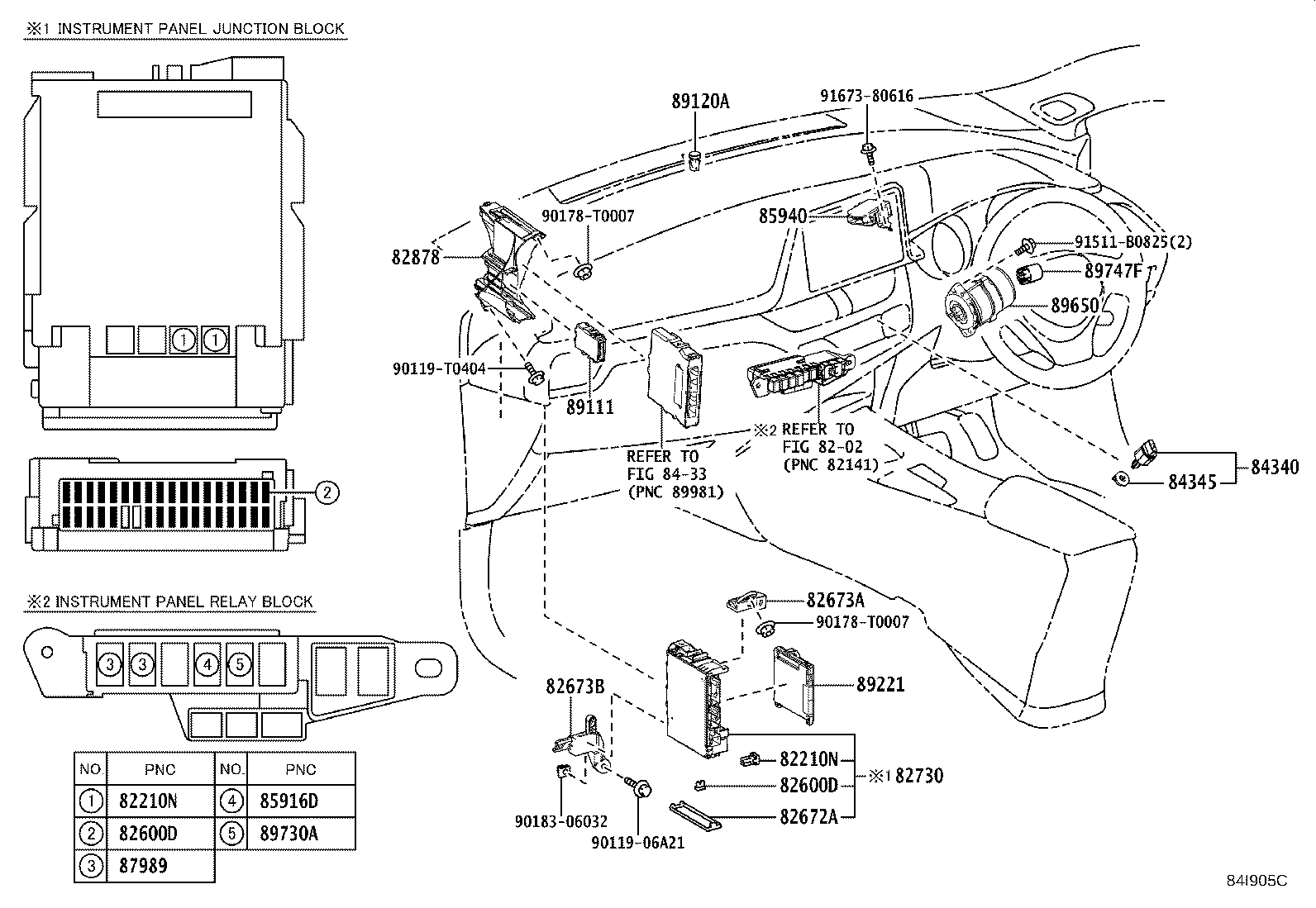

ILLUST NO. 4 OF 9(1802- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ZYX10 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ZYX10 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09021 |
ZYX10 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
ZYX10 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
ZYX10 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
ZYX10 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
ZYX10 20A,MINI FUSE,YELLOW |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09021 |
ZYX10 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
ZYX10 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
ZYX10 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
ZYX10 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
ZYX10 20A,MINI FUSE,YELLOW |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-F4020 |
ZYX10 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-F4090 |
ZYX10 |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-F4100 |
ZYX10 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-F4040 |
ZYX10 |
1 | ||
| 82878 - BOX, COMPUTER INTEGRATION, LH | ||||
| 82878-F4020 |
ZYX10 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09200 |
ZYX10 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-0K010 |
ZYX10 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-T2001 |
ZYX10 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-10060 |
ZYX10..E |
1 | ||
| 87989 - RELAY, MIRROR CONTROL | ||||
| 85927-22010 |
ZYX10 |
2 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-06110 |
ZYX10 |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
ZYX10 |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-10150 |
ZYX10..E |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-10030 |
ZYX10;ZGX11..IDN,MA JTEKT/DENSO |
1 | ||
| 89650-10230 |
ZYX10 JTEKT/DENSO |
1 | ||
| 89730A - RELAY(FOR SECURITY WARNING) | ||||
| 90987-T2001 |
ZYX10 (L) |
1 | ||
| 90987-02027 |
ZYX10 (J) |
1 | ||
| 89747F - BUZZER, BLIND SPOT MONITOR | ||||
| 89747-52010 |
ZYX10..E |
1 | ||
| Common parts | ||||
| 90119-06A21 | ||||
| 90119-T0404 | ||||
| 90178-T0007 | ||||
| 90183-06032 | ||||
| 91511-B0825 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8433 | ||||
ILLUST NO. 3 OF 9(1802- )ZYX10

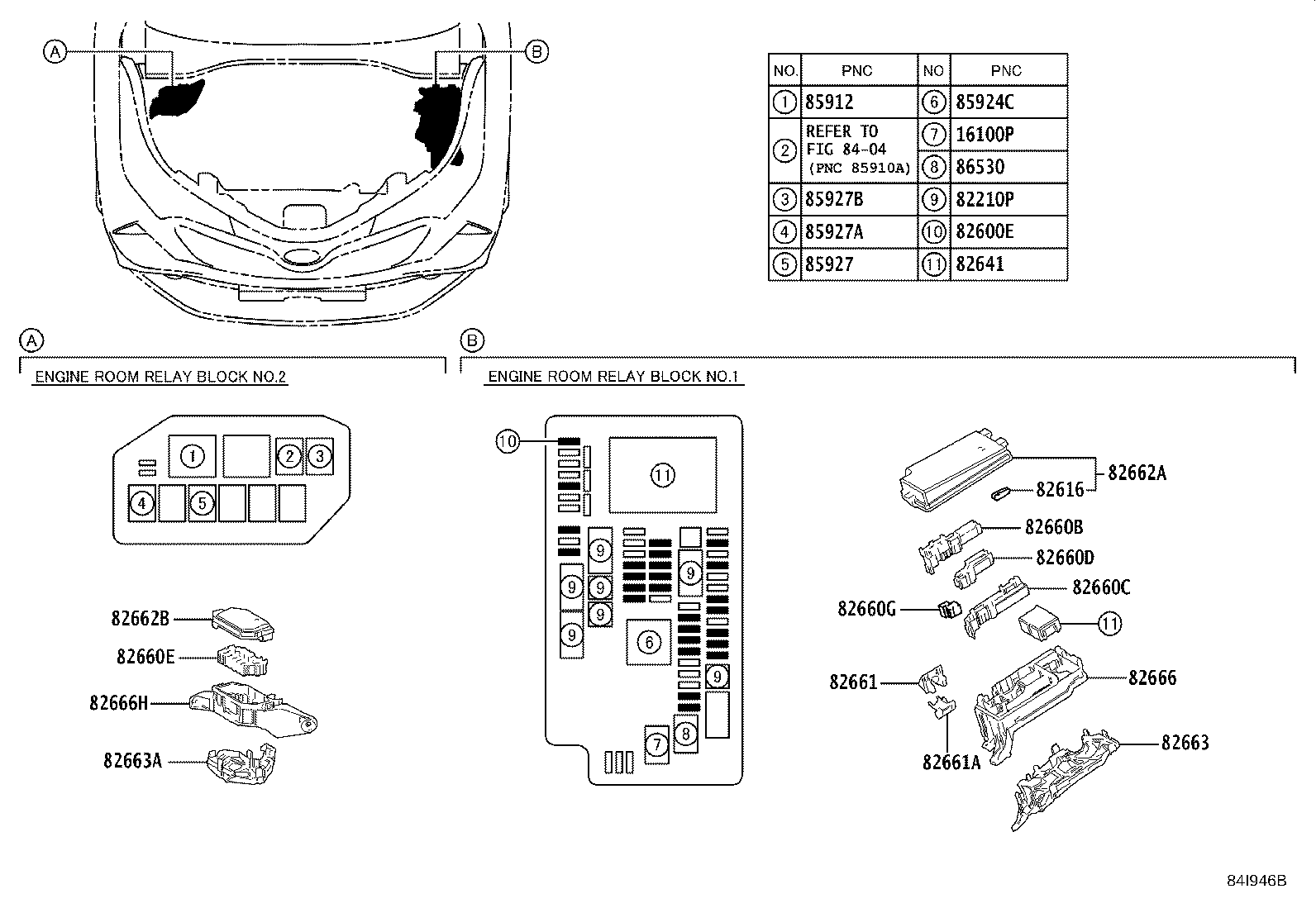

ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100P - RELAY, WATER PUMP | ||||
| 90987-02027 |
2ZRFXE..ZYX10 (J) |
1 | ||
| 90987-T2001 |
2ZRFXE..ZYX10 (L) |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08300 |
ZGX11,ZYX10..TH 50A-30A-30A,FEMALE |
1 | ||
| 90982-08308 |
ZYX10 40A-30A-30A,FEMALE |
1 | ||
| 90982-08302 |
ZYX10 50A-30A-50A,FEMALE |
1 | ||
| 90982-08296 |
ZGX11,ZYX10..TH 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08295 |
ZGX11,ZYX10..TH 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09020 |
ZGX11,ZYX10..TH 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
ZYX10 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
ZGX11,ZYX10..TH 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
ZGX11,ZYX10..TH 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
ZGX11,ZYX10..TH 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
ZGX11,ZYX10..TH 25A,MINI FUSE |
1 | ||
| 90982-09025 |
ZGX11,ZYX10..TH 30A,MINI FUSE,GRN |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ZGX11,ZYX10..TH |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47050 |
ZGX11,ZYX10..TH |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-47070 |
ZYX10 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-47080 |
ZYX10 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-47090 |
ZYX10 |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-47100 |
ZYX10 |
1 | ||
| 82660G - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
ZYX10 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-47020 |
ZYX10 |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82661-47030 |
ZYX10 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-10440 |
ZYX10 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-10450 |
ZYX10 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-47070 |
ZYX10 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-47090 |
ZYX10 |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-47610 |
ZYX10 |
1 | ||
| 82666H - HOLDER, CONNECTOR, NO.2 | ||||
| 82666-47620 |
ZYX10 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-T2003 |
ZYX10 |
1 | ||
| 85924C - RELAY, IGCT | ||||
| 90987-02025 |
ZYX10 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
ZYX10 (J) |
1 | ||
| 90987-T2001 |
ZYX10 (L) |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
ZYX10 (J) |
1 | ||
| 90080-87009 |
ZYX10 (L) |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-T2001 |
ZYX10 (L) |
1 | ||
| 90987-02027 |
ZYX10 (J) |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
ZYX10 (J) |
1 | ||
| 90987-02027 |
ZGX11,ZYX10 |
1 | ||
| 90987-T2001 |
ZYX10 (L) |
1 | ||
| Linked diagrams | ||||
| 8404 | ||||

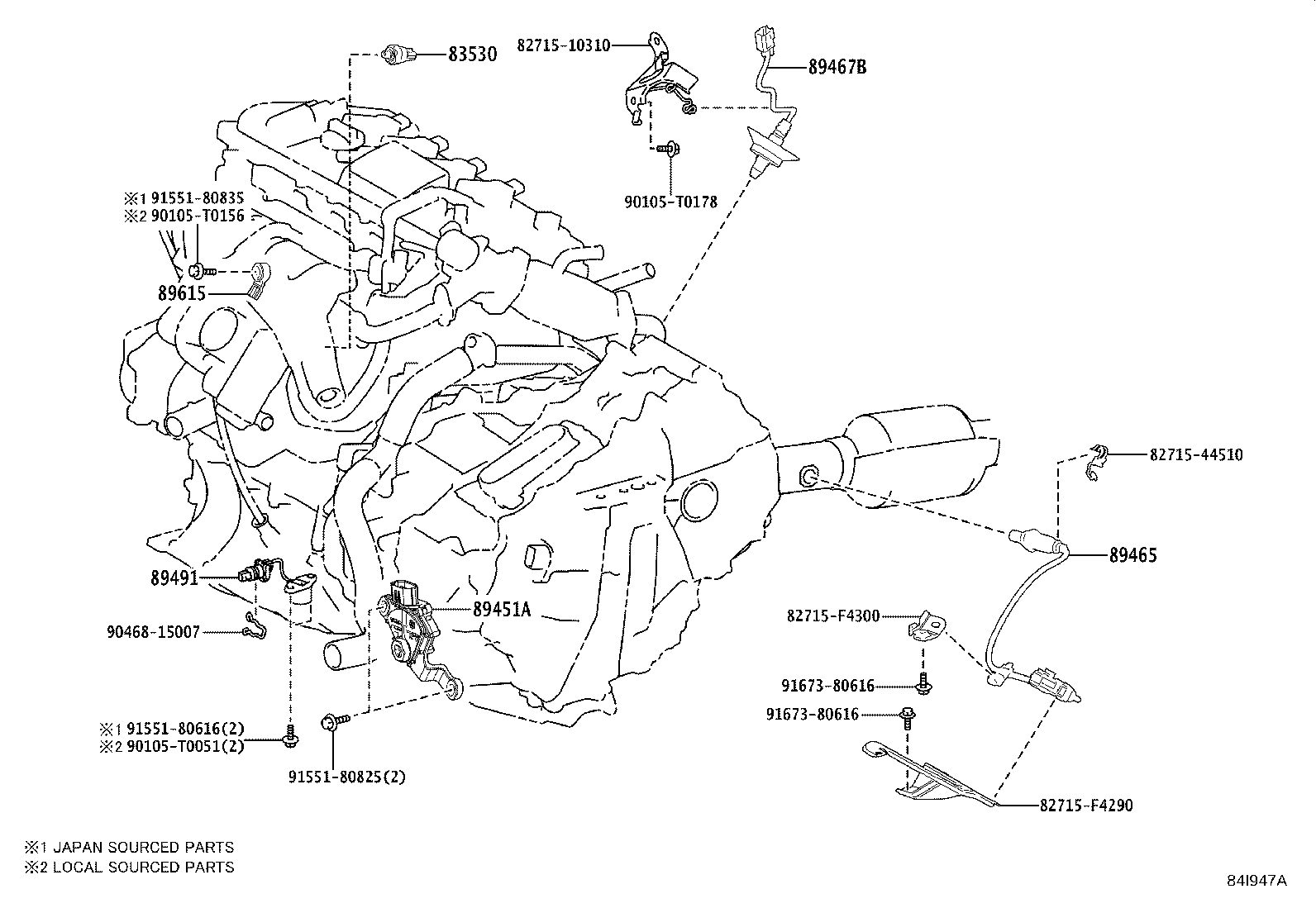

ILLUST NO. 1 OF 9(1802- )ZYX10
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
ZGX11,ZYX10 DENSO |
1 | ||
| 83530-12060 |
ZYX10 |
1 | ||
| 83530-60020 |
ZGX11,ZYX10 YAZAKI |
1 | ||
| 89451A - SENSOR, SHIFT LEVER POSITION | ||||
| 89451-10010 |
ZYX10 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-10080 |
ZYX10 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-47030 |
ZYX10 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-47011 |
ZYX10 |
1 | ||
| 89491-47010 |
ZYX10 |
1 | ||
| 89491-28090 |
ZYX10 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
ZYX10 |
1 | ||
| Common parts | ||||
| 82715-10310 | ||||
| 82715-44510 | ||||
| 82715-F4290 | ||||
| 82715-F4300 | ||||
| 90105-T0051 | ||||
| 90105-T0156 | ||||
| 90105-T0178 | ||||
| 90468-15007 | ||||
| 91551-80616 | ||||
| 91551-80825 | ||||
| 91551-80835 | ||||
| 91673-80616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
