ZGX11R-CHXEGT (2018)
Toyota C-Hr (Thp)
Production
Feb 2018
-
Jun 2020
Engine
2ZRFBE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1802- )2ZRFBE

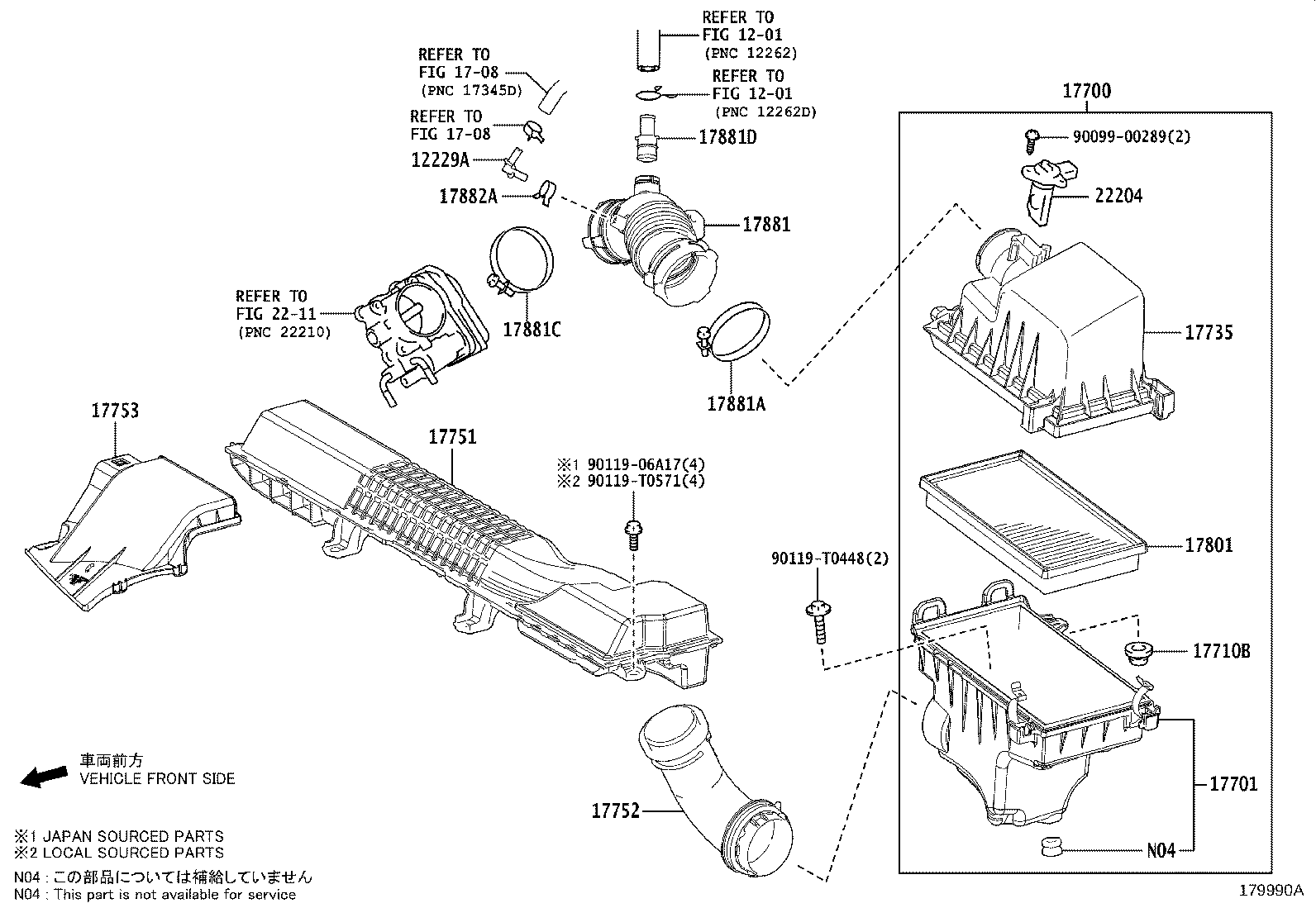

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12229A - PIPE, VENTILATION | ||||
| 12229-0Y050 |
2ZRFBE..ZGX11..TH |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-0T270 |
2ZRFBE..ZGX11..TH |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-0T230 |
2ZRFBE..ZGX11..TH |
1 | ||
| 17710B - GROMMET | ||||
| 90480-18006 |
2ZRFBE..ZGX11..TH |
1 | ||
| 17735 - CAP, AIR CLEANER | ||||
| 17735-0T190 |
2ZRFBE..ZGX11..TH |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-0T260 |
2ZRFBE..ZGX11..TH |
1 | ||
| 17752 - INLET, AIR CLEANER, NO.2 | ||||
| 17752-0T110 |
2ZRFBE..ZGX11..TH |
1 | ||
| 17753 - INLET, AIR CLEANER, NO.3 | ||||
| 17753-0T060 |
2ZRFBE..ZGX11..TH |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-F0030 |
2ZRFBE..ZGX11..TH |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-0T510 |
2ZRFBE..ZGX11..TH |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10780 |
2ZRFBE..ZGX11..TH |
1 | ||
| 17881C - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-T0010 |
2ZRFBE..ZGX11..TH |
1 | ||
| 17881D - TUBE, UNION(FOG AIR CLEANER HOSE) | ||||
| 12229-0Y030 |
2ZRFBE..ZGX11..TH |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90466-T0015 |
2ZRFBE..ZGX11..TH |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-75040 |
2ZRFBE..ZGX11..TH |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-06A17 | ||||
| 90119-T0448 | ||||
| 90119-T0571 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1708 | ||||
| 2211 | ||||
