ZGX11R-CHXEGE (2018)

Toyota C-Hr (Thp)

Production Feb 2018 - Sep 9999
Engine 2ZRFBE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1802- )ZGX11

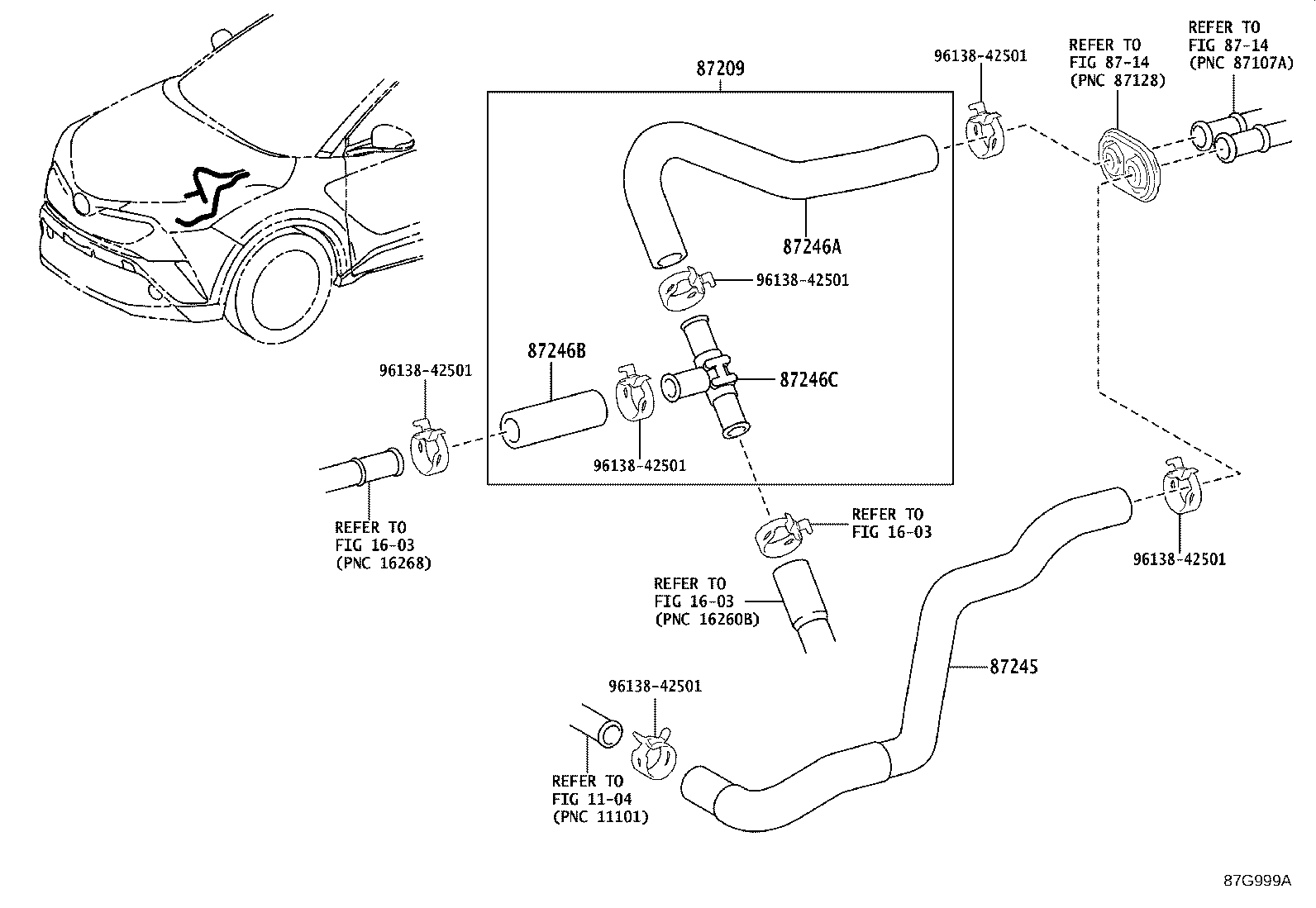

Click highlighted areas on diagram

diagram 1104 1603 1603 1603 8714 8714 87209 87245 87246A 87246B 87246C 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501
Part # Description Qty Price
87209 - HOSE SUB-ASSY, WATER
87209-F4080

ZGX11

 1
87245 - HOSE, HEATER WATER, INLET
87245-F4070

ZGX11..IDN,MA

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-F4080

ZGX11..IDN,MA

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-F4130

ZGX11..IDN,MA

L=70

 1
87246C - HOSE, HEATER WATER, OUTLET C
87248-12300

ZGX11..IDN,MA

 1
Common parts
96138-42501
Linked diagrams
1104
1603
8714
