ZGX11R-CHXEGD (2018)
Toyota C-Hr (Thp)
Production
Feb 2018
-
Sep 9999
Engine
2ZRFBE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1802- )

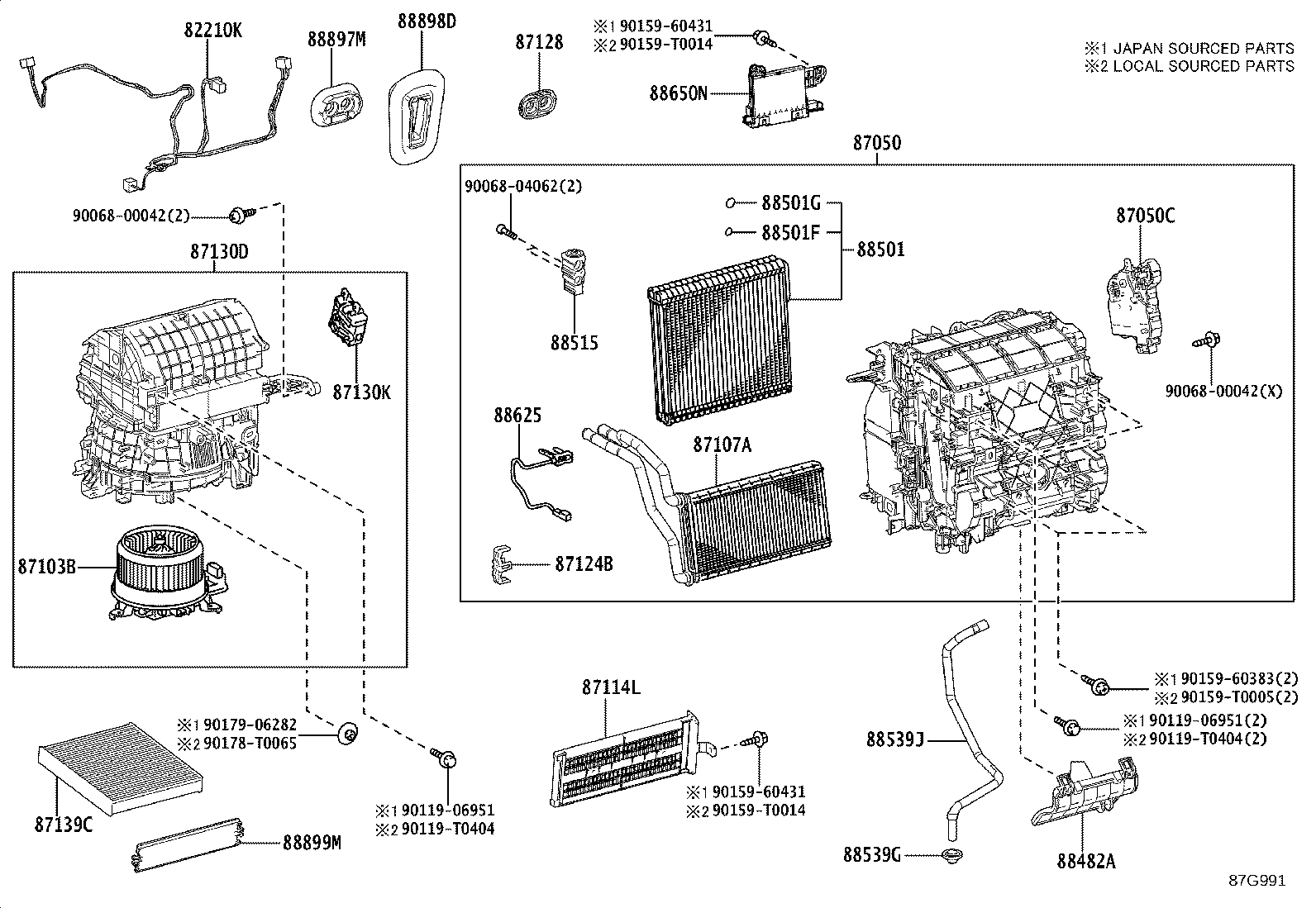

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-F4030 |
ZGX11..IDN,MA |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-F4100 |
ZGX11..IDN,MA |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-F4060 |
ZGX11..IDN,MA |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-F4050 |
ZGX11..IDN,MA |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-F4030 |
ZGX11..IDN,MA |
1 | ||
| 87114L - COVER, HEATER, NO.2 | ||||
| 87114-F4080 |
ZGX11..IDN,MA |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-06140 |
ZGX11..IDN,MA |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-28010 |
ZGX11..IDN,MA |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-F4060 |
ZGX11..IDN,MA |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-F4070 |
ZGX11..IDN,MA |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-58010 |
ZGX11..IDN,MA DEODORANT FILTER |
1 | ||
| 87139-0K070 |
ZGX11..IDN,MA POLLEN FILTER,OE PART |
1 | ||
| 88482A - COVER | ||||
| 87114-F4090 |
ZGX11..IDN,MA |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-F4080 |
ZGX11..IDN,MA |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90068-14044 |
ZGX11..IDN,MA ID=10.2,OD=15.0 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90068-14043 |
ZGX11..IDN,MA ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-F4030 |
ZGX11..IDN,MA |
1 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 88888-47010 |
ZGX11,ZYX10 |
1 | ||
| 88888-02020 |
ZGX11..IDN,MA |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-02520 |
ZGX11..IDN,MA |
1 | ||
| 88539-F4060 |
ZGX11,ZYX10 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0K010 |
ZGX11..IDN,MA |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-F4070 |
ZGX11..IDN,MA |
1 | ||
| 88897M - GROMMET (FOR HEATER PIPE) | ||||
| 87128-F4040 |
ZGX11..IDN,MA |
1 | ||
| 88898D - GROMMET | ||||
| 88899-F4250 |
ZGX11..IDN,MA |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-06330 |
ZGX11..IDN,MA |
1 | ||
| 88548-0K080 |
ZGX11,ZYX10 |
1 | ||
| Common parts | ||||
| 90068-00042 | ||||
| 90068-04062 | ||||
| 90119-06951 | ||||
| 90119-T0404 | ||||
| 90159-60383 | ||||
| 90159-60431 | ||||
| 90159-T0005 | ||||
| 90159-T0014 | ||||
| 90178-T0065 | ||||
| 90179-06282 | ||||
