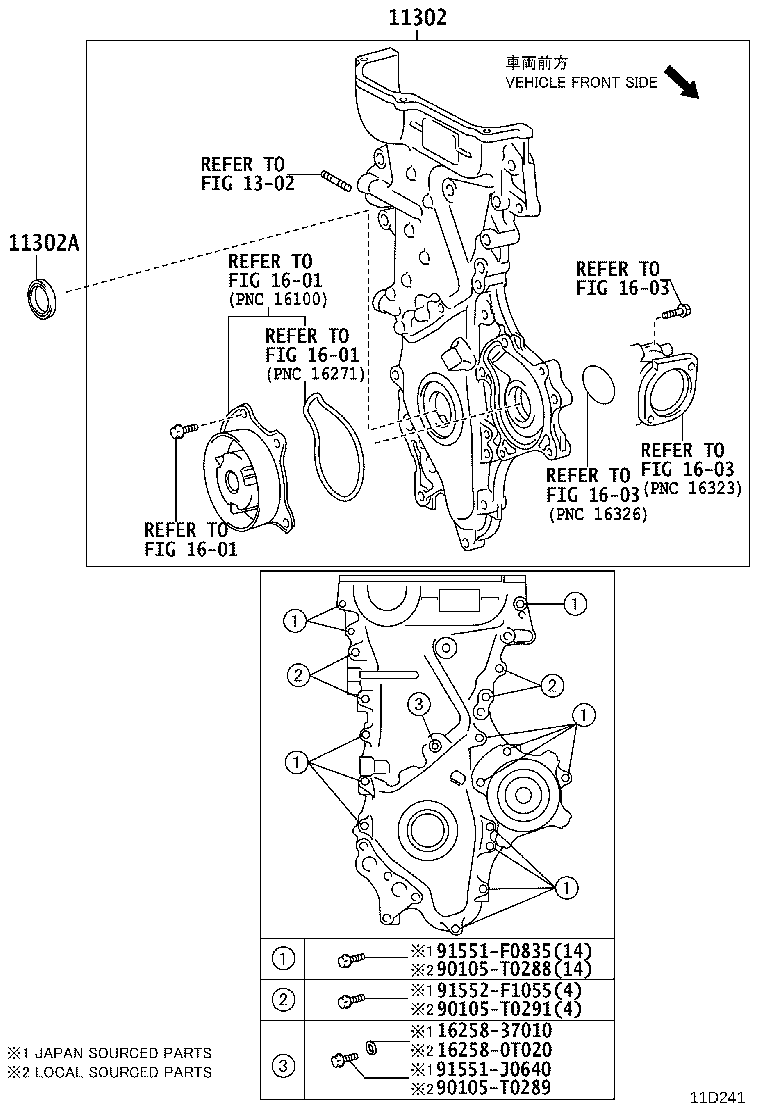

Toyota C-hr (thp) ZGX11 TIMING GEAR COVER & REAR END PLATE

Part #	Description	Period	Qty
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-37040	2ZRFBE..ZGX11..IDN,MA (J)	02/2018 - 05/2021	1
11310-0T140	2ZRFBE..ZGX11..IDN,MA (L)	02/2018 - 05/2021	1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-38096	2ZRFBE..ZGX11..IDN,MA (J)	02/2018 - 05/2021	1
90311-T0048	2ZRFBE..ZGX11..IDN,MA (L)	02/2018 - 05/2021	1
Common parts
16258-0T020
16258-37010
90105-T0288
90105-T0289
90105-T0291
91551-F0835
91551-J0640
91552-F1055
Linked diagrams
1302
1601
1603

ZGX11R-CHXEGD (2018)
