ZYX10R-AHXNBQ (2019)
Toyota C-Hr (Jpp)
(1910- )ZYX10 ; (1910- )NGX10,50..LUX

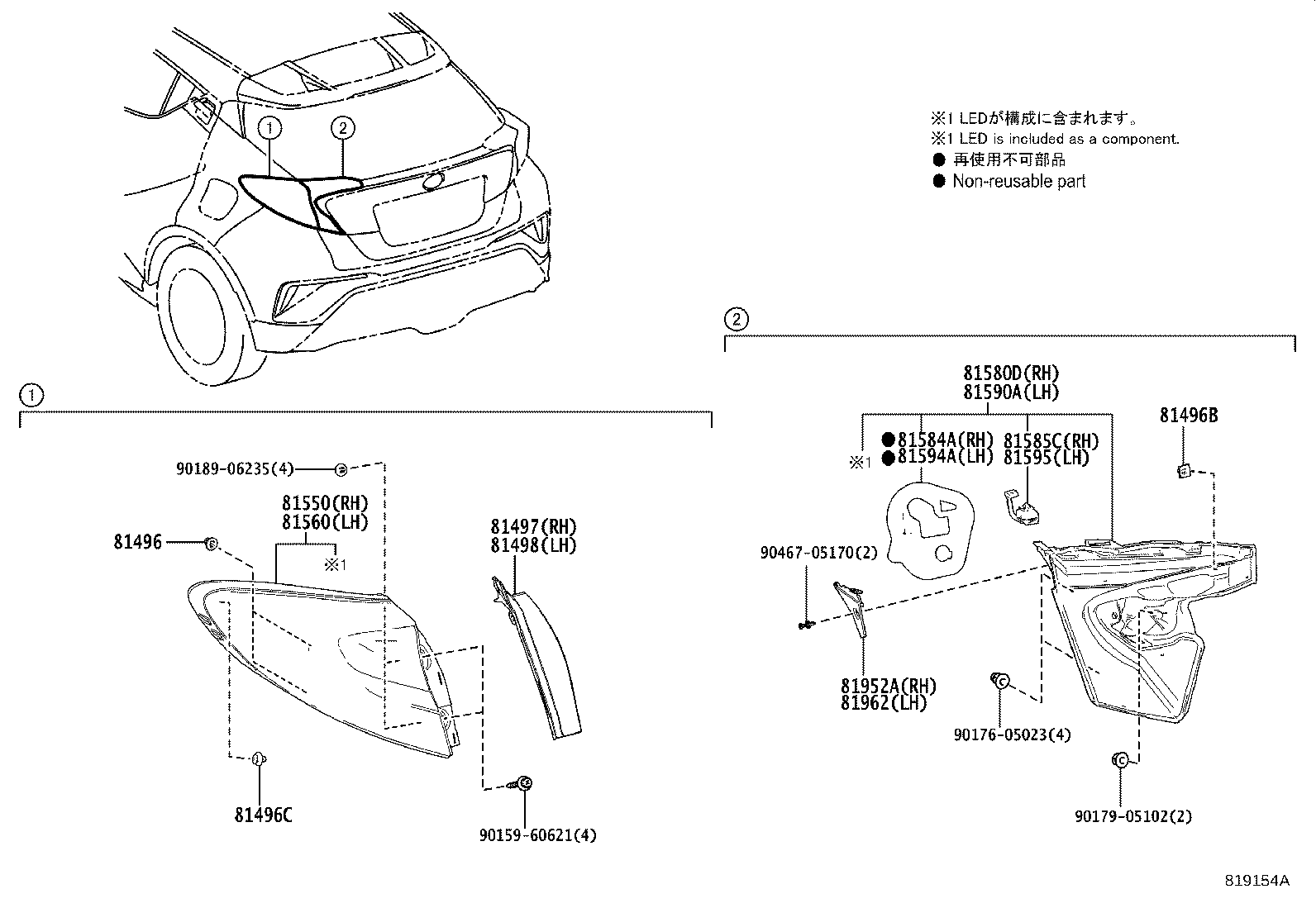

LED TYPE(TURN SIGNAL LAMP)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-52020 |
NGX10,50,ZYX10 |
4 | ||
| 81496B - GUIDE, REAR LAMP | ||||
| 76817-26040 |
NGX10,50,ZYX10 |
2 | ||
| 81496C - GUIDE, REAR COMBINATION LAMP, NO.2 | ||||
| 81496-60010 |
NGX10,50,ZYX10 |
2 | ||
| 81497 - COVER, REAR COMBINATION LAMP, RH | ||||
| 81497-10010 |
NGX10,50,ZYX10 |
1 | ||
| 81498 - COVER, REAR COMBINATION LAMP, LH | ||||
| 81498-10010 |
NGX10,50,ZYX10 |
1 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-10410 |
ZYX10..ACTV GR SPORT&BACK GLASS-PRAIVACY;WITH(SEQUENTIAL TURN LAMP)&HEADLAMP-PROJECTOR & *AHB(GR SPORT) |
1 | ||
| 81551-10380 |
NGX10,50,ZYX10..ACTV |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81561-10380 |
NGX10,50,ZYX10..ACTV |
1 | ||
| 81560-10410 |
ZYX10..ACTV GR SPORT&BACK GLASS-PRAIVACY;WITH(SEQUENTIAL TURN LAMP)&HEADLAMP-PROJECTOR & *AHB(GR SPORT) |
1 | ||
| 81580D - LAMP ASSY, REAR, RH | ||||
| 81581-10011 |
NGX10,50,ZYX10..ACTV |
1 | ||
| 81580-10030 |
ZYX10..ACTV GR SPORT&BACK GLASS-PRAIVACY;WITH(SEQUENTIAL TURN LAMP)&HEADLAMP-PROJECTOR & *AHB(GR SPORT)&REAR COMBINATION LAMP-LED(STOP & TAIL & TURN LAMP) |
1 | ||
| 81584A - GASKET, REAR LAMP RH | ||||
| 81584-10030 |
ZYX10..ACTV GR SPORT&BACK GLASS-PRAIVACY;WITH(SEQUENTIAL TURN LAMP)&HEADLAMP-PROJECTOR & *AHB(GR SPORT)&REAR COMBINATION LAMP-LED(STOP & TAIL & TURN LAMP) |
1 | ||
| 81585C - SOCKET & WIRE, REAR LAMP, RH | ||||
| 81585-10030 |
ZYX10..ACTV GR SPORT&BACK GLASS-PRAIVACY;WITH(SEQUENTIAL TURN LAMP)&HEADLAMP-PROJECTOR & *AHB(GR SPORT)&REAR COMBINATION LAMP-LED(STOP & TAIL & TURN LAMP) |
1 | ||
| 81590A - LAMP ASSY, REAR, LH | ||||
| 81591-10011 |
NGX10,50,ZYX10..ACTV |
1 | ||
| 81590-10030 |
ZYX10..ACTV GR SPORT&BACK GLASS-PRAIVACY;WITH(SEQUENTIAL TURN LAMP)&HEADLAMP-PROJECTOR & *AHB(GR SPORT)&REAR COMBINATION LAMP-LED(STOP & TAIL & TURN LAMP) |
1 | ||
| 81594A - GASKET, REAR LAMP LH | ||||
| 81594-10030 |
ZYX10..ACTV GR SPORT&BACK GLASS-PRAIVACY;WITH(SEQUENTIAL TURN LAMP)&HEADLAMP-PROJECTOR & *AHB(GR SPORT)&REAR COMBINATION LAMP-LED(STOP & TAIL & TURN LAMP) |
1 | ||
| 81595 - SOCKET & WIRE, REAR LAMP, LH | ||||
| 81585-10030 |
ZYX10..ACTV GR SPORT&BACK GLASS-PRAIVACY;WITH(SEQUENTIAL TURN LAMP)&HEADLAMP-PROJECTOR & *AHB(GR SPORT)&REAR COMBINATION LAMP-LED(STOP & TAIL & TURN LAMP) |
1 | ||
| 81952A - COVER, REAR LAMP, RH | ||||
| 81952-10010 |
ZYX10..ACTV GR SPORT&BACK GLASS-PRAIVACY;WITH(SEQUENTIAL TURN LAMP)&HEADLAMP-PROJECTOR & *AHB(GR SPORT) |
1 | ||
| 81962 - COVER, REAR LAMP, LH | ||||
| 81962-10010 |
ZYX10..ACTV GR SPORT&BACK GLASS-PRAIVACY;WITH(SEQUENTIAL TURN LAMP)&HEADLAMP-PROJECTOR & *AHB(GR SPORT) |
1 | ||
| Common parts | ||||
| 90159-60621 | ||||
| 90176-05023 | ||||
| 90179-05102 | ||||
| 90189-06235 | ||||
| 90467-05170 | ||||
