ZYX10R-AHXEBQ (2019)
Toyota C-Hr (Jpp)
Production
Oct 2019
-
Sep 9999
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

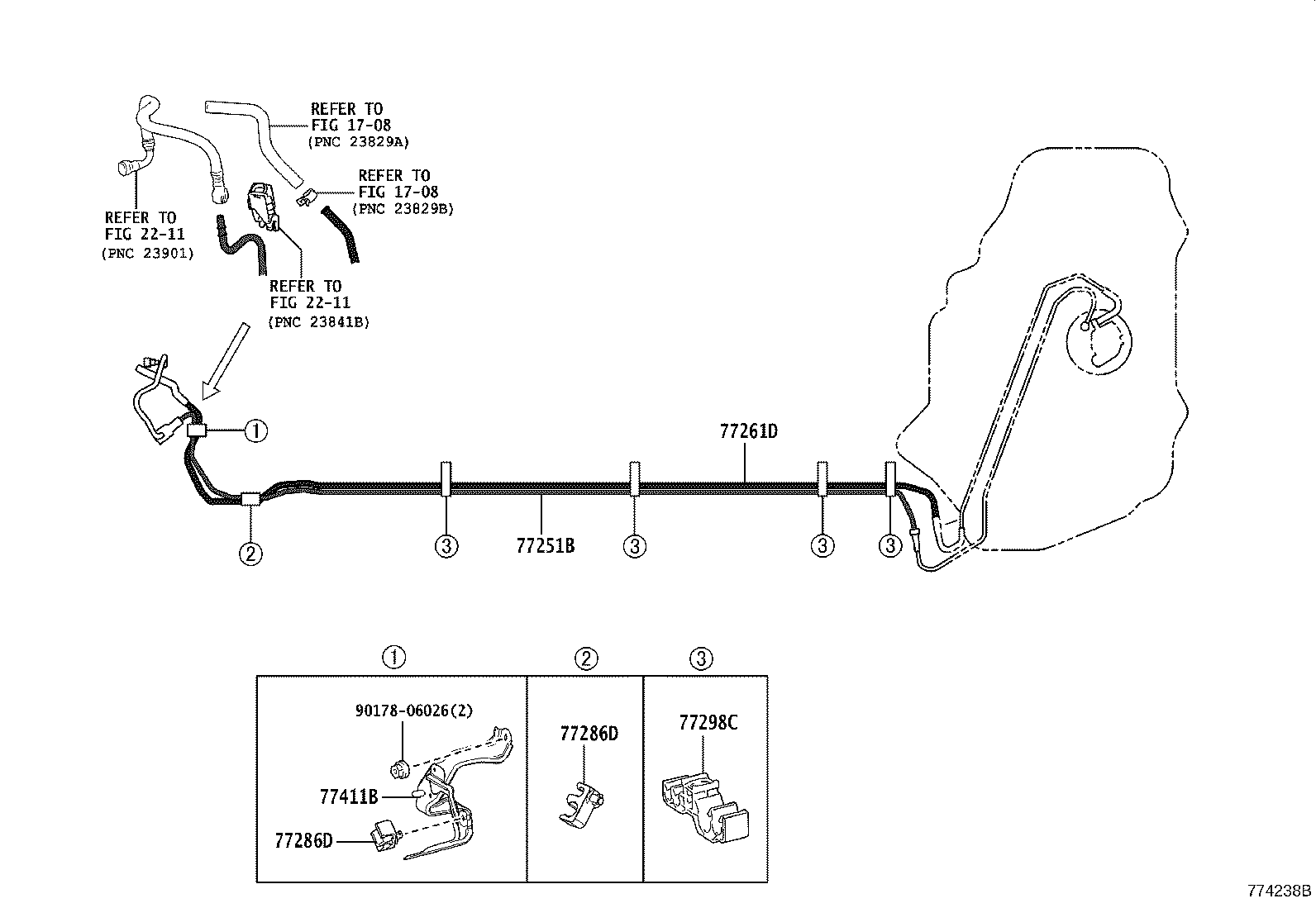

ILLUST NO. 2 OF 3(1910- )ZYX10
Click highlighted areas on diagram
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-10380 |
ZYX10 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-10250 |
ZYX10 |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-78040 |
ZYX10 |
2 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-78040 |
ZYX10 |
2 | ||
| 77298C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-10050 |
ZYX10 |
4 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-47020 |
ZYX10 |
1 | ||
| Common parts | ||||
| 90178-06026 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||

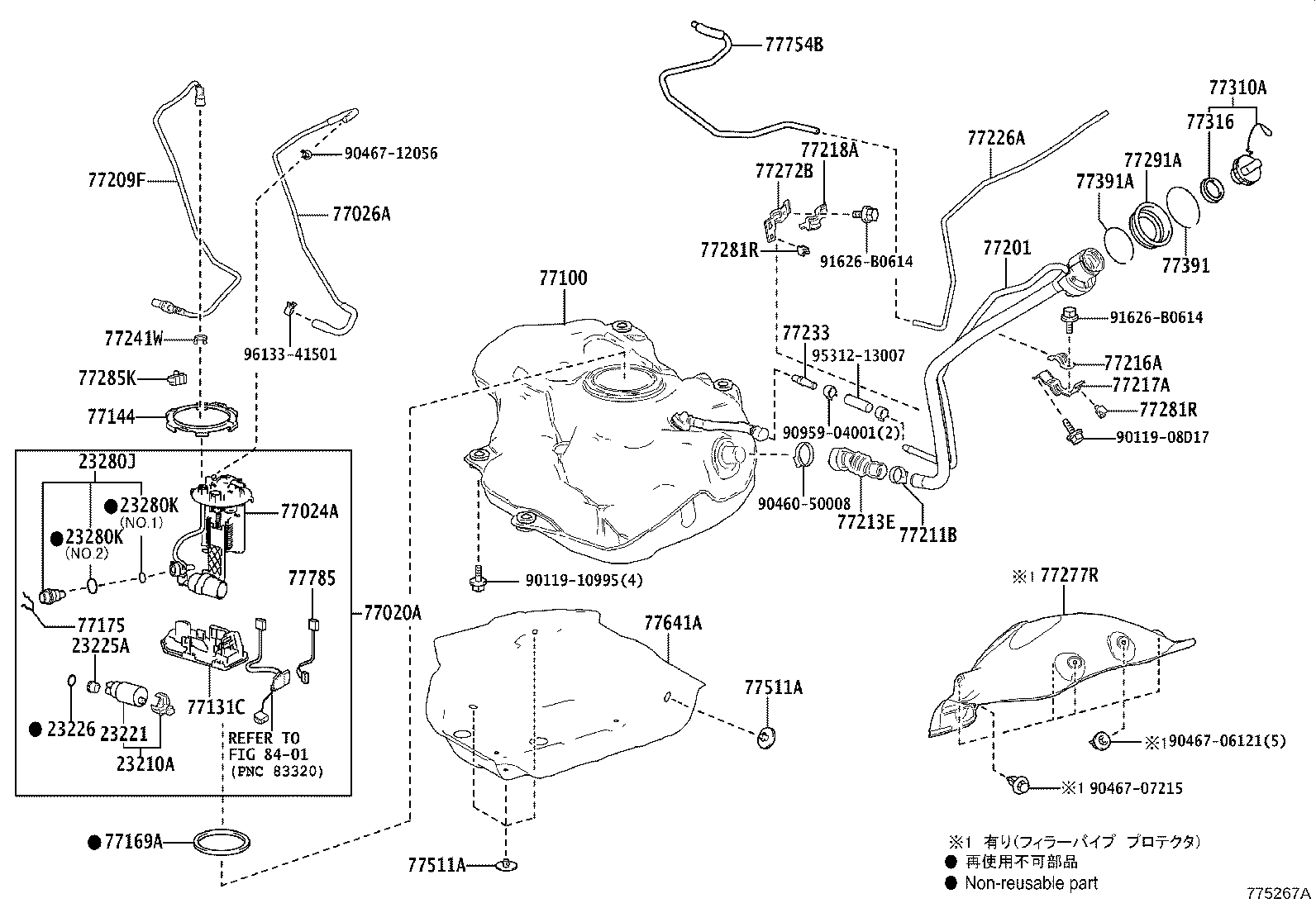

ILLUST NO. 1 OF 3(1910- )ZYX10
Click highlighted areas on diagram
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23210A - PUMP ASSY, FUEL W/MOTOR & BRACKET | ||||
| 23210-37020 |
2ZRFXE..ZYX10 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-21020 |
8NRFTS,2ZRFXE..NGX10,50,ZYX10 |
1 | ||
| 23226 - RING, O(FOR FUEL PUMP) | ||||
| 90301-08020 |
8NRFTS,2ZRFXE..NGX10,50,ZYX10 |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-21010 |
2ZRFXE..ZYX10 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
2ZRFXE..ZYX10 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
2ZRFXE..ZYX10 |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-12A60 |
ZYX10 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-10020 |
ZYX10 |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-47040 |
ZYX10 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-10370 |
ZYX10 |
1 | ||
| 77131C - SUB-TANK, FUEL, NO.1 | ||||
| 77103-12130 |
ZYX10 |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-30030 |
NGX10,ZYX10 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-47030 |
NGX10,ZYX10 |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-78010 |
ZYX10 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-10230 |
NGX10,50,ZYX10 |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-47100 |
ZYX10 |
1 | ||
| 77211B - CLAMP (FOR FUEL FILLER PIPE) | ||||
| 90460-40007 |
NGX10,50,ZYX10 |
1 | ||
| 77213E - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-47120 |
NGX10,50,ZYX10 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-47090 |
NGX10,50,ZYX10 |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-47110 |
NGX10,50,ZYX10 |
1 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-47080 |
NGX10,50,ZYX10 |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-10020 |
NGX10,50,ZYX10 |
1 | ||
| 77233 - JOINT, FUEL HOSE | ||||
| 77233-60020 |
NGX10,50,ZYX10 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
NGX50,ZYX10 |
1 | ||
| 77241-60550 |
NGX50,ZYX10 |
1 | ||
| 77272B - SUPPORT, BREATHER TUBE, NO.1 | ||||
| 77272-47050 |
NGX10,50,ZYX10 |
1 | ||
| 77281R - CLAMP, FUEL FILLER PIPE, NO.2 | ||||
| 77281-30110 |
NGX10,50,ZYX10 |
2 | ||
| 77281R - CLAMP, FUEL FILLER PIPE, NO.2 | ||||
| 77281-30110 |
NGX10,50,ZYX10 |
2 | ||
| 77285K - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-30350 |
NGX50,ZYX10 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-10040 |
NGX10,50,ZYX10 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-12020 |
NGX10,50,ZYX10 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
NGX10,50,ZYX10 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-75010 |
NGX10,50,ZYX10 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
NGX10,50,ZYX10 |
1 | ||
| 77511A - BRACKET, FUEL TANK | ||||
| 77512-35140 |
NGX10,ZYX10 |
4 | ||
| 77511A - BRACKET, FUEL TANK | ||||
| 77512-35140 |
NGX10,ZYX10 |
4 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-47070 |
ZYX10 |
1 | ||
| 77754B - HOSE, CHARCOAL CANISTER OUTLET | ||||
| 77754-47090 |
ZYX10 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-12010 |
NGX50,ZYX10 |
1 | ||
| Common parts | ||||
| 90119-08D17 | ||||
| 90119-10995 | ||||
| 90460-50008 | ||||
| 90467-06121 | ||||
| 90467-07215 | ||||
| 90467-12056 | ||||
| 90959-04001 | ||||
| 91626-B0614 | ||||
| 95312-13007 | ||||
| 96133-41501 | ||||
| Linked diagrams | ||||
| 8401 | ||||
