NGX10R-AHXNXQ (2019)
Toyota C-Hr (Jpp)
Production
Oct 2019
-
Sep 9999
Engine
8NRFTS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1910- )

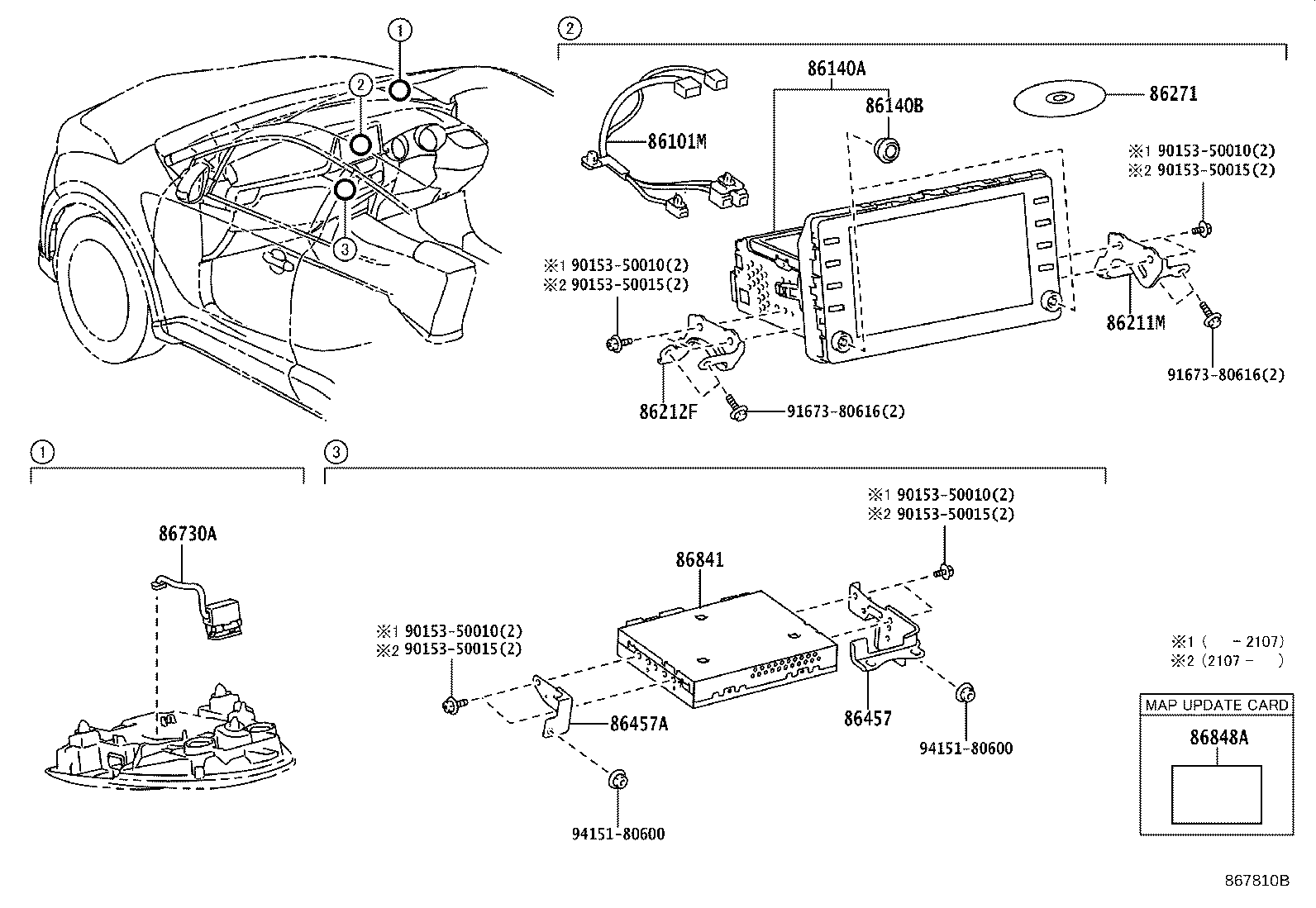

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86101M - CORD SUB-ASSY, ANTENNA | ||||
| 86101-10450 |
NGX10..ACTV SINGAPORE SPEC&AUDIO-RADIO LESS |
1 | ||
| 86101-10450 |
NGX10,50,ZYX10 |
1 | ||
| 86140A - RECEIVER ASSY, RADIO & DISPLAY | ||||
| 86140-10080 |
NGX10..ACTV PIONEER,SINGAPORE SPEC&AUDIO-RADIO LESS |
1 | ||
| 86140-10080 |
NGX10,50,ZYX10 PIONEER |
1 | ||
| 86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH | ||||
| 90010-22129 |
NGX10..ACTV SINGAPORE SPEC&AUDIO-RADIO LESS |
2 | ||
| 90010-22129 |
NGX10,50,ZYX10 |
2 | ||
| 86211M - BRACKET, RADIO RECEIVER, NO.3 | ||||
| 86211-10160 |
NGX10,50,ZYX10 |
1 | ||
| 86212F - BRACKET, RADIO RECEIVER, NO.4 | ||||
| 86212-10160 |
NGX10,50,ZYX10 |
1 | ||
| 86271 - DISC, DISC PLAYER | ||||
| 86807-11043 |
NGX10,50,ZYX10 |
1 | ||
| 86457 - BRACKET, MULTI-MEDIA MODULE NO.1 | ||||
| 86457-10010 |
NGX10,50,ZYX10 |
1 | ||
| 86457-10010 |
NGX10..ACTV SINGAPORE SPEC&AUDIO-RADIO LESS |
1 | ||
| 86457A - BRACKET, MULTI-MEDIA MODULE NO.2 | ||||
| 86457-10020 |
NGX10,50,ZYX10 |
1 | ||
| 86457-10020 |
NGX10..ACTV SINGAPORE SPEC&AUDIO-RADIO LESS |
1 | ||
| 86730A - MICROPHONE ASSY, TELEPHONE | ||||
| 86730-48050 |
NGX10,50,ZYX10 |
1 | ||
| 86841 - COMPUTER, NAVIGATION | ||||
| 86840-K0050 |
NGX10..ACTV SINGAPORE SPEC&AUDIO-RADIO LESS |
1 | ||
| 86840-K0050 |
NGX10,50,ZYX10 |
1 | ||
| 86840-K0051 |
NGX10,50,ZYX10 |
1 | ||
| 86848A - CARD, SERIAL NUMBER MAP UPDATE | ||||
| 86848-33040 |
NGX10,50,ZYX10 |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90153-50015 | ||||
| 91673-80616 | ||||
| 94151-80600 | ||||
