Toyota C-hr (jpp) NGX10 FRONT BUMPER & BUMPER STAY

Manufacturers Home
Toyota
GR
C-HR (JPP)
NGX10R-AHXNXQ (2019)
5201 - FRONT BUMPER & BUMPER STAY

NGX10R-AHXNXQ (2019)

Toyota C-Hr (Jpp)

Production Oct 2019 - Sep 9999

Engine 8NRFTS

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

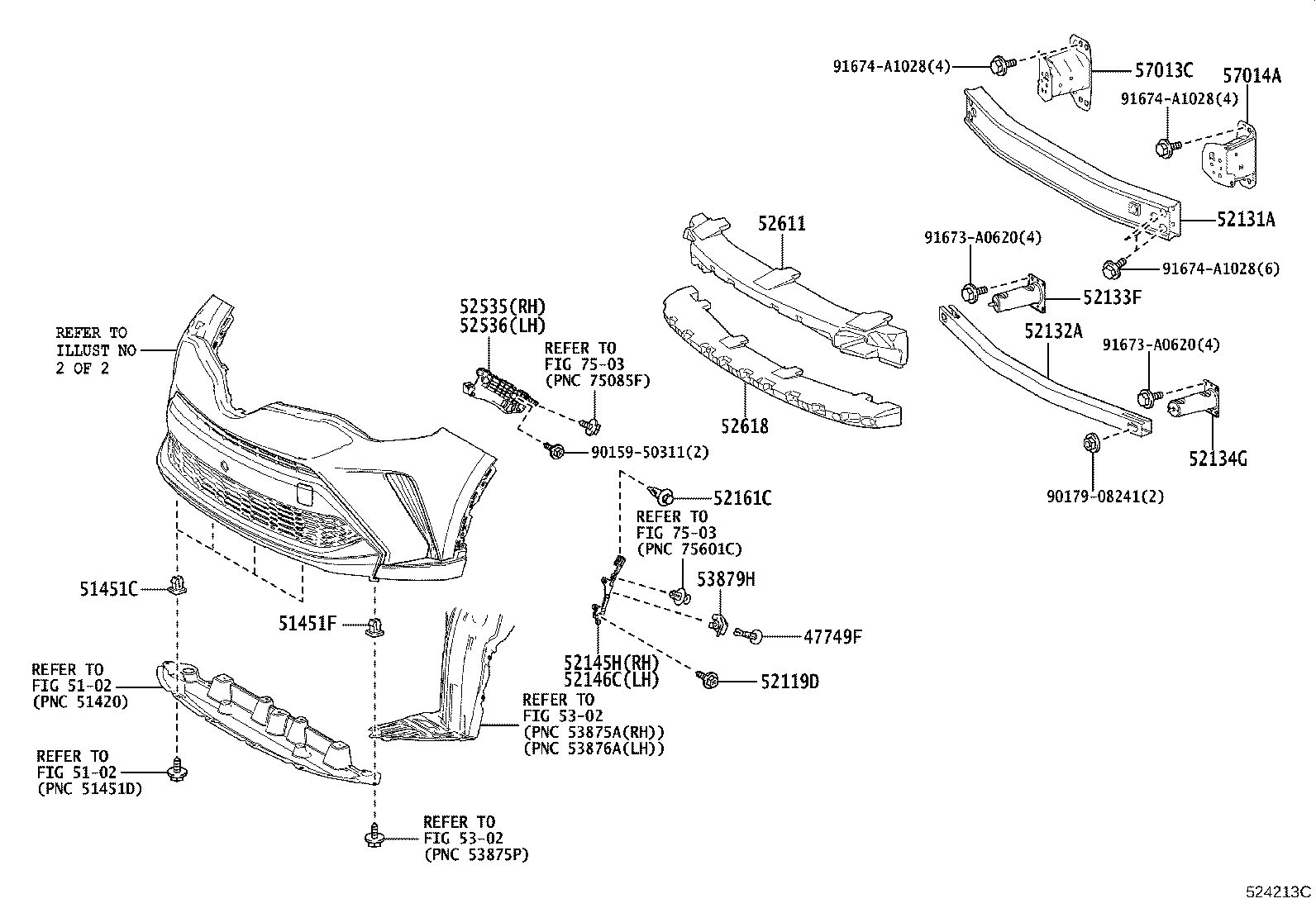

ILLUST NO. 1 OF 2(1910- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
47749F - CLIP, PIN HOLD
47749-50090	NGX10,50,ZYX10	10/2019 - 12/2999	2
51451C - GROMMET(FOR ENGINE UNDER COVER)
90189-06237	NGX10,50,ZYX10	10/2019 - 12/2999	4
51451F - GROMMET, NO.1
90189-06237	NGX10,50,ZYX10	10/2019 - 12/2999	2
52119D - SCREW, NO.1
90159-50388	NGX10,50,ZYX10	10/2019 - 12/2999	2
52131A - REINFORCEMENT, FRONT BUMPER
52131-10110	NGX10,50,ZYX10	10/2019 - 12/2999	1
52132A - REINFORCEMENT, FRONT BUMPER, NO.2
52132-10050	NGX10,50,ZYX10	10/2019 - 12/2999	1
52133F - BRACKET, FRONT BUMPER, RH
52133-10020	NGX10,50,ZYX10	10/2019 - 12/2999	1
52134G - BRACKET, FRONT BUMPER, LH
52133-10020	NGX10,50,ZYX10	10/2019 - 12/2999	1
52145H - STAY, FRONT BUMPER SIDE, RH
52145-10060	NGX10,50,ZYX10	10/2019 - 12/2999	1
52146C - STAY, FRONT BUMPER SIDE, LH
52146-10060	NGX10,50,ZYX10	10/2019 - 12/2999	1
52161C - PIECE, FRONT BUMPER
52161-16010	NGX10,50,ZYX10	10/2019 - 12/2999	4
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-10040	NGX10,50,ZYX10	10/2019 - 12/2999	1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-10040	NGX10,50,ZYX10	10/2019 - 12/2999	1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-10060	NGX10,50,ZYX10	10/2019 - 12/2999	1
52618 - ABSORBER, FRONT BUMPER, LOWER
52618-10040	NGX10,50,ZYX10	10/2019 - 12/2999	1
53879H - RETAINER, FRONT FENDER LINER
53879-30050	NGX10,50,ZYX10	10/2019 - 12/2999	2
57013C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57013-10010	NGX10,50,ZYX10	10/2019 - 12/2999	1
57014A - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
57014-10010	NGX10,50,ZYX10	10/2019 - 12/2999	1
Common parts
90159-50311
90179-08241
91673-A0620
91674-A1028
Linked diagrams
5102
5302
7503

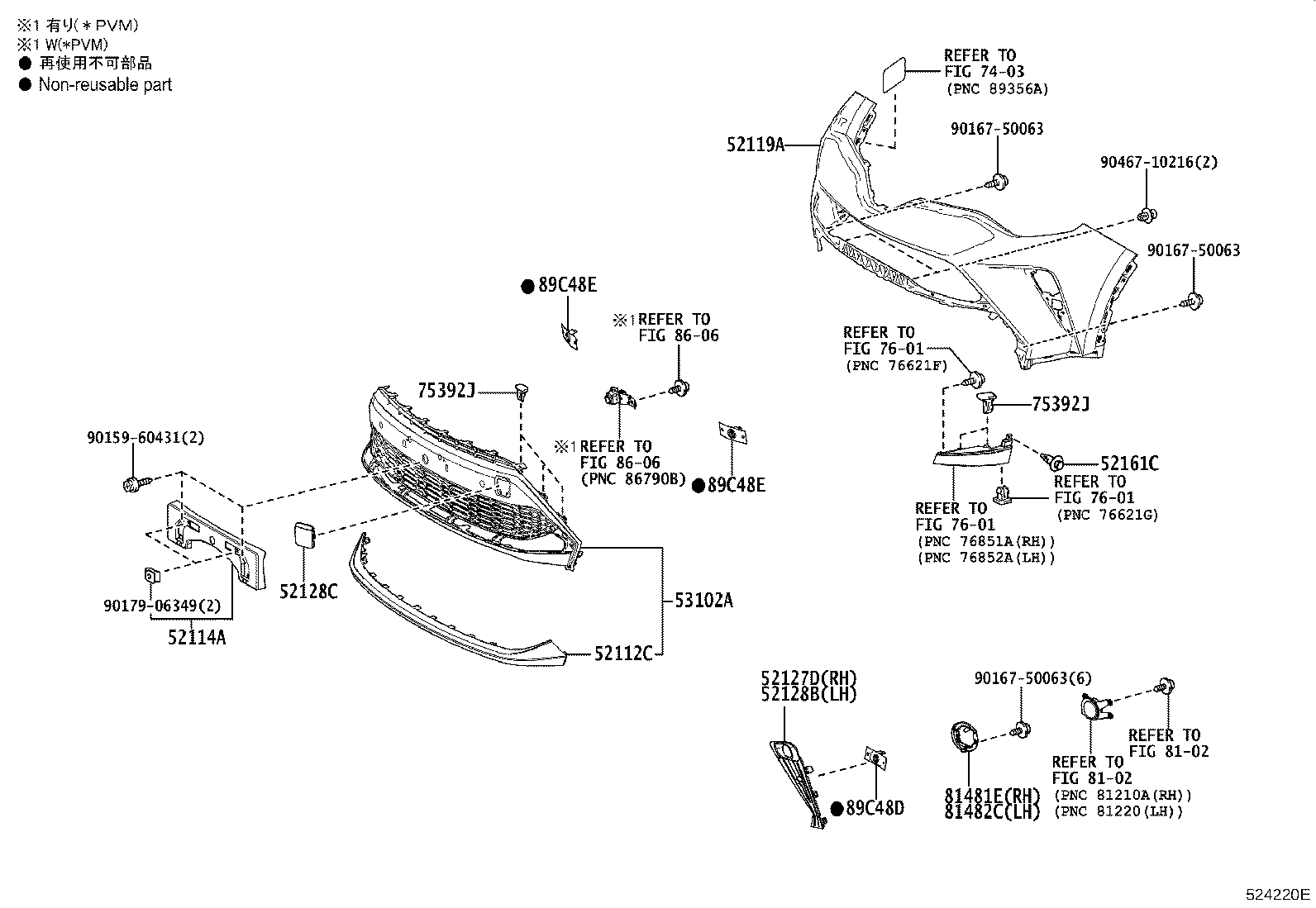

ILLUST NO. 2 OF 2(1910- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
52112C - EXTENSION, FRONT BUMPER
52112-10070B1	NGX10,50,ZYX10..ACTV METAL STREAM ME,1K0	10/2019 - 12/2999	1
52112-10070B0	NGX10,50,ZYX10 GRAY ME.,1G3	10/2019 - 12/2999	1
52112-10070E0	NGX10,50,ZYX10..ACTV ORANGE ME.,4R8	10/2019 - 06/2021	1
52112-10070A0	NGX10,50..ACTV WHITE PEARL CS.,070	10/2019 - 09/2021	1
52112-10070D0	NGX10,50..ACTV EMOTIONAL RED 2,3U5	10/2019 - 12/2999	1
52112-10070G0	NGX10,50,ZYX10..ACTV OXIDE BRONZE ME.,6X1	10/2019 - 12/2999	1
52112-10070F0	NGX10,50..ACTV YELLOW,5A3	10/2019 - 12/2999	1
52112-10070C1	NGX10,50,ZYX10..ACTV BLACK MC.,209	10/2019 - 12/2999	1
52112-10070J0	NGX10,50,ZYX10..ACTV NEBULA BLUE ME.,8X2	10/2019 - 12/2999	1
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-10070	NGX10,50,ZYX10	10/2019 - 12/2999	1
52119A - COVER, FRONT BUMPER
52119-10919	NGX10,50,ZYX10..ACTV PAINT REQ.	10/2019 - 12/2999	1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-10100	NGX10,50,ZYX10	10/2019 - 12/2999	1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-10090	NGX10,50,ZYX10	10/2019 - 12/2999	1
52128C - COVER, FRONT BUMPER HOLE, LH
52128-10100	NGX10,50,ZYX10	10/2019 - 12/2999	1
52161C - PIECE, FRONT BUMPER
52161-16010	NGX10,50,ZYX10	10/2019 - 12/2999	4
53102A - GRILLE SUB-ASSY, RADIATOR, LWR
53102-10060A0	NGX10,50..ACTV WHITE PEARL CS.,070	10/2019 - 09/2021	1
53102-10060B1	NGX10,50,ZYX10..ACTV METAL STREAM ME,1K0	10/2019 - 12/2999	1
53102-10060E0	NGX10,50,ZYX10..ACTV ORANGE ME.,4R8	10/2019 - 06/2021	1
53102-10060C0	NGX10,50,ZYX10..ACTV BLACK MC.,209	10/2019 - 12/2999	1
53102-10060D0	NGX10,50..ACTV EMOTIONAL RED 2,3U5	10/2019 - 12/2999	1
53102-10060F0	NGX10,50..ACTV YELLOW,5A3	10/2019 - 12/2999	1
53102-10060G0	NGX10,50,ZYX10..ACTV OXIDE BRONZE ME.,6X1	10/2019 - 12/2999	1
53102-10060B0	NGX10,50,ZYX10..ACTV GRAY ME.,1G3	10/2019 - 12/2999	1
53102-10060J0	NGX10,50,ZYX10..ACTV NEBULA BLUE ME.,8X2	10/2019 - 12/2999	1
75392J - RETAINER, OUTSIDE MOULDING
75392-35200	NGX10,50,ZYX10	10/2019 - 12/2999	10
75392J - RETAINER, OUTSIDE MOULDING
75392-35200	NGX10,50,ZYX10	10/2019 - 12/2999	10
81481E - COVER, FOG LAMP, RH
81481-10080	NGX10,50,ZYX10	10/2019 - 12/2999	1
81482C - COVER, FOG LAMP, LH
81482-10050	NGX10,50,ZYX10	10/2019 - 12/2999	1
89C48D - RETAINER, ULTRASONIC SENSOR, FRONT CORNER
89348-10050C0	NGX10,50,ZYX10 DUMMY-MAT BLACK	10/2019 - 12/2999	2
89C48E - RETAINER, ULTRASONIC SENSOR, FRONT CENTER
89348-62140C2	NGX10,50,ZYX10 DUMMY-MAT BLACK,LH	10/2019 - 12/2999	1
89348-62130C2	NGX10,50,ZYX10 DUMMY-MAT BLACK,RH	10/2019 - 12/2999	1
89C48E - RETAINER, ULTRASONIC SENSOR, FRONT CENTER
89348-62140C2	NGX10,50,ZYX10 DUMMY-MAT BLACK,LH	10/2019 - 12/2999	1
89348-62130C2	NGX10,50,ZYX10 DUMMY-MAT BLACK,RH	10/2019 - 12/2999	1
Common parts
90159-60431
90167-50063
90179-06349
90467-10216
Linked diagrams
7403
7601
8102
8606

NGX10R-AHXNXQ (2019)

ILLUST NO. 1 OF 2(1910- )

ILLUST NO. 2 OF 2(1910- )
