NGX10R-AHXNXQ (2019)
Toyota C-Hr (Jpp)
Production
Oct 2019
-
Sep 9999
Engine
8NRFTS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1910- )8NRFTS

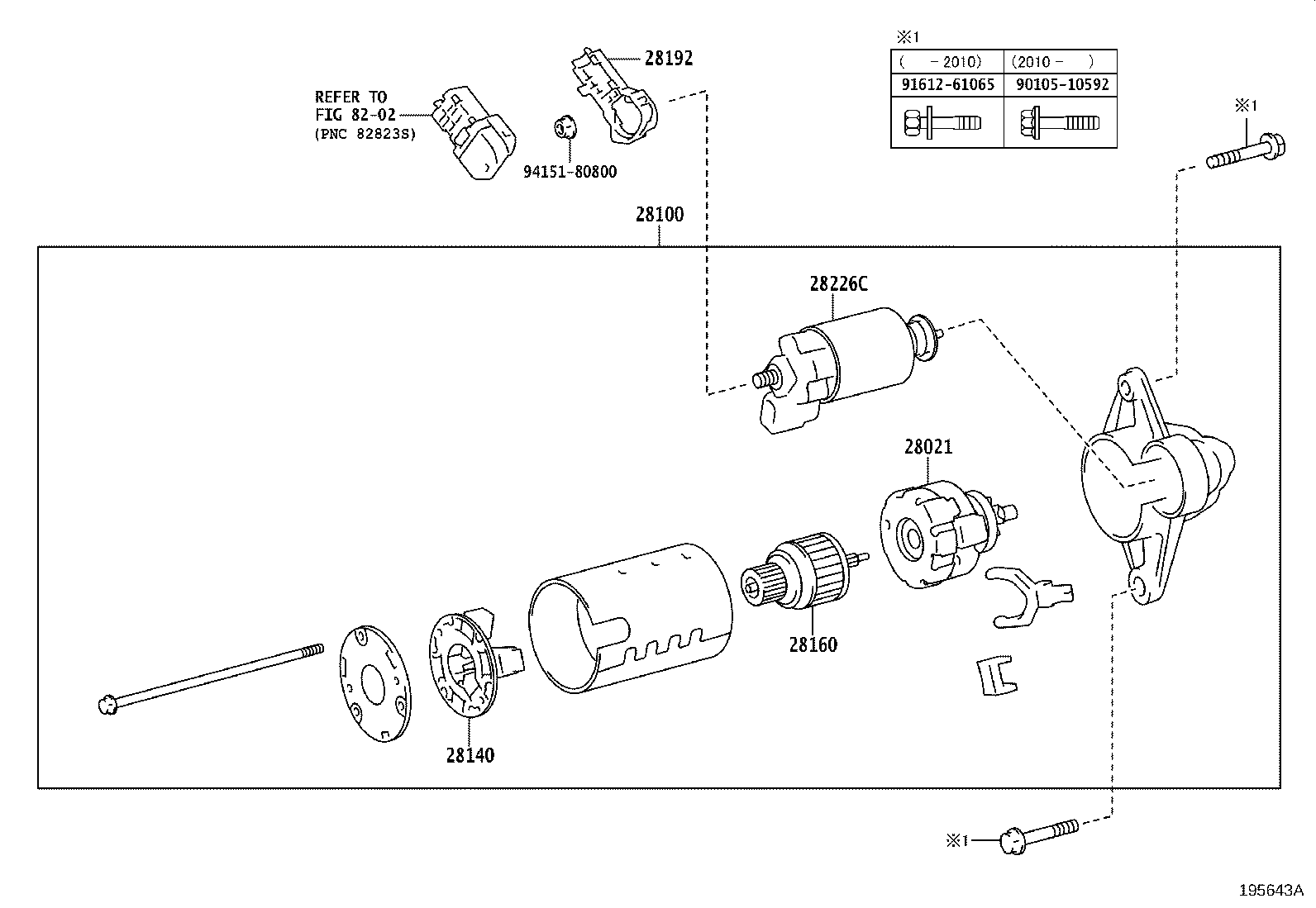

Click highlighted areas on diagram
12V 1.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING | ||||
| 28021-47170 |
8NRFTS..NGX10,50 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-37150 |
8NRFTS..NGX10,50 12V 1.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-21070 |
8NRFTS..NGX10,50 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-21070 |
8NRFTS..NGX10,50 |
1 | ||
| 28192 - COVER, STARTER | ||||
| 28192-47020 |
8NRFTS..NGX10,50 |
1 | ||
| 28226C - STARTER KIT, REPAIR SERVICE, NO.2 | ||||
| 28226-37130 |
8NRFTS..NGX10,50 |
1 | ||
| Common parts | ||||
| 90105-10592 | ||||
| 91612-61065 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||
